Hella 002768382 - Horn Disc 24V 335Hz Ltone (B36)

Hella  |  SKU: HLA-002768382
Sale price $3199 Regular price $3519

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

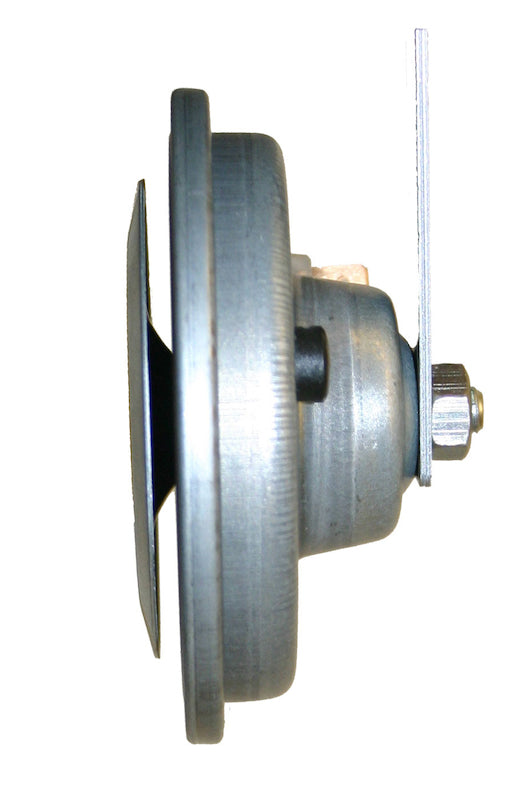

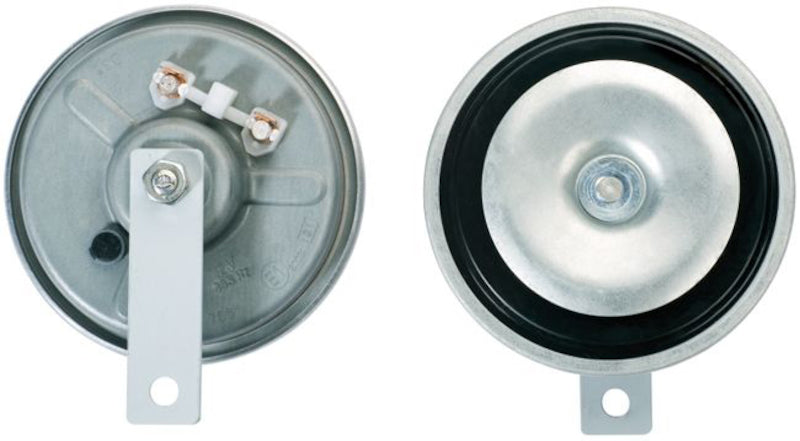

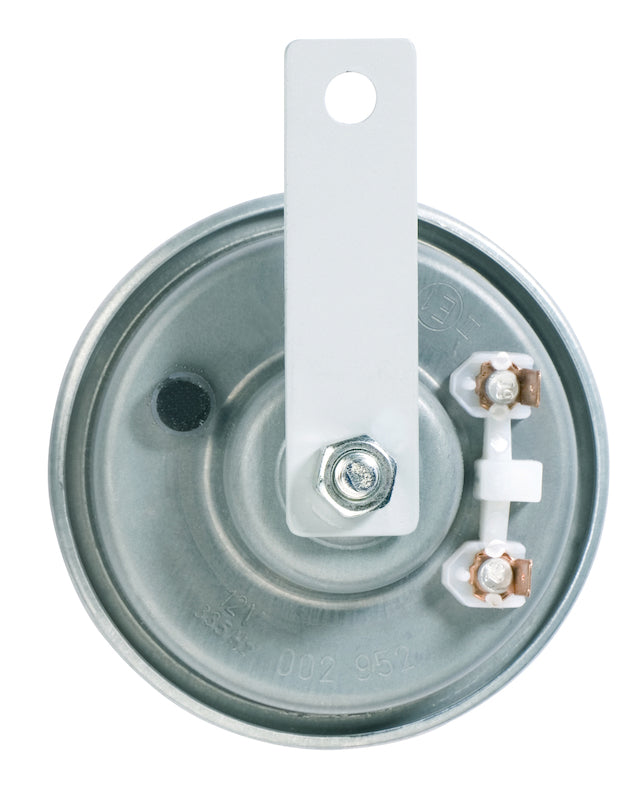

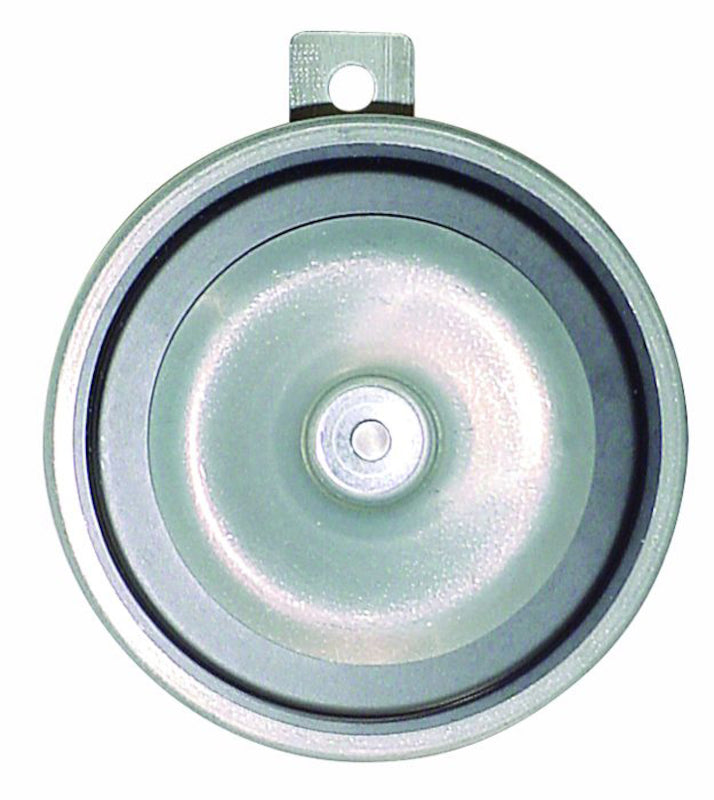

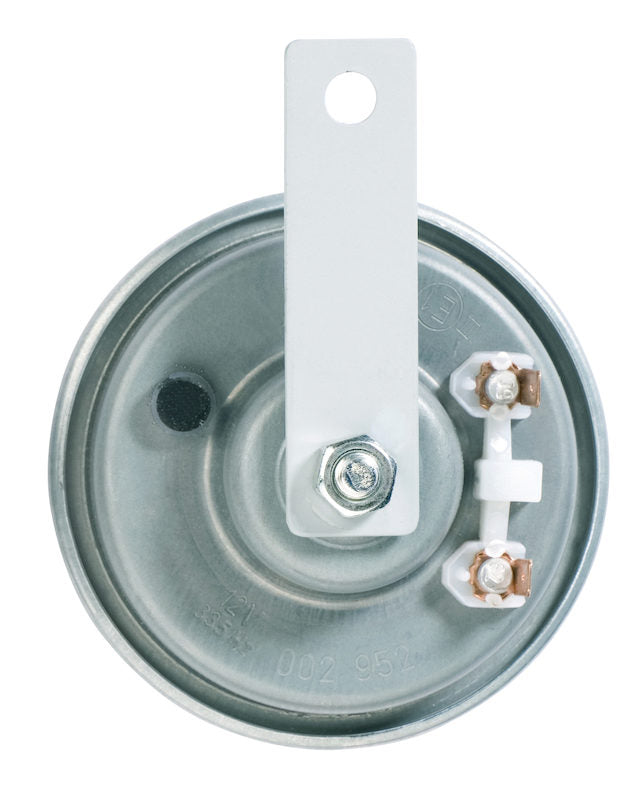

Hella 002768382 - Horn Disc 24V 335Hz Ltone (B36)

Disc Type Low-Tone, 24 V 335 Hz with Bracket

The HELLA B36 Series Disc Horn is engineered for durability and performance, providing a reliable safety feature for any vehicle. These disc horns are galvanized to resist corrosion and built to last, with a sound frequency of 335 Hz (Low-Tone), or 400 Hz (High-Tone), ensuring precise and robust auditory signals in all driving conditions. The sleek, compact design allows for versatile installation options, making it an excellent choice for drivers who need a powerful horn without compromising space. Whether navigating busy city streets or rural roads, the HELLA B36 Series enhances your vehicle's audible presence, ensuring you are heard when it matters most. These horns guarantee your highest safety and the attention needed in critical situations. HELLA horns guarantee the best functionality, optimum fit, and long-lasting customer satisfaction.

  • Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
  • Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
  • Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
  • Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
  • Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
Diameter [in]: 4.41
Diameter [cm]: 11.2
Temperature range from [°C]: -40
IP Rating: IP5K9K
Mounting Type: with 6.3 mm Blade Terminal Contacts, Open
Voltage [VDC]: 24
Housing Color: Black / Gray
Power consumption [A]: 3
Overall Height [in]: 5.08
ECE Regulation: R28
Frequency range from [Hz]: 335
Single Includes: (1) Low-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions
Assy/Disassy by Qualified Personnel Required!: .
Wattage [W]: 72
Supplementary Article/Supplementary Info 2: with E Quality Seal
Frequency Range [Hz]: 335
Operating Mode: Electric
Temperature range to [°F]: 140
Measurements [cm]: 5.3 x 12.9
Bracket: M10 Mounting Screw
Temperature range to [°C]: 60
Diameter [mm]: 112
Sound Level [dB(A)]: 105
Test Mark: ECE-R28
Signal: Low Tone
Registration Type: ECE Approved
Temperature range from [°F]: -40
Homologation: ECE-R28
Depth [mm]: 53
Overall Height [mm]: 129
Depth [in]: 2.09
Quantity: 1
Grade Type: Standard Replacement
Voltage: 24.00
Color: Black / Gray
Decibel Rating: 105.00
Terminal Type: Blade
Mounting Hardware Included: Yes
Mount Type: Bracket Mounting
Terminal Quantity: 2
Mounting Bracket Included: Yes
