Hella 001943003 - Socket 7Pole Trailer

Hella  |  SKU: HLA-001943003
$2399 $2639

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

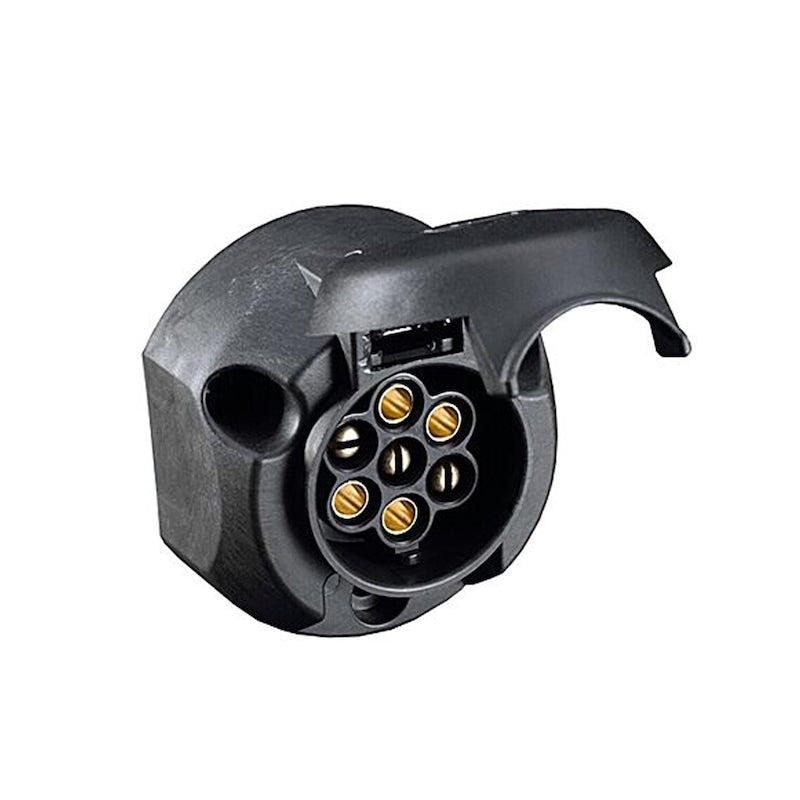

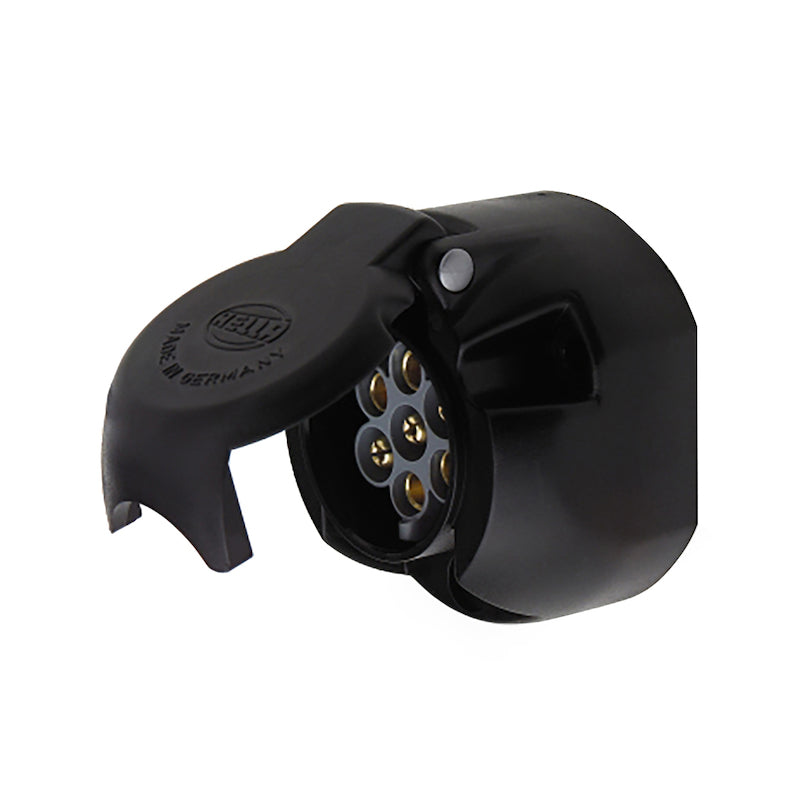

Hella 001943003 - Socket 7Pole Trailer

7 Pole Trailer Socket

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1724 and an additional connector, type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arrangement.

  • OE quality
DIN/ISO Standard: 1724
Cross Section [mm²] from: 1.5
Housing material: Plastic
Quantity Unit: Box
Voltage to [VDC]: 24
Number of bores: 3
Depth [mm]: 43
Plug Type: Screw Contact
Assy/Disassy by Qualified Personnel Required!: .
Voltage from [VDC]: 6
Current Strength to [A]: 25
Supplementary Article/Supplementary Info 2: with Screw Connection
Supplementary Article/Supplementary Info 2: Removable Inset
Material: Tin Bronze
Cross Section [mm²] to: 2.5
Number of pins: 7
Capacity at 12V: 16A
Current Strength from [A]: 16
Mounting Type: Screw Connection
Depth [in]: 1.69
Color: Black
Color: Black
Quantity: 25
Housing Type: Synthetic Material Housing
Voltage [VDC]: 12
DIN/ISO Standard: 1724 N-Typ
