Hella 001941002 - Socket 7Pole Metal Iso 1724

Hella  |  SKU: HLA-001941002
$3899 $4289

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

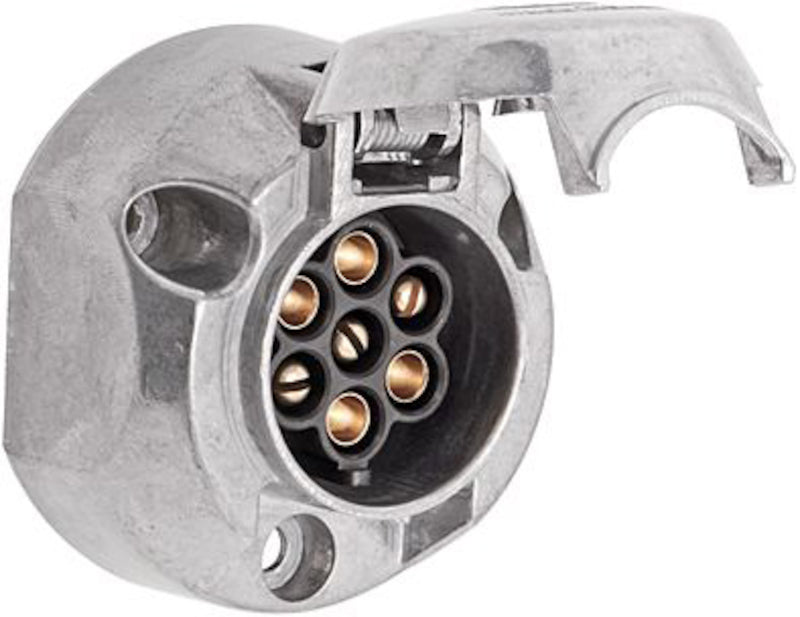

Hella 001941002 - Socket 7Pole Metal Iso 1724

HELLA 12 Volt Accessory Power Outlet Socket 001941002

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1724 and an additional connector, type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arrangement.

  • OE quality
Number of pins: 7
Height [mm]: 72
Housing Type: Metal Housing
Depth [in]: 1.85
Voltage from [VDC]: 6
Material: Tin Bronze
Supplementary Article/Supplementary Info 2: with Screw Connection
Bore Ø [mm]: 5.5
Width [mm]: 63
Plug Type: Plug Terminal
Width [in]: 2.48
Capacity at 12V: 16A
Material: Aluminium
Bore Diameter [mm]: 5.5
Cross Section [mm²] to: 2.5
Depth [mm]: 47
DIN/ISO Standard: 1724 N-Typ
Mounting Type: Screw Connection
Color: Silver
Assy/Disassy by Qualified Personnel Required!: .
Cross Section [mm²] from: 1.5
Current Strength from [A]: 16
Height [in]: 2.83
Number of bores: 3
Current Strength to [A]: 25
Voltage to [VDC]: 24
Quantity: 25
Supplementary Article/Supplementary Info 2: Removable Inset
