Hella 001933042 - Socket 3 Pole W/ Grommet

Hella  |  SKU: HLA-001933042
$7899 $8672

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

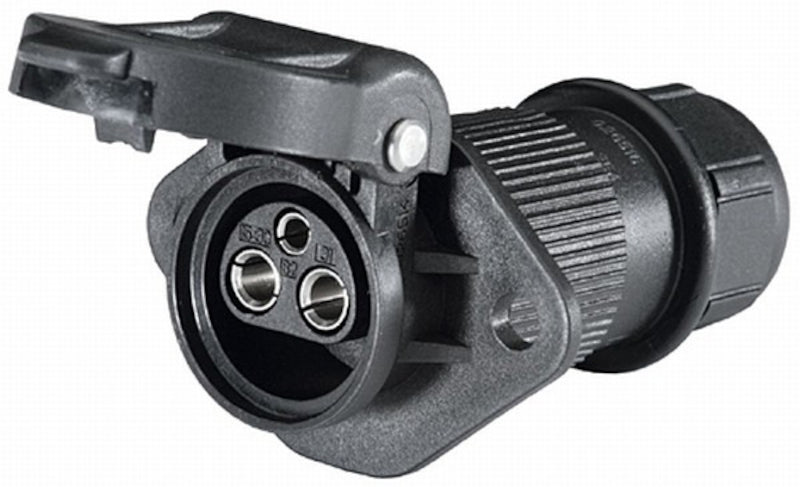

Hella 001933042 - Socket 3 Pole W/ Grommet

HELLA 12 Volt Accessory Power Outlet Socket 001933042

The 3-pole plug-in system according to DIN 9680 is used on tractors and agricultural machinery for the electrical connection of permanent consumers, such as mowers, backhoes and sweepers, with a current consumption of max. 25 A. This standard does not apply to electrical connections for the supply of lighting equipment (see ISO 1724). The 3-pole plug-in system without standard is used for the transmission of additional functions between tractor and trailer.

  • OE quality
Mounting Type: Fitting
Supplementary Article/Info 2: with Screw Connection
Voltage from (V): 6
Voltage to (V): 42
Fitted Diameter (mm): 26
Number of pins: 3
DIN/ISO Standard: 9680
DIN/ISO: 9680
Color: Black
Current Strength (A): 25
Cross Section (mm Squared): 2.5
Bore (mm): 5.5
Bore diameter (mm): 5.5
Fitted Diameter (in): 1.38
Plug Type: Plug Terminal
Bolt/Nut Version: Union Nut
Assy/Disassy by Qualified Personnel Required!: .
Quantity: 10
