Hella 001933011 - Socket 3 Pole 24V

Hella  |  SKU: HLA-001933011
Sale price $6099 Regular price $6709

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

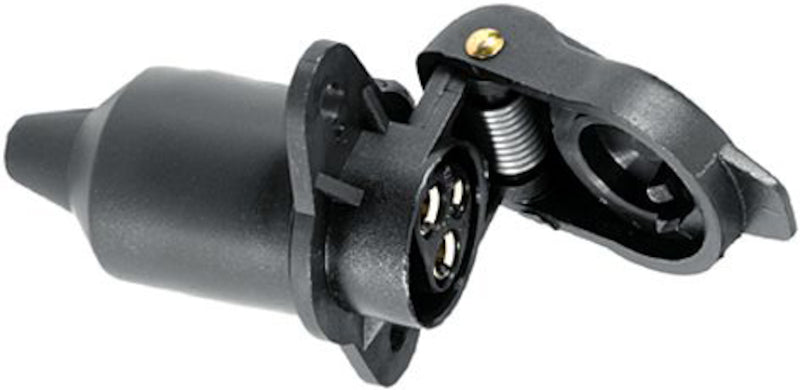

Hella 001933011 - Socket 3 Pole 24V

3 Pole Socket 24V

The 3-pole plug-in system according to DIN 9680 is used on tractors and agricultural machinery for the electrical connection of permanent consumers, such as mowers, backhoes and sweepers, with a current consumption of max. 25 A. This standard does not apply to electrical connections for the supply of lighting equipment (see ISO 1724). The 3-pole plug-in system without standard is used for the transmission of additional functions between tractor and trailer.

  • Power your gear on the go with HELLA’s 12V outlet socket—perfect for charging phones, GPS units, coolers, and more on every drive.
  • Built tough with a weather-resistant cap and durable contacts that ensure reliable power in any driving condition.
  • Compact, universal design fits most dashboards and panels, making it ideal for cars, trucks, RVs, boats, and ATVs.
  • Easy to install with standard wiring and mounting hardware, so you’re powered up and ready in minutes.
  • Delivers consistent 12V output for all your accessories while maintaining a clean, OEM-style look in your interior.
Voltage from [VDC]: 6
Assy/Disassy by Qualified Personnel Required!: .
Mounting Type: Flat Plug-in Connector
Bore Ø [in]: 0.2
Voltage [VDC]: 24
Cross Section [mm²]: 2.5
Capacity at 24V: 16A
Temperature range from [°F]: -13
Temperature range to [°F]: 167
Quantity: 10
Number of pins: 3
DIN/ISO Standard: 9680
Bore Diameter [in]: 0.2
Bore Ø [mm]: 5
Fitted Diameter [in]: 1.18
Plug Type: Blade Terminal
Voltage to [VDC]: 42
Temperature range to [°C]: 75
Temperature range from [°C]: -25
Bore Diameter [mm]: 5
Current Strength [A]: 25
Fitted Diameter [mm]: 30
Color: Black
