Hella 001930003 - Plug 7Pole 12V Plastic Housing

Hella  |  SKU: HLA-001930003
$2399 $2639

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

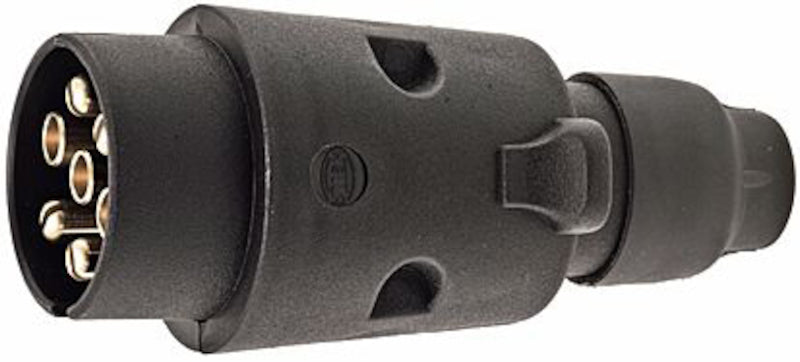

Hella 001930003 - Plug 7Pole 12V Plastic Housing

7-Pole Plug E-Coded

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1724 and an additional connector, type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arrangement.

  • OE quality
Capacity at 12V: 16A
Contact Surface: Coated
Quantity: 25
Supplementary Article/Supplementary Info 2: with StRain Relief
Cross Section [mm²] to: 2.5
Length [mm]: 82
Cross Section [mm²] from: 1.5
Color: Black
Number of pins: 7
DIN/ISO Standard: 1724 N-Typ
Plug Type: Screw Contact
Length [in]: 3.23
Voltage [VDC]: 12
Current Strength to [A]: 25
Assy/Disassy by Qualified Personnel Required!: .
Current Strength from [A]: 16
Color: Black
