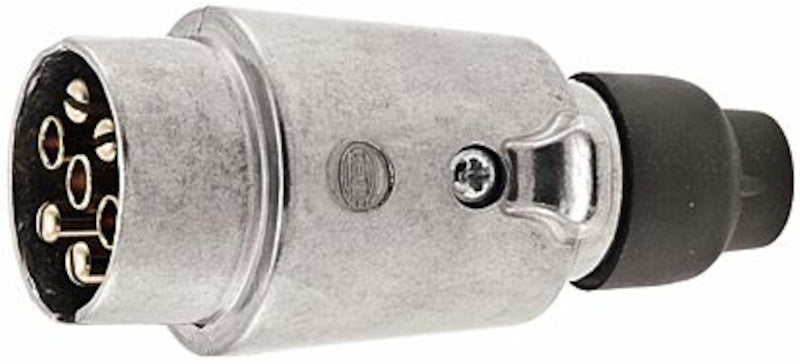

Hella 001918002 - Plug 7Pole 12V Metal Housing

Hella  |  SKU: HLA-001918002
$2899 $3189

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Hella 001918002 - Plug 7Pole 12V Metal Housing

7-Pole Plug

The 7-pin plug-in system 12 V according to ISO 1724 / ISO 3732 is the most widely used system for electrical connections between towing vehicle and trailer with 12 V on-board network. The system is primarily used for applications with average requirements. It consists of a standard connector, type N, according to ISO 1724 and an additional connector, type S, according to ISO 3732. The additional system differs from the standard system by its white housing, contact inserts and interchangeable contact arrangement.

  • OE quality
Supplementary Article/Info 2: with Strain Relief
Capacity at 12V: 16A
Number of pins: 7
Plug Type: Screw Contact
Voltage (V): 12
DIN/ISO Standard: 1724 N-Typ
Assy/Disassy by Qualified Personnel Required!: .
DIN/ISO: 1724 N-Typ
Contact surface: Coated
Cross Section (mm Squared) from: 1.5
Cross Section (mm Squared) to: 2.5
Current Strength from (A): 16
Current strength to (A): 25
Length (mm): 94
Length (in): 3.70
Color: Silver
Material: Aluminium
Quantity: 25
Color: Purple
Power Cord Length: 22.12
Wire Quantity: 44
Portable Or Fixed Mount: Portable
