Hedman Hedders 89416 - HTC COATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; FULL LENGTH DESIGN
Hedman Hedders | SKU:
FBLG-89416
Sale price
$64299
Regular price
$1,63540
Unit price
/
Unavailable
$992.41 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

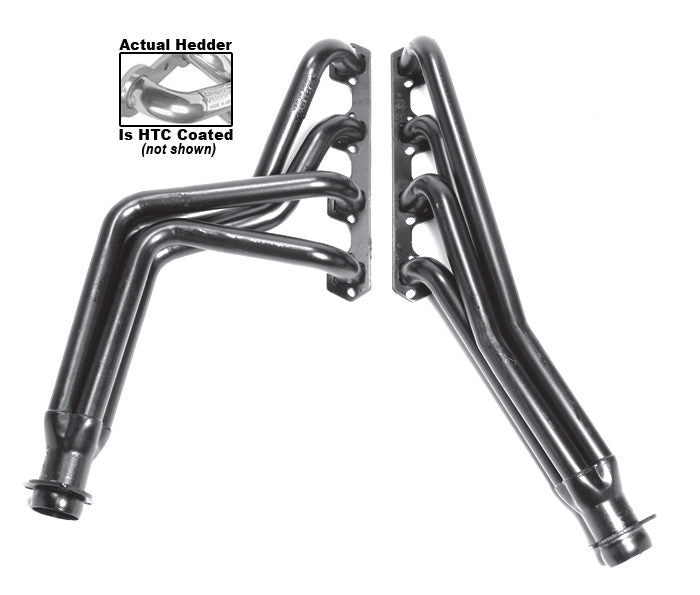

Hedman Hedders 89416 - HTC COATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; FULL LENGTH DESIGN
Headers - Full - 1.5 in Primary - 2.5 in Collector - Gaskets / Hardware / Reducers Included - Steel - Silver Ceramic - Small Block Ford - Ford Compact SUV 1968-77 - Pair
HTC Coated Headers; 1-1/2 in. Tube Dia.; 2-1/2 in. Coll.; FULL LENGTH Design
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

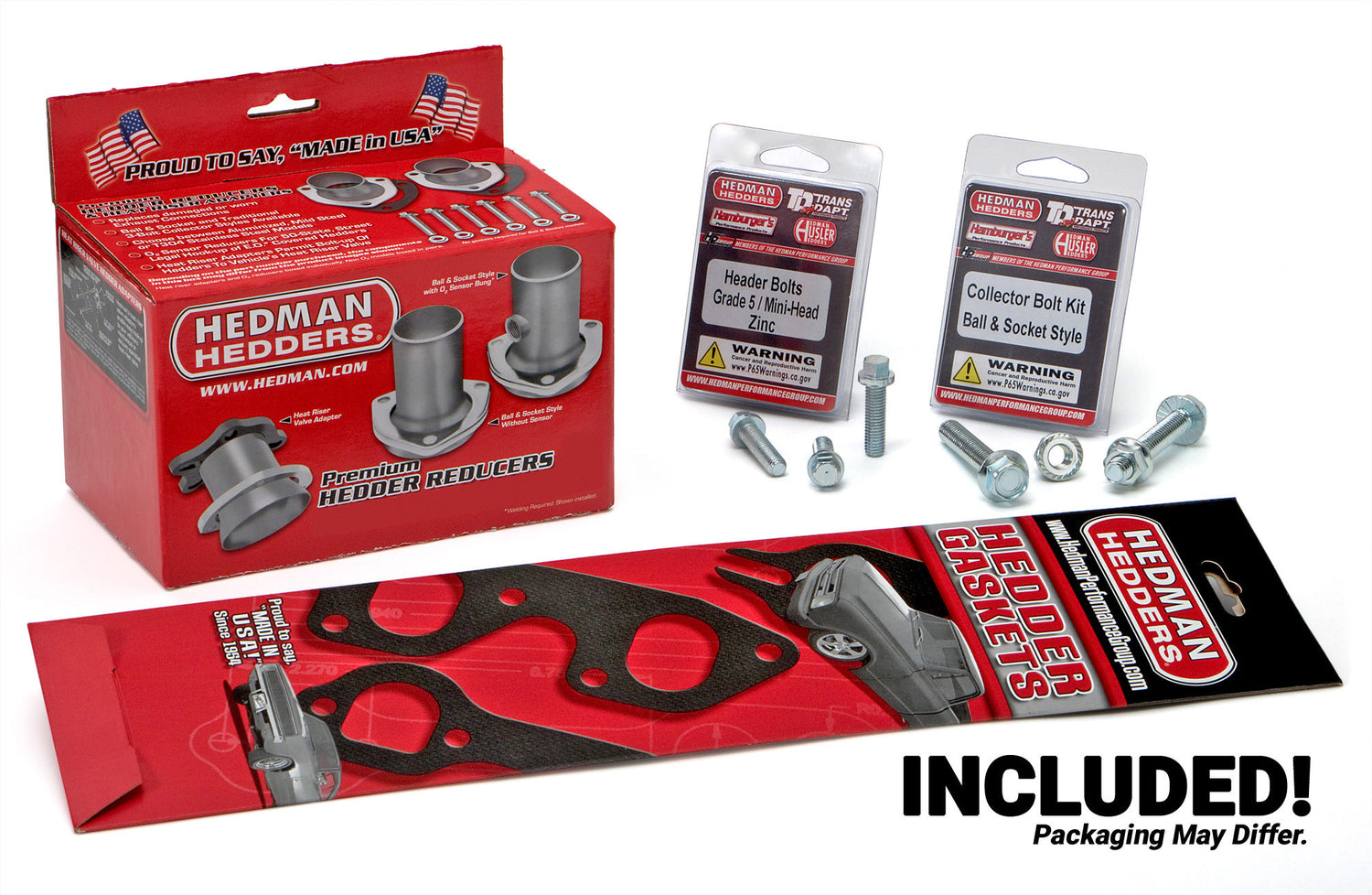

- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
E.O. #: Yes
Tube Design: Standard
Emissions Notes: EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website)
Engine Version: Ford Windsor Block (W)

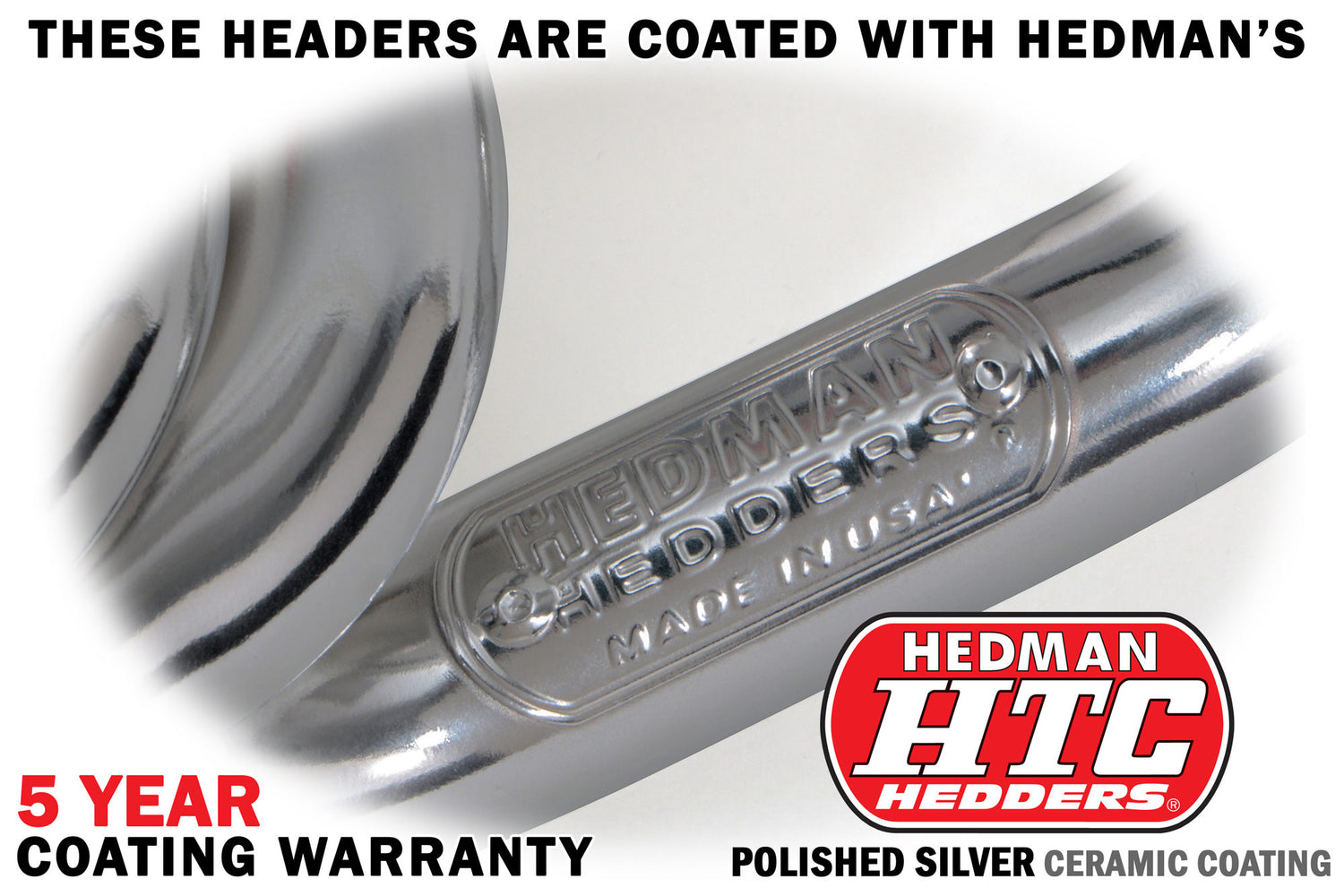

Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
<i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i>:
CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN!
Flange Style: Standard
Flange Thickness: 1/4 in. with 5/16 in. collector ring flange.
Header Port Shape: Square Port
Header Style: Long Tube
Notes: 66-77 Ford Bronco; 4WD 302W
Key Feature: 50 State Legal
Port Shape: Square
Material: Mild Steel
Tube Diameter: 1-1/2 in.
Mounting Hardware Included: Yes
Variations: 89410, 89418
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Material Thickness: 16g
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27340
Replacement Head Flange Gasket: 27340
Tube Size: 1-1/2 in.
Tube Length: Long Tubes
Tube Style: Long Tubes
Drivetrain: 4WD
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 2-1/2 in.
Collector Diameter: 2-1/2 in.
Collector Size: 2-1/2 in.
