Hedman Hedders 89270 - STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Hedman Hedders  |  SKU: FBLG-89270
Sale price $37399 Regular price $90477


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

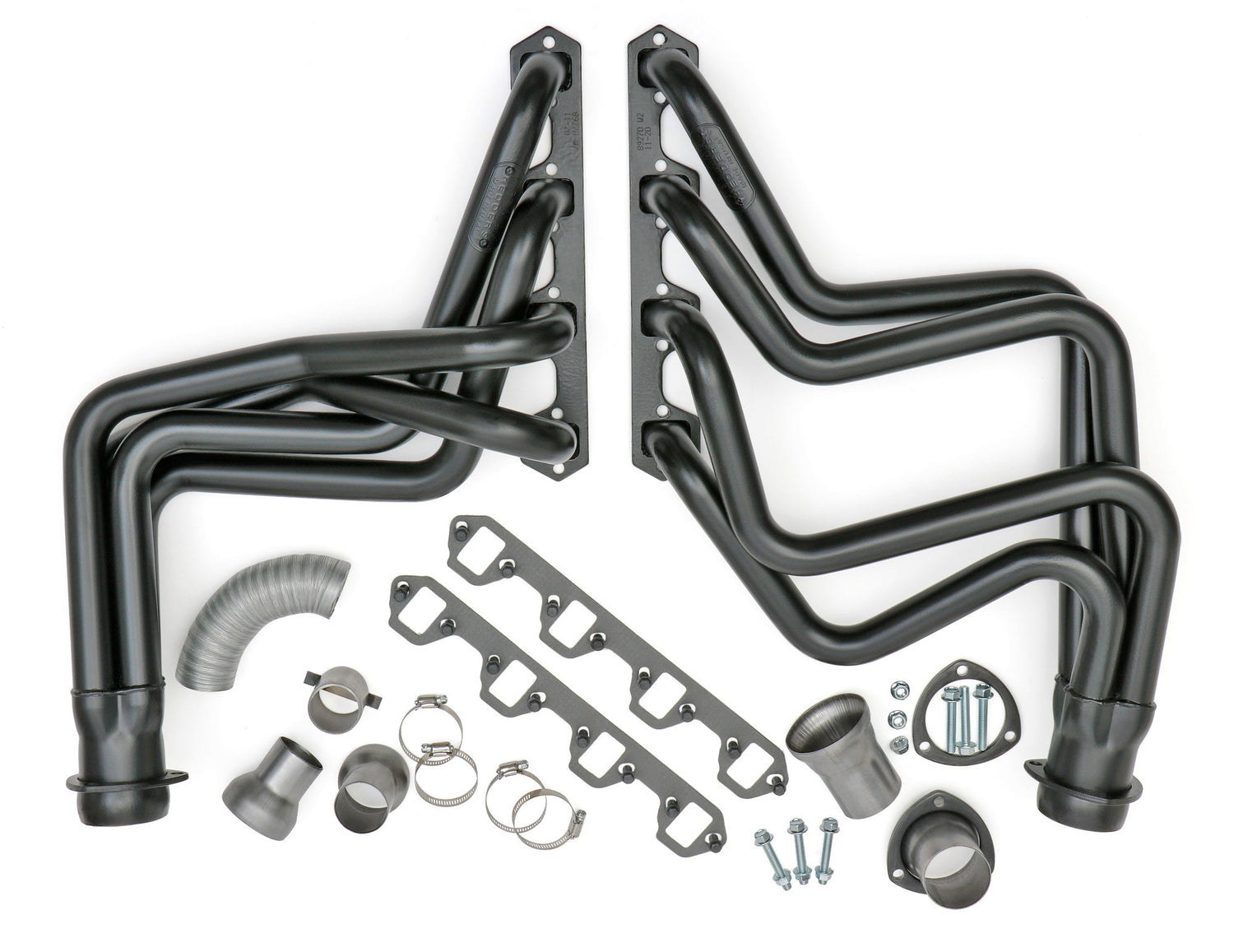

Hedman Hedders 89270 - STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Headers - Street - 1.5 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Small Block Ford - Ford Fullsize SUV / Truck 1980-95 - Pair

Standard Uncoated Headers; 1-1/2 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these 351W (5.8L) headers, even if it is not perfectly aligned with the header collectors.

These uncoated, LONG-TUBE headers fit 1980-95 2WD Ford 1/2, 3/4 and 1 ton, and 1982-96 4WD Ford 1/2, 3/4 and 1 ton Trucks and Broncos with a 351W (5.8L) non-E.G.R. engine. The long, smooth-flowing 1-1/2 in. tube design provides superb exhaust flow to let your Ford truck's 5.8L engine breathe easy, and produce loads of horsepower and torque. They fit column-shift automatic and floor-shift manual transmissions, but will not work on lifted trucks, or 4WD models with a Dana 60 front differential.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

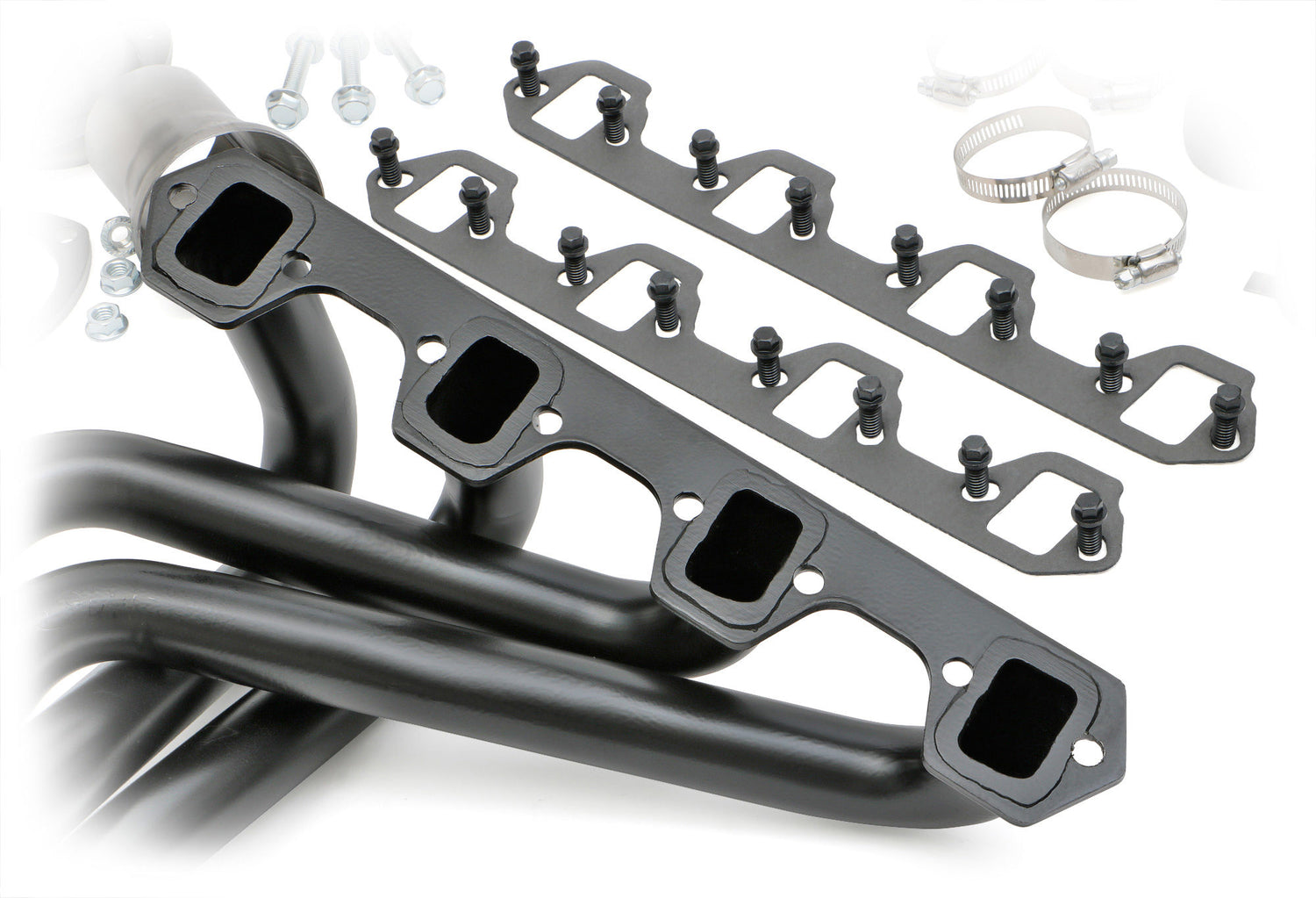

Header Port Shape: Square
Header Style: Long Tube
Key Feature: 50 State Legal (80-81 F-series only); NO EGR
Port Shape: Square
Material: Mild Steel
Special Engine Notes: 351 WINDSOR
Tube Design: Standard
Tube Diameter: 1-1/2 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-1/2 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.

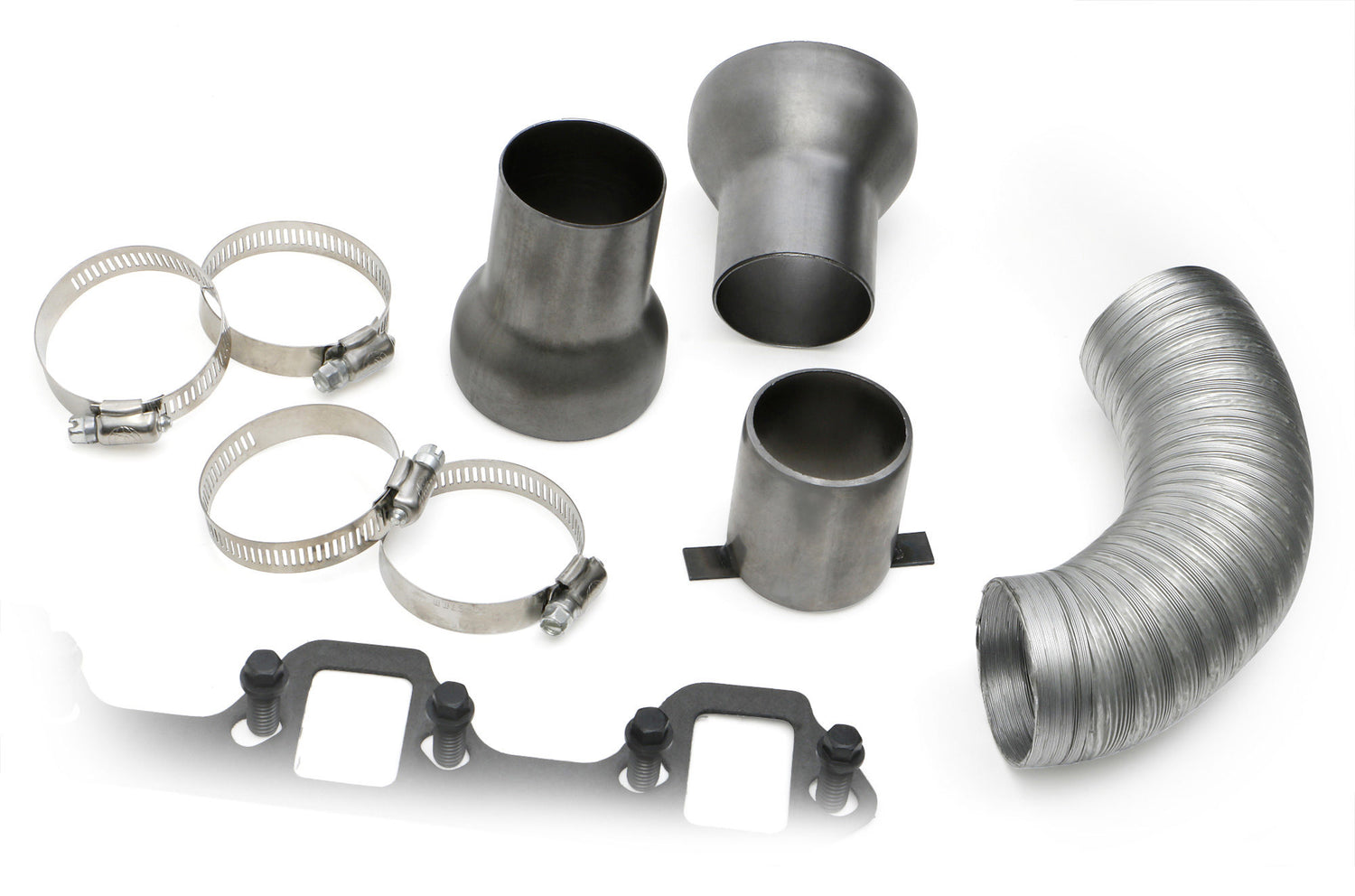

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27340
Replacement Head Flange Gasket: 27340
Variations: 89276, 89278
Tube Material Thickness: 16g
Tube Style: Long Tubes
Drivetrain: 2WD
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: No
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.

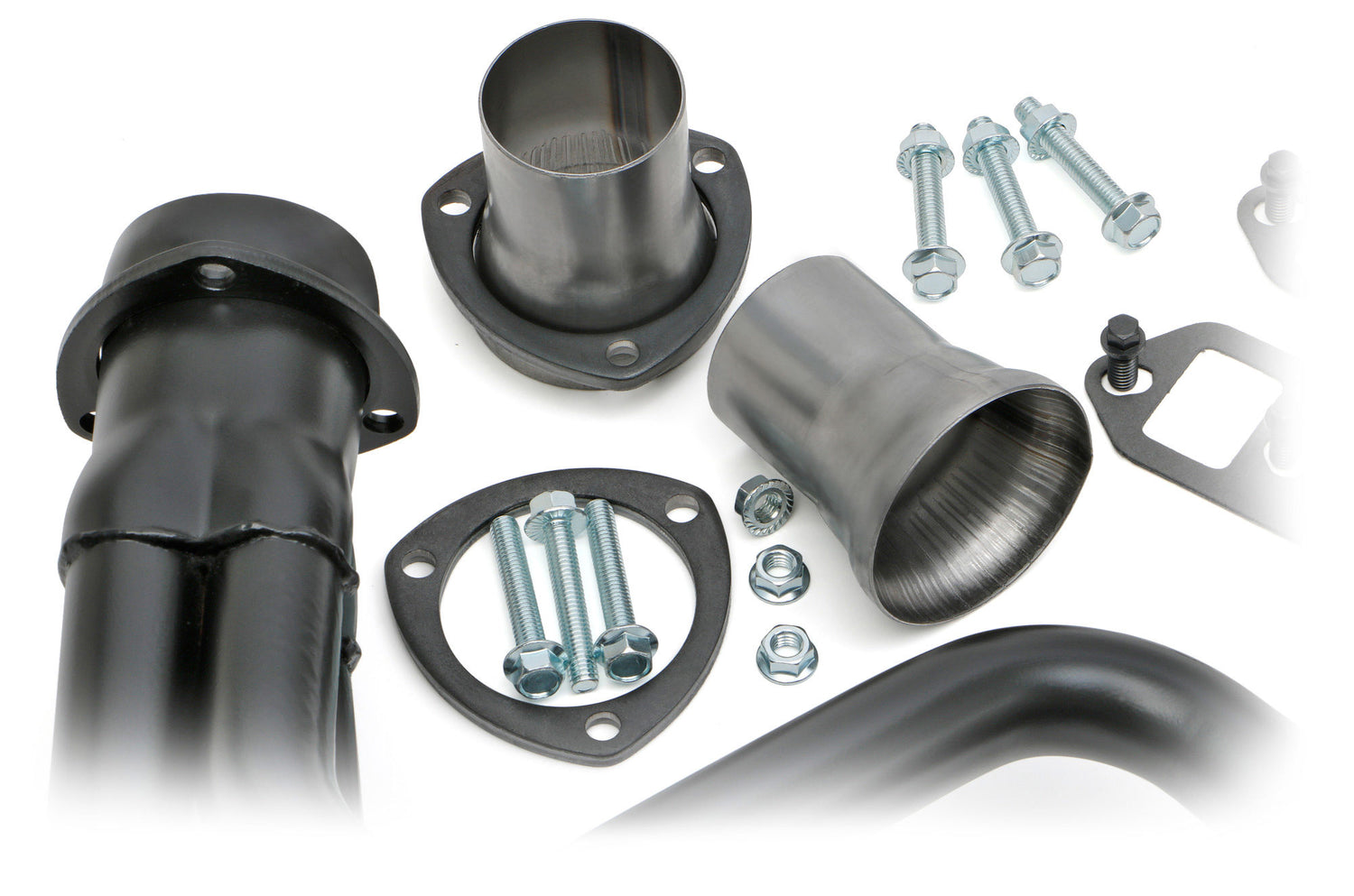

Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
E.O. #: Yes
Tube Length: Long Tubes
Emissions Notes: EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website)
Engine Version: Ford Windsor Block (W)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 1/4 in. with 5/16 in. collector ring flange.
