Hedman Hedders 88690 - STEPPED-UNCOATED HEADERS; 1-1/2 IN. - 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Hedman Hedders | SKU:
FBLG-88690
Sale price
$42999
Regular price
$1,06176
Unit price
/
Unavailable
$631.77 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

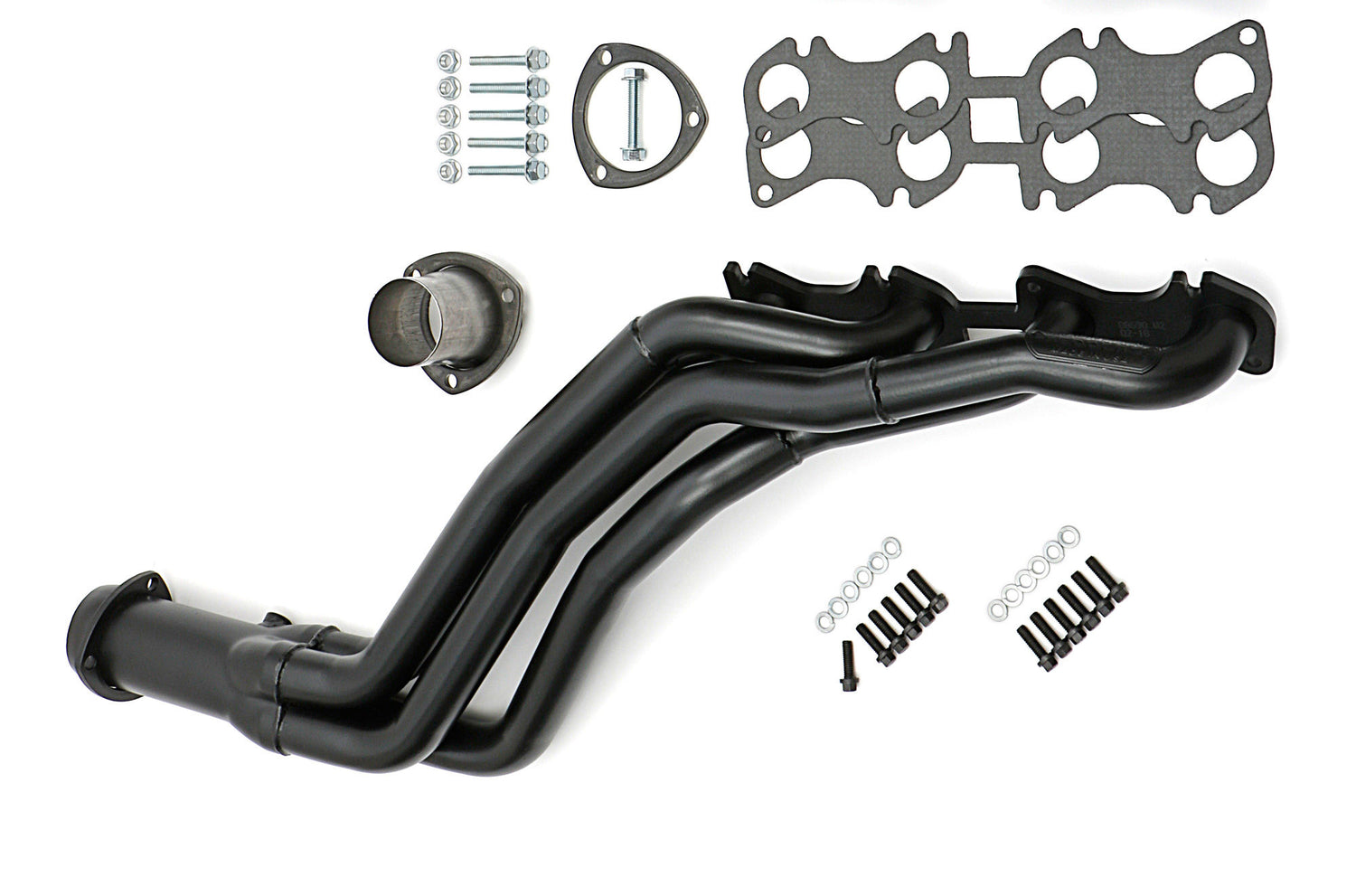

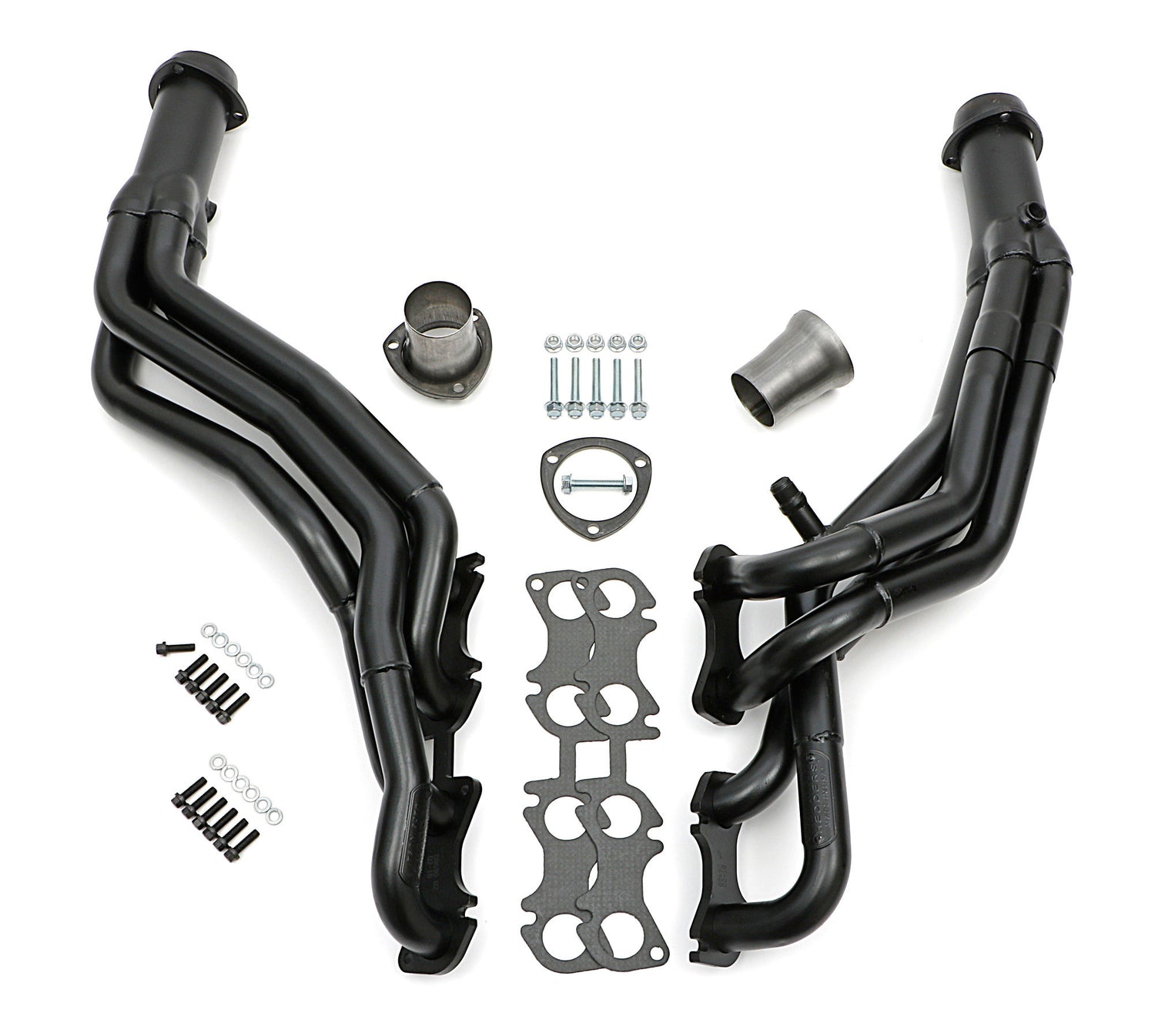

Hedman Hedders 88690 - STEPPED-UNCOATED HEADERS; 1-1/2 IN. - 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Headers - Tork-Step - 1.5 to 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Ford Modular - Mustang 1996-2004 - Pair
Headers For 1996-2004 Ford Mustang with 4.6L (2V) V8; 1-1/2 to 1-5/8" Diameter Stepped, Long Tubes; 3 in. Ball/Socket Collector- UNCOATED Mild Steel Construction
- Handcrafted, Mild Steel Construction.
- STEPPED, Long Tube Header Design Is a Race-Proven Configuration. The Primary Tubes on This Header Step Up In Diameter To Provide Excellent Horsepower and Torque Increases Across The Entire RPM Range.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

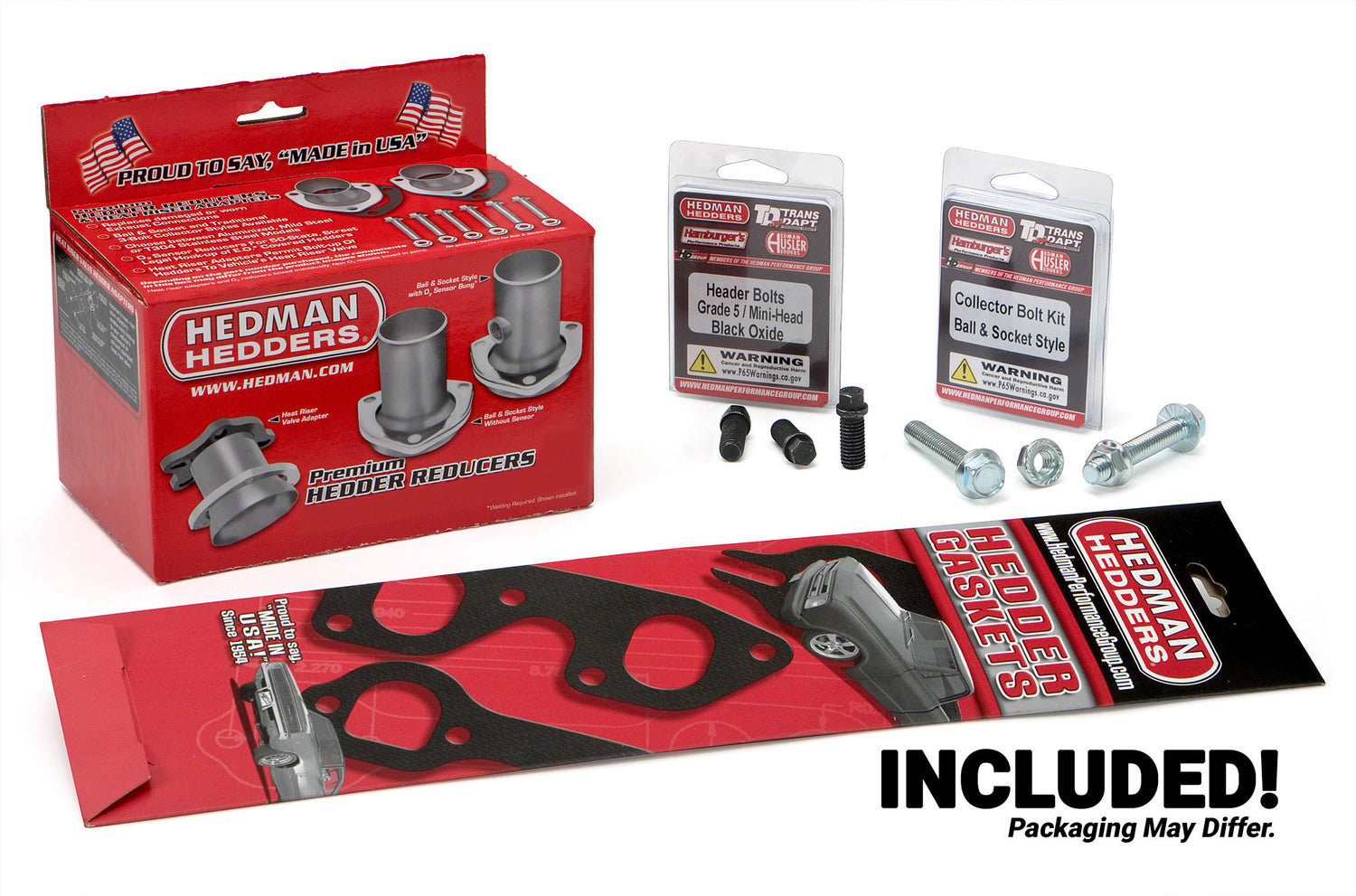

- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
- Requires Four 18 in. Oxygen sensor Extension Wires- NOT INCLUDED!
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 88696
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in. x 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
O2 Provision: Yes
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27450
Replacement Head Flange Gasket: 27450
Installation Notes: Requires the use of Four 18 in. Oxygen sensor Extension Wires- NOT INCLUDED!
Tube Size: 1-1/2 in. x 1-5/8 in.
Tube Style: Long Tubes
E.O. #: No
Air Conditioning: Yes
Automatic Transmission - Column: No
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Tube Material Thickness: 16g
Engine Version: Ford 4.6L Modular
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Round
Header Style: Long Tube- Stepped
Notes: 96-04 Ford Mustang 4.6L (2V)
Port Shape: Round
Material: Mild Steel
Special Engine Notes: 2V SOHC
Tube Design: Stepped Tubes
Tube Length: Long Tubes
Tube Diameter: 1-1/2 in. x 1-5/8 in.
Reducers Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No

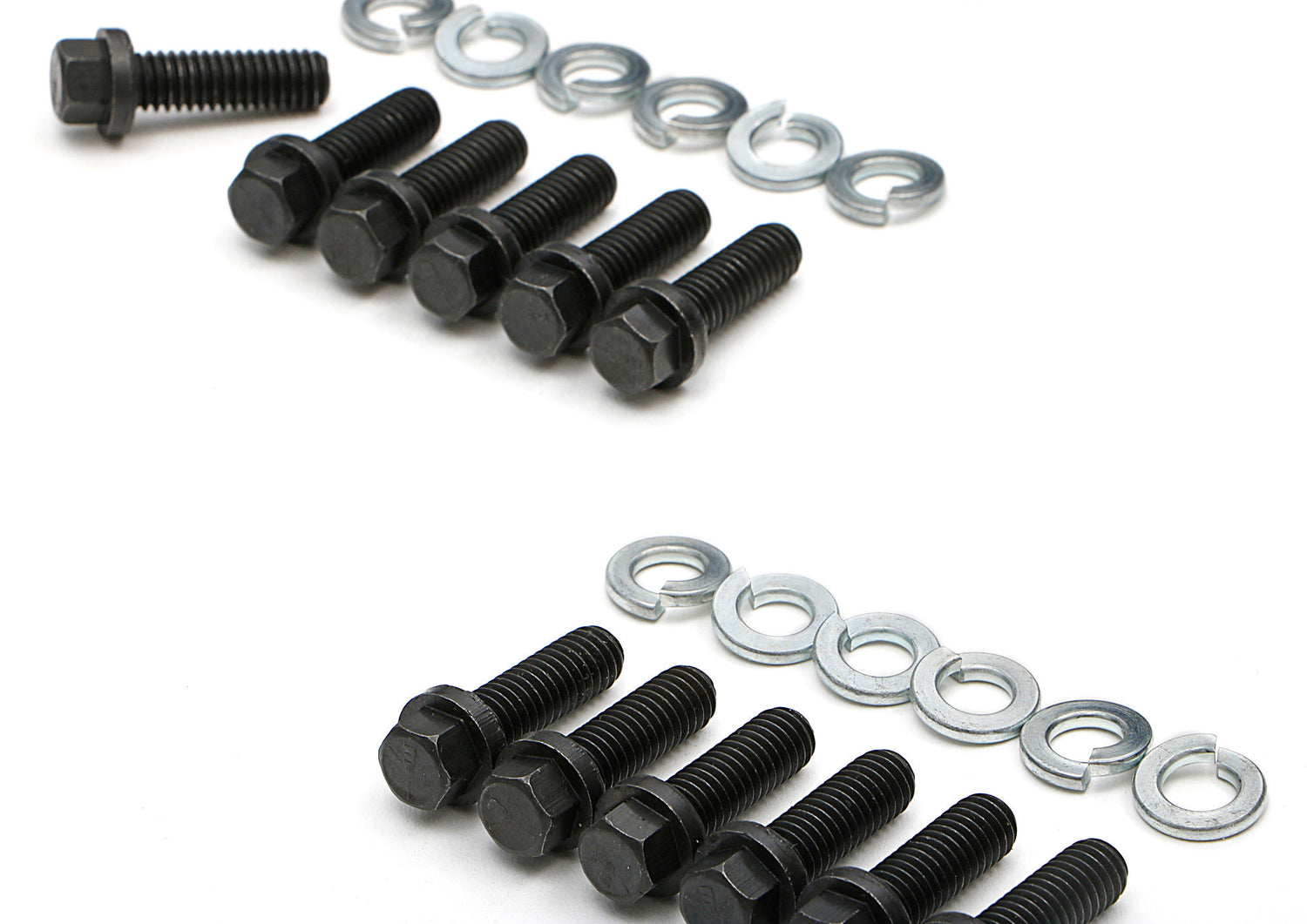

Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
