Hedman Hedders 88650 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

Hedman Hedders  |  SKU: FBLG-88650
Sale price $28899 Regular price $70487

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Hedman Hedders 88650 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

Headers - Street - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Small Block Ford - Ford 1964-73 - Pair

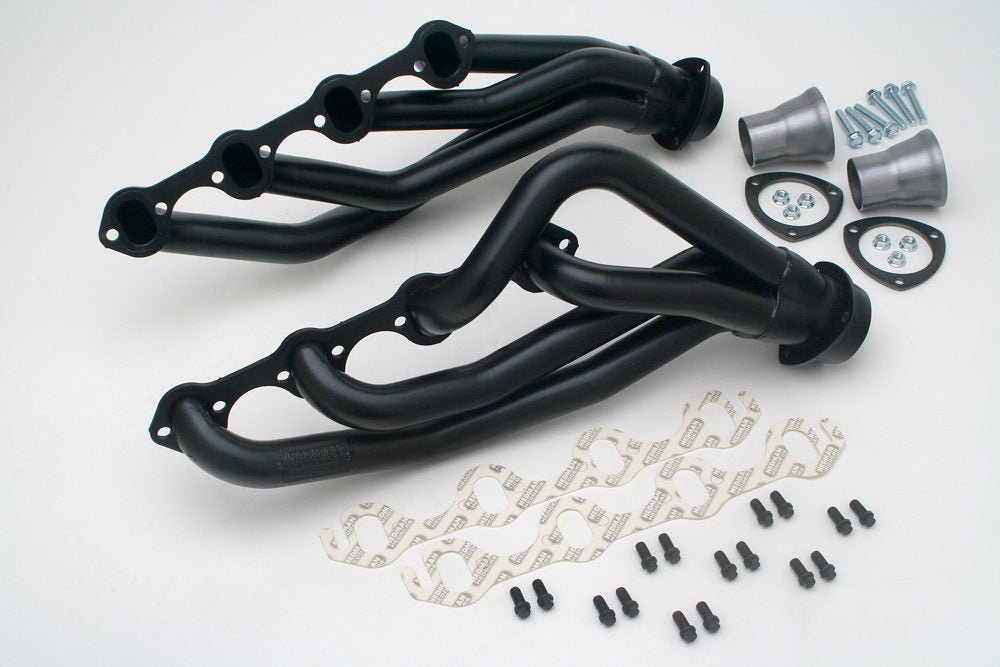

1964-73 Ford Mustang, 351W Engine Swap Headers; 1-5/8 in. MID-LENGTH Tube Design; 3 in. Collector- Standard-Duty, Uncoated

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford Mustang headers for nearly as long as Mustangs have been on the road. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these 351W engine swap headers, even if it is not perfectly aligned with the header collectors.

These uncoated mild steel, MID-LENGTH TUBE headers are designed specifically for swapping a 351W engine into a 1964-73 Ford Mustang and Falcon, or '66-73 Ranchero & Torino, that did not come from the factory with a 351W. The engine must be centered between the framerails. These headers fit both automatic and manual transmissions, but clutch and shift linkage may be required. The smooth 1-5/8 in., oval port tube design tucks in tight to clear shock towers, and provides superior exhaust flow over factory manifolds to let your 351 Windsor block engine breathe better, and produce excellent low-end torque and horsepower.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

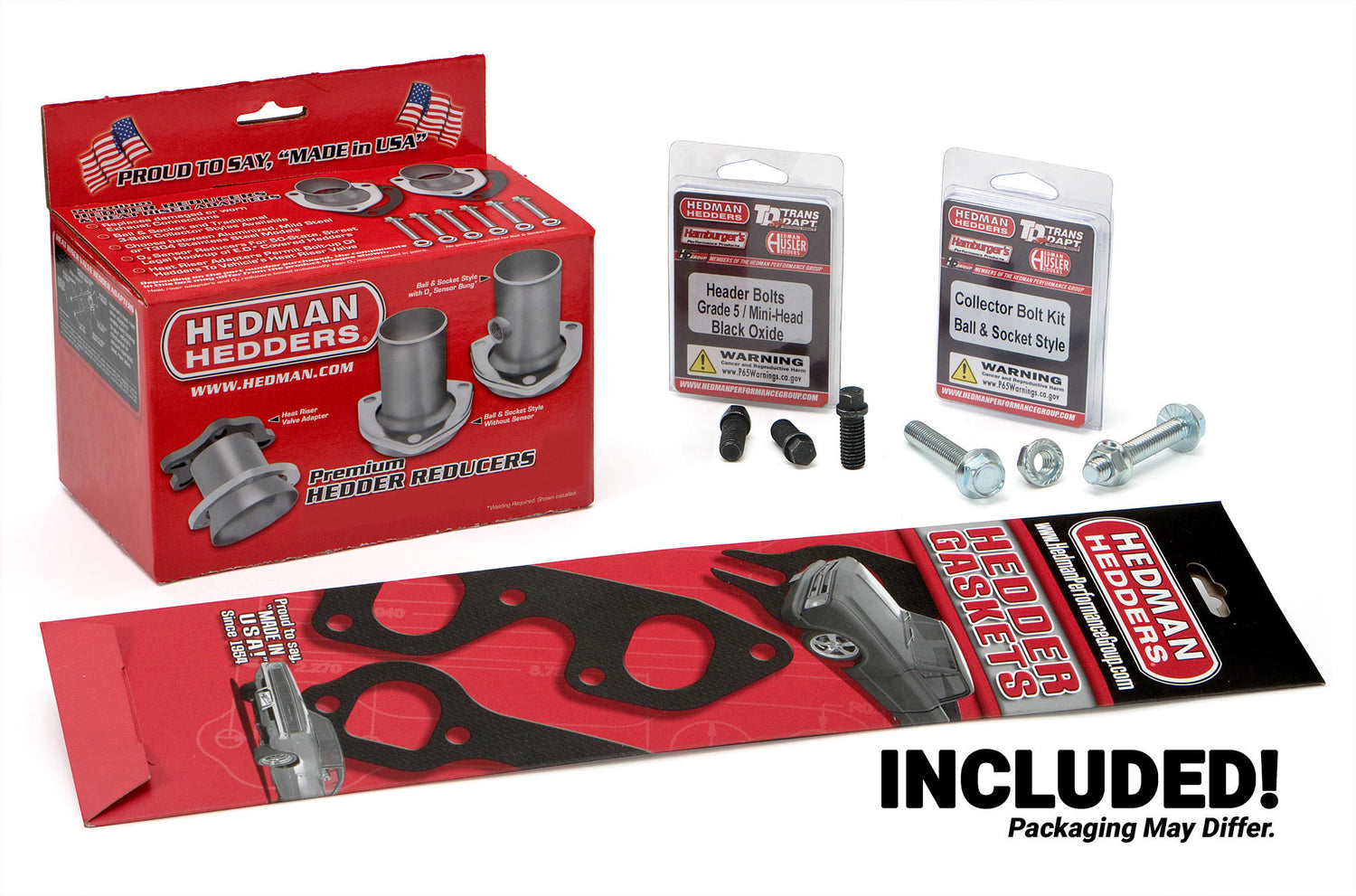

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

  • Handcrafted, Mild Steel Construction.
  • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Cylinder Head Port Shape: Oval
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27700
Replacement Head Flange Gasket: 27700
Variations: 88656, 88658
Tube Material Thickness: 16g
Tube Style: Mid-Length
E.O. #: No
Air Conditioning: Yes
Automatic Transmission - Column: No
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Tube Length: Mid-Length Tubes
Engine Version: Ford Windsor Block (W)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 1/4 in. with 5/16 in. collector ring flange.
Header Port Shape: Oval Port
Header Style: Mid-Length Tube
Notes: 64-73 Ford Mustang 351W
Key Feature: Engine Swap
Port Shape: Oval
Material: Mild Steel
Special Engine Notes: 351 WINDSOR
Tube Design: Standard
Tube Diameter: 1-5/8 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-5/8 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
