Hedman Hedders 88420 - BLOCK HUGGER HEADERS; FORD 289-351W; 1-1/2 IN. TUBES; UNCOATED

Name: Hedman Hedders 88420 - BLOCK HUGGER HEADERS; FORD 289-351W; 1-1/2 IN. TUBES; UNCOATED
Brand: Hedman Hedders
SKU: FBLG-88420
Price: 253.99 USD
Availability: InStock

Hedman Hedders | SKU: FBLG-88420

$253⁹⁹ $605¹⁹

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Hedman Hedders 88420 - BLOCK HUGGER HEADERS; FORD 289-351W; 1-1/2 IN. TUBES; UNCOATED

Headers - Street - 1.5 in Primary - 2.5 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Small Block Ford - Street Rod 1923-49 - Pair

BLOCK HUGGER Headers; FORD 289-351W; 1-1/2 in. Tubes; Uncoated

Handcrafted, Mild Steel Construction.
Classic Block Hugger Style Is Perfect For Street Rods, and Cramped Custom Builds That Do Not Have Enough Clearance For Mid-Length or Long Tube Headers.
Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Proud To Say, Made In The USA, Since 1954!

Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions

E.O. #: No

Engine: Ford SB 289-351W

Tube Length: Short Tubes

Engine Version: Ford Windsor Block (W)

Finish: Uncoated

Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.

Flange Style: Standard

Flange Thickness: 1/4 in. with 5/16 in. collector ring flange.

Header Port Shape: Square

Header Style: Block Huggers- Street Rod

Notes: Street Rod Universal Shorty 289-351W

Port Shape: Square

Material: Mild Steel

Special Engine Notes: 351 WINDSOR

Transmission Notes: Modification to shifter linkage may be required.

Tube Design: Standard

Tube Diameter: 1-1/2 in.

Mounting Hardware Included: Yes

with A.I.R. System: No

with EGR: No

Weld-Up: No

Tuned: No

Bolts/Studs Included: Yes

Catalytic Converter(s) Included: No

Collector Bolts Included: Yes

Crossover Pipe Included: No

Gasket Or Seal Included: Yes

Header Fasteners Included: Yes

Installation Hardware Included: Yes

Motor Mounts Included: No

Reducers Included: Yes

Tube Size: 1-1/2 in.

Y-Pipe Included: No

Quantity: Sold as a pair.

Primary Tube Gauge: 16g

Primary Tube Diameter (in): 1.50 in.

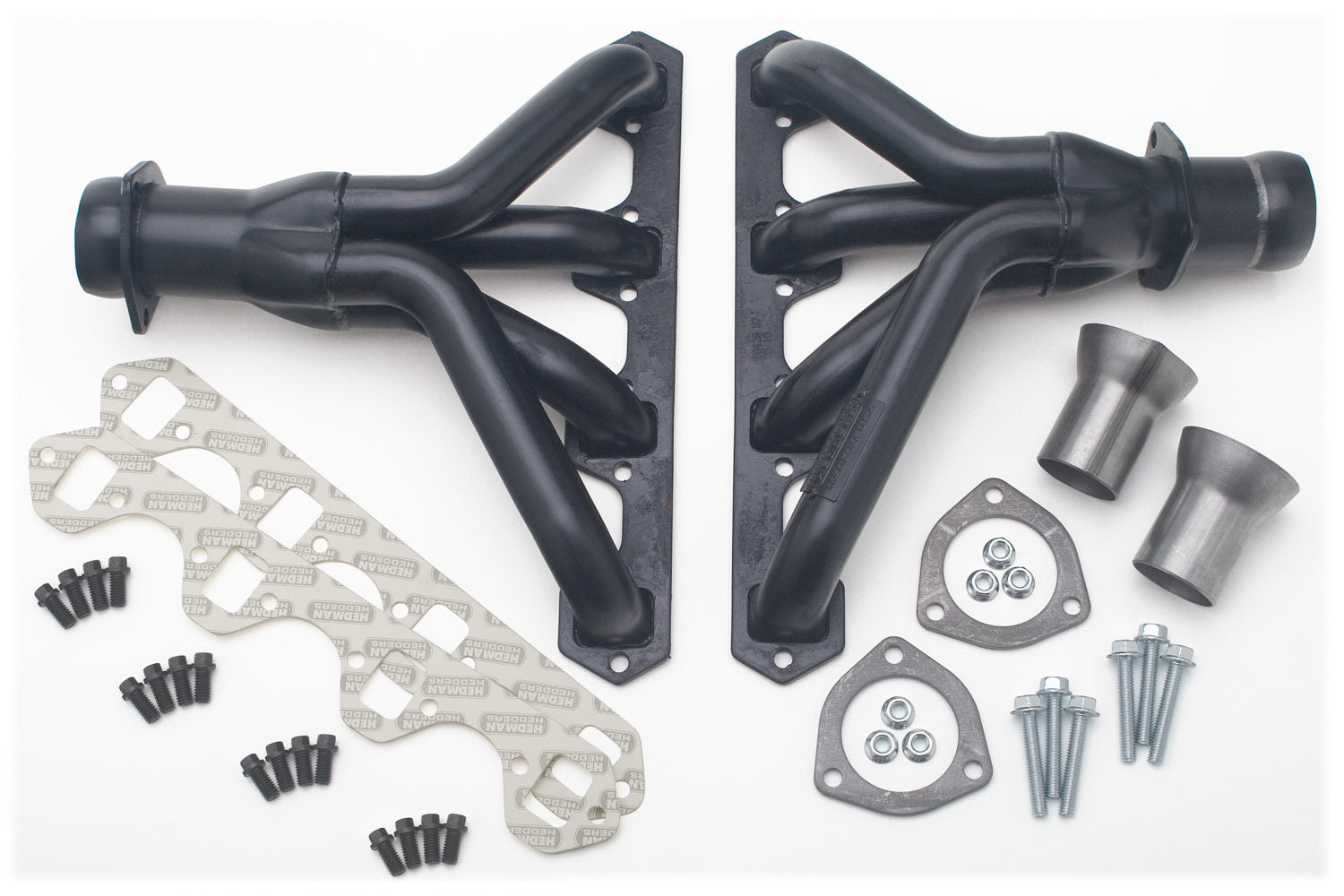

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

Header Material: Mild Steel

Header Finish: Uncoated

Cylinder Head Port Shape: Square

Cylinder Head: Stock Profile Heads

Header Construction: MILD STEEL- Standard-Duty

Replacement Gasket: 27340

Replacement Head Flange Gasket: 27340

Variations: 88426, 88842

Tube Material Thickness: 16g

Tube Style: Block Huggers

Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.

Automatic Transmission - Column: Yes

Automatic Transmission - Floor: Yes

Manual Transmission - Column: Yes

Manual Transmission - Floor: Yes

Collector Attachment: 2-1/2 in.

Collector Diameter: 2-1/2 in.

Collector Size: 2-1/2 in.

Collector Style: BALL and SOCKET Style (Gasketless)

Reducer Outlet Size: 2-1/2 in.

Exhaust System Dia: 2-1/2 in.
