Hedman Hedders 86511 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; SHORTY DESIGN
Hedman Hedders | SKU:
FBLG-86511
Regular price
$000
Unit price
/
Unavailable
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

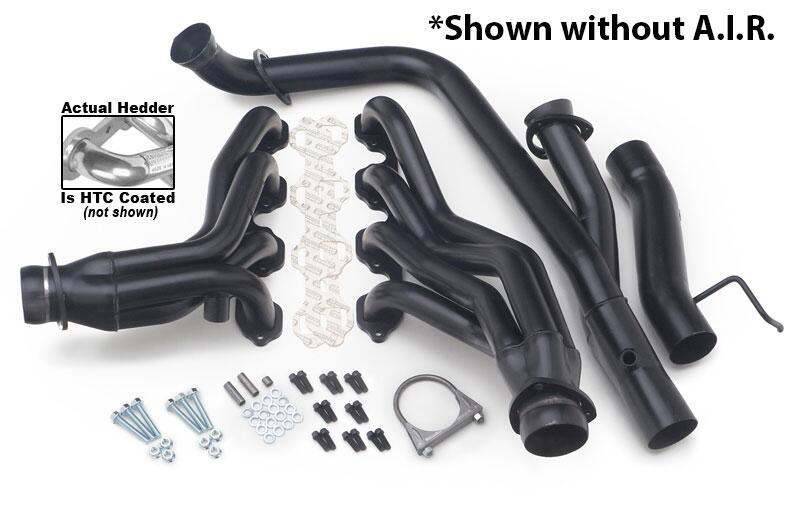

Hedman Hedders 86511 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; SHORTY DESIGN
Silver 50-State Headers for '88-97 2WD/4WD F150-F350 Trucks w/7.5L (with A.I.R.)
HTC Coated Headers; 1-3/4 in. Tube Dia.; 3 in. Coll.; SHORTY Design
- Specially Designed To Provide Additional Clearance For Larger, Close-Ratio (Quick Ratio) Steering Boxes
- The Mild Steel, Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Crossover Pipe Included: Yes
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27680
Replacement Head Flange Gasket: 27680
Tube Size: 1-3/4 in.
Tube Length: Mid-Length Tubes
Tube Style: Mid-Length
Exhaust System Dia: 3 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: No
Manual Transmission - Column: No
Manual Transmission - Floor: No
Power Steering: Yes
Transmission Compatibility: Will NOT fit C6 Transmission models, due to transmission crossmember location.
Footnotes: 144. Complete with Y-Pipe to single catalytic converter.
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: Stock Collector
Reducer Outlet Size: 3 in.
Contents: headers, head and collector flange gaskets (when applicable), mounting hardware
Tube Design: Standard
Drivetrain: 2WD
E.O. #: Yes
Emissions Notes: EO# D167-36 (click here for covered vehicles in ARB.CA.GOV document)

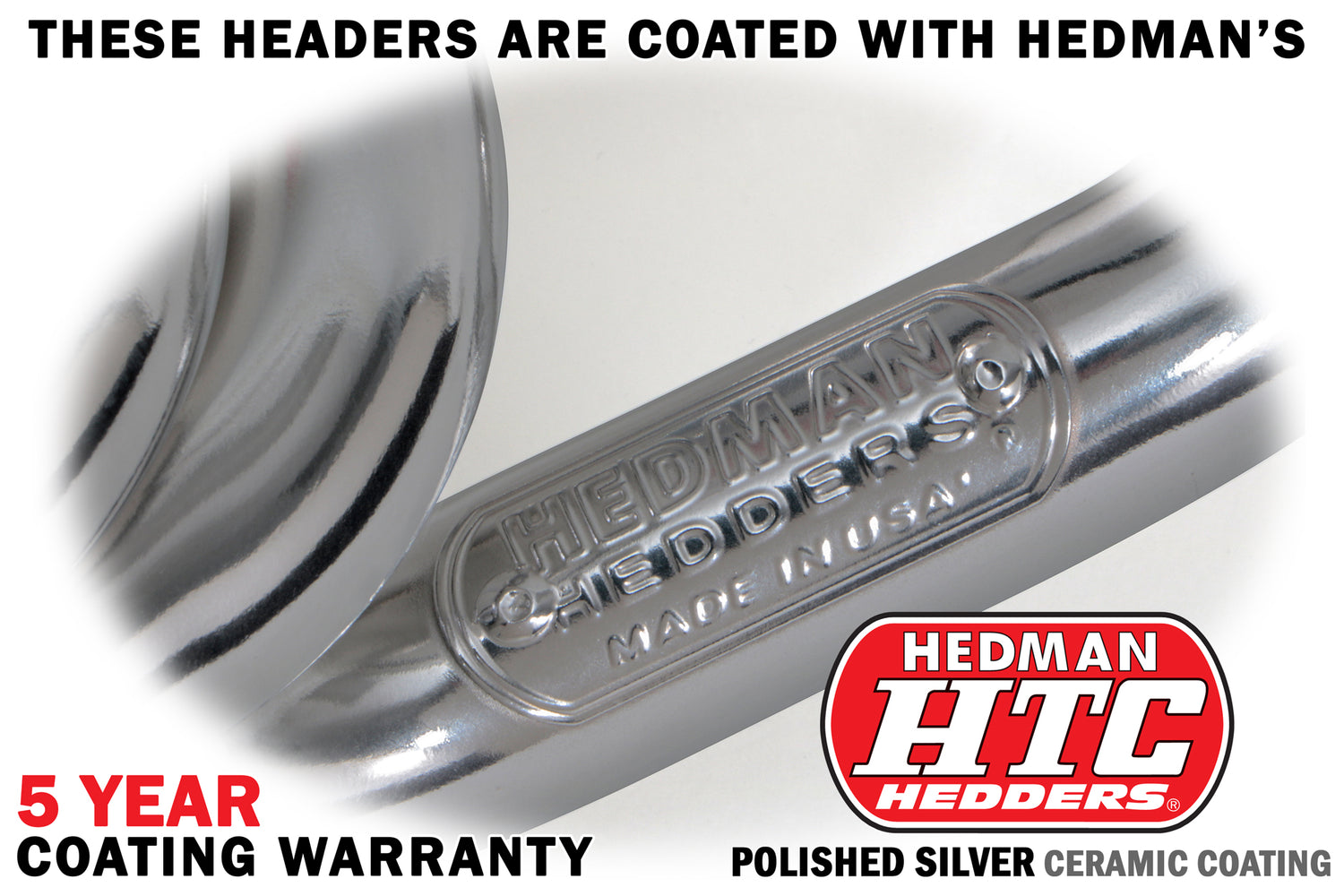

Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
<i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i>:
CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN!
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Square Port
Header Style: Mid-Length Tube
Notes: 88-97 Ford 1/2-3/4 Ton, F150-F250-F350; 2-4WD 460 (7.5L) w/AIR
Key Feature: With A.I.R.
Port Shape: Square
Material: Mild Steel
Tube Diameter: 1-3/4 in.
Reducers Included: No
Variations: 89511
with A.I.R. System: Yes
with EGR: Yes
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: Yes
Tube Material Thickness: 16g
Crossover Pipe Style: Y-pipe
Quantity: Sold as a kit.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.
Package Contents: Set of Headers, mounting hardware and gaskets
