Hedman Hedders 69690 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN

Hedman Hedders  |  MPN: 69690  |  SKU: FBLG-69690
$42899 $1,04392

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

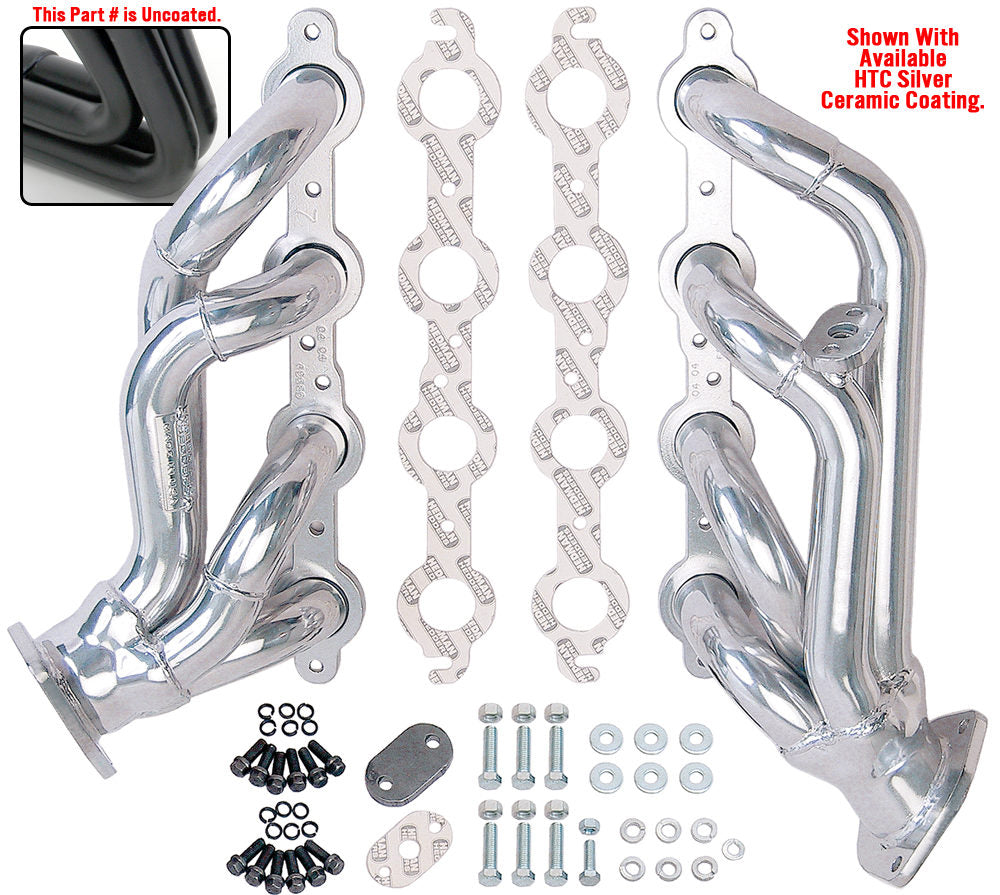

Hedman Hedders 69690 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN

Headers - Street - 1.625 in Primary - Stock Collector Flange - Gaskets / Hardware Included - Steel - Black Paint - GM LS-Series - GM Fullsize SUV / Truck 1999-2007 - Pair

Standard-Duty Headers; 1999-2006 Chevy/GMC 1/2-1 Ton Trucks/SUVs with 4.8, 5.3, 6.0L LS Engine; 1-5/8 in. Short Tubes; 50 State Legal; TWIN FLAT Collectors- Uncoated

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. The stock-design collector of these headers allows them to bolt directly to your Chevy LS's exhaust system to bolt up, and they have provisions for EGR and NON-EGR engines. This model was tested, then issued an E.O. (Executive Order) Number by the California Air Resources Board (C.A.R.B.), making them 50 state legal for use on the vehicles listed on E.O.#D167-31.

These uncoated, EO Replacement headers are Hedman's best selling late model Chevy truck headers. They fit a wide range of early to 1999-2006 2WD and 4WD Chevy/GMC Trucks and SUVs, powered by a 4.8L, 5.3L or 6.0L Chevy LS engine. Included in this header's long list of applications is 1999-2006 Chevy/GMC 1/2 to 1 Ton 2WD and 4WD Silverado, Sierra, Yukon, Tahoe, Escalade, Suburban and Hummer H2 (check the application listings for exact fitment). The smooth 1-5/8 in. tubular design provides ample exhaust flow to let your truck's LS motor breathe easy, and produce significatnly more horsepower and torque, while maintaining street legal status.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

ach set includes a pair of header gaskets, collector gaskets, header flange bolts and collector bolts.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

  • Handcrafted, Mild Steel Construction.
  • The Short Tube Header Design Provides Good Low-End Power, and Provides Excellent Ground Clearance And Component Compatibility.
  • Stock-Style Header Collector Bolts Up To The Factory Exhaust Without Modification.
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Tube Diameter: 1-5/8 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: No
Tube Size: 1-5/8 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 14g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Set of Headers, mounting hardware and gaskets
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27470
Replacement Head Flange Gasket: 27470
Variations: 69696
Tube Material Thickness: 14g
Tube Style: Shorty
Contents: headers, gaskets (when applicable), mounting bolts
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Footnotes: 223. Right & Left flat 3-bolt flange connector to stock Y-pipe.
Collector Attachment: Stock
Collector Diameter: Stock
Collector Size: Stock
Collector Style: There are 2 factory Collector designs. INSPECT STOCK CONNECTION BEFORE ORDERING!
Reducer Outlet Size: Factory hookup
Exhaust System Dia: Factory hookup
E.O. #: Yes
Tube Length: Short Tubes
Emissions Notes: EO# D167-31 (click here for covered vehicles in document on ARB.CA.GOV website)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Round
Header Style: Short Tube
IMPORTANT!: Models without E.G.R. must use block-off plate.
Notes: 99-07 GM 1/2, 3/4, 1 Ton Truck/SUV 4.8-6.0L LS Series Engine
Key Feature: Optional EGR incl.
Port Shape: Round
Material: Mild Steel
Tube Design: Standard

FITMENT DATA
