Hedman Hedders 69650 - STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN
$39899
$96897
Unit price
/
Unavailable
$569.98 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

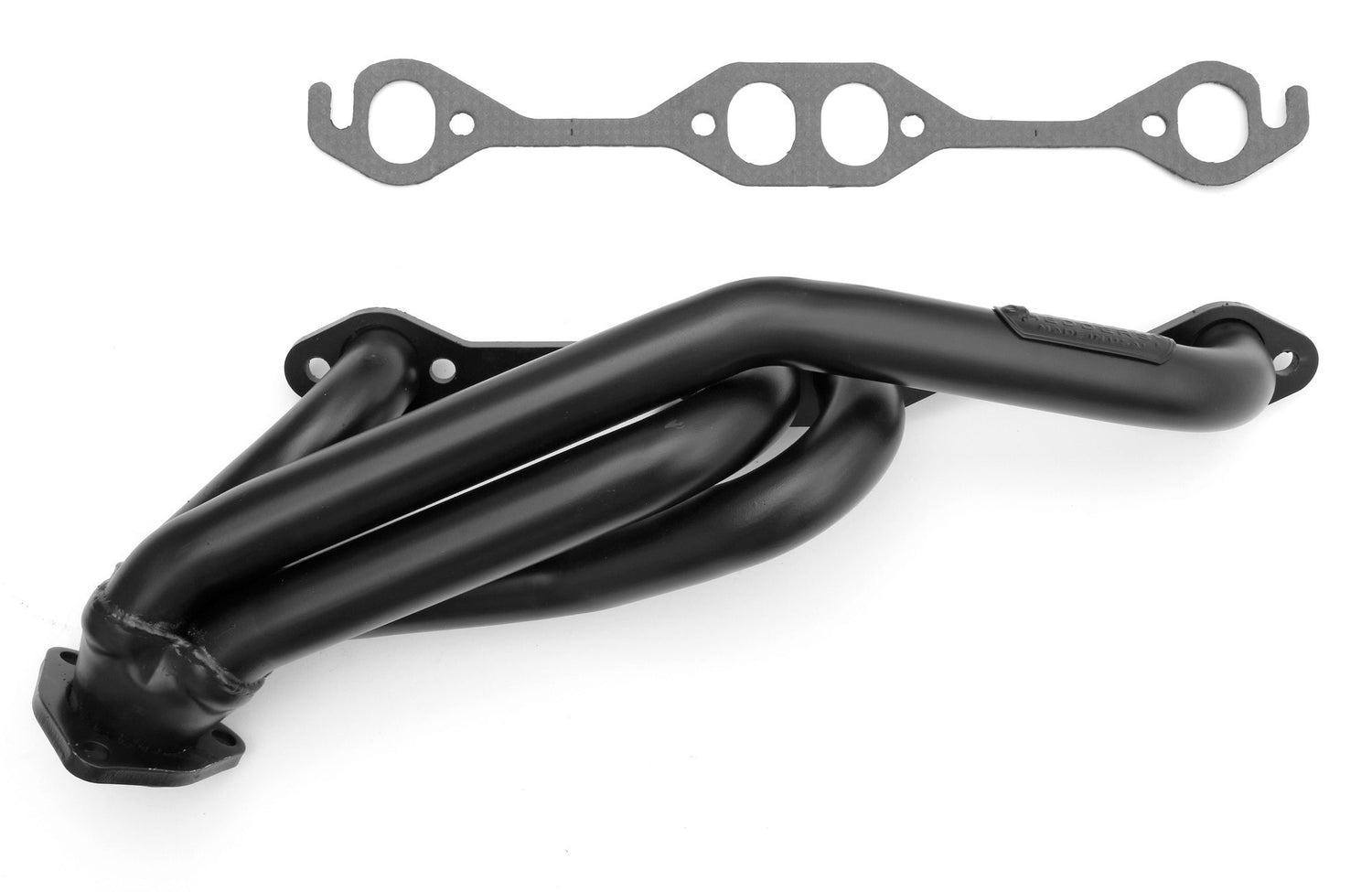

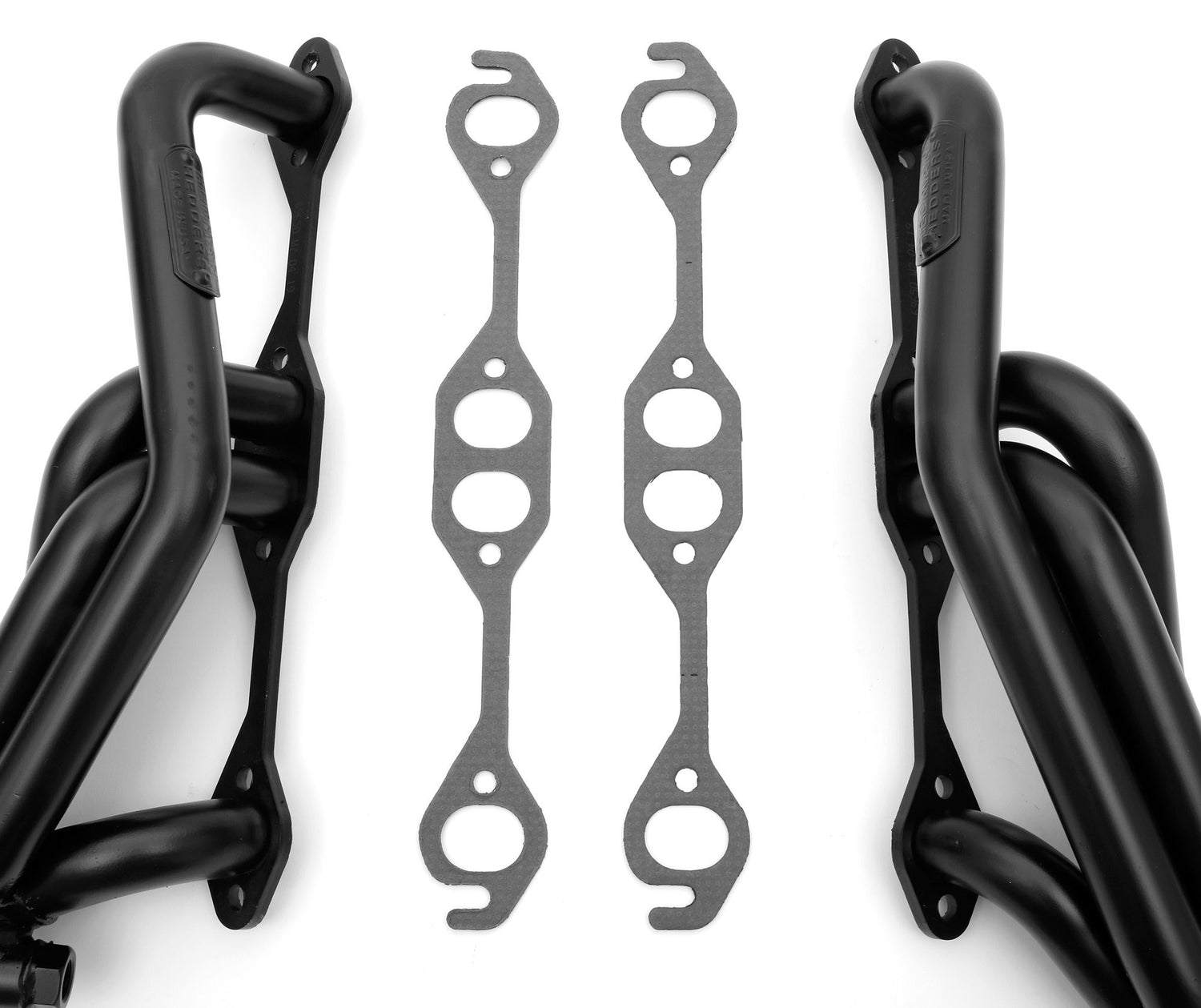

Hedman Hedders 69650 - STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; STOCK COLL.; SHORTY DESIGN
Headers - Street - 1.5 in Primary - Stock Collector Flange - Gaskets / Hardware Included - Steel - Black Paint - Small Block Chevy - GM Fullsize SUV / Truck 1996-2000 - Pair
50 State Legal Headers for 1996-00 2WD & 4WD CHEVY/GMC 1500-3500 Pickup Trucks and SUVs, 5.0-5.7L, No A.I.R.; 1-1/2 in. Shorty Tube, Factory Collector- UNCOATED Mild Steel
- Handcrafted, Mild Steel Construction.
- The Short Tube Header Design Provides Good Low-End Power, and Provides Excellent Ground Clearance And Component Compatibility.
- Stock-Style Header Collector Bolts Up To The Factory Exhaust Without Modification.
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Collector Bolts Included: Yes
Collector Gasket Included: No (Requires GM #15093974, or equivalent, exhaust seal)
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: No
Variations: 69656
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.

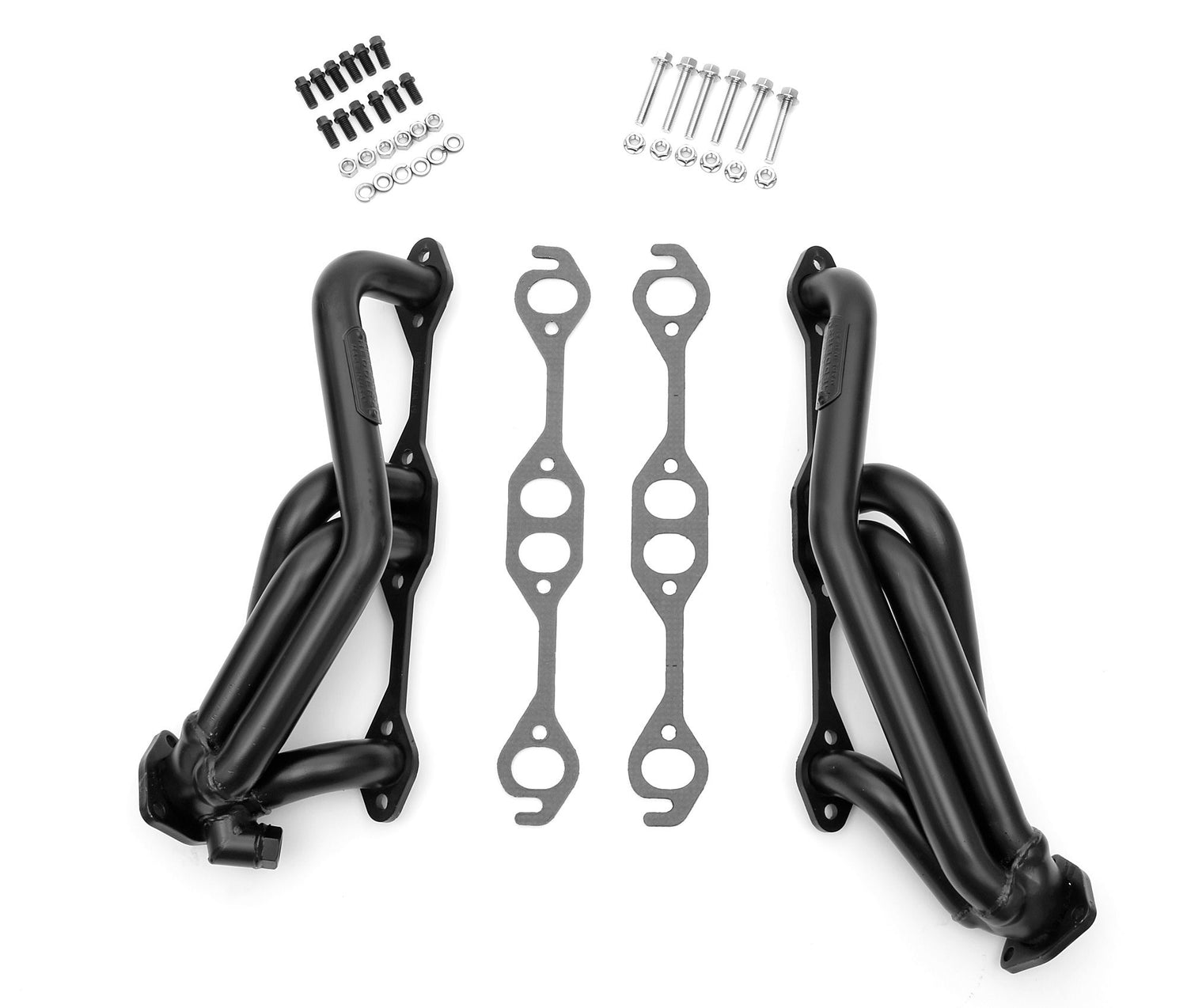

Package Contents: Headers, gaskets, header & collector bolts/nuts. Collector donuts not included!
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Oval
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27520
Replacement Head Flange Gasket: 27520
with A.I.R. System: No
Tube Size: 1-1/2 in.
Tube Style: Shorty
Contents: Headers, gaskets, header & collector bolts/nuts. Collector donuts not included!
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: Stock
Collector Diameter: Stock
Collector Size: Stock
Collector Style: Stock Collector
Reducer Outlet Size: Stock
Exhaust System Dia: Factory hookup
E.O. #: Yes
Tube Material Thickness: 16g
Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.

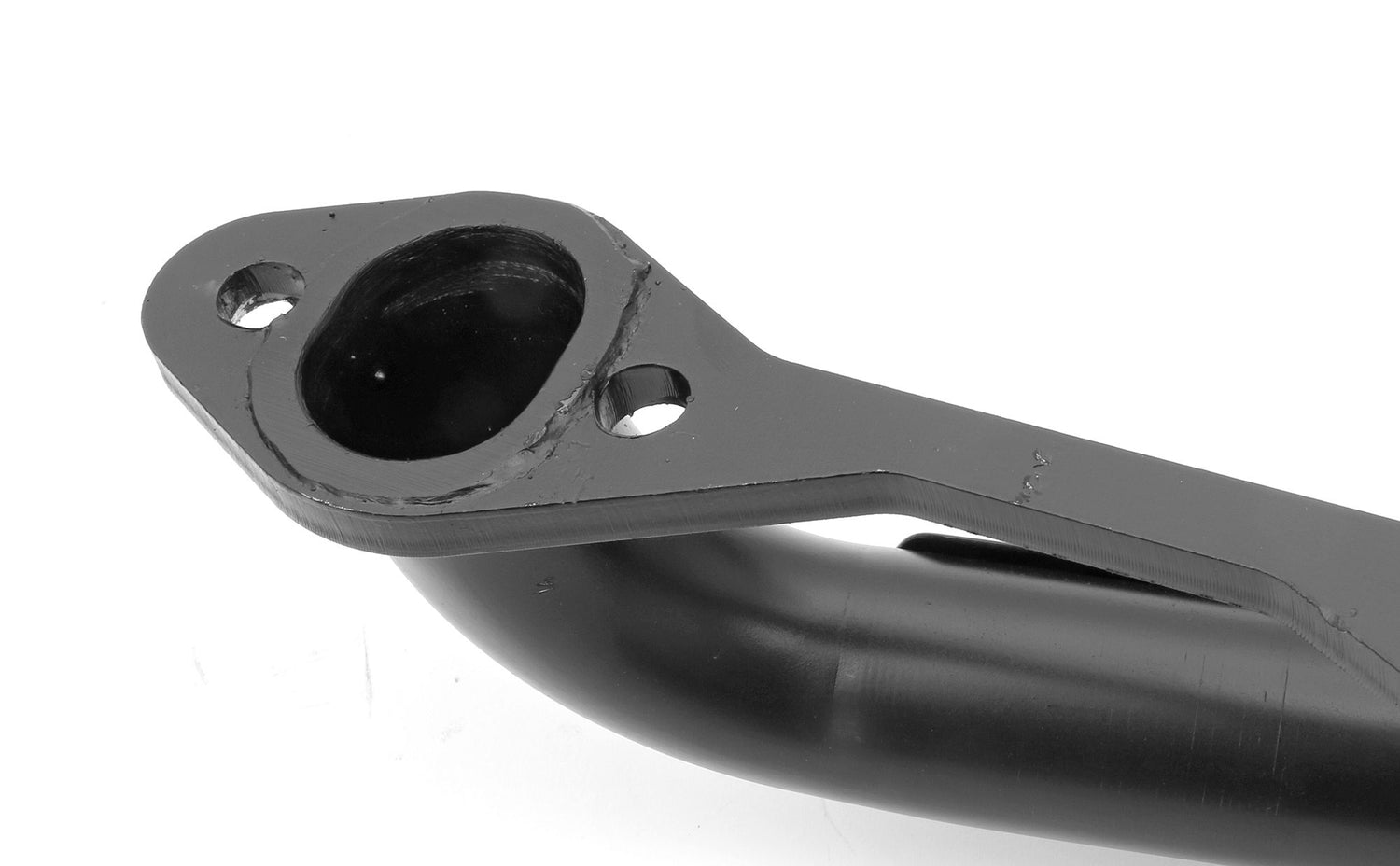

Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Oval Port
Header Style: Short Tube
Notes: 96-00 Chev. 1/2, 3/4, 1 Ton Truck 2-4WD
Port Shape: Oval
Material: Mild Steel
Special Engine Notes: VORTEC
Tube Design: Standard
Tube Length: Short Tubes
Tube Diameter: 1-1/2 in.
Mounting Hardware Included: Yes

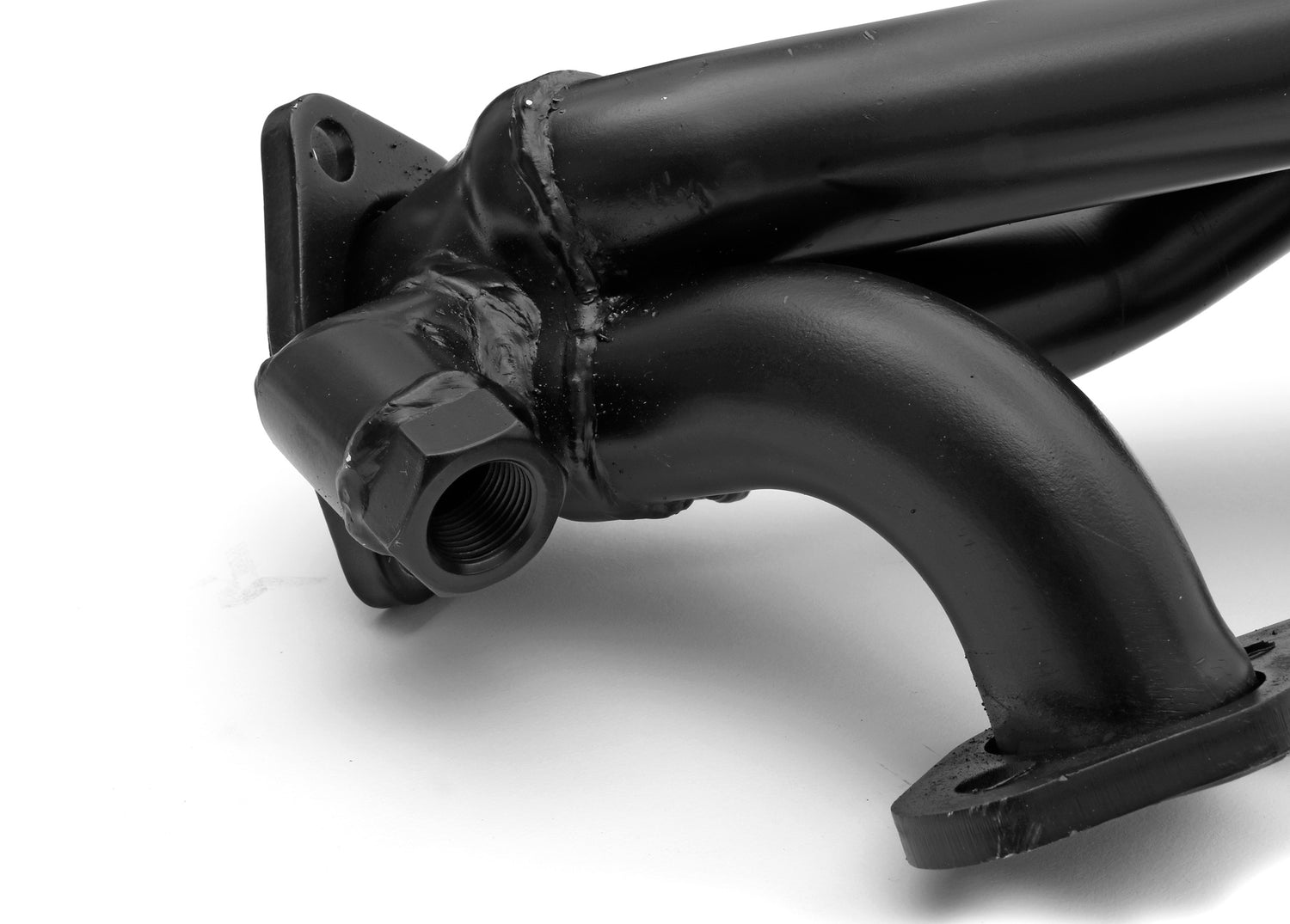

with EGR: Yes
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
FITMENT DATA
