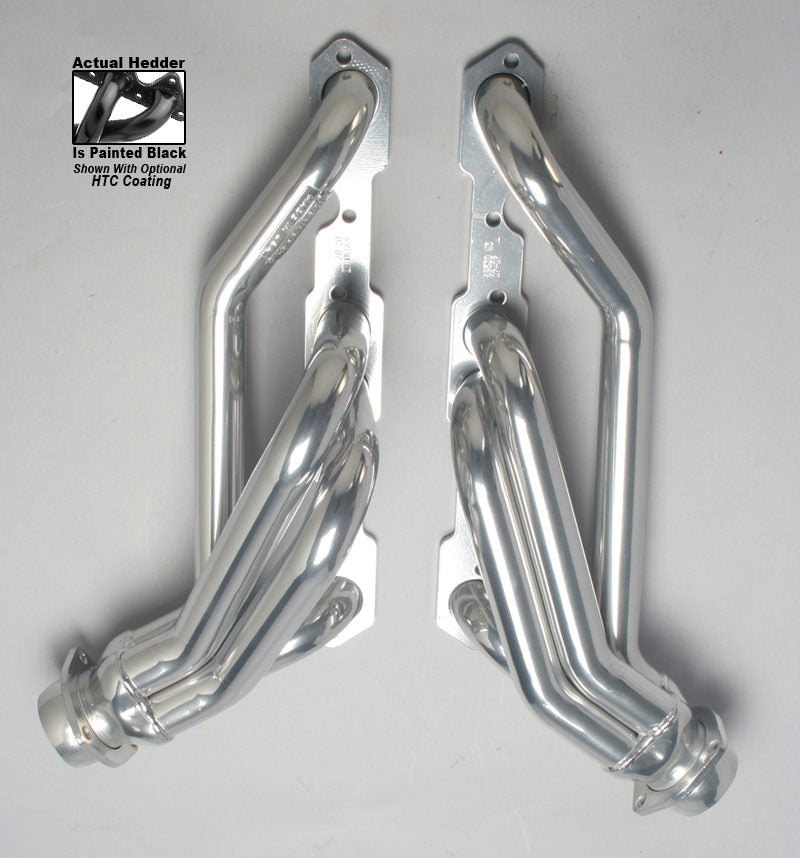

Hedman Hedders 69530 - STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; ANGLE PLUG HEADS; MID-LENGTH DESIGN

Hedman Hedders 69530 - STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; ANGLE PLUG HEADS; MID-LENGTH DESIGN

Headers - Street - 1.5 in Primary - 2.5 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Small Block Chevy - GM Compact SUV / Truck 1982-2000 - Pair

Standard-Duty, Uncoated, Mid-Length Engine Swap Headers For SB Chevy (with Angle Plug Heads) into 1982-04 2WD Chevy/GMC S10/Blazer Family; 1-1/2 in. Tube Diameter; 2-1/2 in. Ball/Socket Style Collector

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Chevy S10, GMC S15, V8 engine swap specific headers for over 30 years. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These uncoated, MID-LENGTH TUBE headers are uniquely designed to provide additional spark plug clearance when installed on a Small Block Chevy 283-400 (Gen 1) fitted with Angle Plug heads ( GM L98 aluminum heads, or equivalent design) into 1982-2004 Chevy S10/Blazer, GMC S15/Jimmy 2WD trucks. Fits both manual and automatic transmission trucks. The smooth 1-1/2 in. tube design provides ample exhaust flow to let your transplanted 283-400 SB Chevy engine breathe easy, and produce additional horsepower and torque over factory manifolds.

To ensure a proper installation, it is recommended that these headers be installed with Trans-Dapt Performance Product's #9906 engine swap mount kit.

These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

• Handcrafted, Mild Steel Construction.
• The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
• Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
• Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
• Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
• Proud To Say, Made In The USA, Since 1954!
