Hedman Hedders 69233 - CHEVY PU SMALL BLOCK 4WD- BLACK MAXX

Hedman Hedders  |  SKU: FBLG-69233
Sale price $58399 Regular price $1,43086

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Hedman Hedders 69233 - CHEVY PU SMALL BLOCK 4WD- BLACK MAXX

Headers - Street - 1.625 in Primary - 3 in Collector - Steel - Black Ceramic - Small Block Chevy - GM Fullsize SUV / Truck 1967-91 - Kit

Standard-Duty, Black Ceramic Coated Long Tube Headers For 1967-87 CHEVY/GMC 4WD (only) 1/2 to 3/4 Ton Pick-Up Truck, Blazer and SUV; 283-400 SB Chevy Without A.I.R. (Centered Engine Chassis Only); 1-5/8 in. Tube; 3 in. Ball/Socket Collector

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These BLACK-MAXX coated, LONG-TUBE headers fit 1967-1991 4WD (only) 1/2 and 3/4 ton Chevy Trucks, Blazers and Suburbans, powered by a Small Block Chevy engine (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

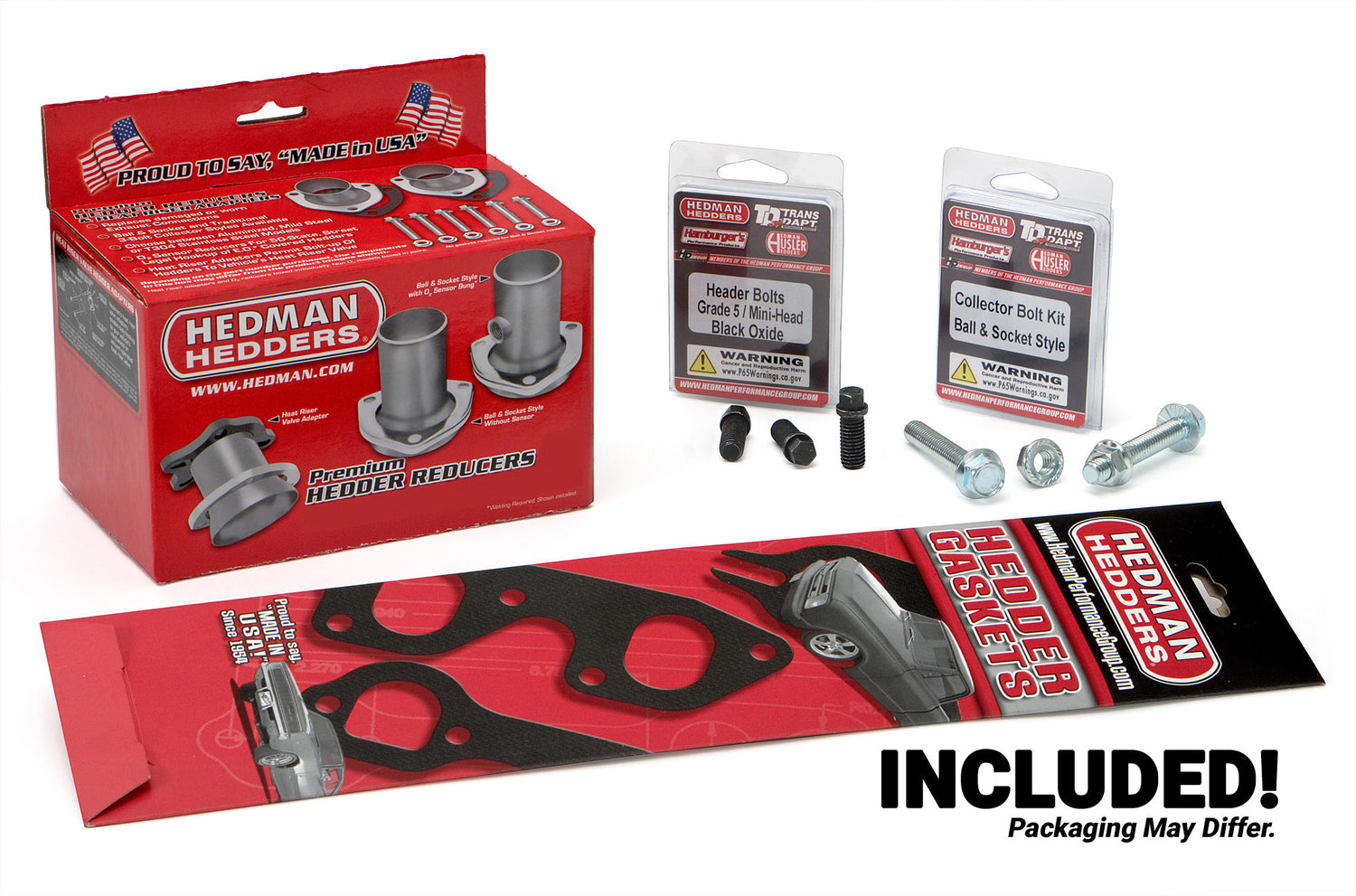

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

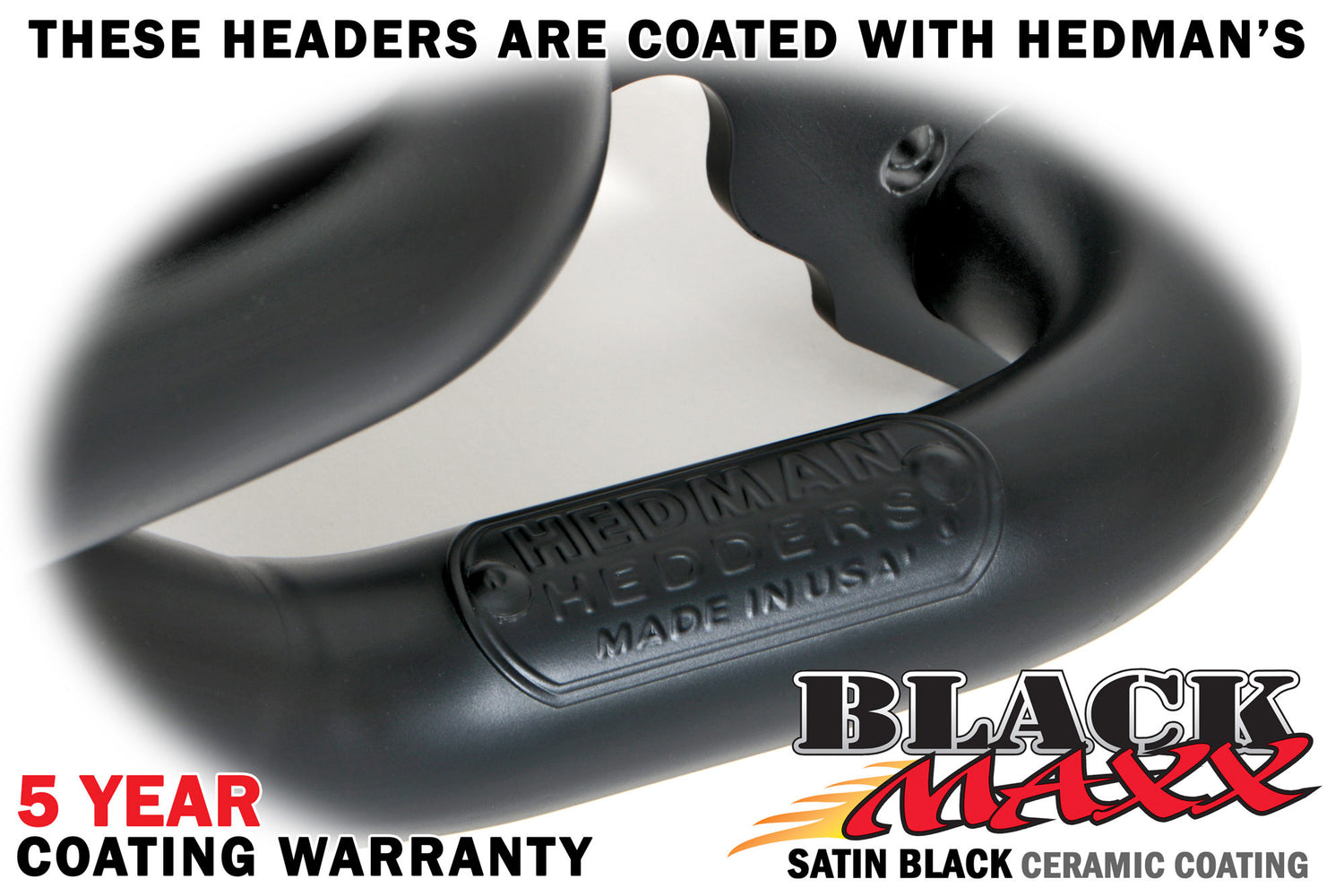

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, SATIN-BLACK ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Tube Diameter: 1-5/8 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 69230, 69830
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: BLACK MAXX Satin Black Ceramic-Metallic
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27500
Replacement Head Flange Gasket: 27500
with A.I.R. System: No
Tube Size: 1-5/8 in.
Tube Style: Long Tubes
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Drivetrain: 4WD
Tube Material Thickness: 16g
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: BLACK MAXX Satin Black Ceramic-Metallic
Finish Type: BLACK MAXX- Black Ceramic-Metallic Coating
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Long Tube
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
