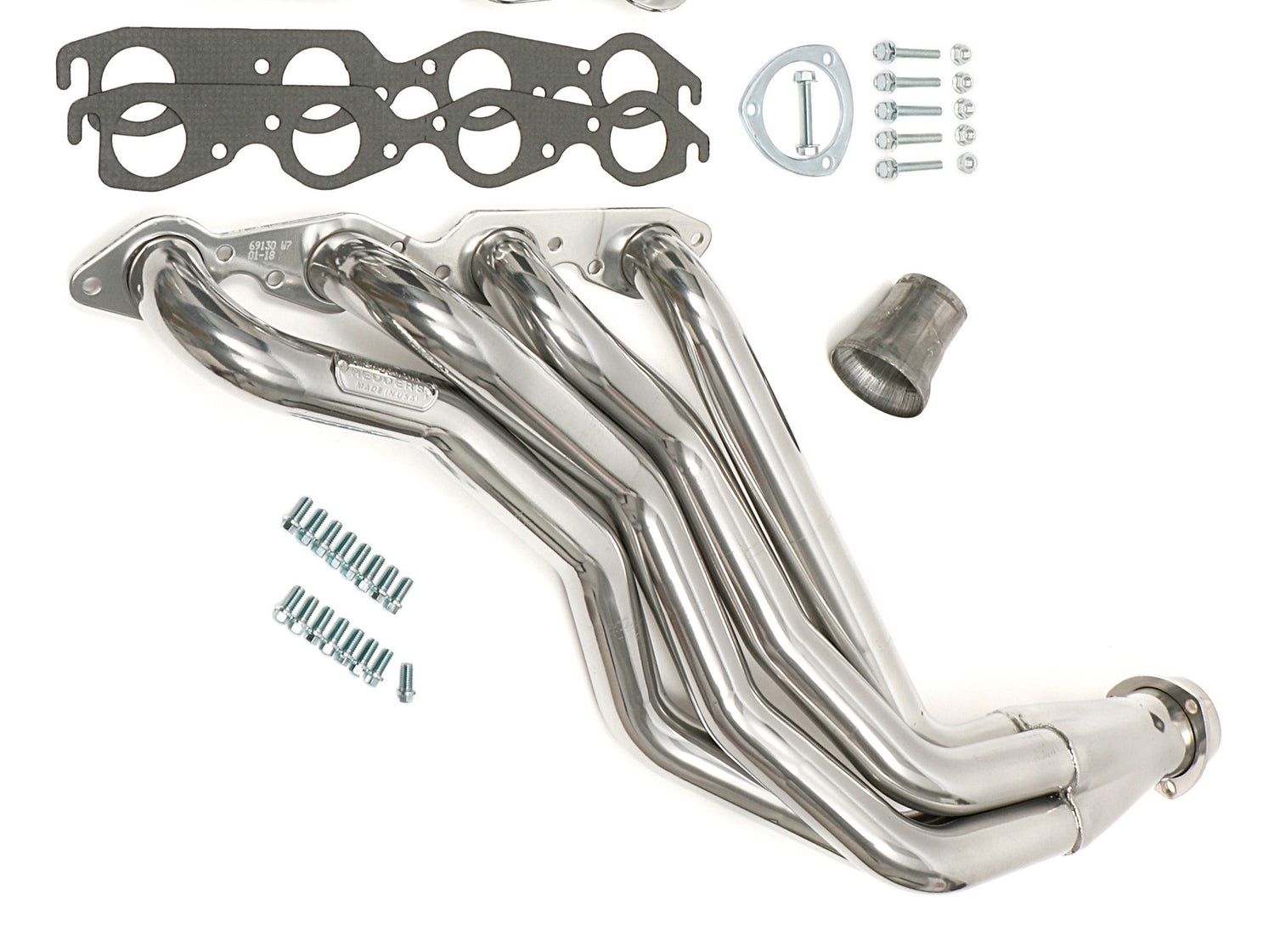

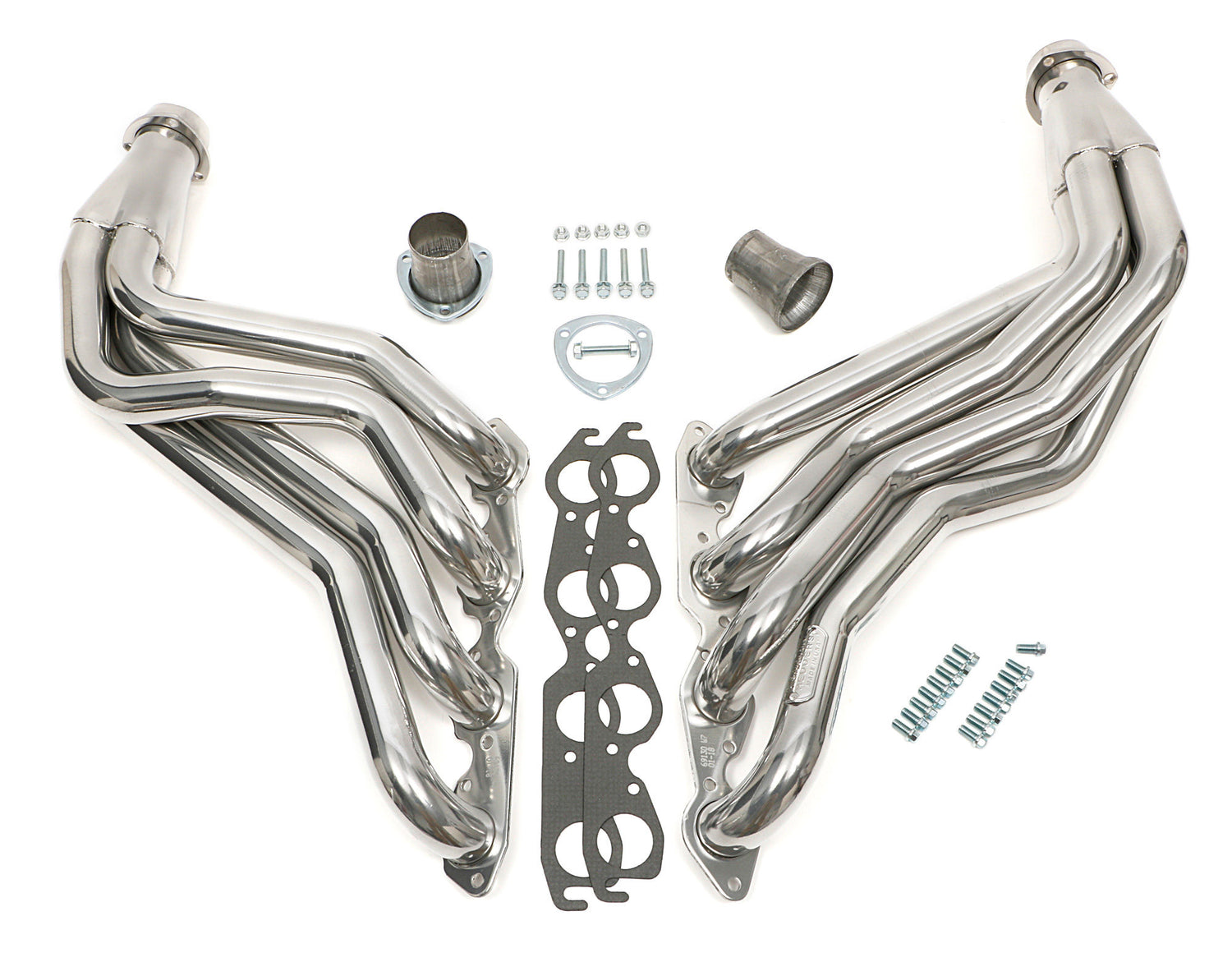

Hedman Hedders 69136 - HTC COATED HEADERS; 2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Hedman Hedders | SKU:
FBLG-69136
Sale price
$69899
Regular price
$1,76486
Unit price
/
Unavailable
$1,065.87 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Hedman Hedders 69136 - HTC COATED HEADERS; 2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Headers - Full - 2 in Primary - 3 in Collector - Gaskets / Hardware / Reducers Included - Steel - Silver Ceramic - Big Block Chevy - GM Fullsize SUV / Truck 1967-91 - Pair
Long Tube Headers, 1967-91 CHEVY/GMC 1/2-1 Ton 2WD or 1/2-3/4 Ton 4WD Trucks, Blazer, 1/2-3/4 Ton 2WD SUV or 3/4 Ton 4WD SUV; 396-502 BB Chevy (Centered Engine Only); 1-3/4 in. Long Tubes; 3 in. Ball Collector- Silver-Coated Mild-Steel
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Tube Material Thickness: 16g
Tube Style: Long Tubes
Reducer Outlet Size: 2-1/2 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: No
Power Steering: Yes
Clutch Notes: Must use 1975 and later model clutch linkage located at rear of engine. (139)
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Exhaust System Dia: 2-1/2 in.
Tube Length: Long Tubes
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.

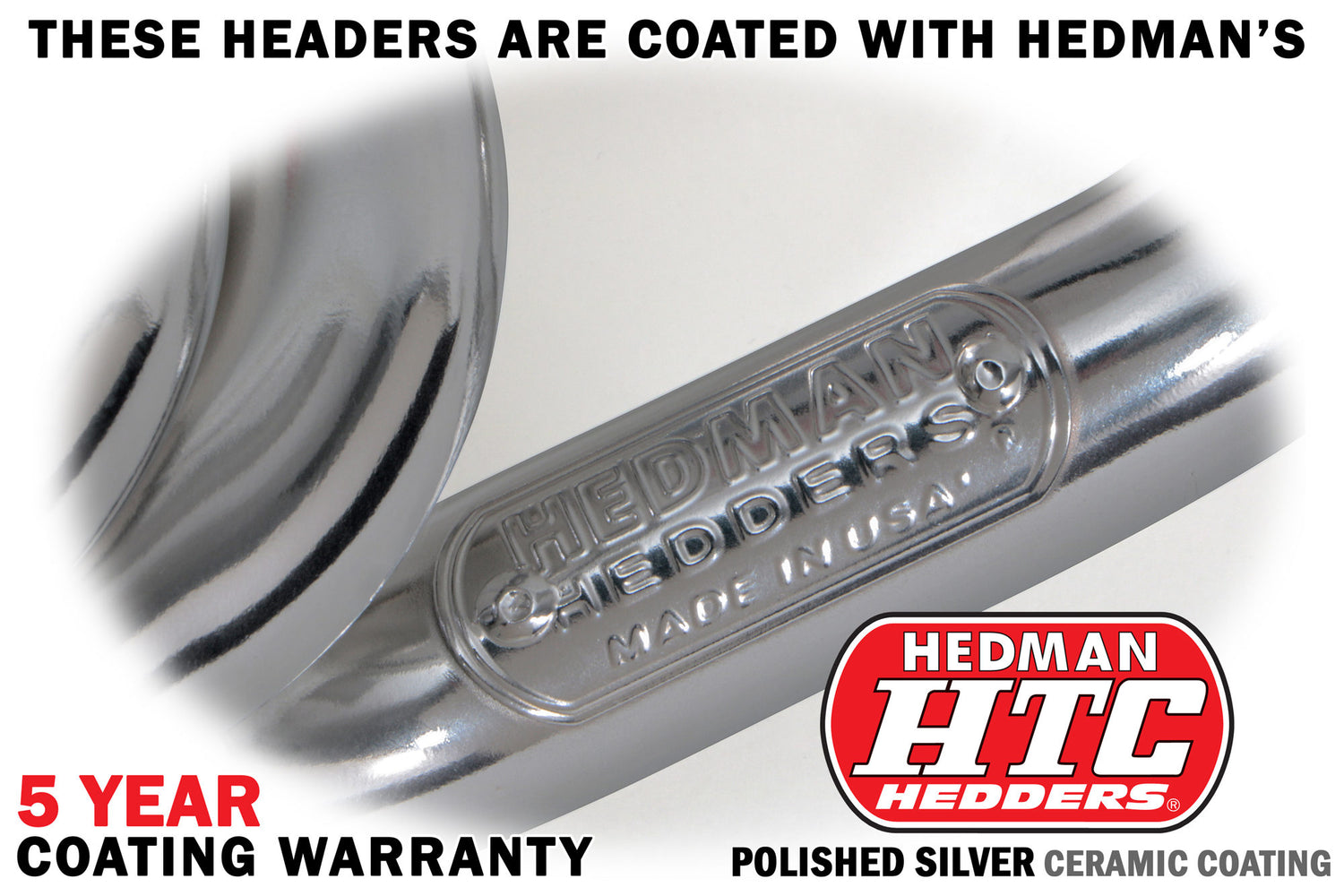

Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
<i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i>:
CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN!
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round Port
Header Style: Long Tube
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Diameter: 2 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 2 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 2 in.

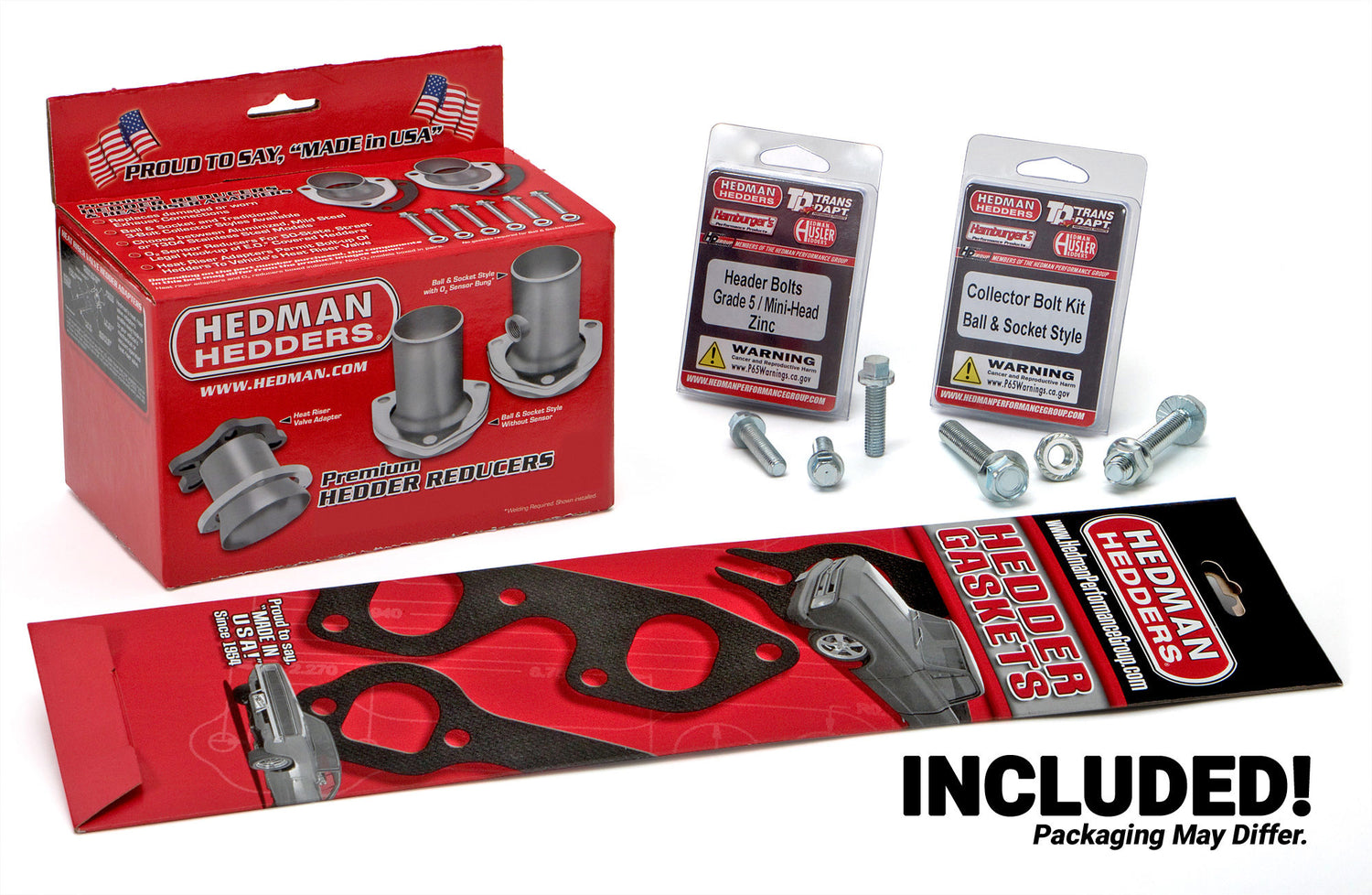

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty

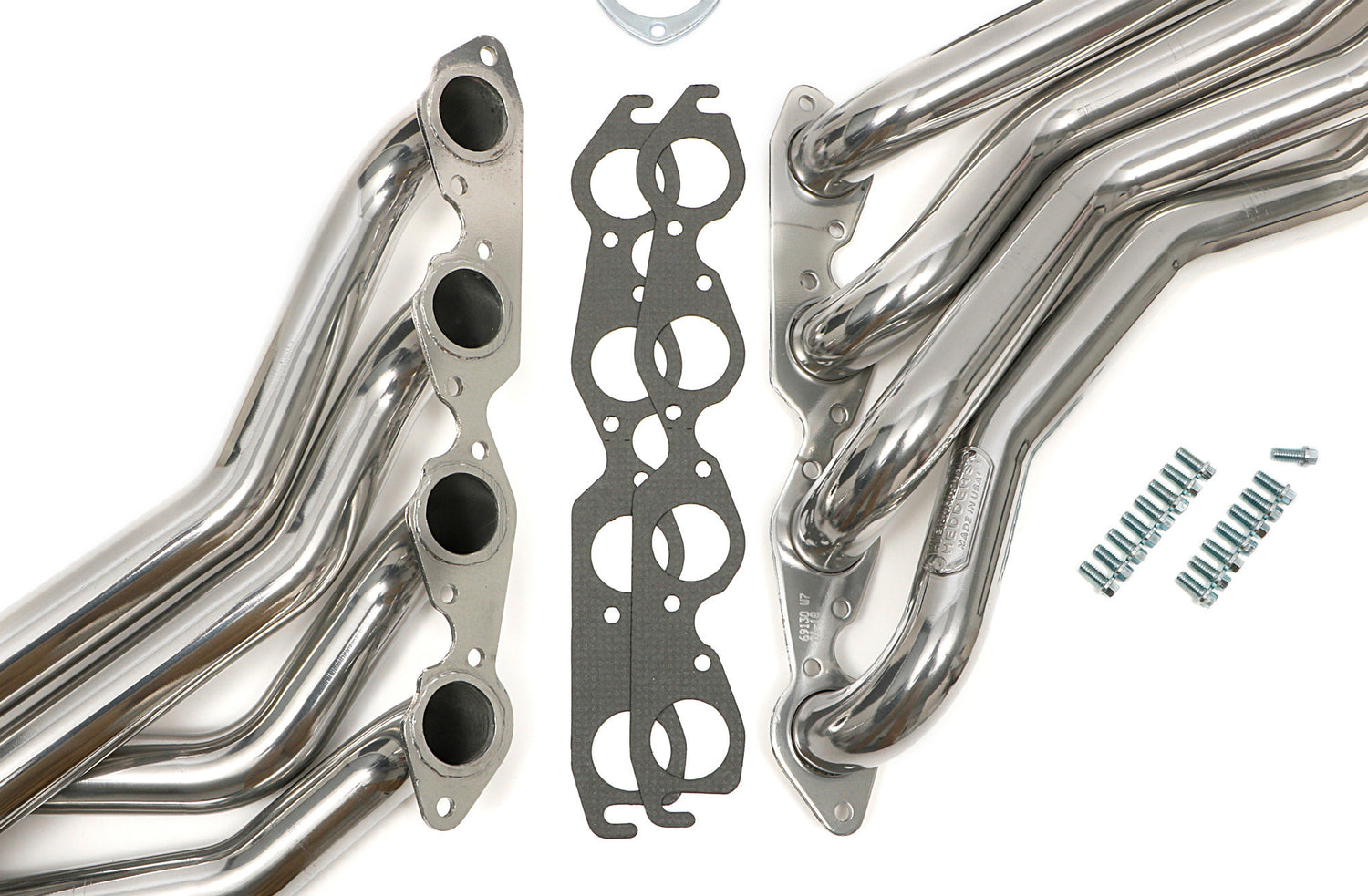

Replacement Gasket: 27540
Replacement Head Flange Gasket: 27540
Variations: 69130
