Hedman Hedders 69096 - HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Hedman Hedders  |  MPN: 69096  |  SKU: FBLG-69096
$60899 $1,53671


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

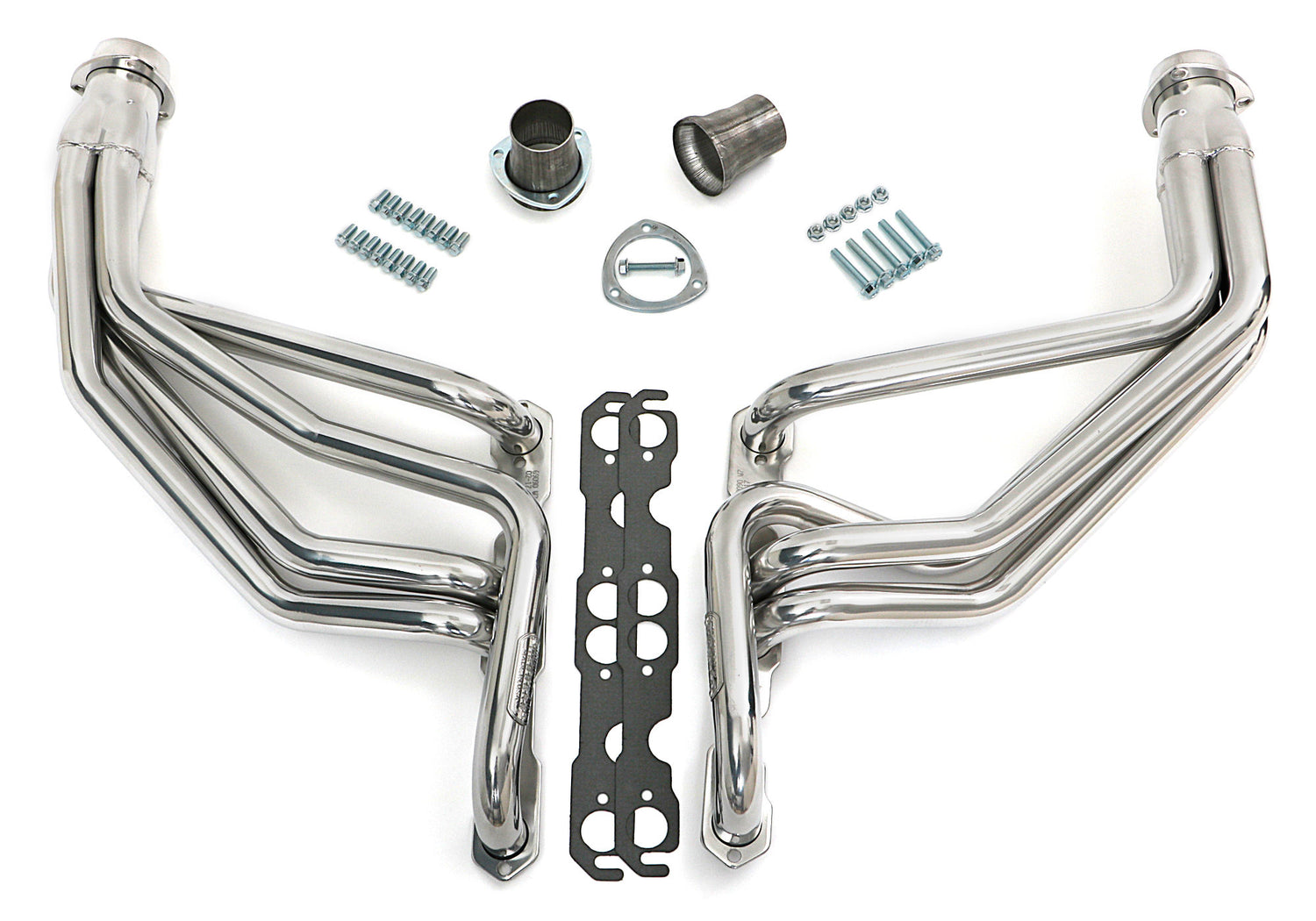

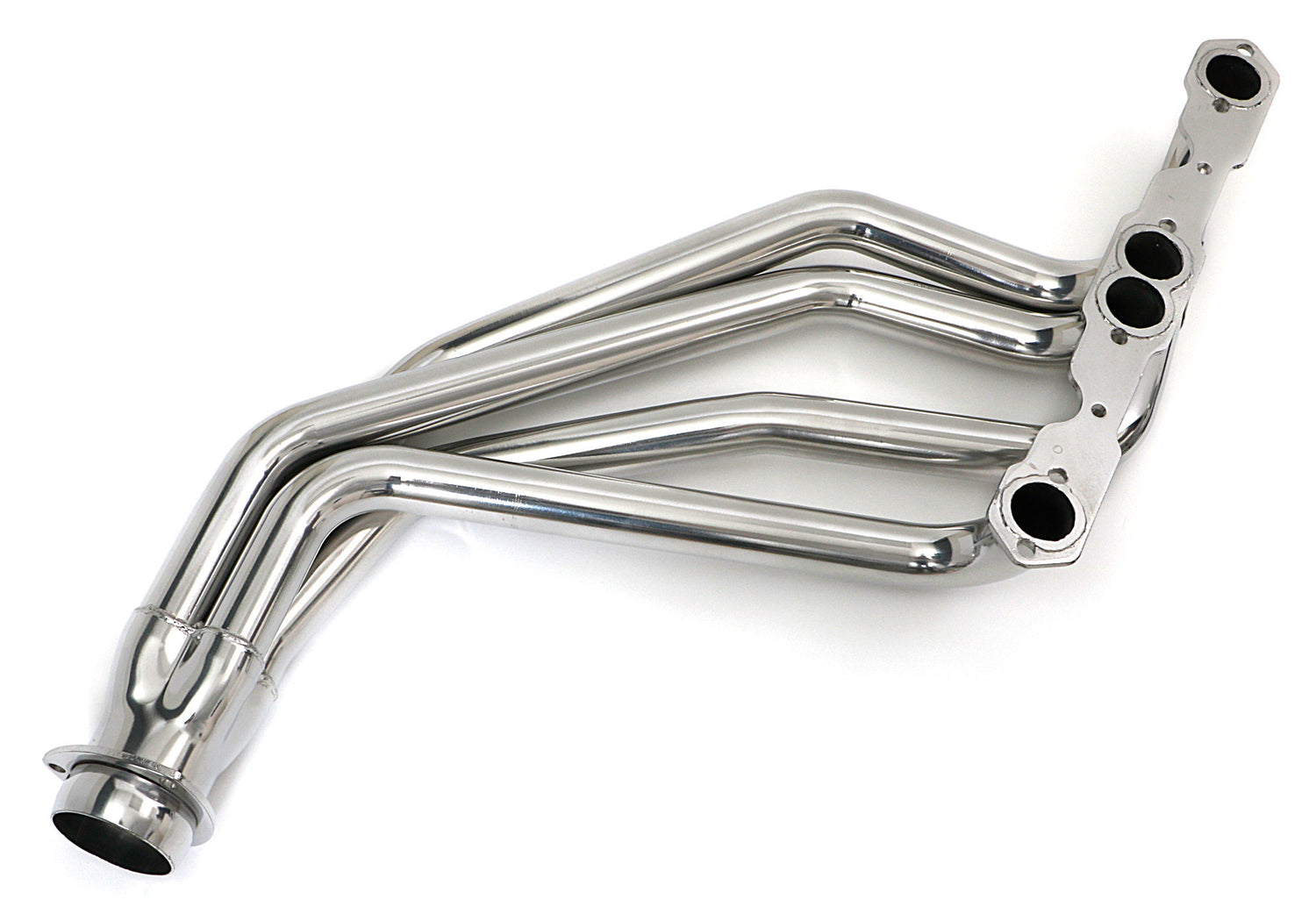

Hedman Hedders 69096 - HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Headers - Street - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Metallic Ceramic - Small Block Chevy - GM Fullsize SUV / Truck 1967-91 - Pair

Standard-Duty Polished Silver Ceramic-Coated, Long-Tube Headers For 1967-87 CHEVY/GMC 2WD & 4WD, 1/2 to 1 Ton Truck, SUV, Motorhome with 283-400 SB Chevy Engine (Centered Engine Chassis Only); 1-5/8 in. Tubes; 3 in. Ball/Socket Collector

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These HTC™ Coated, LONG-TUBE headers are one of Hedman's best selling Chevy truck headers. They fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment) powered by a Small Block Chevy engine (without A.I.R. System). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

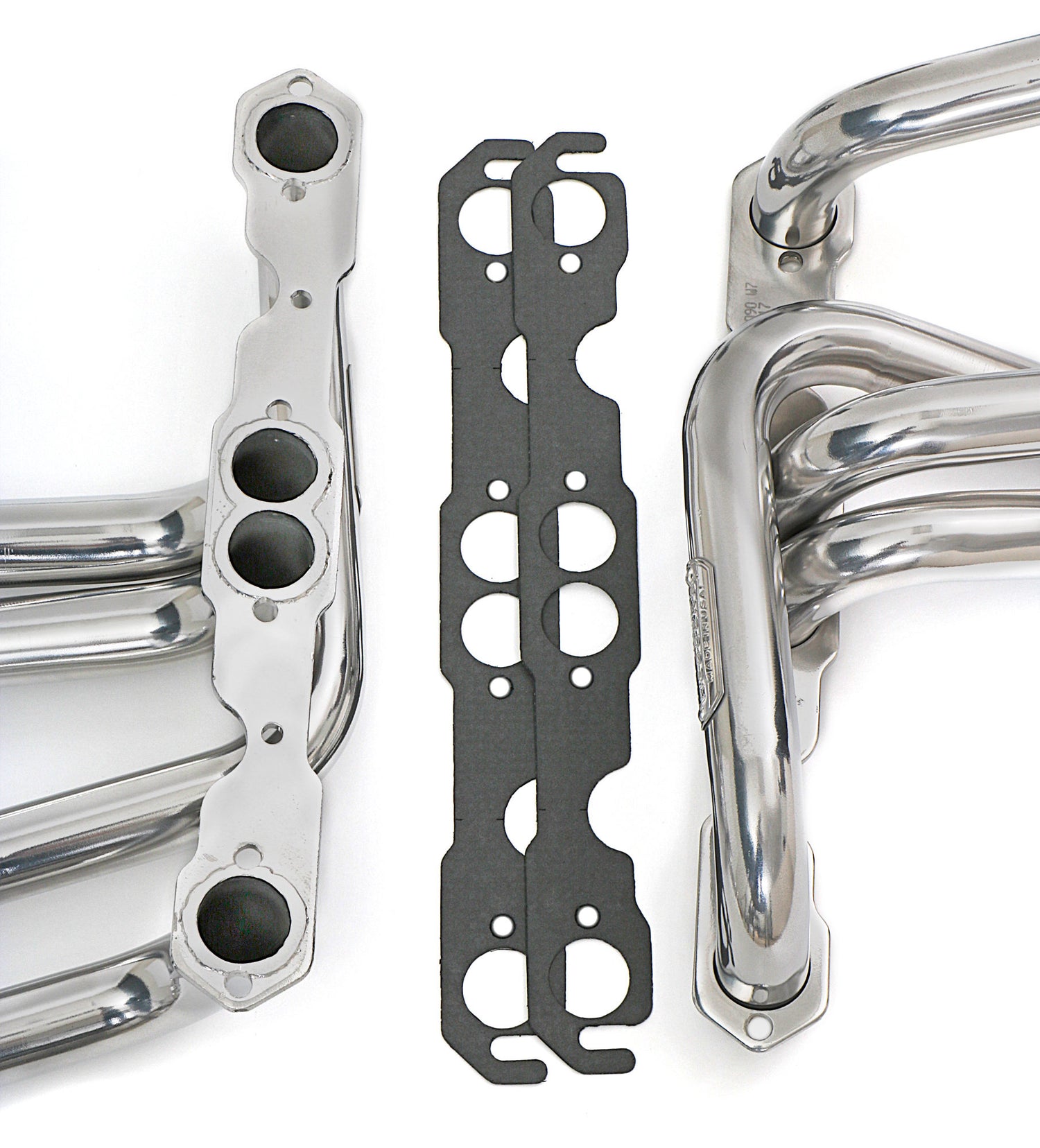

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

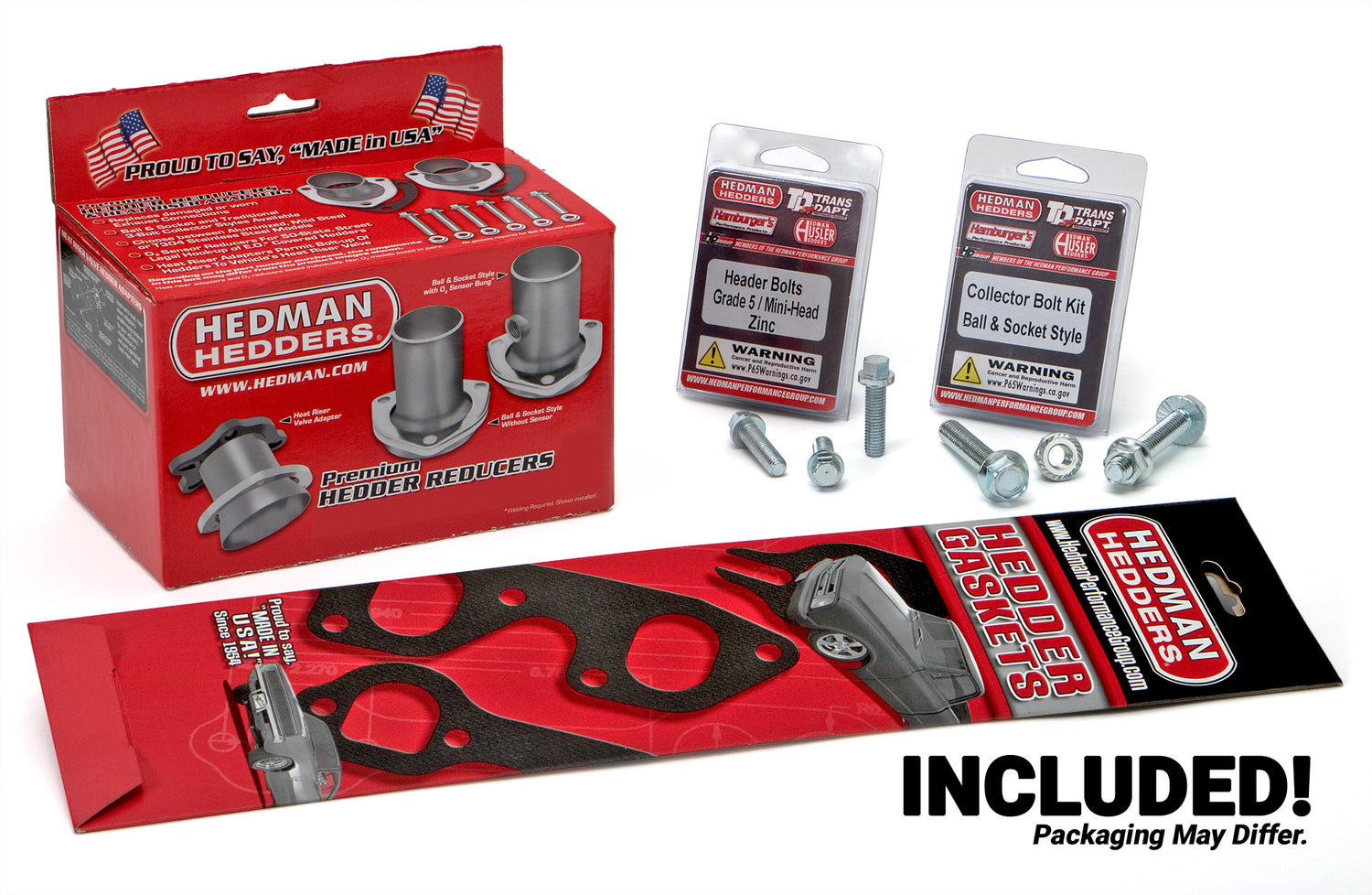

  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!

Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Round
Cylinder Head: Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27500
Replacement Head Flange Gasket: 27500
Variations: 69090, 69890
Tube Material Thickness: 16g
Tube Style: Long Tubes
Reducer Outlet Size: 2-1/2 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: No
Power Steering: Yes
Transmission Compatibility: may encounter clutch interference if cross shaft behind driver side rear port
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Exhaust System Dia: 2-1/2 in.
Tube Length: Long Tubes
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: HTC Polished Silver Ceramic-Metallic
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Long Tube
Notes: 67-91 GM. Full Size Blazer, Jimmy 283-400 2-4WD
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Diameter: 1-5/8 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-5/8 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
