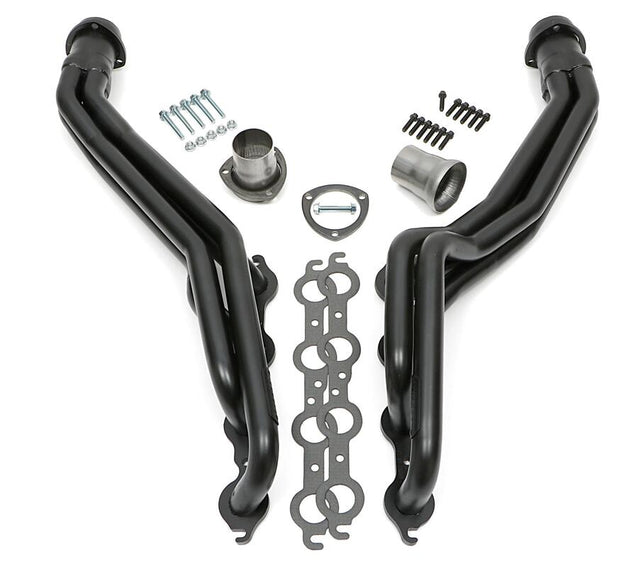

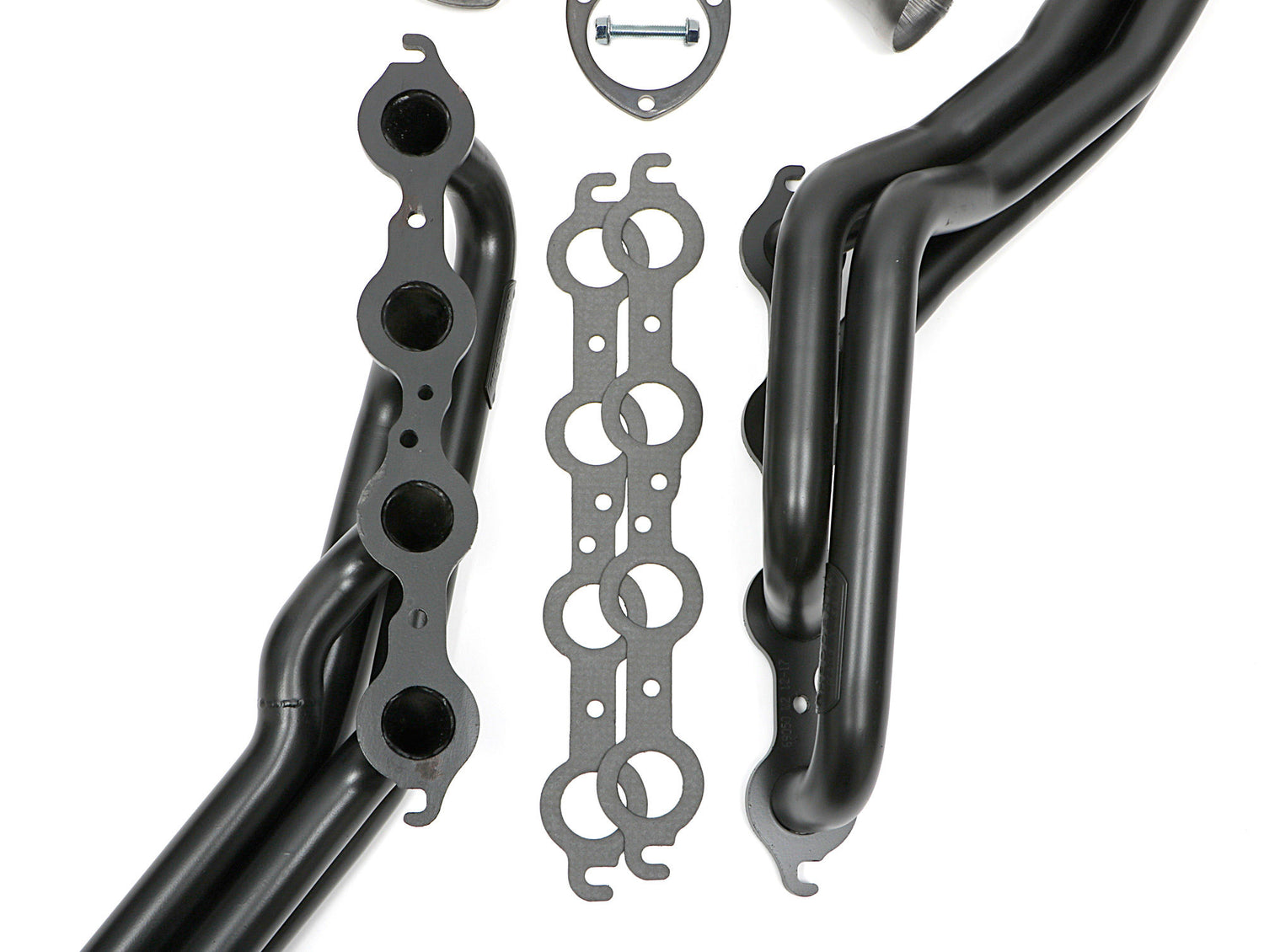

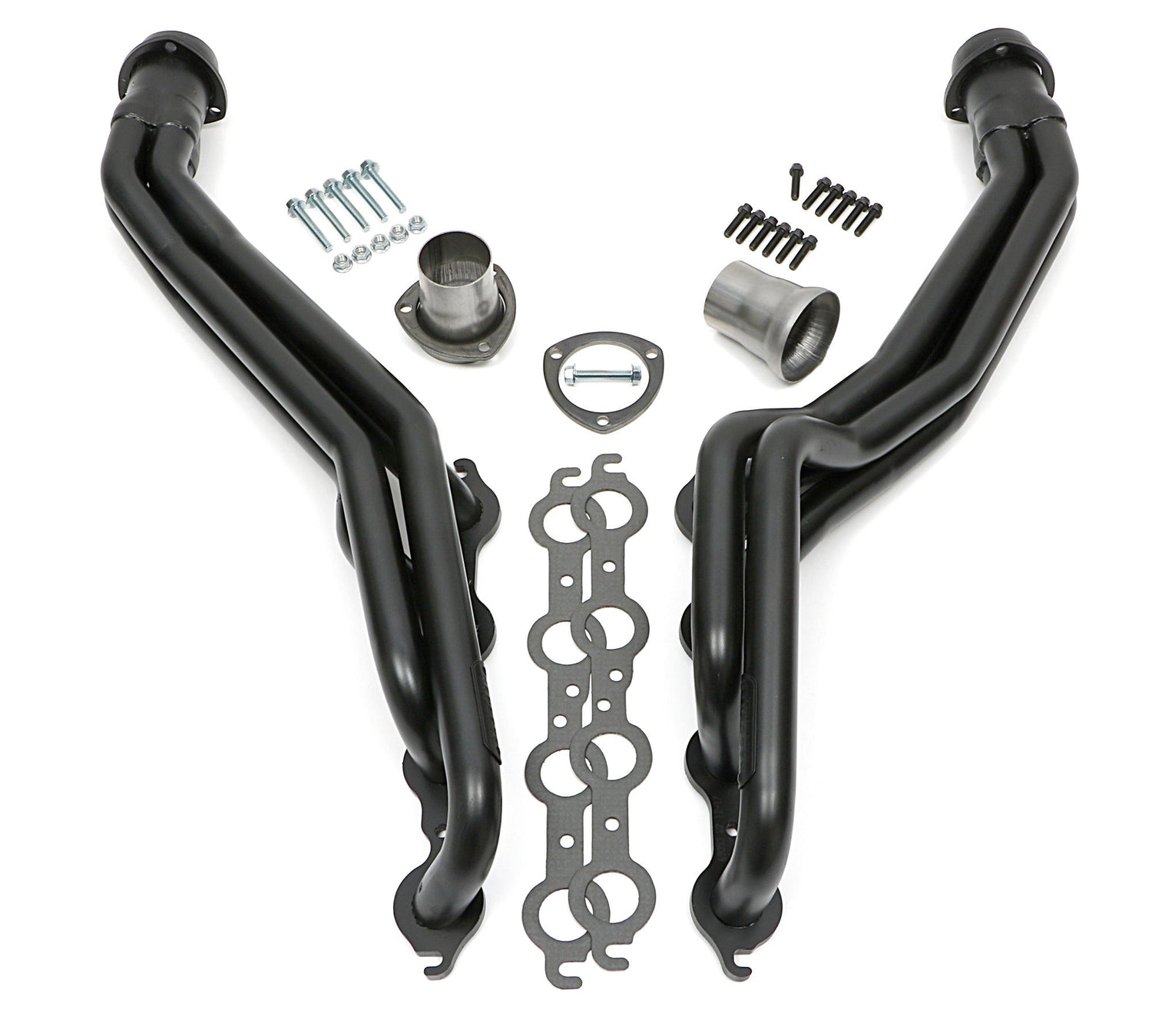

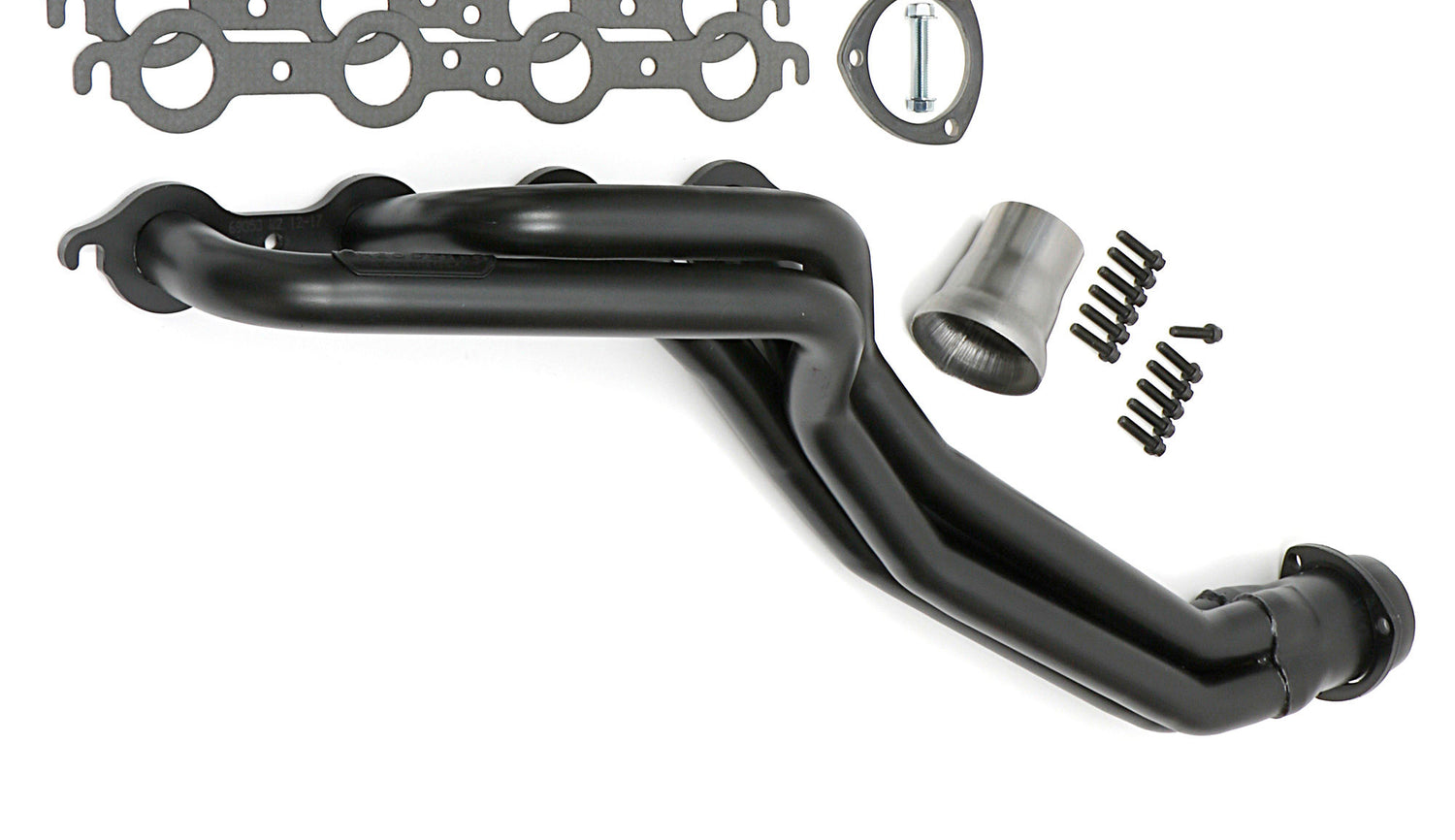

Hedman Hedders 69050 - HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. LONG TUBE; 3 IN. BALL/SOCKET COLLECTOR- UNCOATED
Hedman Hedders | SKU:
FBLG-69050
Sale price
$43199
Regular price
$1,06363
Unit price
/
Unavailable
$631.64 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Hedman Hedders 69050 - HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. LONG TUBE; 3 IN. BALL/SOCKET COLLECTOR- UNCOATED
Headers - LS Swap - Full - 1.5 in Primary - 2.5 in Collector - Gaskets / Hardware / Reducers Included - Steel - Black Paint - 2WD - GM LS-Series - GM Compact SUV / Truck 1982-2004 - Pair
Full-Length LS Engine Swap Headers For 1982-04 Chevy/GMC 2WD (only) S10, S15, Blazer, Jimmy or Sonoma; GM LS 4.8L-6.0L V8 V8; 1-1/2 in. Tubes; 3 in. Ball/Socket Collector- UNCOATED Mild Steel
- Handcrafted, Mild Steel Construction.
- Long Tube, Under Chassis Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

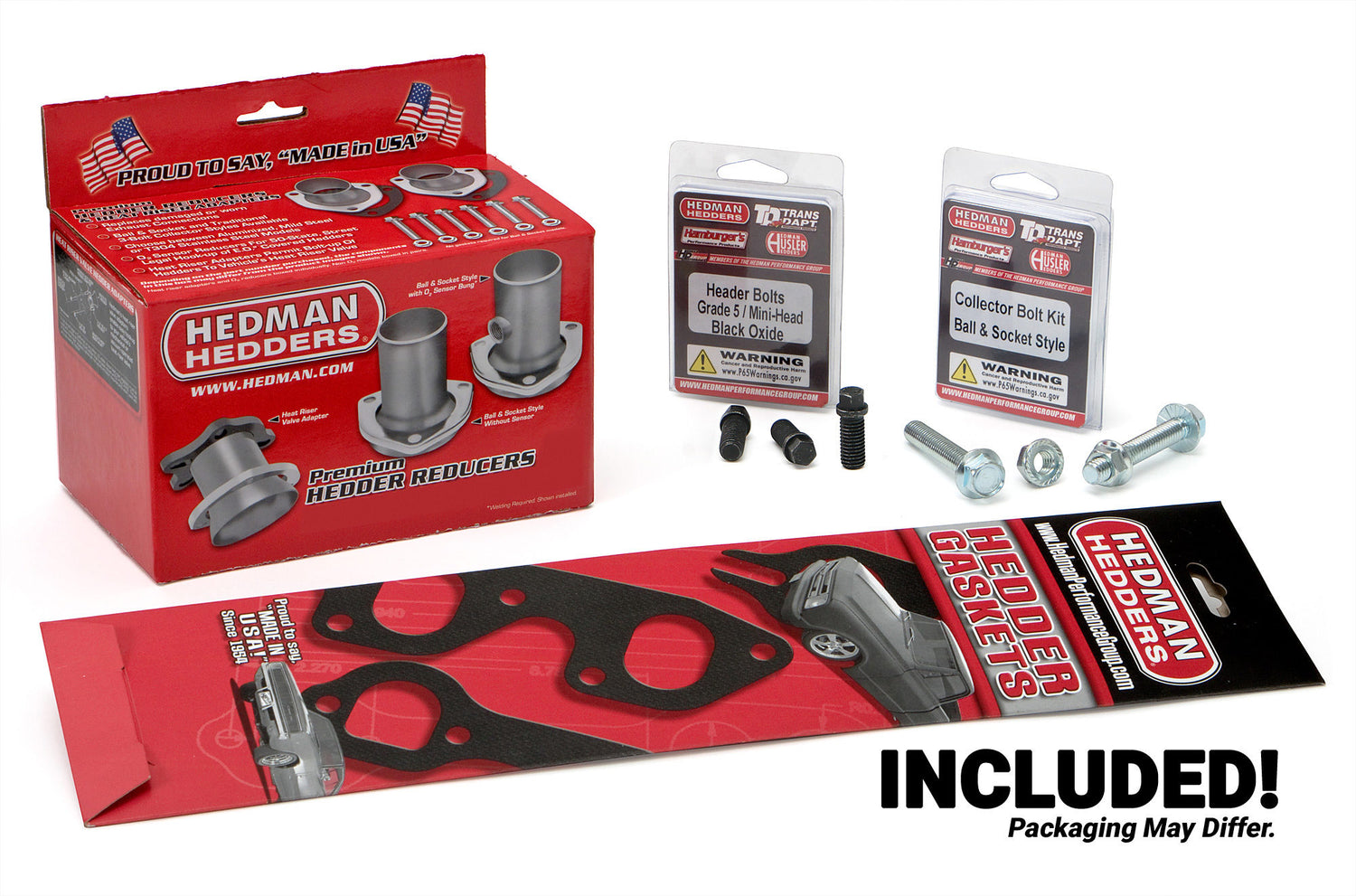

- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Under Chassis Design
- Proud To Say, Made In The USA, Since 1954!
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Installation Notes: Requires Trans-dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (all steel)
Tube Size: 1-1/2 in.
Tube Style: Long Tubes
Drivetrain: 2WD Only!
Air Conditioning: Yes
Automatic Transmission - Column: No
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Contents: Headers, gaskets, 3-bolt exhaust adapters, mounting hardware
E.O. #: No
Tube Material Thickness: 16g
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Engine: Chevy LS Series
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.375 in.
Product Type: Headers
Header Port Shape: Round Port
Header Style: Long Tube
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
Tube Diameter: 1-1/2 in.
Reducers Included: Yes
Head Type: Factory Heads
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Y-Pipe Included: No
Variations: 69050, 69053, 69056
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Vehicle Family: Chevy/GMC S10/S15 Family; 1982-04
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27470
Replacement Head Flange Gasket: 27470
