Hedman Hedders 68608 - ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

Hedman Hedders  |  SKU: FBLG-68608
Sale price $59499 Regular price $1,56626

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Hedman Hedders 68608 - ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

Headers - Elite Ultra-Duty - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Metallic Ceramic - Small Block Chevy - GM A-Body / B-Body / F-Body / X-Body 1964-94 - Pair

ELITE Headers For Various Camaro, Chevelle, El Camino, Nova, Regal, Cutlass, Grand Prix & Others; SB Chevy 283-400; 1-5/8 in. Mid-Length Tubes, 3 in. Collector; Non-E.O. ; H.D. Construction with Matte-Silver Ceramic Finish

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

This set is part of Hedman's ELITE line of headers. Hedman ELITE headers' heavy-duty design uses stout 3/8" flanges, and thicker 14 gauge tubes. The heavier-duty construction makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.

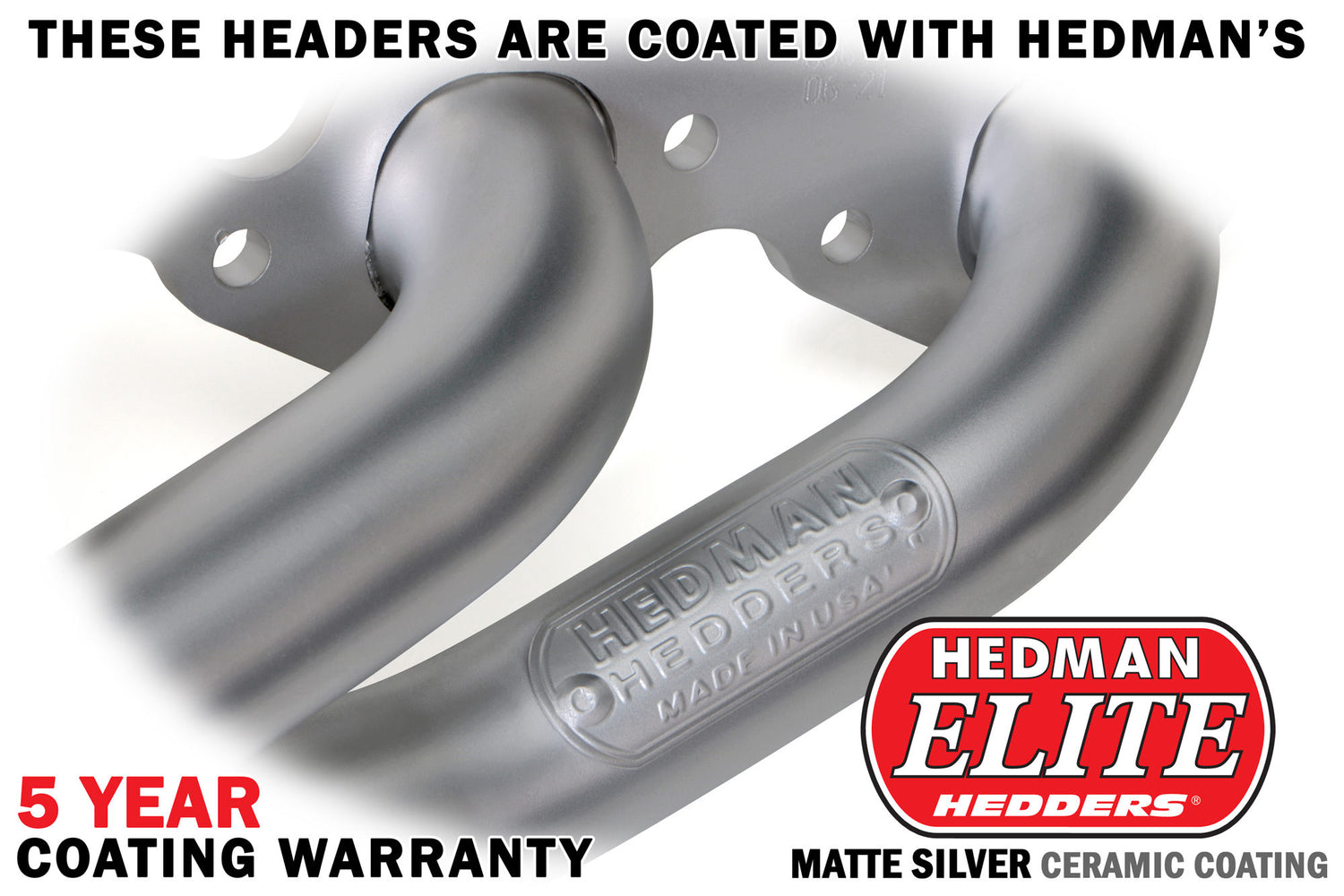

ELITE models have a MATTE-SILVER ceramic finish that withstands temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.

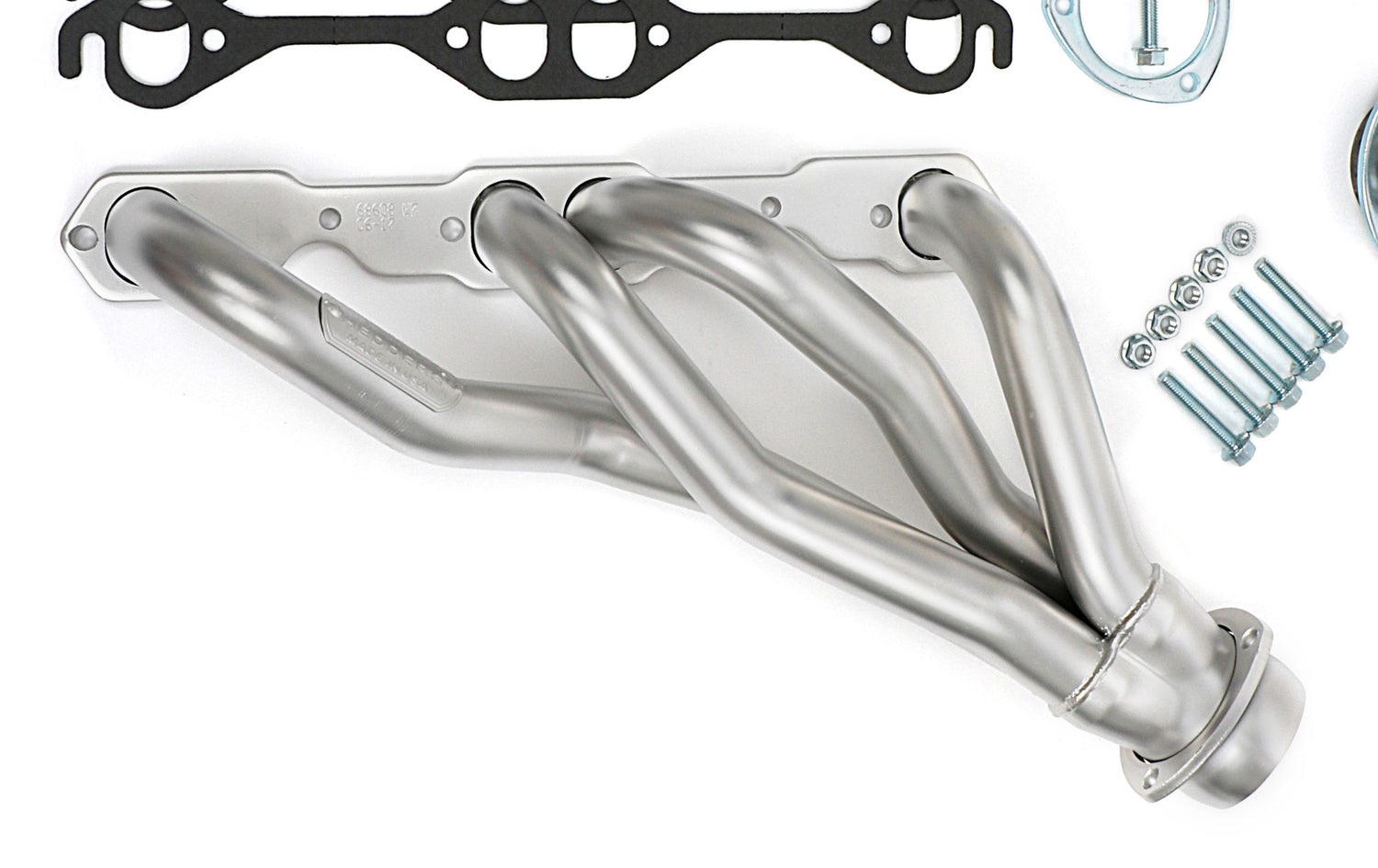

These MID-LENGTH tube headers are one of the most versatile headers Hedman manufacturers. While we've seen them on rare builds, like a SB Chevy equipped Studebaker, these MID-LENGTH headers are actually cataloged to fit Small Block Chevy V8 powered, 1967-81 Chevy Camaros; 1964-1987 GM A-Body and G-Body vehicles (Buick Regal, Chevy Chevelle, El Camino, Monte Carlo, Olds Cutlass, Pontiac Grand Prix); '68-79 Chevy II and Nova. Heck, they even fit 1984-2004 Chevy AstroVans. The smooth 1-5/8 in tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and improve horsepower and torque over stock manifolds.

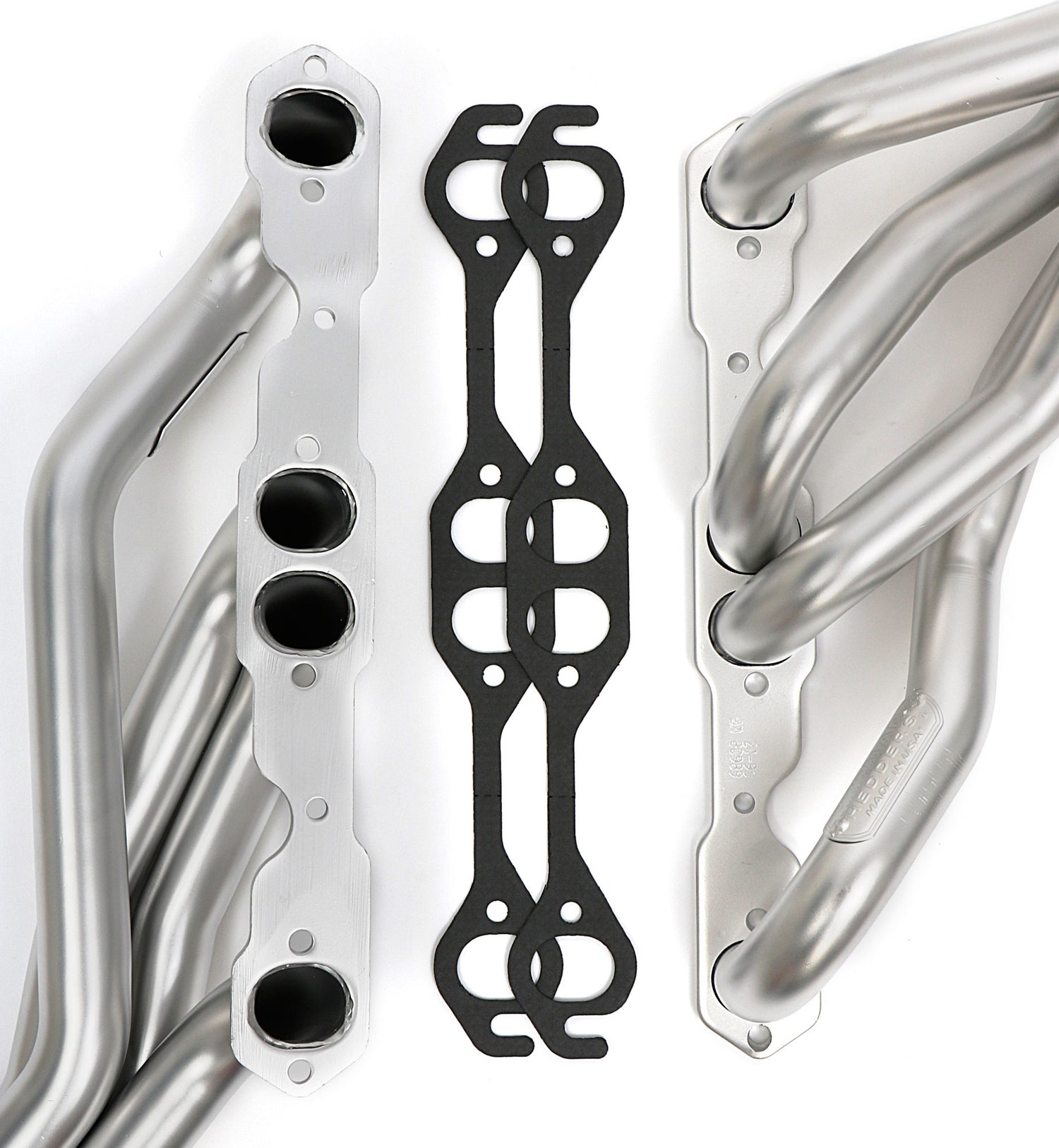

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty.

  • Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
  • Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

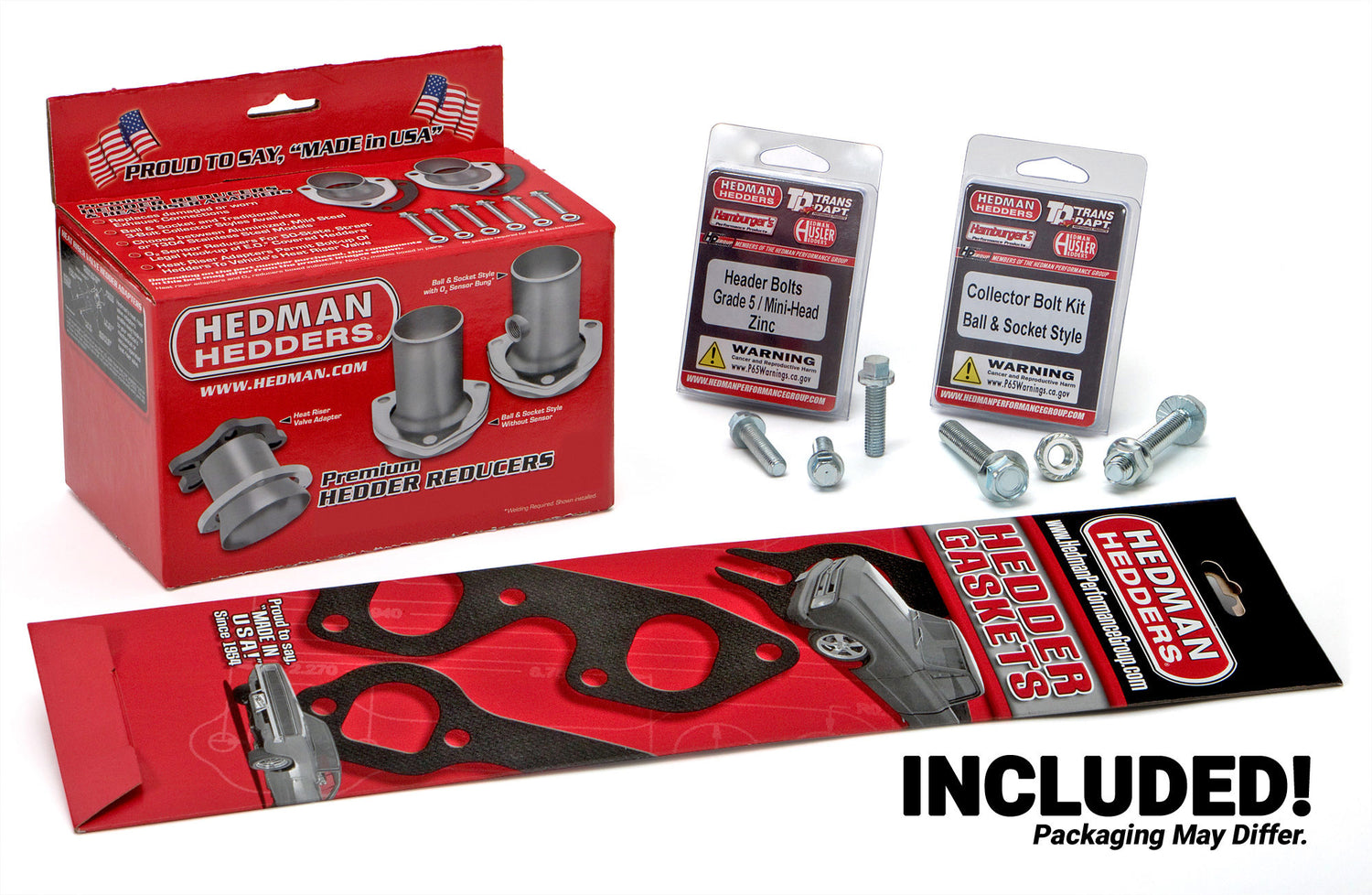

  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
LS SWAP: NO
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-5/8 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 14g
Primary Tube Diameter (in): 1.625 in.

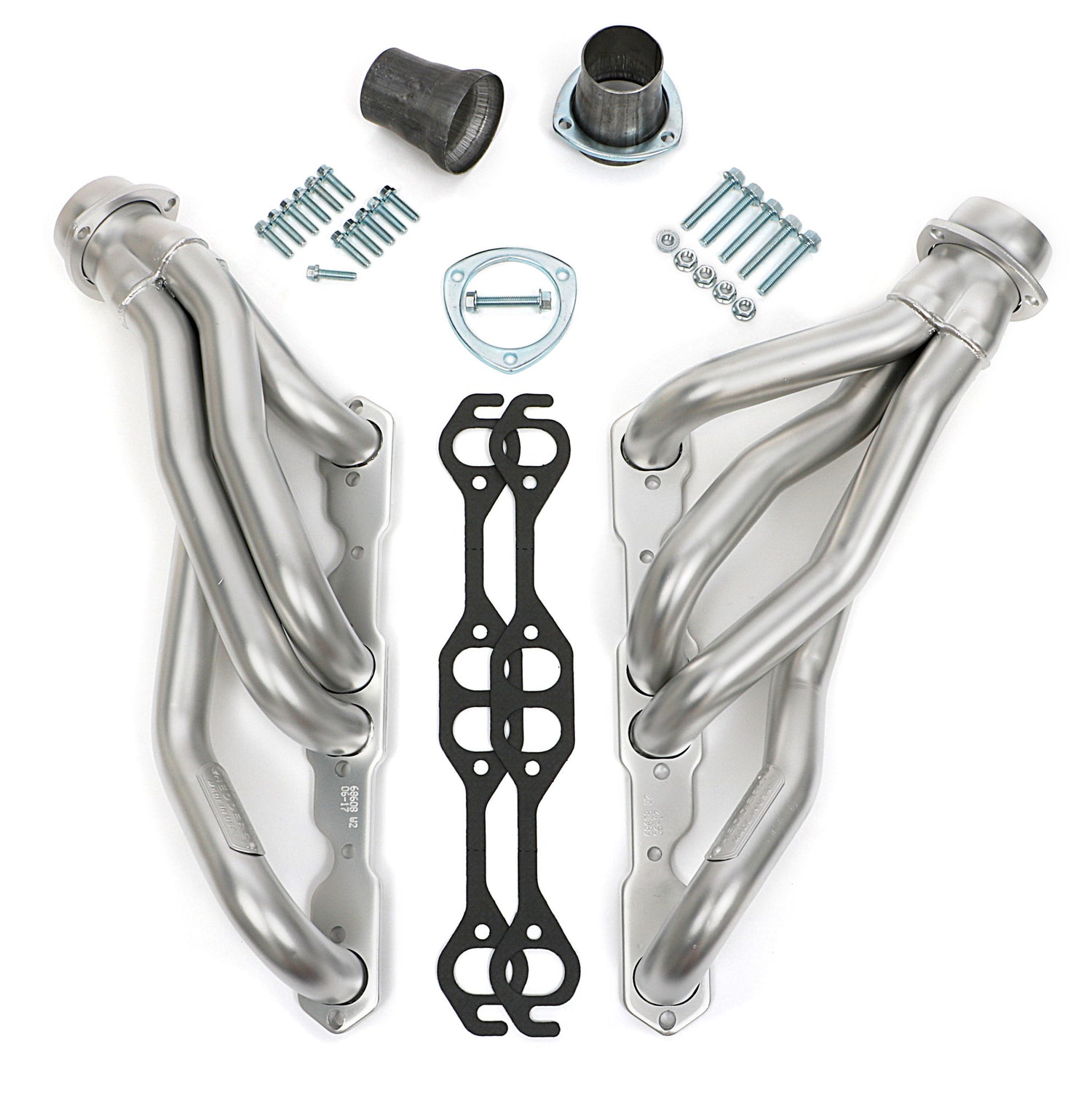

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Matte Silver Ceramic-Metallic
Cylinder Head Port Shape: Oval
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- ELITE Heavy-Duty
Replacement Gasket: 27520
Replacement Head Flange Gasket: 27520
Variations: 68606, 68603, 68608 & 63608. 62600, 62606 & 62603 304 Stainless Steel.
Tube Material Thickness: 14g
Tube Diameter: 1-5/8 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Tube Style: Mid-Length
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: No

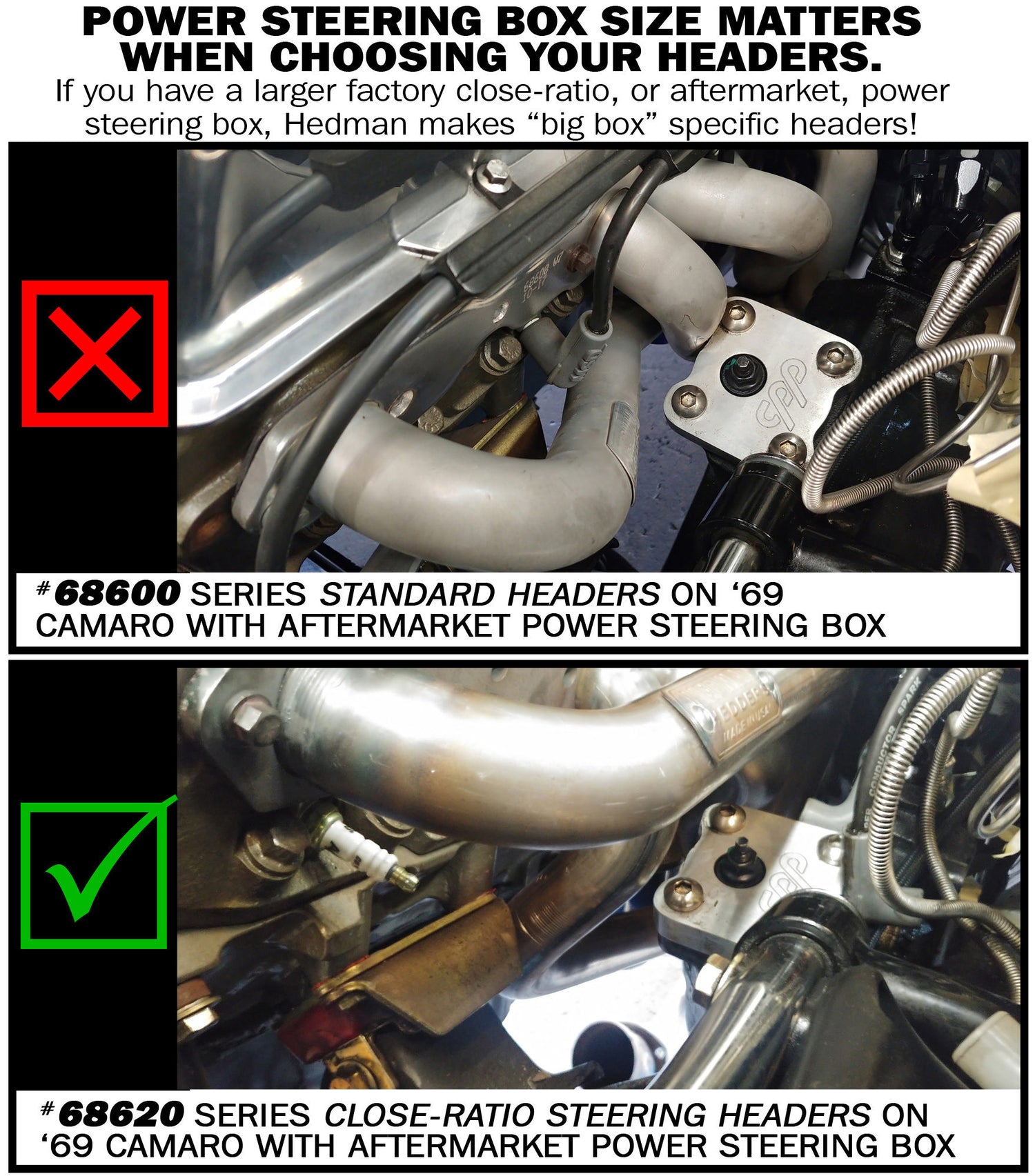

Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
E.O. #: No
Tube Length: Mid-Length Tubes
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Engine: Chevy SB 283-400 (Gen 1) 1958-86
Finish: Matte Silver Ceramic-Metallic
Finish Type: MATTE SILVER Ceramic-metallic coated
Flange Style: ELITE
Flange Thickness: 0.375 in.
Header Port Shape: Oval Port
Header Style: Mid-Length Tube
IMPORTANT!: Automatic Transmission ONLY!
Notes: 67-81 F; 64-83 A, 82-88 G; 68-79 X; 71-94 B; 84-04 Astro 283-400
Port Shape: Oval
Material: Mild Steel
Tube Design: Standard
