Hedman Hedders 68540 - FOR 1964-67 GM A-BODY AND 1955-1957 CHEVY TRI-FIVE / LS ENGINE SWAP HEADERS 1-1/2 IN.- UNCOATED

Hedman Hedders  |  SKU: FBLG-68540
$39599 $95989


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

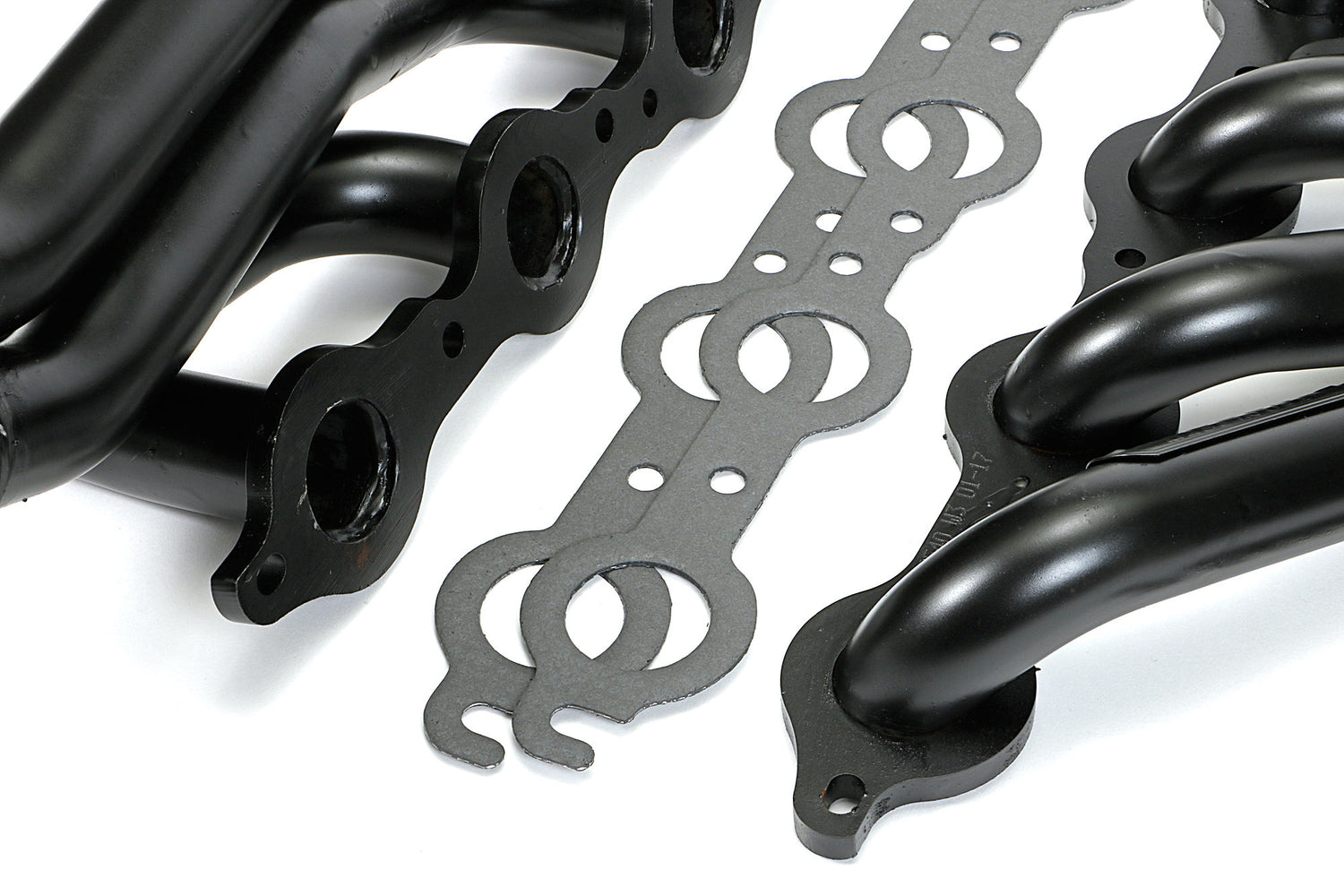

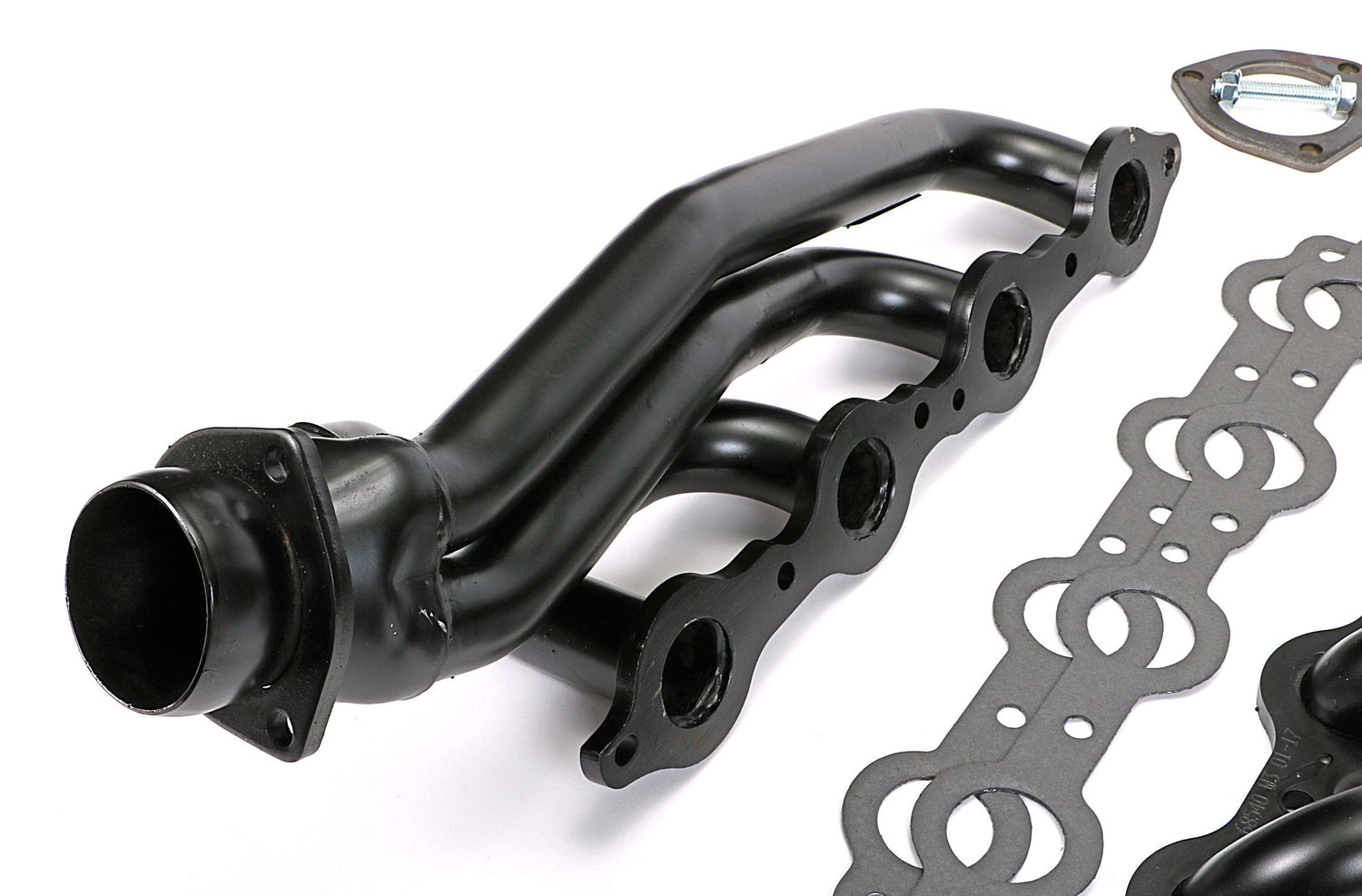

Hedman Hedders 68540 - FOR 1964-67 GM A-BODY AND 1955-1957 CHEVY TRI-FIVE / LS ENGINE SWAP HEADERS 1-1/2 IN.- UNCOATED

Headers - Street - 1.5 in Primary - 2.5 in Collector - Gaskets / Hardware Included - Steel - Natural - GM LS-Series - GM A-Body - Pair

LS SWAP HEADERS FOR 1964-67 GM A-BODY; 1955-57 TRI-FIVE CHEVY; 1-1/2 in. SHORT TUBE, 2-1/2 IN. BALL/SOCKET COLLECTOR- UNCOATED MILD STEEL

  • Handcrafted, Mild Steel Construction.
  • The Shorter Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Reducers Included: Yes
Quantity: Sold as a pair.
with A.I.R. System: No
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.

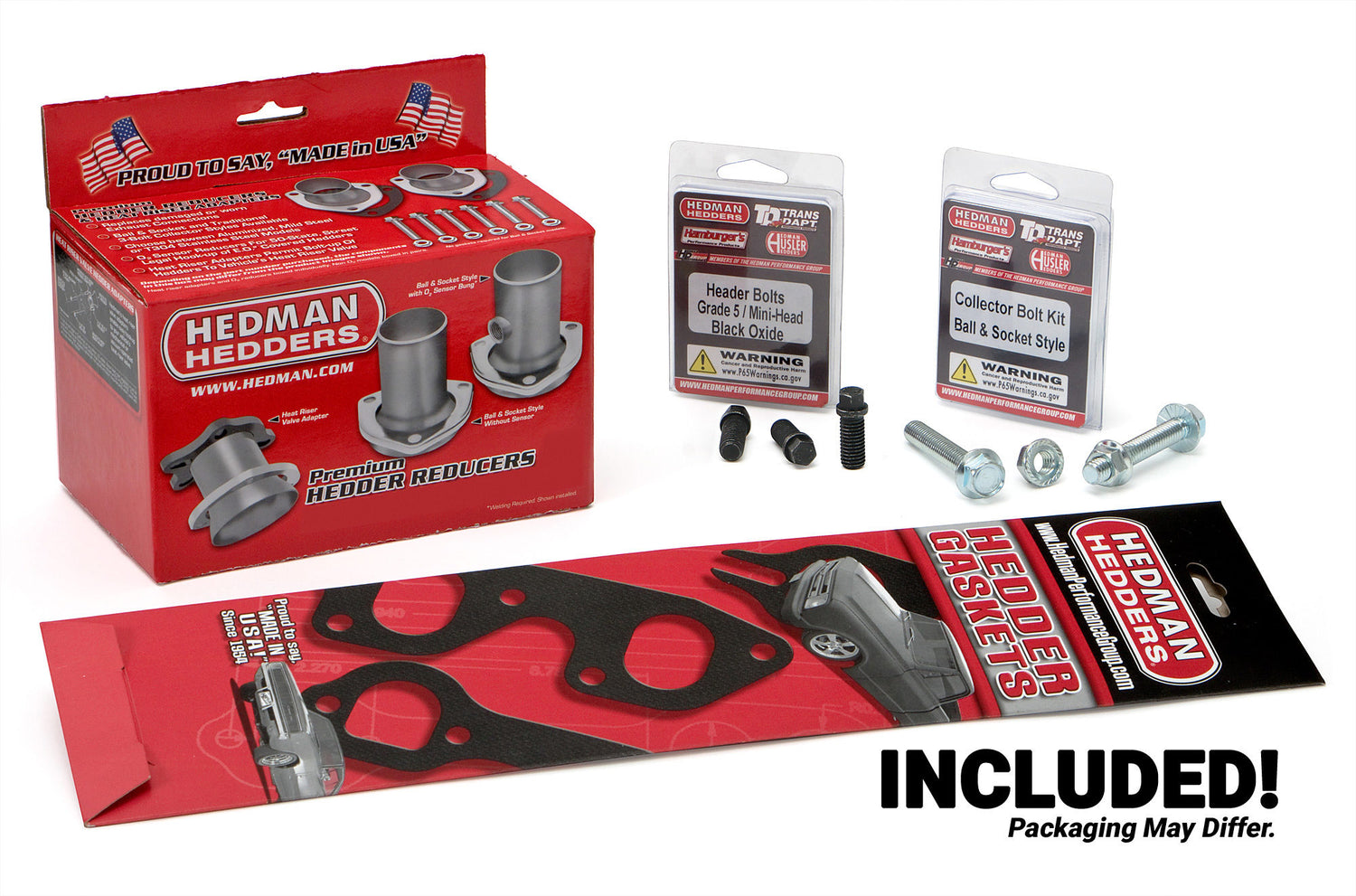

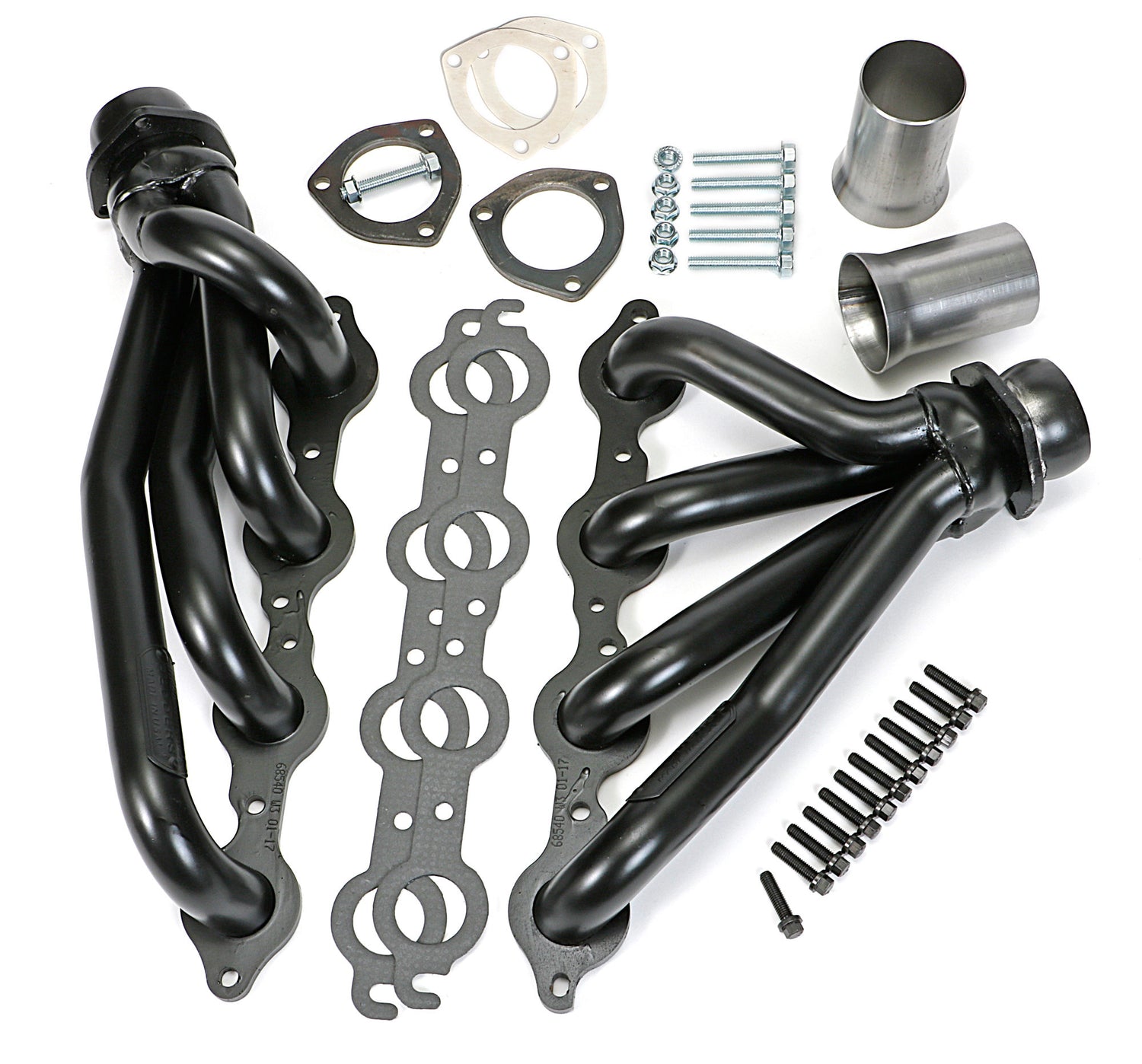

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Vehicle Family: A-Body (GM) 1964-67
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27470
Replacement Head Flange Gasket: 27470
with EGR: No
Installation Notes: A non-essential area on LS block may need trimming for ball collector clearance.
Tube Style: Mid-Length
E.O. #: No
Automatic Transmission - Column: No
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Transmission Compatibility: Manual Transmission
Collector Attachment: 2-1/2 in.
Collector Diameter: 2-1/2 in.
Collector Size: 2-1/2 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Variations: 68546
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.375 in.
Product Type: Headers
Header Port Shape: Round
Header Style: Mid-Length Tube
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Mid-Length Tubes
Tube Material Thickness: 16g
Tube Size: 1-1/2 in.
Tube Diameter: 1-1/2 in.
Y-Pipe Included: No
