Hedman Hedders 68481 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; STOCK COLL.; MID-LENGTH DESIGN

Hedman Hedders  |  SKU: FBLG-68481
$50599 $1,23617


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

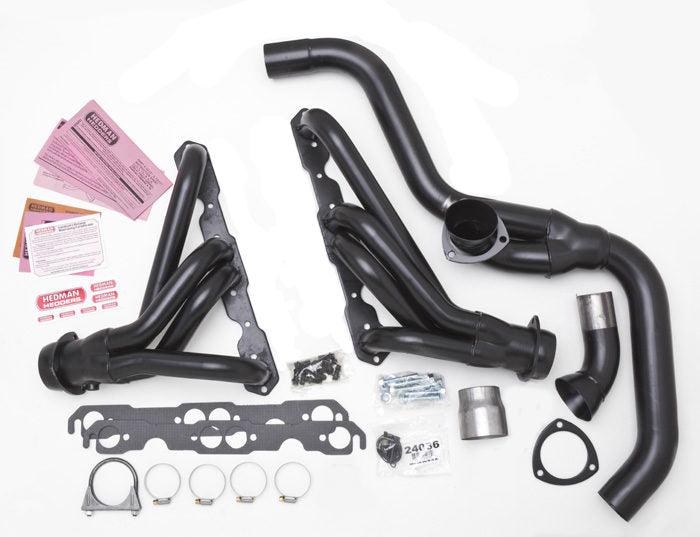

Hedman Hedders 68481 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; STOCK COLL.; MID-LENGTH DESIGN

Headers - Street - 1.625 in Primary - 3 in Collector - Y-Pipe Included - Gaskets / Hardware Included - Steel - Black Paint - Small Block Chevy - GM F-Body 1982-92 - Kit

Standard Uncoated Headers; 1-5/8 in. Tube Dia.; Stock Coll.; MID-LENGTH Design

  • Handcrafted, Mild Steel Construction.
  • The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Motor Mounts Included: No
Mounting Hardware Included: Yes
Reducers Included: Yes
Crossover Pipe Style: Y-pipe
with A.I.R. System: Yes
Quantity: Sold as a kit.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
O2 Provision: Yes
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27500
Replacement Head Flange Gasket: 27500
with EGR: No
Variations: 66481
Tube Style: Mid-Length
E.O. #: Yes
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: Stock
Collector Diameter: Stock
Collector Size: Stock
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: Factory hookup
Exhaust System Dia: 2-1/2 in.
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
Tube Size: 1-5/8 in.
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Mid-Length Tube
Notes: 82-92 Camaro; 82-91 Firebird, T/A 283-400
Key Feature: With A.I.R.
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Mid-Length Tubes
Tube Material Thickness: 16g
Tube Diameter: 1-5/8 in.
Y-Pipe Included: Yes
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: Yes
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
