Hedman Hedders 68390 - BLOCK HUGGER HEADERS (SUPER SHORTY); CHEVY SB 283-400; 1-1/2 IN. TUBES; UNCOATED

Hedman Hedders  |  SKU: FBLG-68390
Sale price $30399 Regular price $73166

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

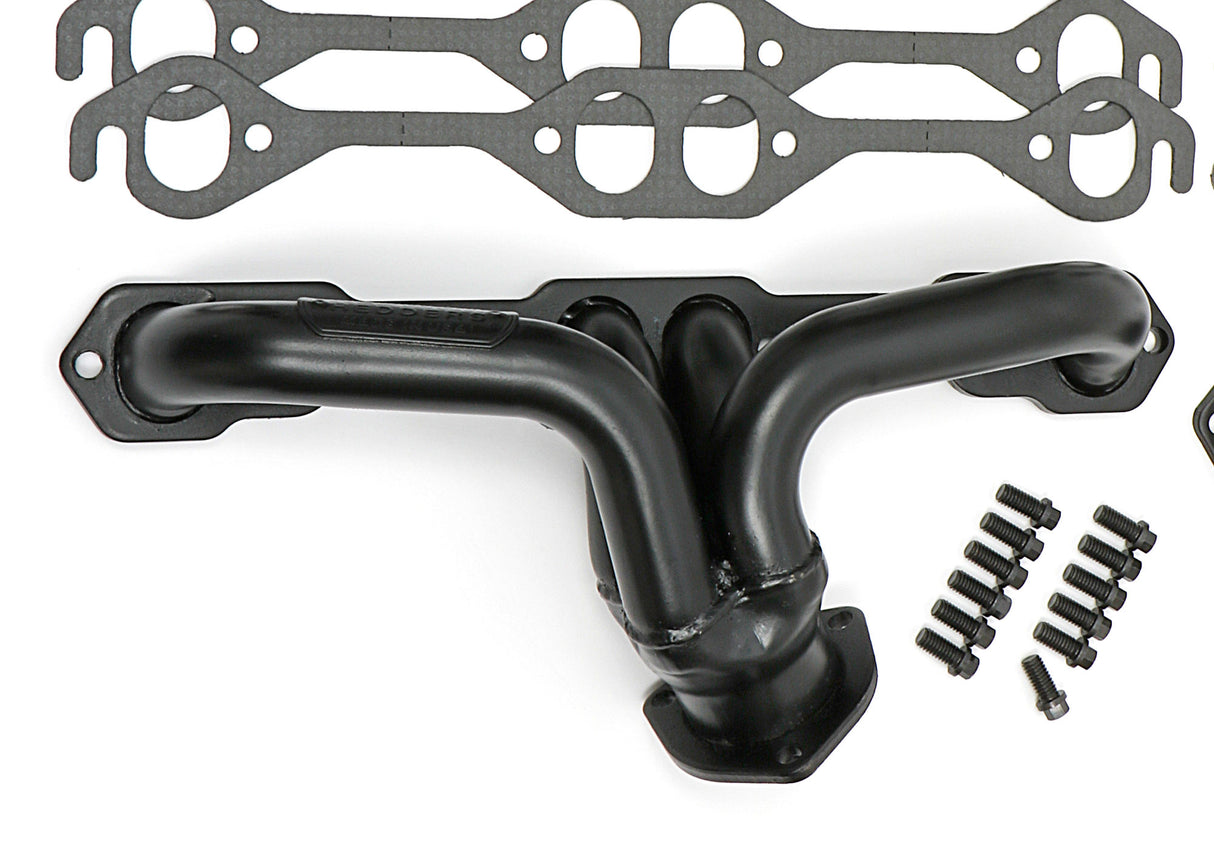

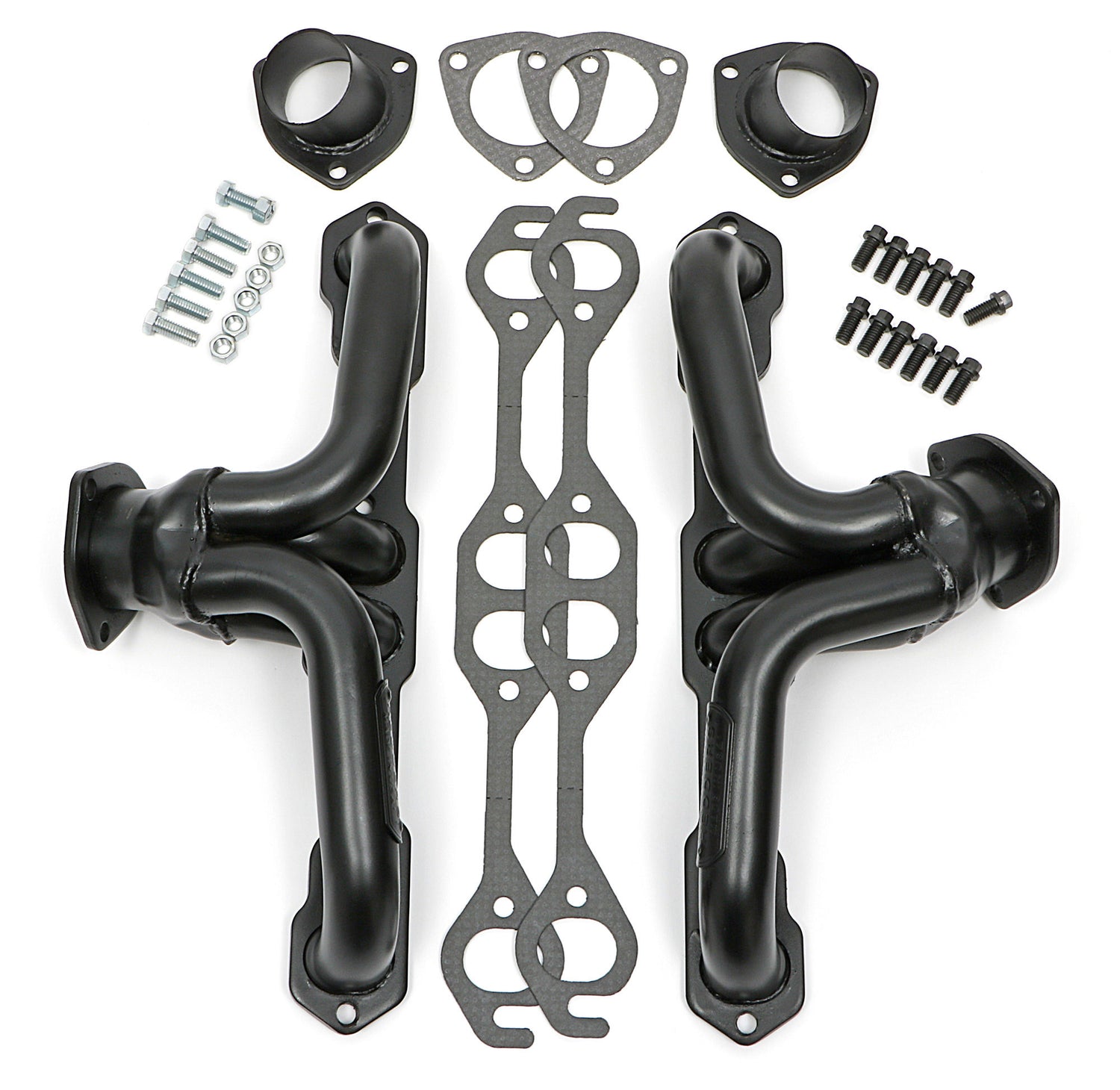

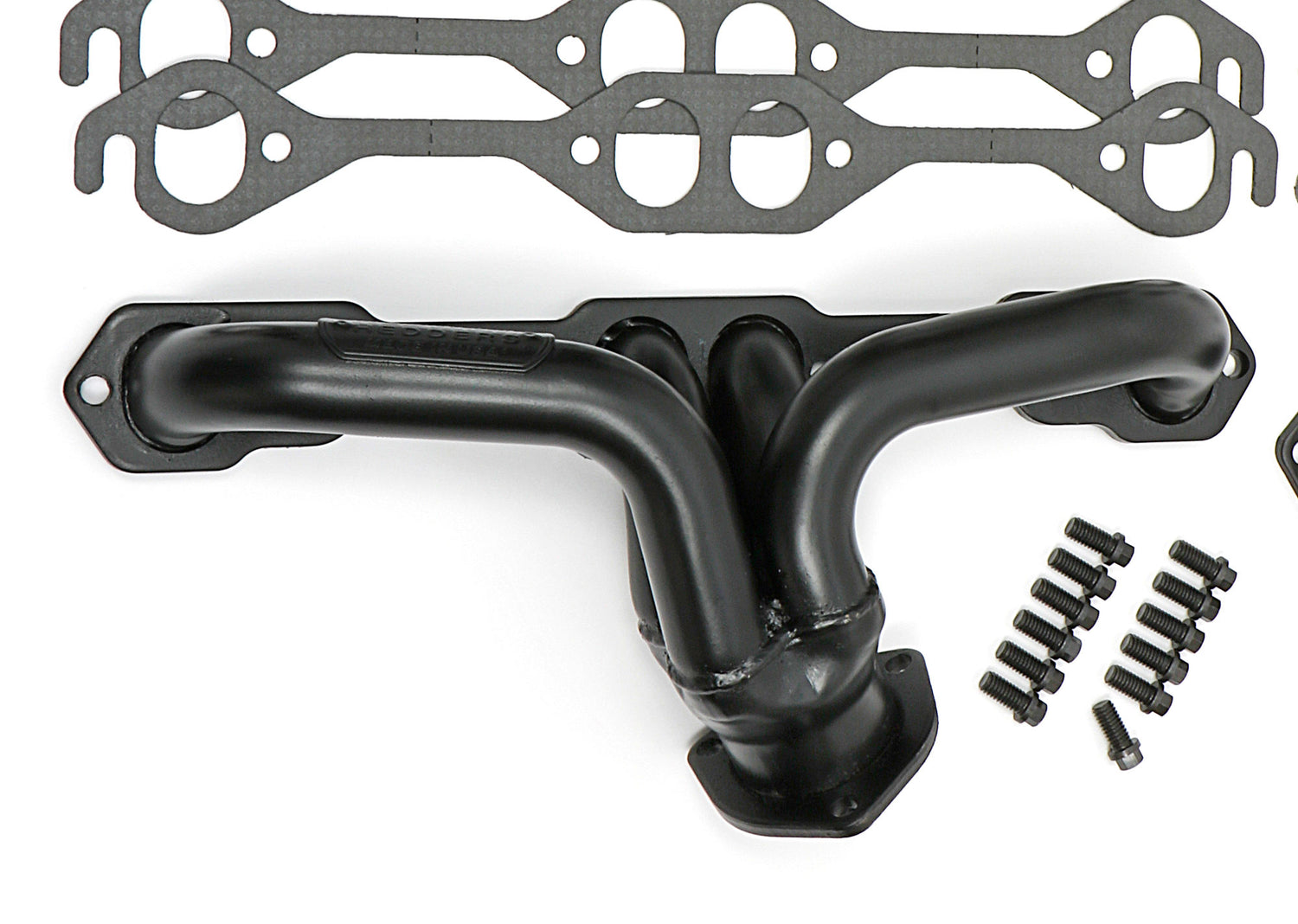

Hedman Hedders 68390 - BLOCK HUGGER HEADERS (SUPER SHORTY); CHEVY SB 283-400; 1-1/2 IN. TUBES; UNCOATED

Headers - Block Hugger - 1.5 in Primary - 2.5 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Small Block Chevy - GM A-Body / F-Body / Street Rod - Pair

67-81 Camaro, 64-77 Chevelle, Malibu, El Camino or Street Rod with 283-400 SB Chevy; Super-Short Tube Headers; 1-1/2 in. Tubes; 2-1/2 in. Collector- Uncoated Mild Steel

  • Handcrafted, Mild Steel Construction.
  • These Super-Shorty Style Headers Are Perfect For Hard-To-Fit, Classic Camaro and A-Body Cars with Very Limited Space, as well as, Street Rods and Cramped Custom Builds That Do Not Have Enough Clearance For Mid-Length or Long Tube Headers.
  • Classic 3-Bolt Gasket-Style Header Collectors

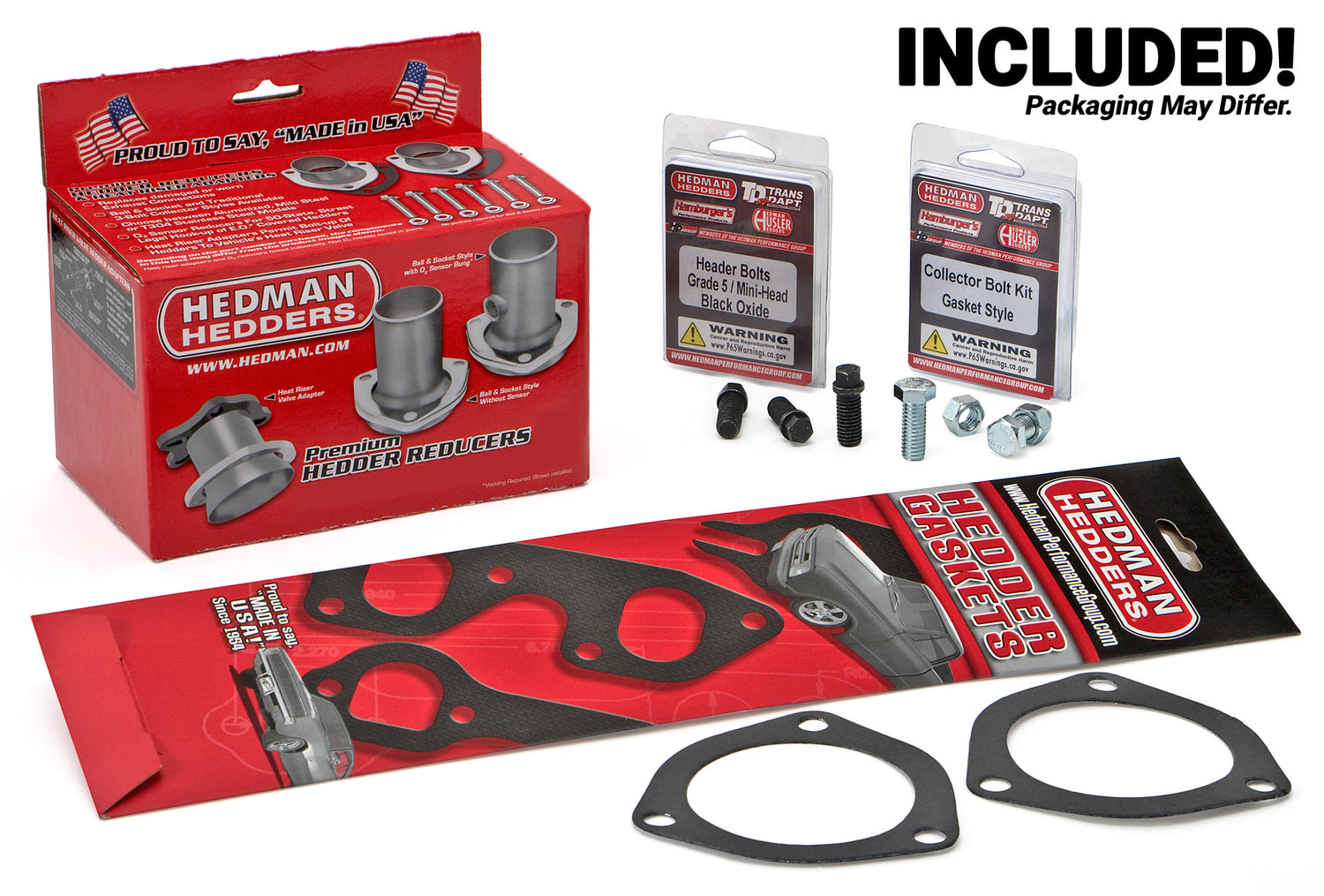

  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Tube Diameter: 1-1/2 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-1/2 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.

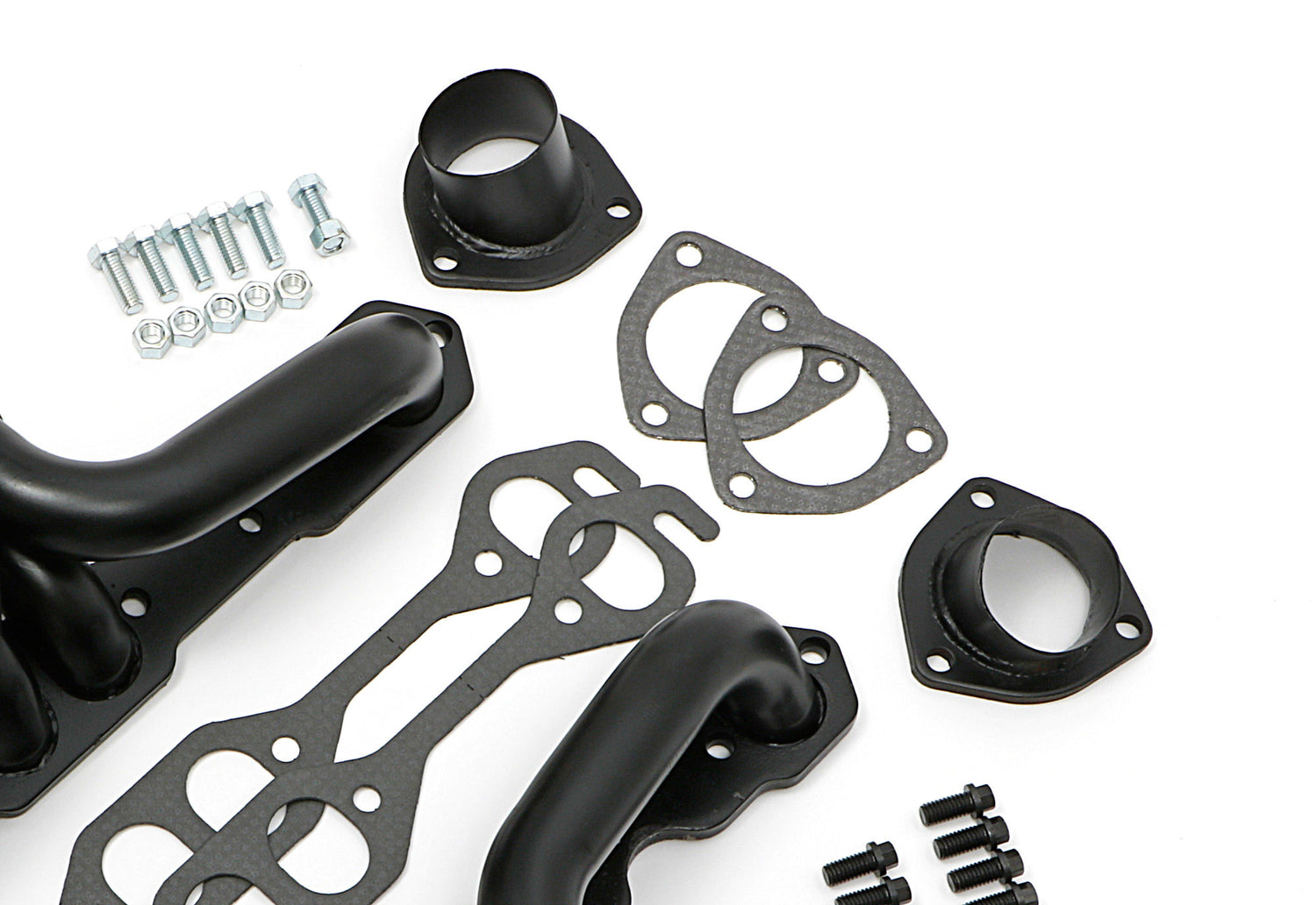

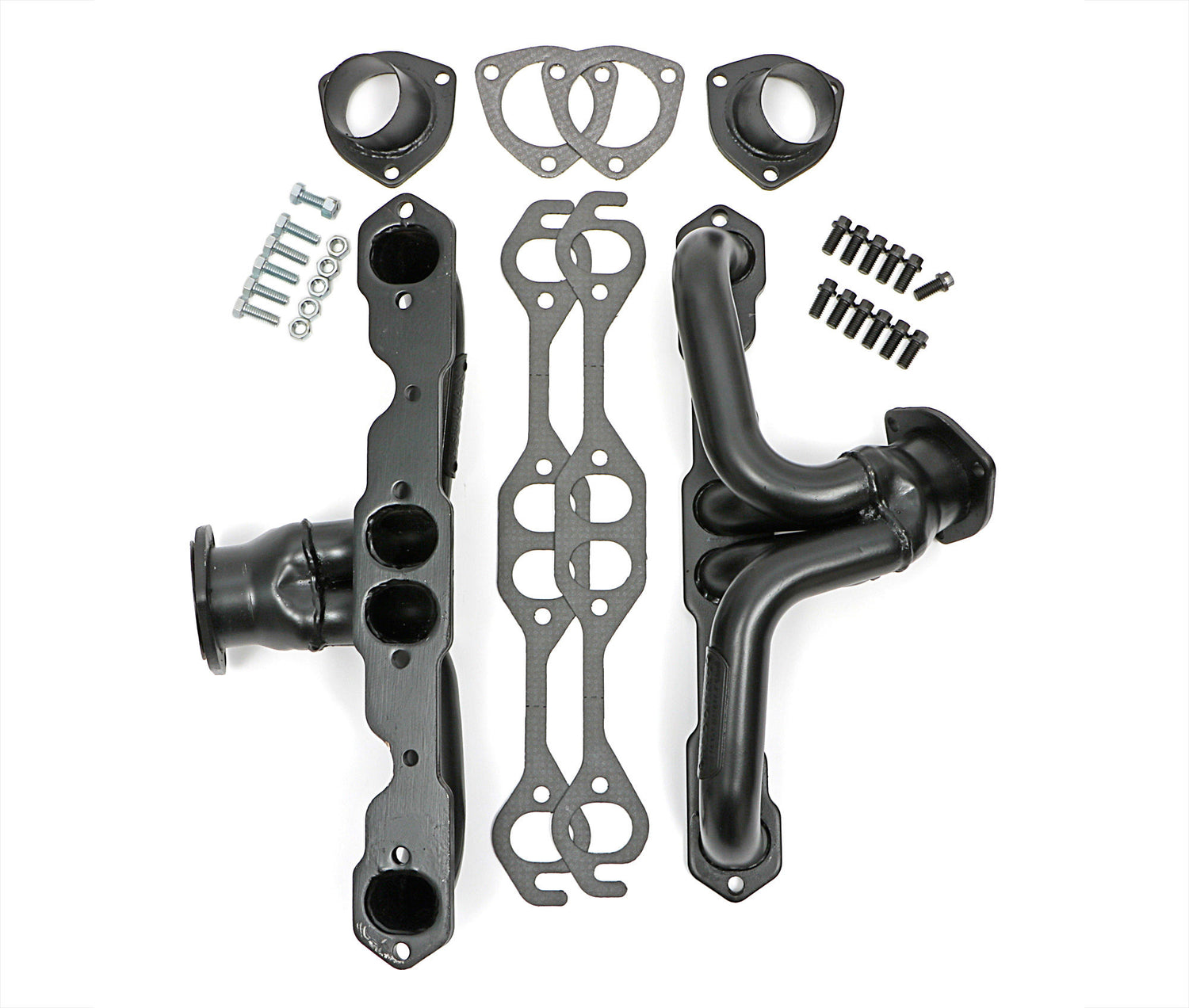

Package Contents: Headers, reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Oval
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27500
Replacement Head Flange Gasket: 27500
Engine: Chevy SB 283-400
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Oval Port
Header Style: Block Huggers- Street Rod
Notes: 64-77 A-body, El Camino; 67-81 Camaro SBC
Port Shape: Oval
Product Details: This is a SUPER SHORTY Design hedder.
Material: Mild Steel
Transmission Notes: Modification to shifter linkage may be required.
Tube Design: Standard
Variations: 68396
Tube Material Thickness: 16g
Tube Style: Super Shorty
E.O. #: No
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 2-1/2 in.
Collector Diameter: 2-1/2 in.
Collector Size: 2-1/2 in.
Collector Style: 3-Bolt Gasket Style Flange
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Tube Length: Super Short Tubes
