Hedman Hedders 68370 - BLOCK HUGGER HEADERS; CHEVY BB 396-502; 1-3/4 IN. TUBES; UNCOATED
Hedman Hedders | SKU:
FBLG-68370
Sale price
$28999
Regular price
$69686
Unit price
/
Unavailable
$406.87 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description
Hedman Hedders 68370 - BLOCK HUGGER HEADERS; CHEVY BB 396-502; 1-3/4 IN. TUBES; UNCOATED
Headers - Block Hugger - 1.75 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Big Block Chevy - Street Rod 1923-49 - Pair
Street Rod Block Huggers Headers; Chevy BB 396-502 (Mark IV / GEN 5); 1-3/4 in. Tubes, 3 in. Gasket Collector- UNCOATED Mild Steel
- Handcrafted, Mild Steel Construction.
- Classic Block Hugger Style Is Perfect For Street Rods, and Cramped Custom Builds That Do Not Have Enough Clearance For Mid-Length or Long Tube Headers.
- Classic 3-Bolt Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Replacement Head Flange Gasket: 27530
with A.I.R. System: No
Tube Size: 1-3/4 in.
Tube Style: Block Huggers
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: 3-Bolt Gasket Style Flange
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.

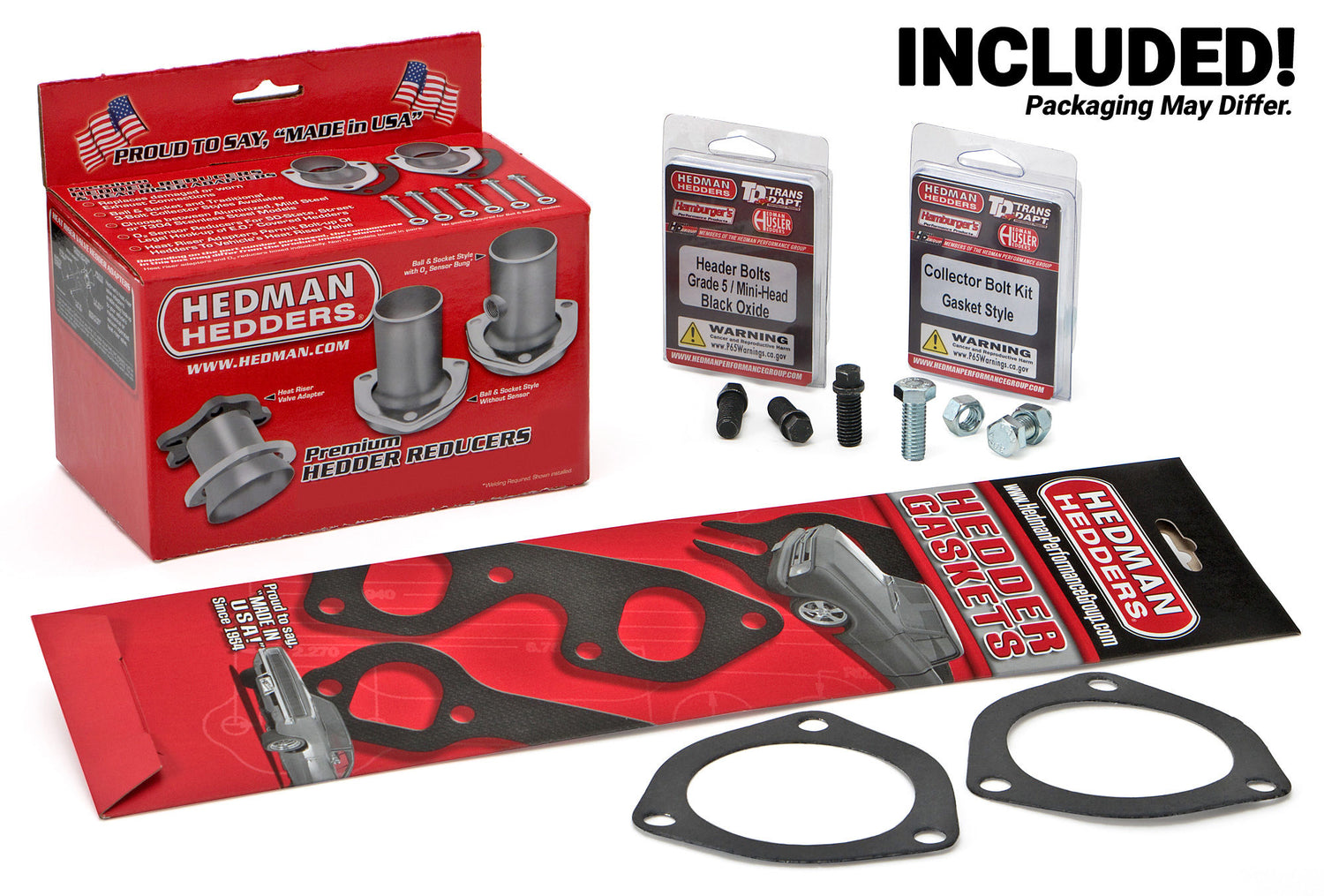

Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
E.O. #: No
Engine: Chevy BB 396-502
Tube Material Thickness: 16g
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Block Huggers- Street Rod
Notes: Street Rod Universal Shorty 396-502
Port Shape: Round
Product Info: This traditional block hugger style set of headers are ideal for most street rod projects and for use on vehicles with narrow frame rails. they are a center dump design.
Material: Mild Steel
Transmission Notes: Modification to shifter linkage may be required.
Tube Design: Standard
Tube Length: Short Tubes
Tube Diameter: 1-3/4 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 68376, 68873
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.
Package Contents: Headers, reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27530
