Hedman Hedders 68291 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Hedman Hedders | SKU:
FBLG-68291
Sale price
$48699
Regular price
$1,09577
Unit price
/
Unavailable
$608.78 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

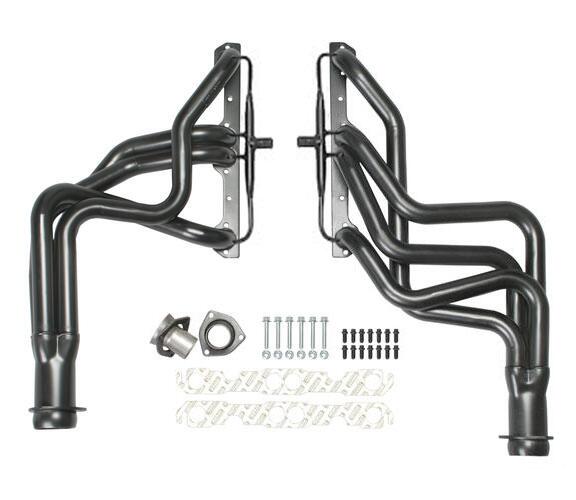

Hedman Hedders 68291 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Silver Long-Tube EO Headers For '64-77 Chevelle 283-400 w/A.I.R.
Standard Uncoated Headers; 1-5/8 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Tube Material Thickness: 16g
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Air Conditioning Notes: 70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket.
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Tube Length: Long Tubes
E.O. #: Yes
Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Long Tube
Notes: 64-77 A-Body, 71-93 Chev. Pass, Car 283-400
Key Feature: With A.I.R.
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Diameter: 1-5/8 in.
Mounting Hardware Included: Yes
with A.I.R. System: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-5/8 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.

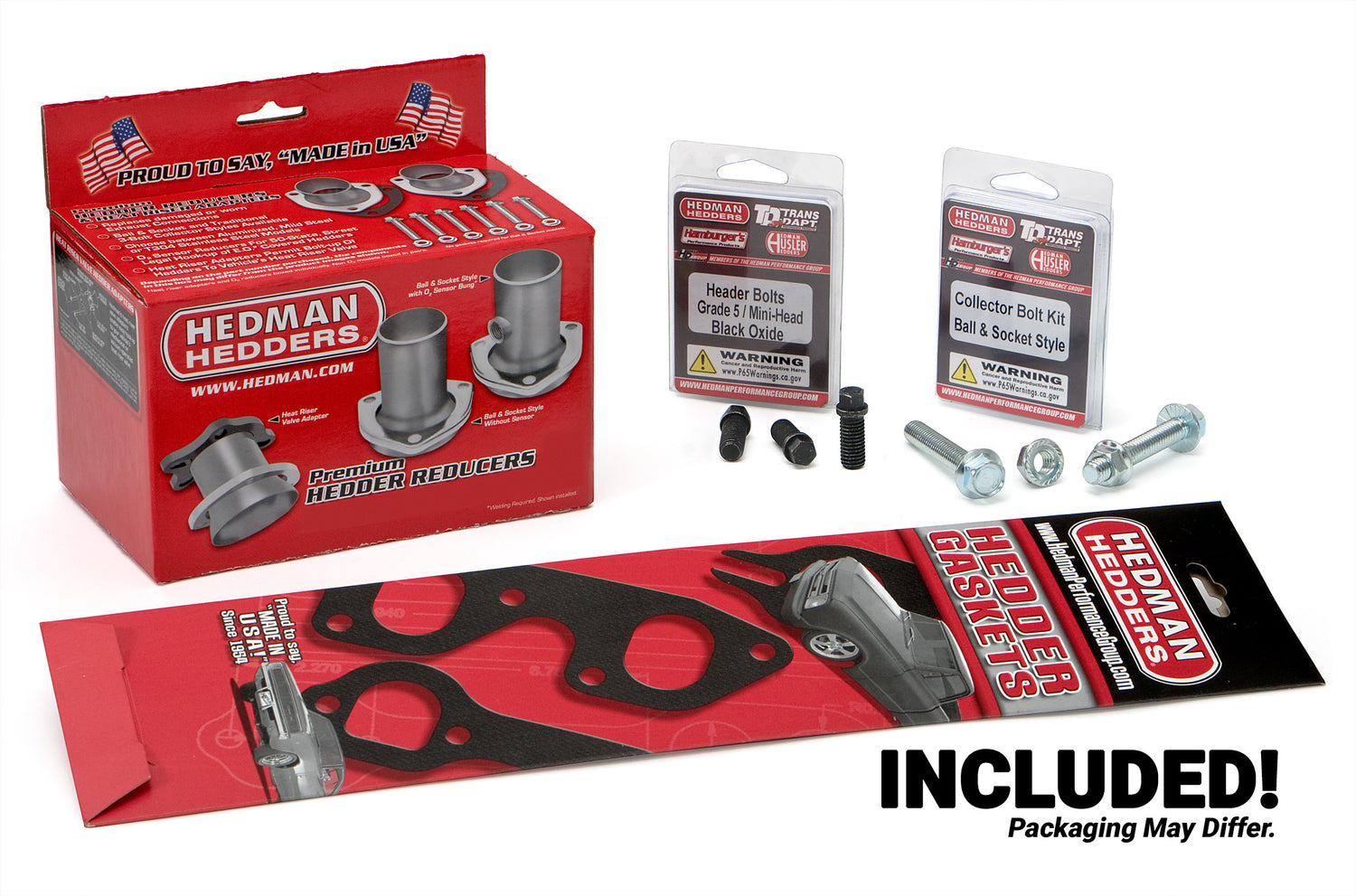

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27500
Replacement Head Flange Gasket: 27500
Variations: 66291, 61298
