Hedman Hedders 68238 - ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Name: Hedman Hedders 68238 - ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Brand: Hedman Hedders
SKU: FBLG-68238
Price: 677.99 USD
Availability: OutOfStock

Hedman Hedders | SKU: FBLG-68238

$677⁹⁹ $1,733⁶⁰

AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Hedman Hedders 68238 - ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Headers - Elite Ultra-Duty - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Metallic Ceramic - Small Block Chevy - Chevy A-Body / B-Body 1958-64 - Pair

ELITE Hedders; 1-5/8 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design

Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.

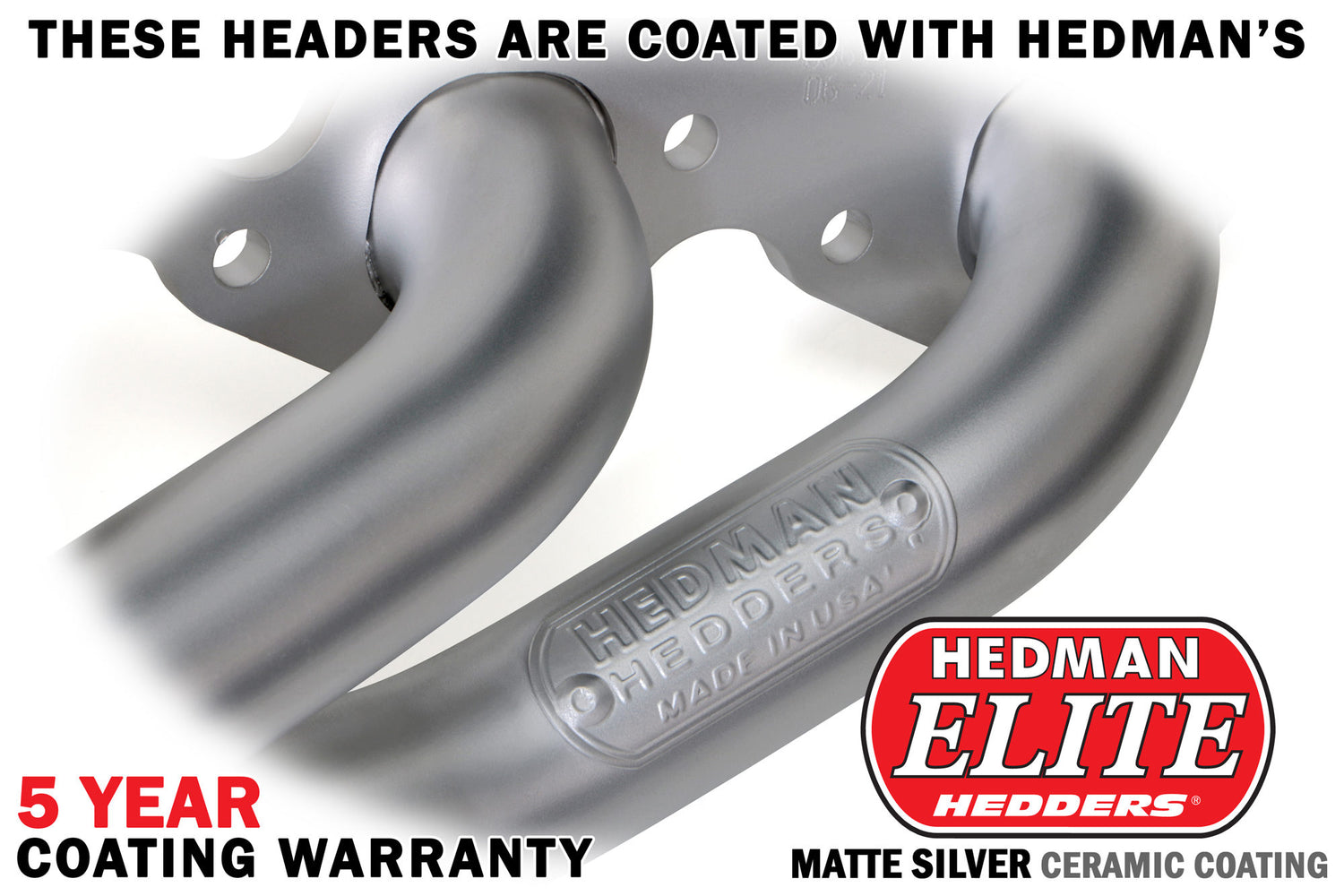

Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

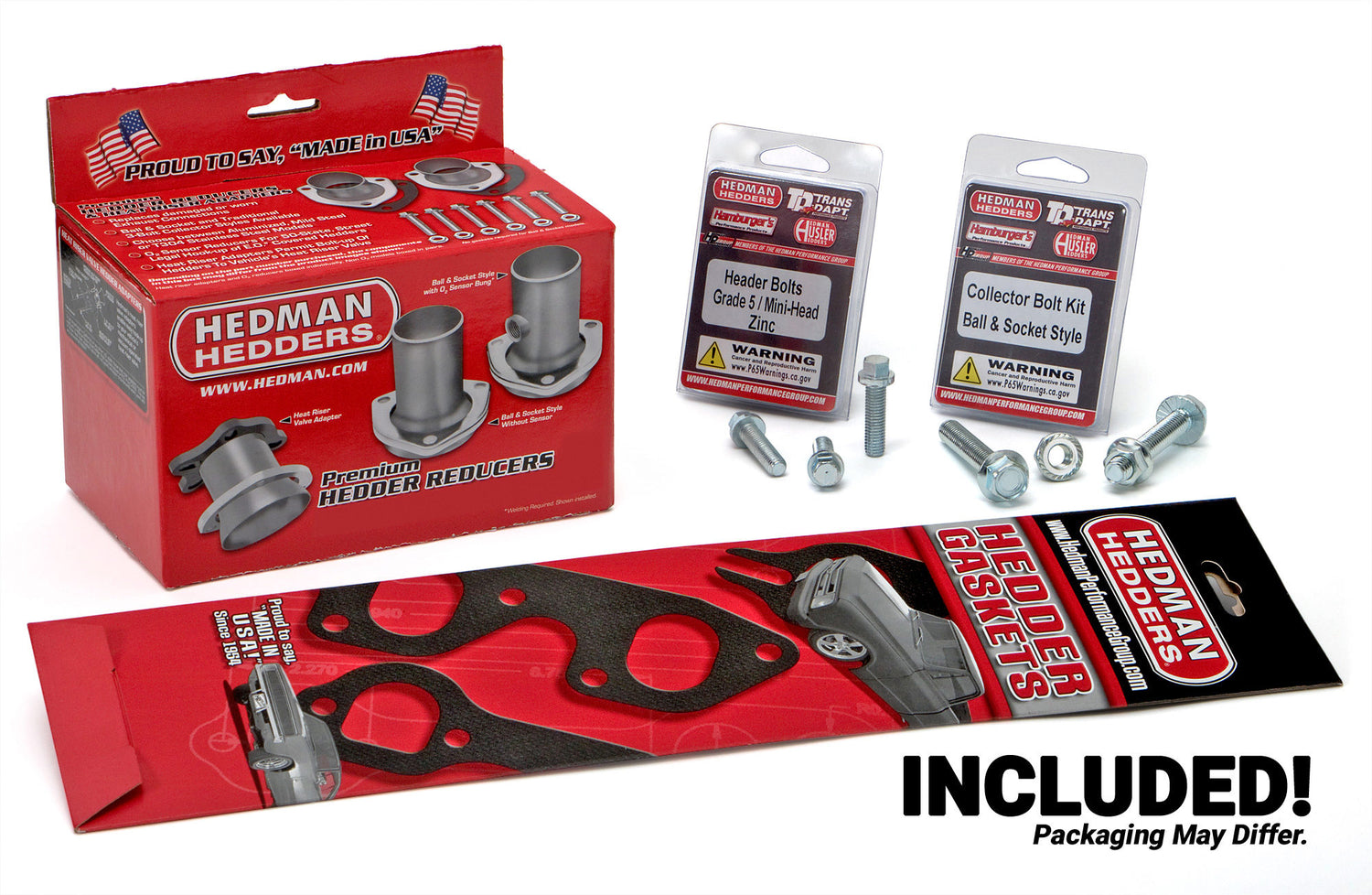

Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Proud To Say, Made In The USA, Since 1954!

Power Steering: Yes

Collector Attachment: 3 in.

Collector Diameter: 3 in.

Collector Size: 3 in.

Collector Style: BALL and SOCKET Style (Gasketless)

Reducer Outlet Size: 2-1/2 in.

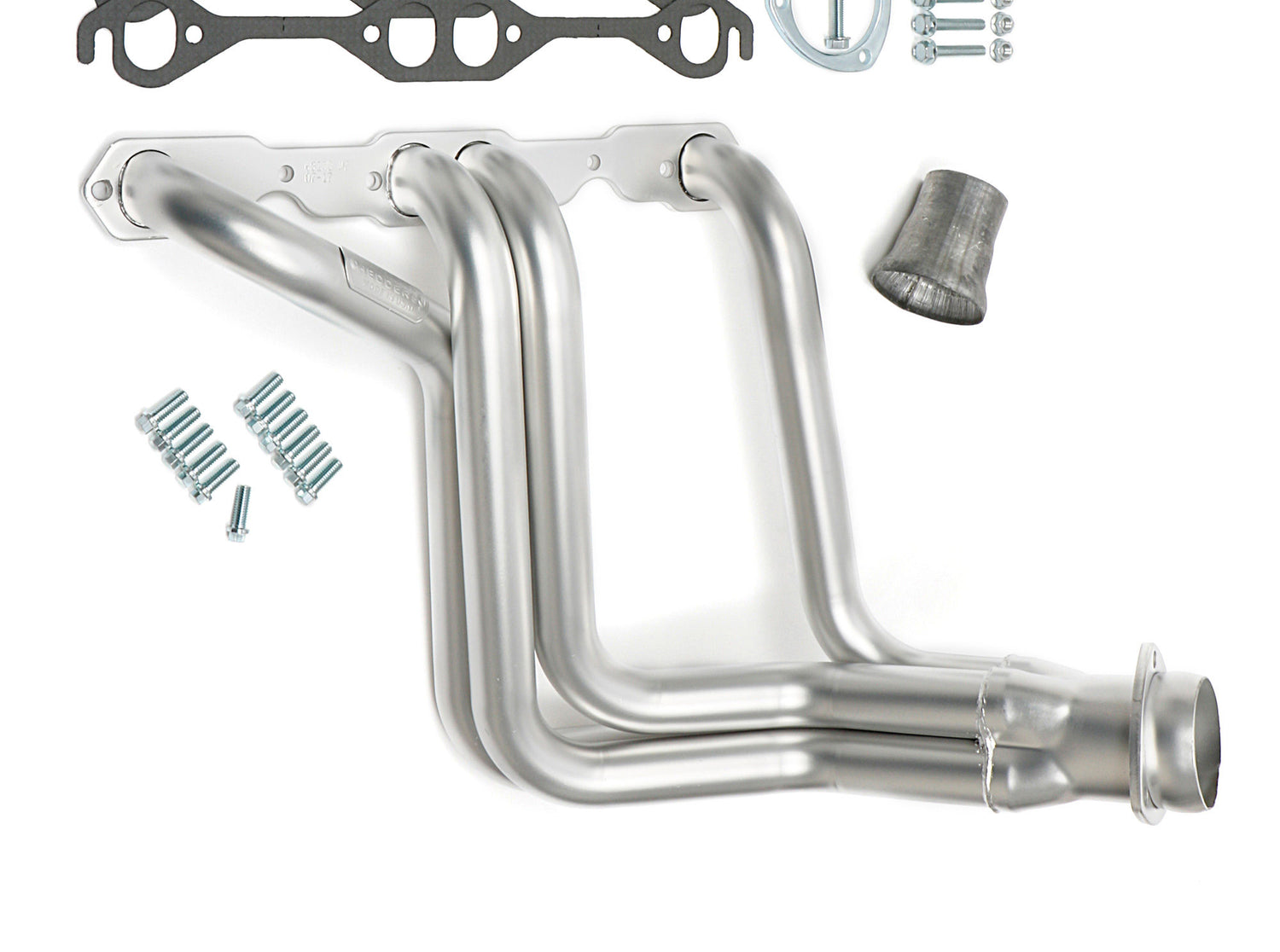

Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions

Tube Material Thickness: 14g

E.O. #: No

Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.

Finish: Matte Silver Ceramic-Metallic

Finish Type: MATTE SILVER Ceramic-metallic coated

Flange Style: Standard

Flange Thickness: 0.375 in.

Header Port Shape: Oval Port

Header Style: Long Tube

Port Shape: Oval

Material: Mild Steel

Tube Design: Standard

Tube Length: Long Tubes

Tube Diameter: 1-5/8 in.

Reducers Included: Yes

with EGR: No

Weld-Up: No

Tuned: No

Bolts/Studs Included: Yes

Catalytic Converter(s) Included: No

Collector Bolts Included: Yes

Crossover Pipe Included: No

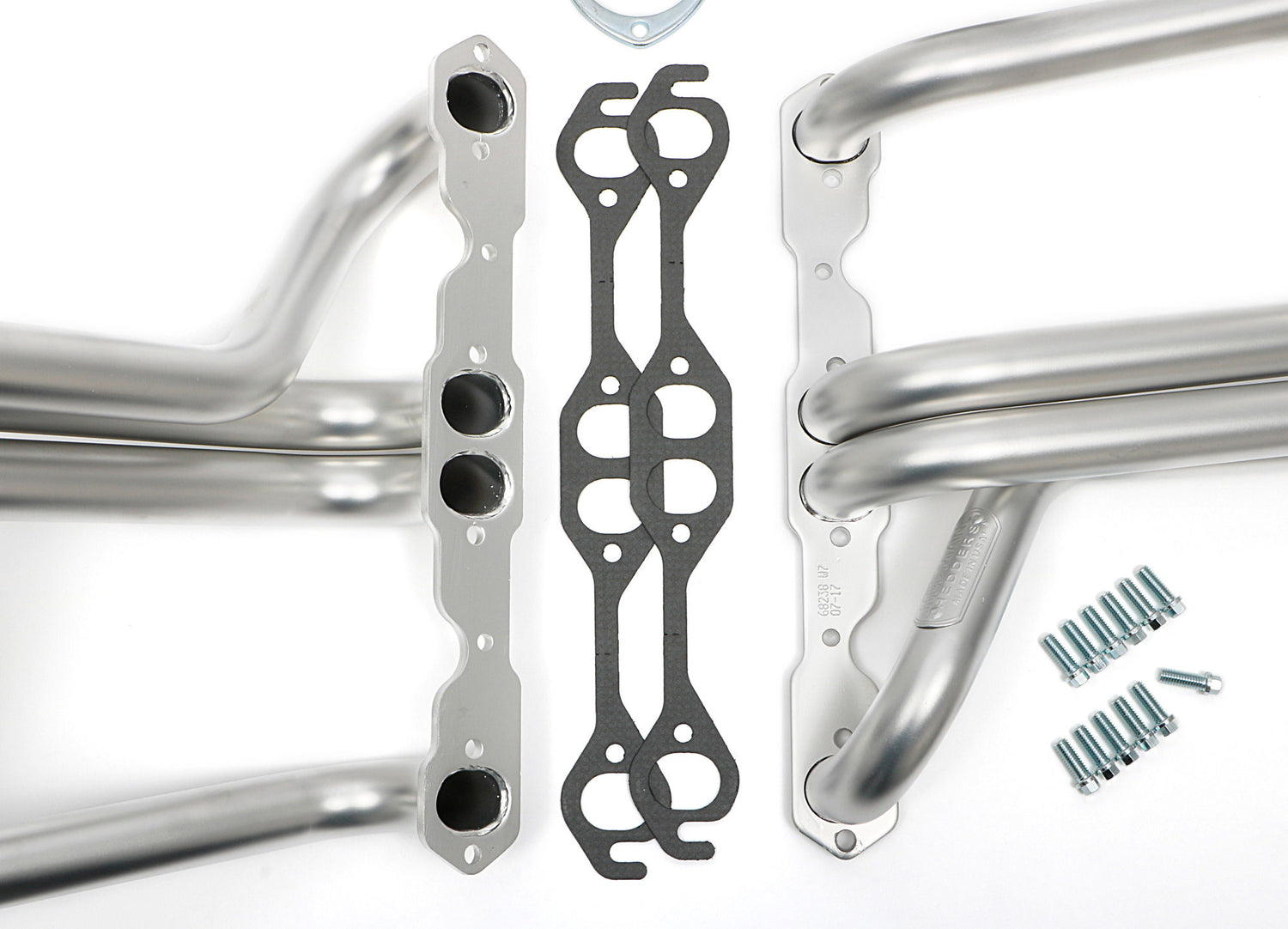

Gasket Or Seal Included: Yes

Header Fasteners Included: Yes

Installation Hardware Included: Yes

Motor Mounts Included: No

Mounting Hardware Included: Yes

Y-Pipe Included: No

Variations: 68236, 68238

Quantity: Sold as a pair.

Primary Tube Gauge: 14g

Primary Tube Diameter (in): 1.625 in.

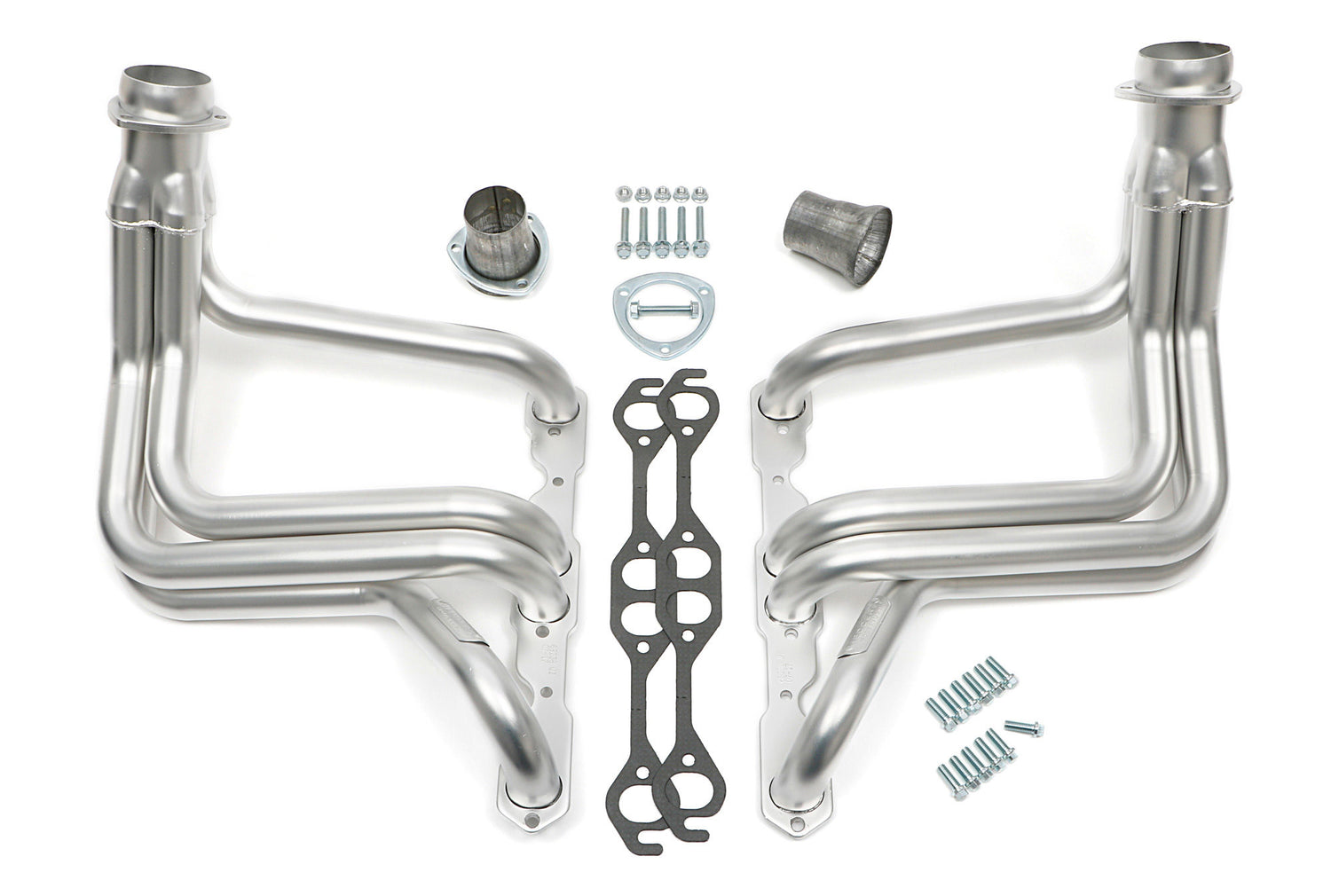

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

Header Material: Mild Steel

Header Finish: Matte Silver Ceramic-Metallic

Cylinder Head Port Shape: Oval

Cylinder Head: Stock Profile Heads

Header Construction: MILD STEEL- ELITE Heavy-Duty

Replacement Gasket: 27520

Replacement Head Flange Gasket: 27520

with A.I.R. System: No

Tube Size: 1-5/8 in.

Tube Style: Long Tubes

Exhaust System Dia: 2-1/2 in.

Air Conditioning: Yes

Air Conditioning Notes: 70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket.

Automatic Transmission - Column: Yes

Automatic Transmission - Floor: Yes

Manual Transmission - Column: Yes

Manual Transmission - Floor: Yes
