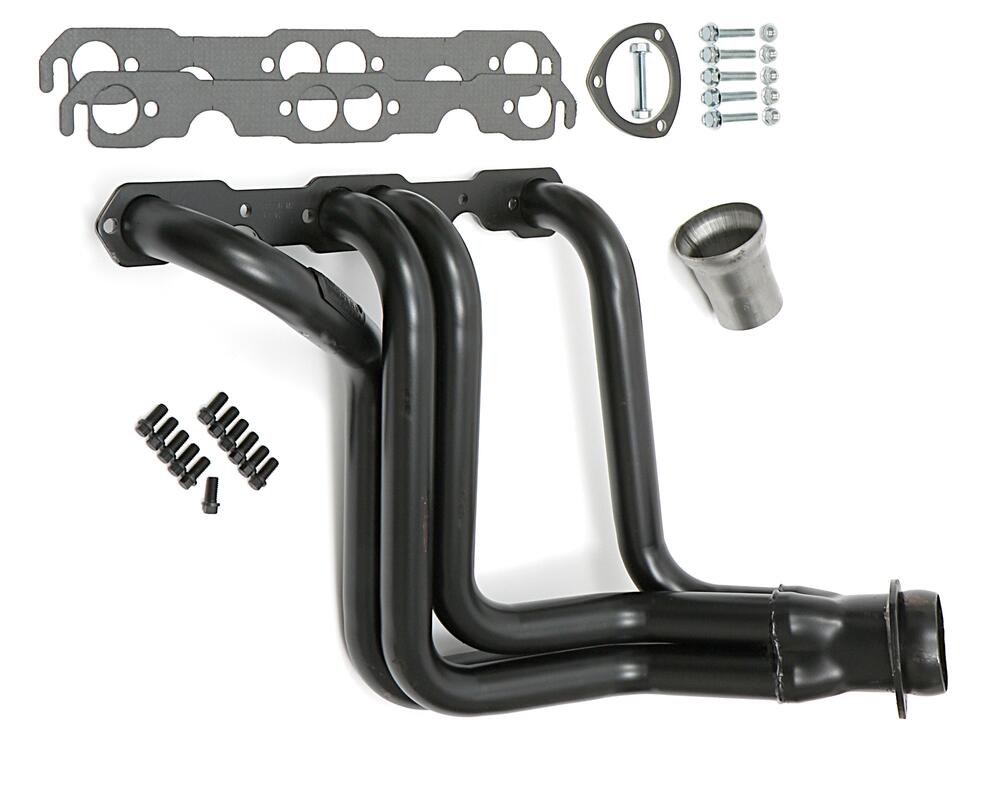

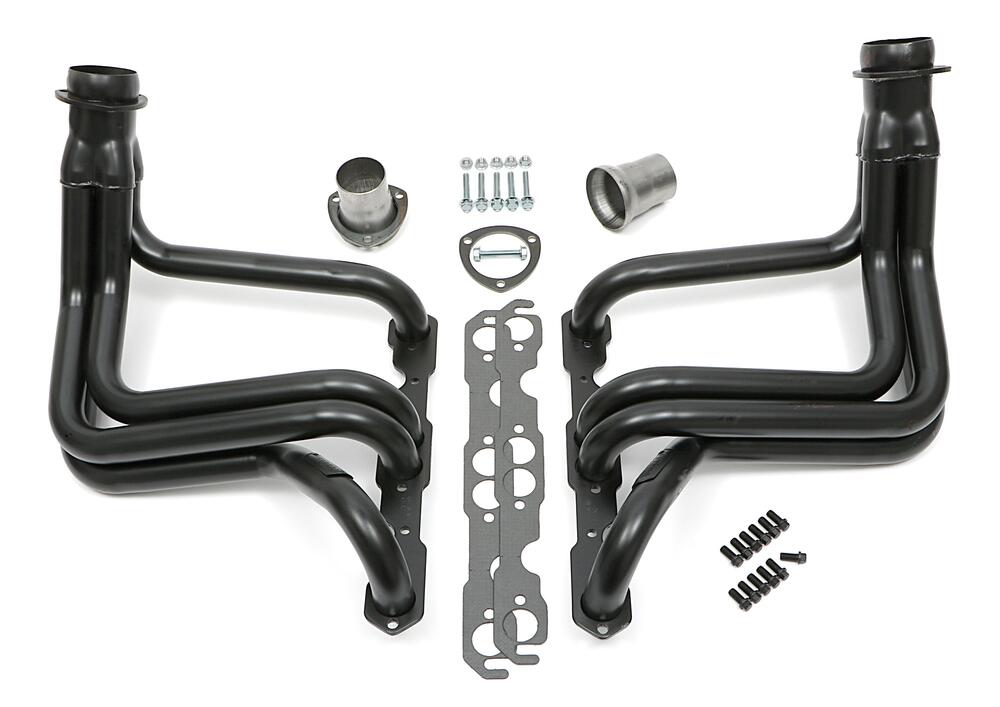

Hedman Hedders 68230 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Hedman Hedders  |  SKU: FBLG-68230
Sale price $31399 Regular price $75483

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

Hedman Hedders 68230 - STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Headers - Street - 1.625 in Primary - 3 in Collector - Gaskets / Hardware Included - Steel - Black Paint - Small Block Chevy - GM A-Body / B-Body 1958-64 - Pair

Standard Uncoated Headers; 1-5/8 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These LONG-TUBE headers fit GM's 1958-1964 X-Frame vehicles equipped with a SB Chevy (Gen 1) engine. This includes extremely popular models, such as, Impala, Bel Air, El Camino and Biscayne. The smooth 1-5/8 in tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

  • Handcrafted, Mild Steel Construction.
  • Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

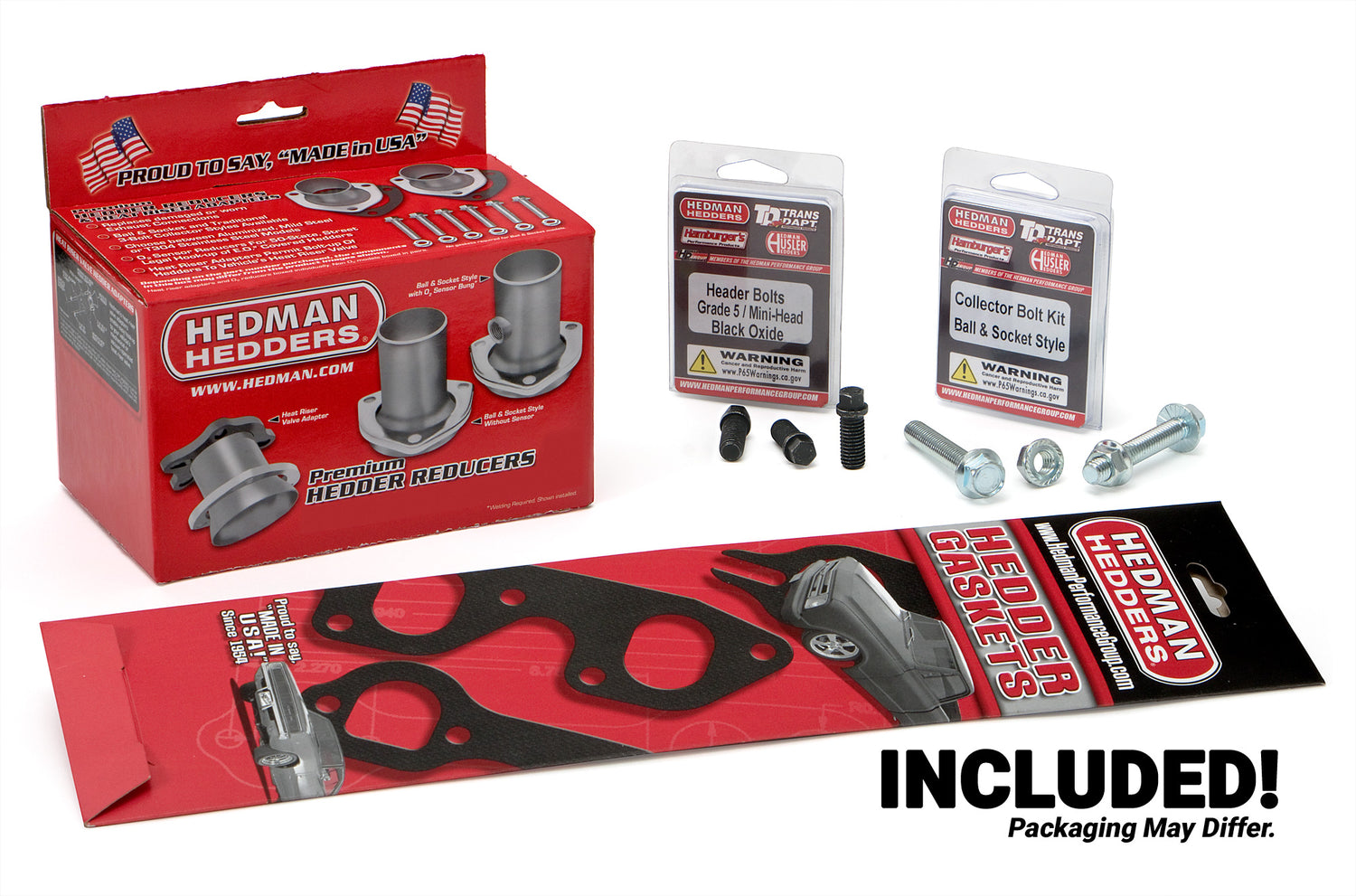

  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 68236, 68238
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27500
Replacement Head Flange Gasket: 27500
with A.I.R. System: No
Tube Size: 1-5/8 in.
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Air Conditioning Notes: 70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket.
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: Yes
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Tube Material Thickness: 16g
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round
Header Style: Long Tube
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
Tube Diameter: 1-5/8 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
