Hedman Hedders 65001 - STANDARD UNCOATED HEADERS; 2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Hedman Hedders | SKU:
FBLG-65001
Sale price
$40799
Regular price
$1,00166
Unit price
/
Unavailable
$593.67 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

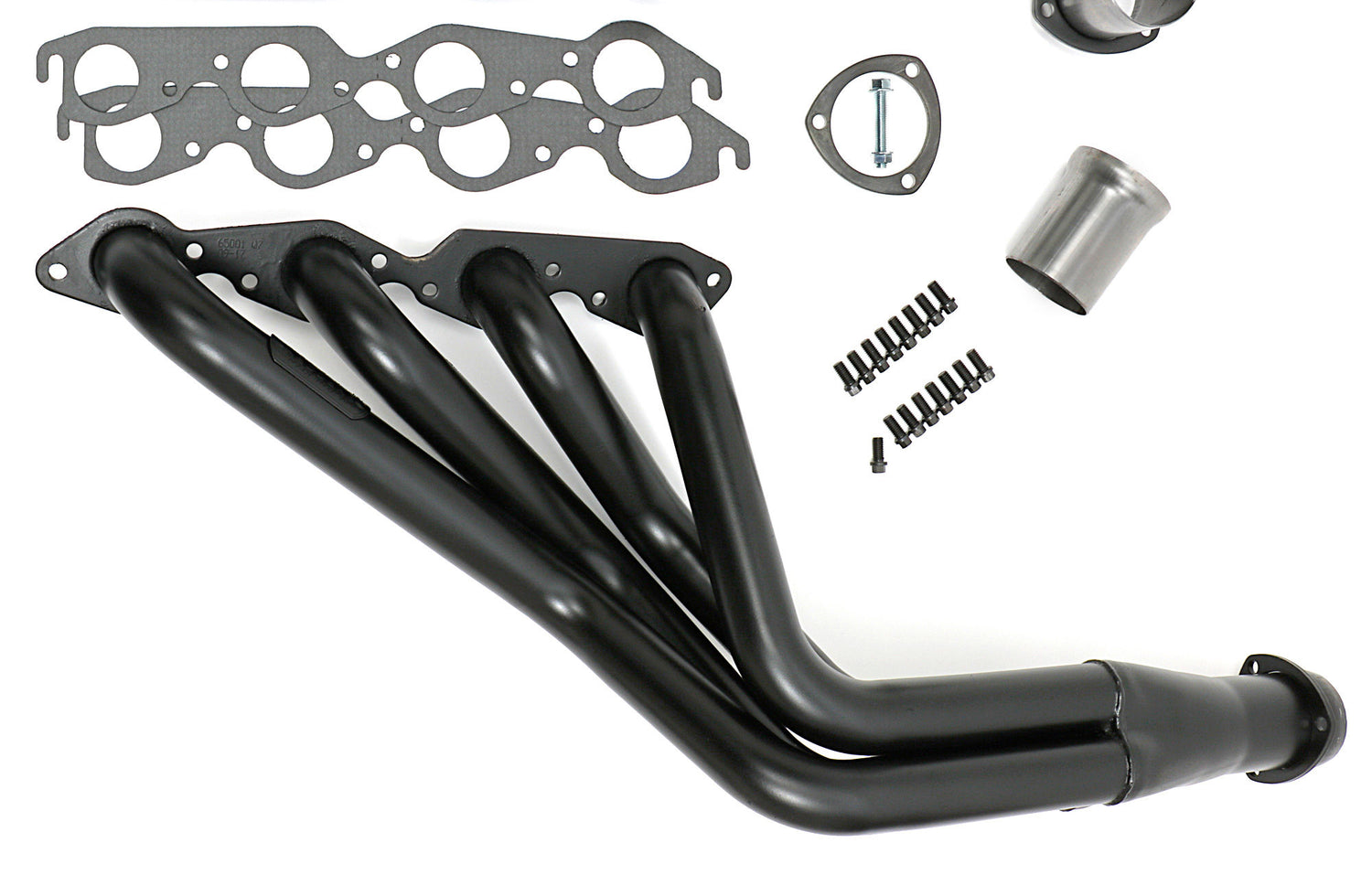

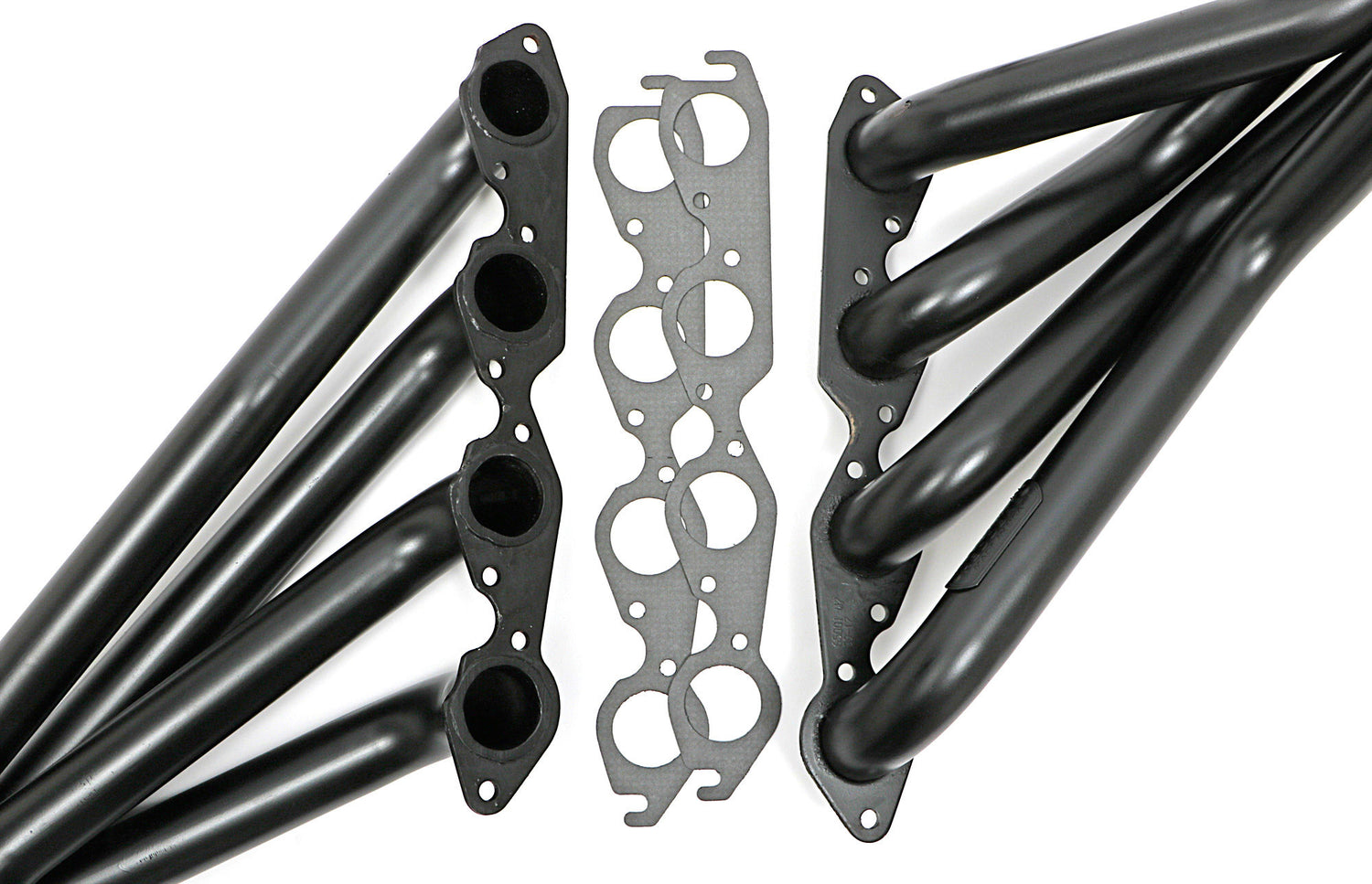

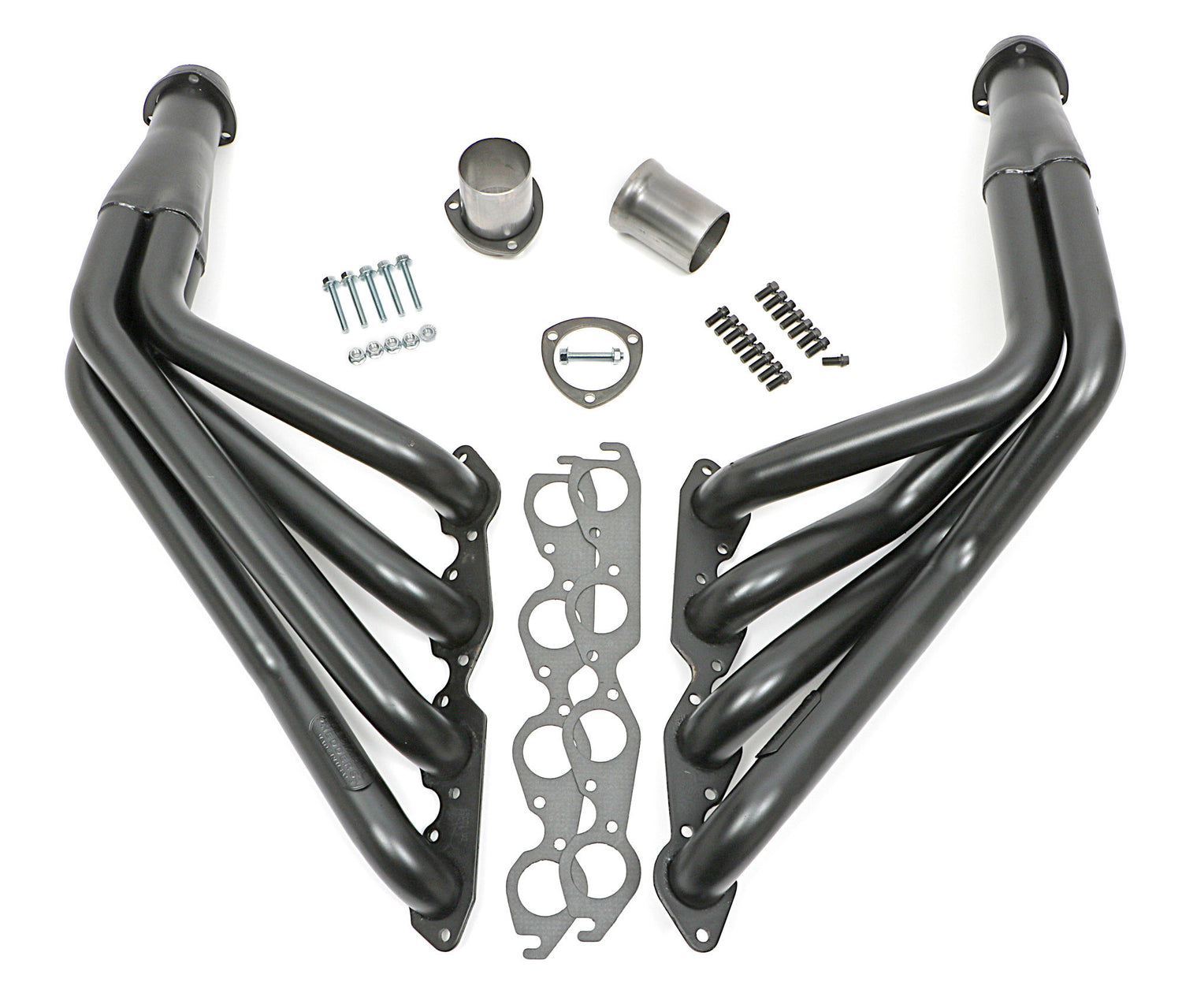

Hedman Hedders 65001 - STANDARD UNCOATED HEADERS; 2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Headers - Full - 2 in Primary - 3 in Collector - Gaskets / Hardware / Reducers Included - Steel - Black Paint - Big Block Chevy - GM F-Body / X-Body 1967-74 - Pair
Uncoated Mild Steel Long-Tube Headers For '67-69 Camaro, 68-74 Chevy Nova With 396-502
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Tuned: Yes
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 2 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 2 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27540
Replacement Head Flange Gasket: 27540
Variations: 66001
Tube Material Thickness: 16g
Tube Style: Long Tubes
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Air Conditioning: Dependent on Vehicle (refer to VEHICLE APPLICATION Footnotes)
Automatic Transmission - Column: No
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Exhaust System Dia: 2-1/2 in.
E.O. #: No
Tube Length: Long Tubes
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Engine: Chevy BB 396-502 (MARK IV)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Port Shape: Round Port
Header Style: Long Tube
Notes: 67-69 Camaro, 68-74 Nova 396-502
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Diameter: 2 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
