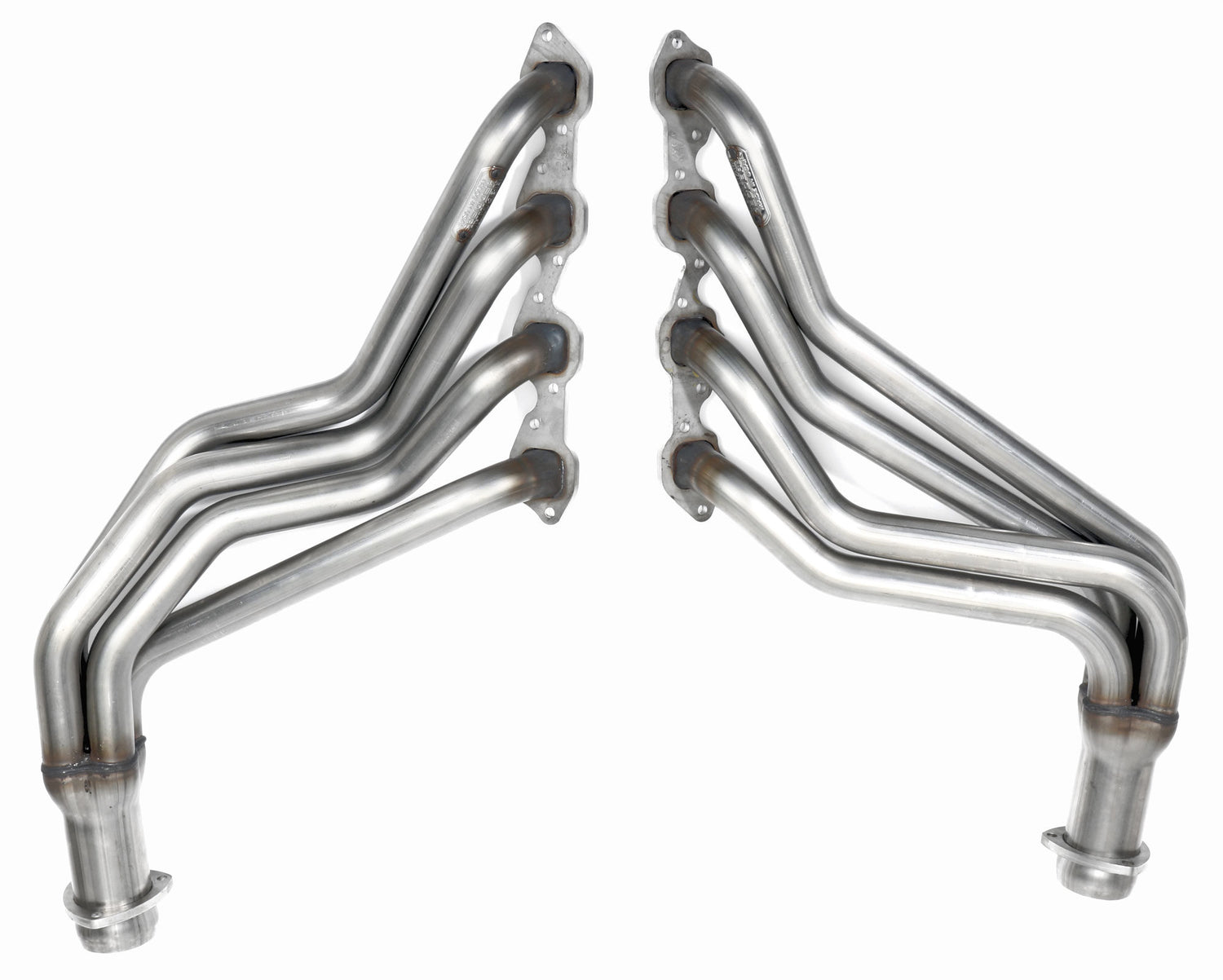

Hedman Hedders 62820 - STAINLESS STEEL HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED
Hedman Hedders | SKU:
FBLG-62820
Sale price
$99199
Regular price
$2,48834
Unit price
/
Unavailable
$1,496.35 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Hedman Hedders 62820 - STAINLESS STEEL HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED
Headers - Full - 1.75 in Primary - 3 in Collector - Gaskets / Hardware / Reducers Included - Stainless - Natural - GM Fullsize SUV / Truck 1967-91 - Pair
Stainless Long Tube Headers, 1967-91 CHEVY/GMC 1/2-1 Ton 2WD or 1/2-3/4 Ton 4WD Trucks, Blazer, 1/2-3/4 Ton 2WD SUV or 3/4 Ton 4WD SUV; 396-502 BB Chevy (Centered Engine Only); 1-3/4 in. Long Tubes; 3 in. Ball Collector- Uncoated
- 100% Premium T304 Stainless Steel Flange and Tube Construction.
- T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Clutch Notes: Must use 1975 and later model clutch linkage located at rear of engine. (139)
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Tube Length: Long Tubes
Drivetrain: 2WD
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: Uncoated
Finish Type: Uncoated Stainless Steel
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Square Port
Header Style: Long Tube
Port Shape: Square
Product Info: Manufactured using 304 Stainless steel. Sturdy 3/8 in. Flanges and 16 gauge tubing
Material: T304 Stainless Steel
Tube Design: Standard
Tube Diameter: 1-3/4 in.
Mounting Hardware Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Size: 1-3/4 in.
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.

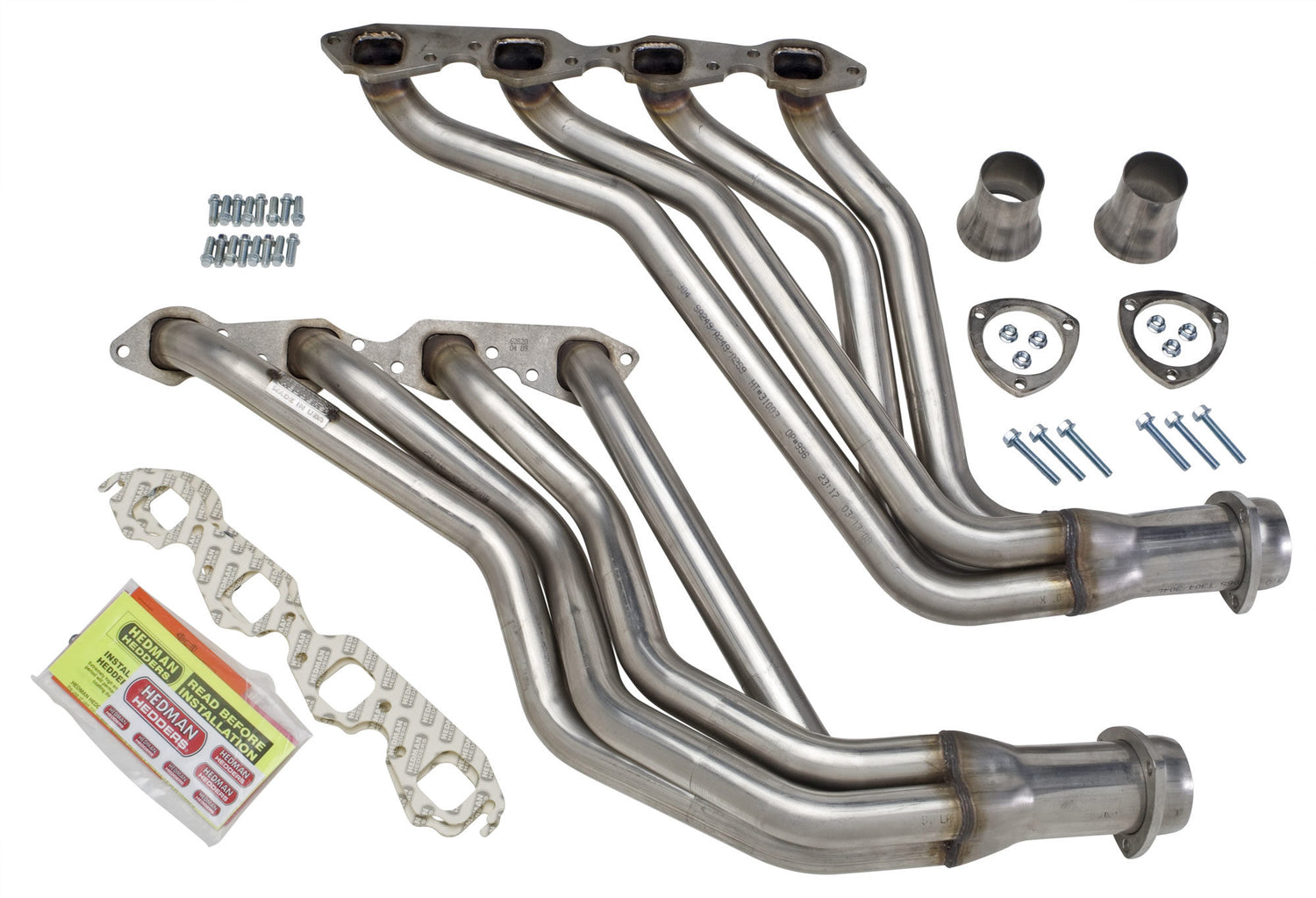

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: T304 Stainless Steel
Header Finish: Raw
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
Header Construction: T304 STAINLESS STEEL
Replacement Gasket: 27550
Replacement Head Flange Gasket: 27550
Variations: 69116, 69820, 62826
Tube Material Thickness: 16g
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
