Hedman Hedders 62090 - STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED

Hedman Hedders  |  SKU: FBLG-62090
Sale price $1,10599 Regular price $2,78186


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

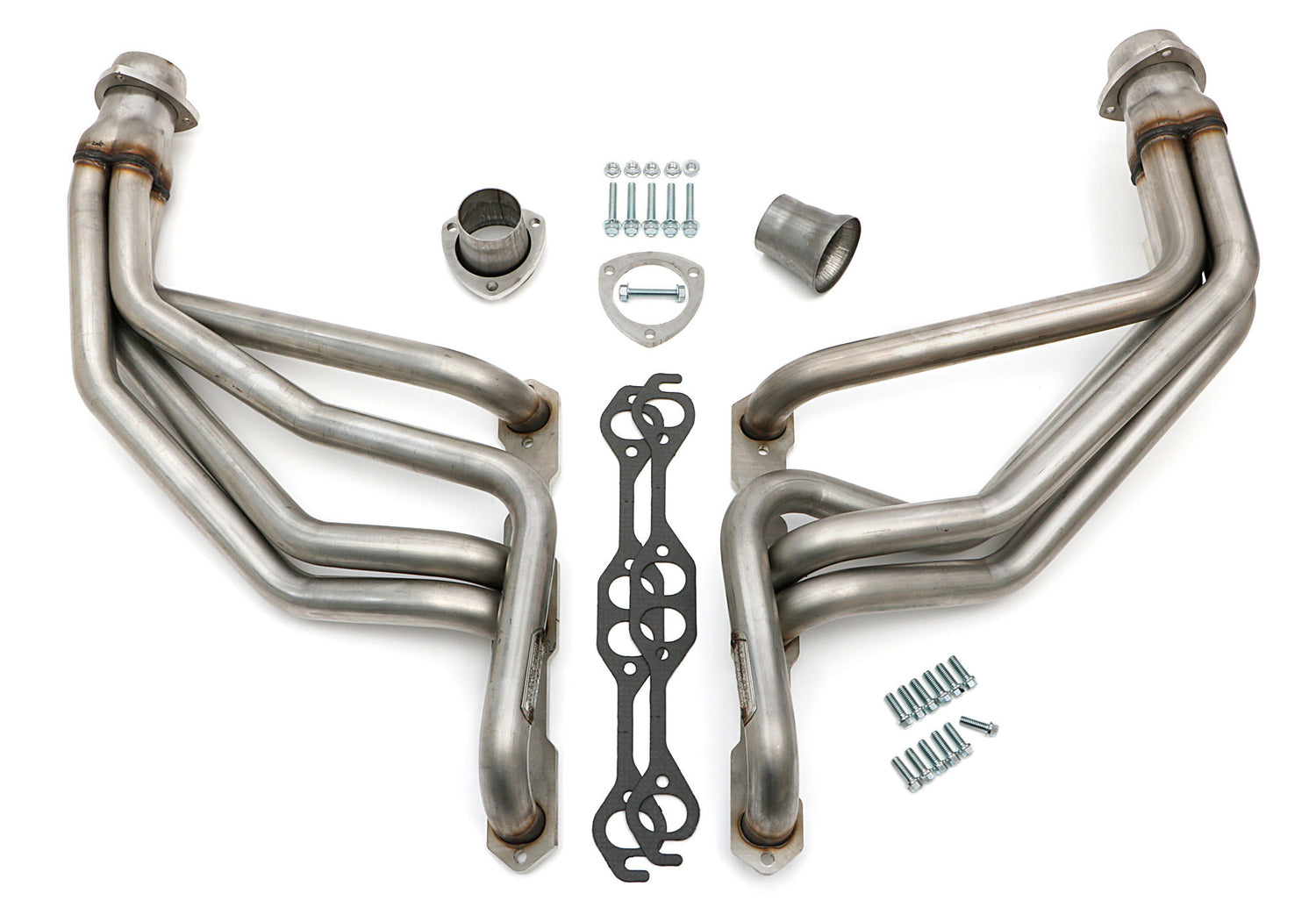

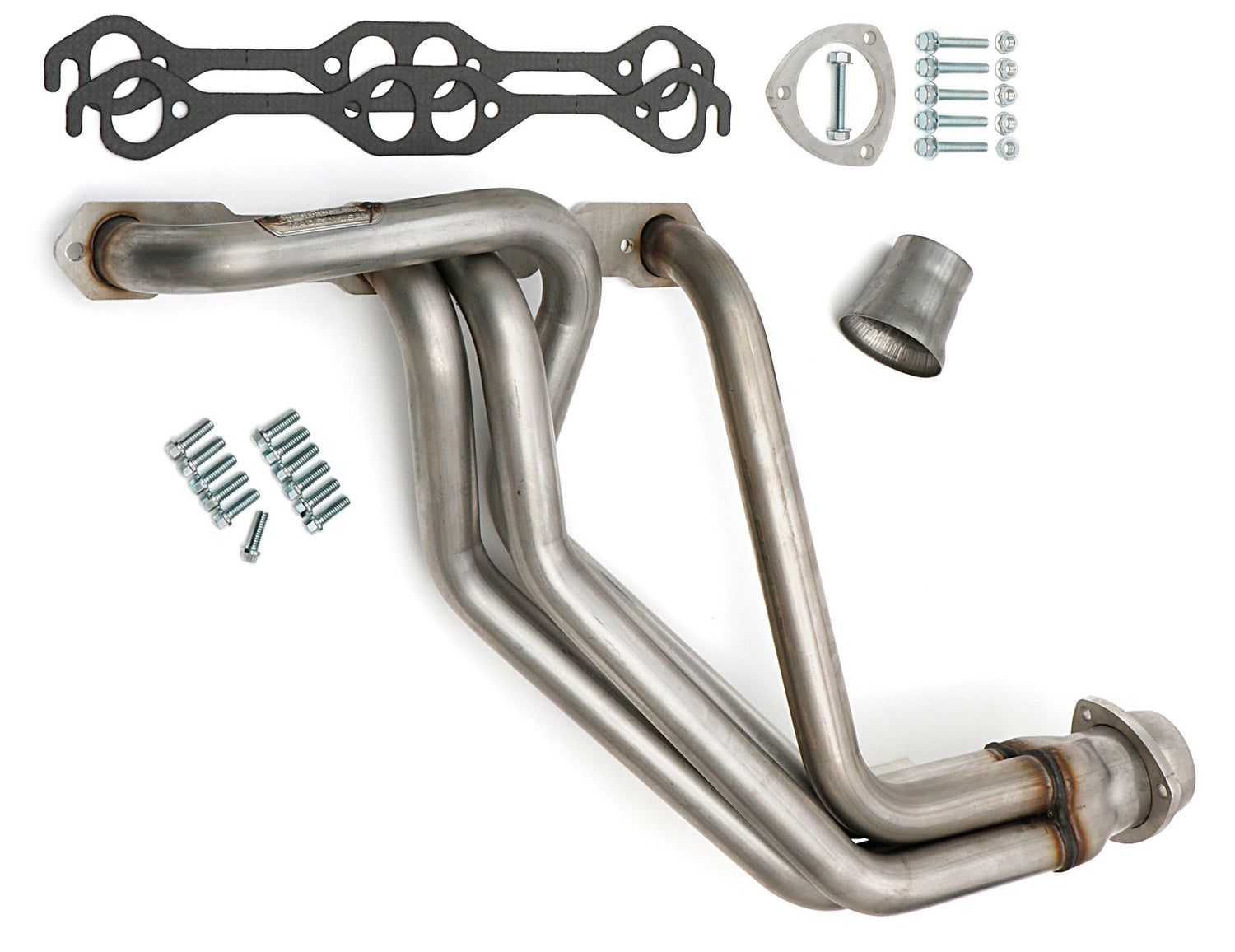

Hedman Hedders 62090 - STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN- UNCOATED

Headers - Full - 1.625 in Primary - 3 in Collector - Gaskets / Hardware / Reducers Included - Stainless - Natural - GM Fullsize SUV / Truck 1967-91 - Pair

Stainless Long-Tube Headers; 67-91 CHEVY/GMC 1/2-1 Ton 2WD, 67-87 1/2-3/4 Ton 4WD Truck, 67-91 1/2-3/4 Ton SUV, 67-91 Motorhome; 283-400 SB Chevy No A.I.R. (Centered Engine Only); 1-5/8 in. Tubes; 3 in. Ball Collector- Uncoated

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. These headers are manufactured from 100% T304 Stainless Steel to provide durability rivaled only by Hedman's ELITE® line of headers. They have smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next, and utilize 3/8 in. thick T304 stainless flanges to prevent warping. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

These raw stainless LONG-TUBE headers use Hedman's best selling Chevy truck header configuration. They fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment), powered by a Small Block Chevy engine (without A.I.R. System). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque. These headers are uncoated, and ship from the factory with a raw stainless surface. For protection against the element and lower under hood temperatures, these headers are also available with a silver or black ceramic-metallic finish.

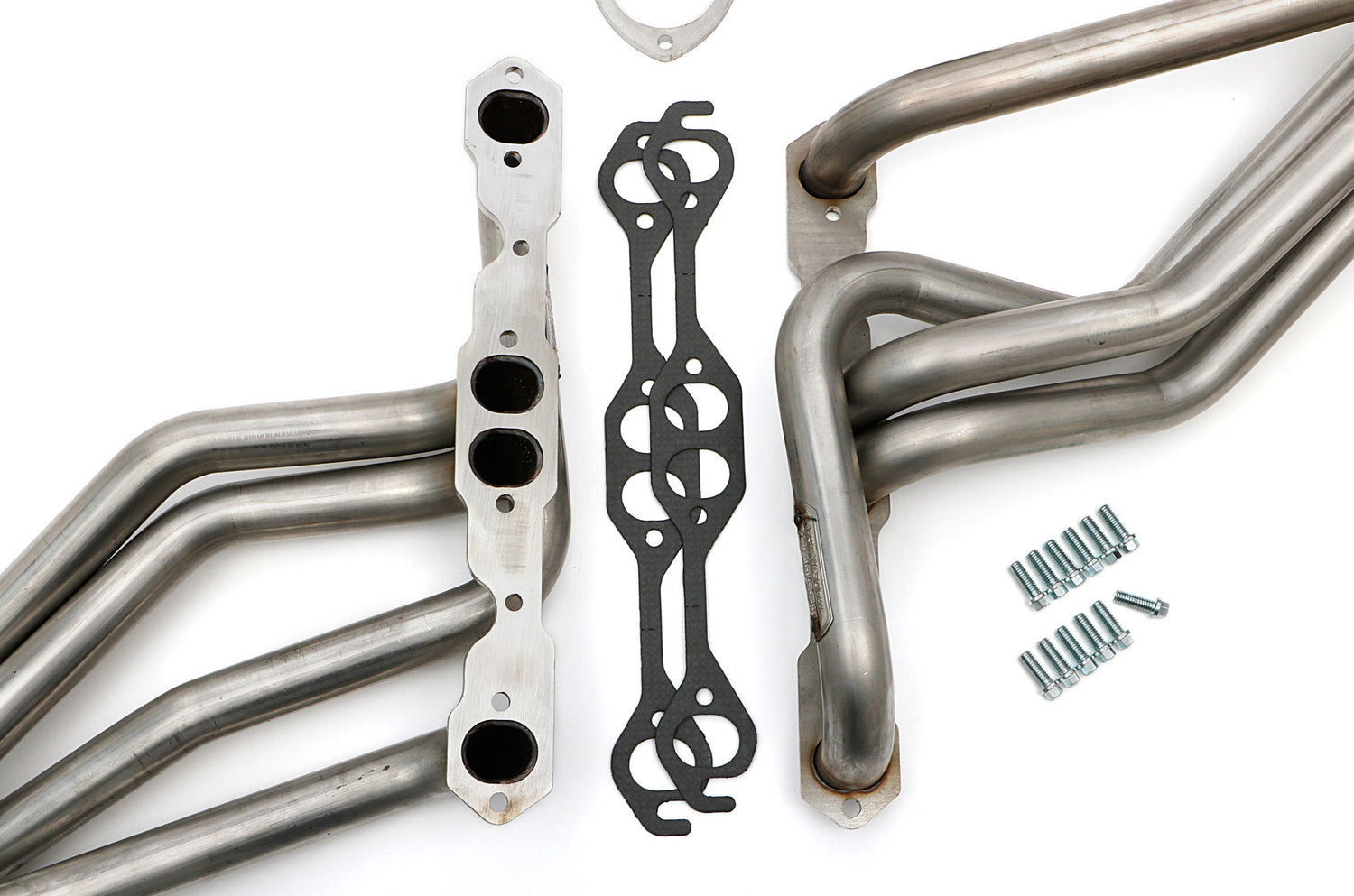

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.

  • 100% Premium T304 Stainless Steel Flange and Tube Construction.
  • T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
  • Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

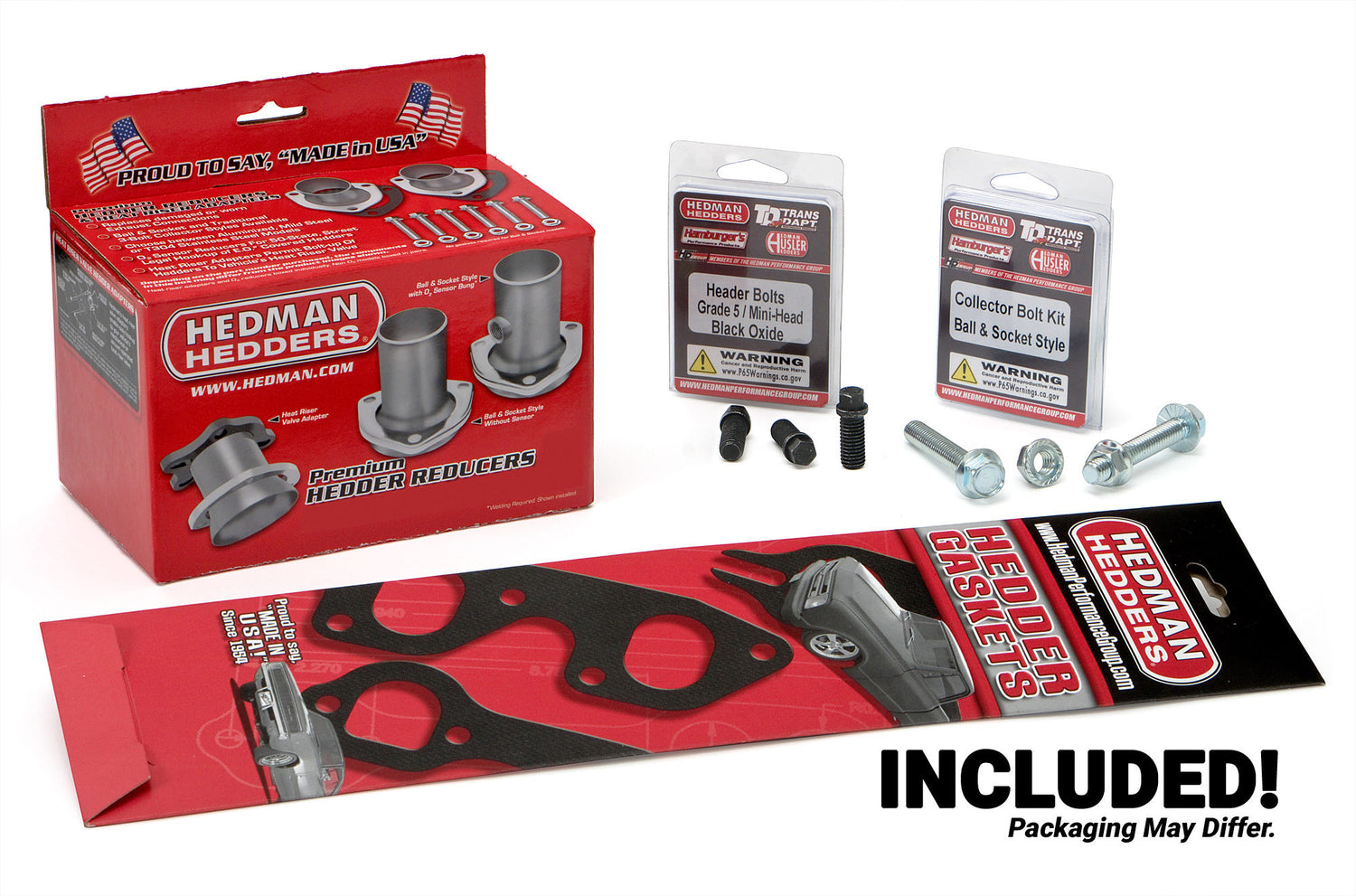

  • Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
  • Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
  • Proud To Say, Made In The USA, Since 1954!
Tube Diameter: 1-5/8 in.
Reducers Included: Yes
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Tube Size: 1-5/8 in.
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: T304 Stainless Steel
Header Finish: Raw
Cylinder Head Port Shape: Oval
Cylinder Head: Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
Header Construction: T304 STAINLESS STEEL
Replacement Gasket: 27520
Replacement Head Flange Gasket: 27520
Variations: 69096, 69890, 62096
Tube Material Thickness: 16g
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Tube Length: Long Tubes
Drivetrain: 2WD
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: Uncoated
Finish Type: Uncoated Stainless Steel
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Style: Long Tube
Notes: 67-91 1/2, 3/4, 1 Ton Chev. Truck 2-4WD 283-400
Product Info: Manufactured using 304 Stainless steel. Sturdy 3/8 in. Flanges and 16 gauge tubing
Material: T304 Stainless Steel
Tube Design: Standard
