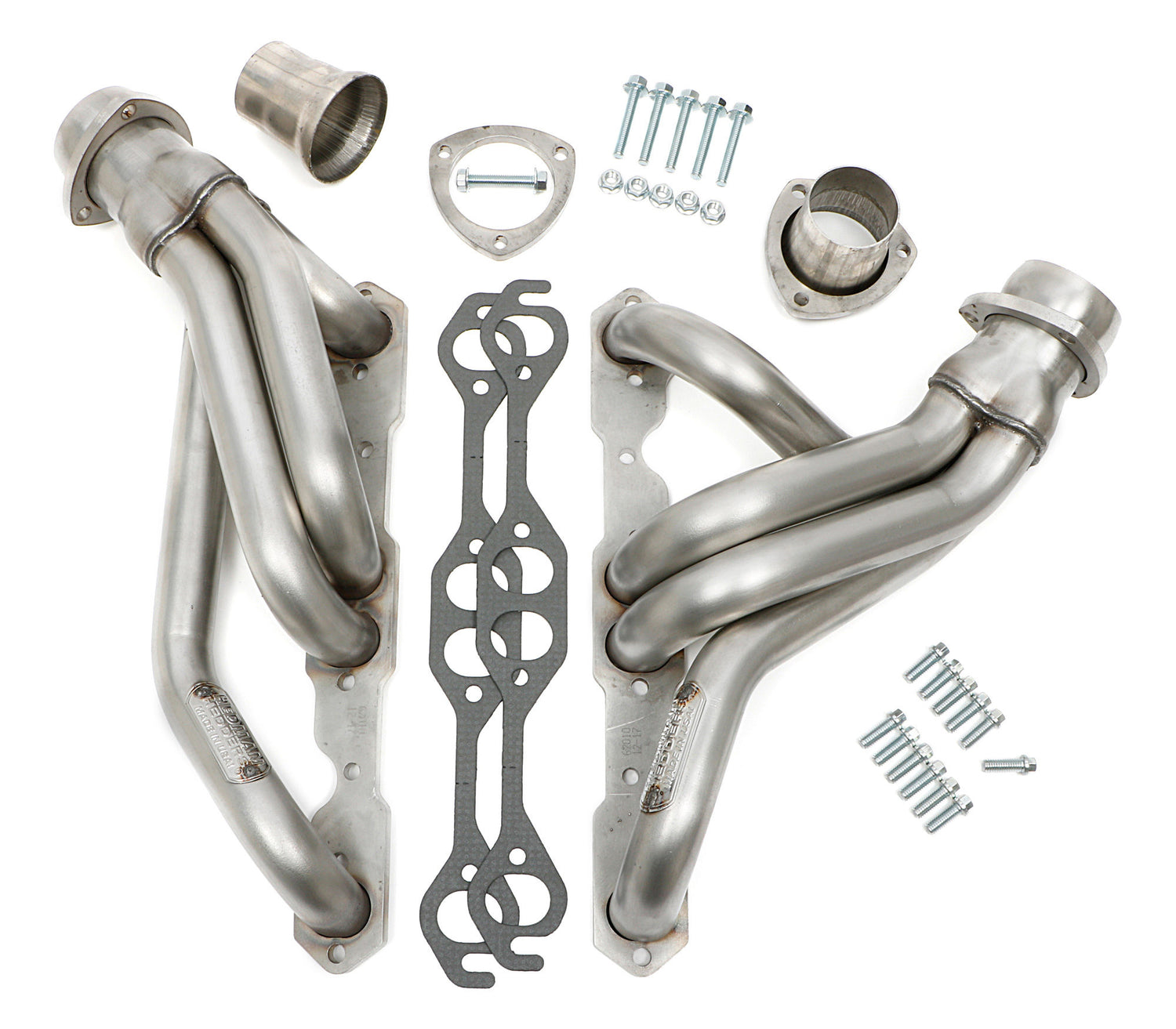

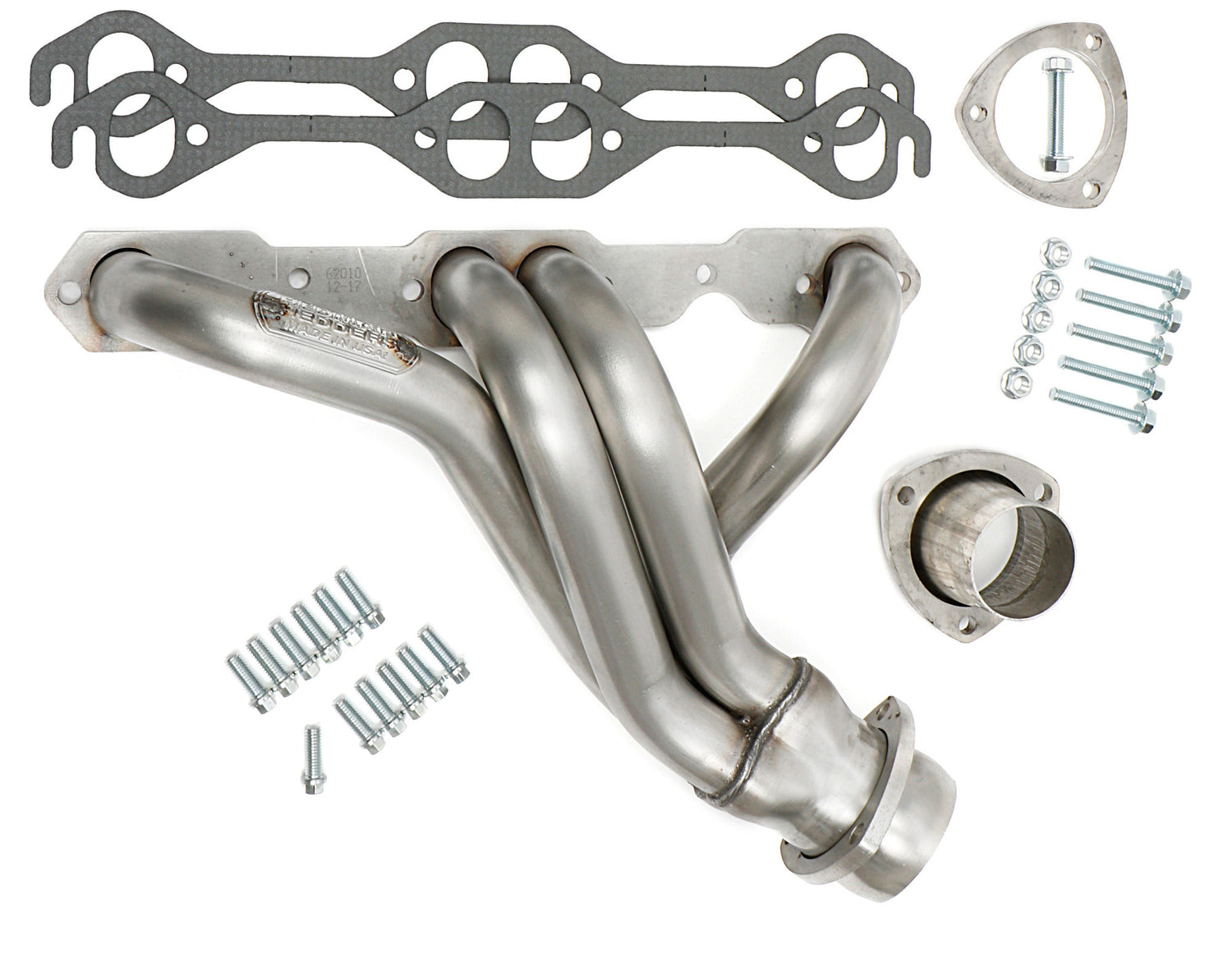

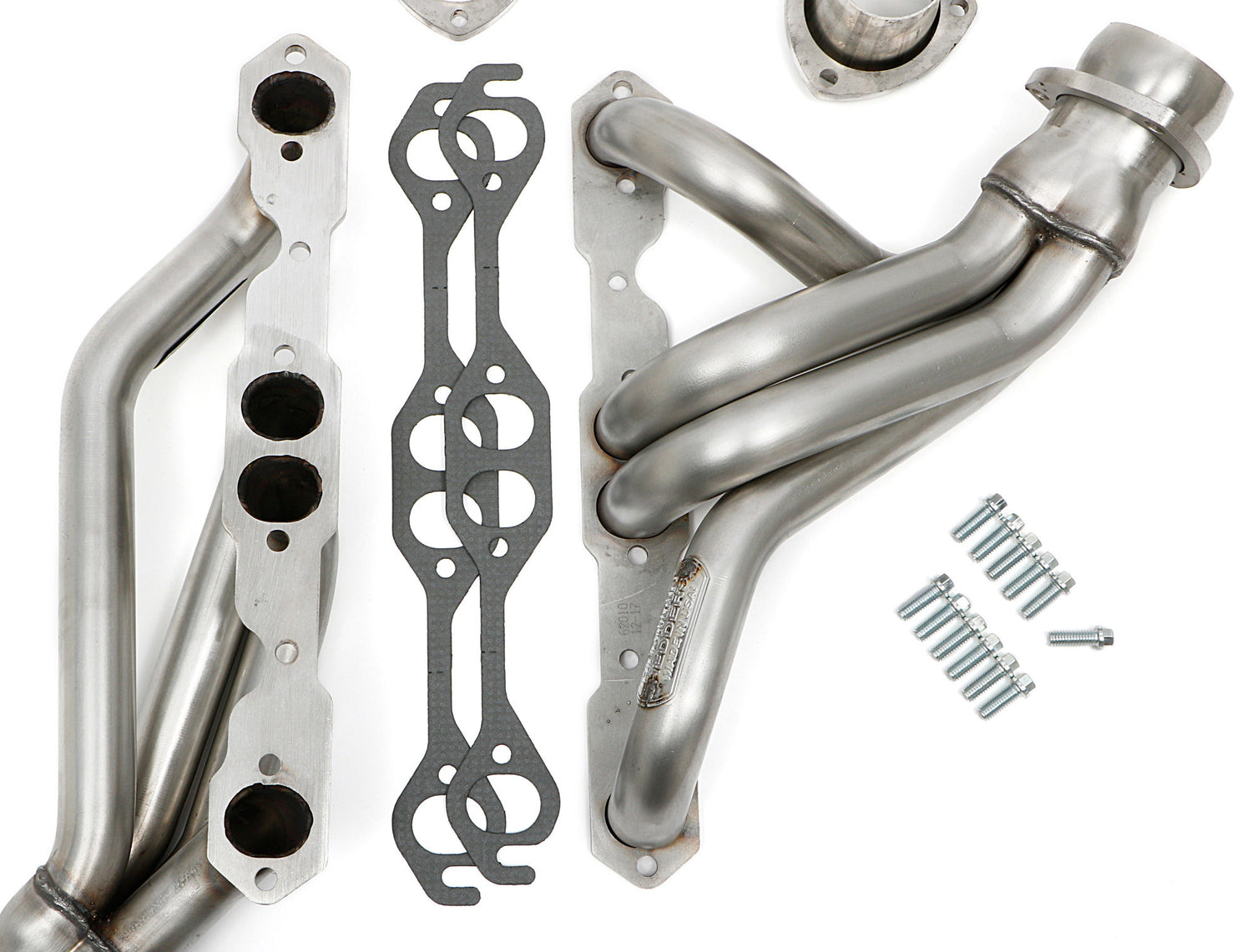

Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Hedman Hedders | SKU:
FBLG-62010
Sale price
$75799
Regular price
$1,88771
Unit price
/
Unavailable
$1,129.72 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Hedman Hedders 62010 - 67-87 C10/C20 TRUCKS AND SUVS WITH SB CHEVY; UNCOATED 304 STAINLESS STEEL HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN
Headers - Mid - 1.625 in Primary - 3 in Collector - Gaskets / Hardware / Reducers Included - Stainless - Natural - GM Fullsize SUV / Truck 1967-87 - Pair
Mid-Length Headers For 1967-87 CHEVY/GMC 2WD (only) 1/2-1 Ton Pick-Up or, 1967-91 1/2-3/4 Ton Suburban with 283-400 SB Chevy Engine (Centered Engine Chassis Only); 1-5/8 in. Tubes; 3 in. Ball/Socket Collector- Raw T304 Stainless Steel
- 100% Premium T304 Stainless Steel Flange and Tube Construction.
- T304 Stainless Material Is more Durable, Heat Resistant and Corrosion Resistant Than The 409 Stainless Steel Typically Used To Manufacture Exhaust Products.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limited Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!

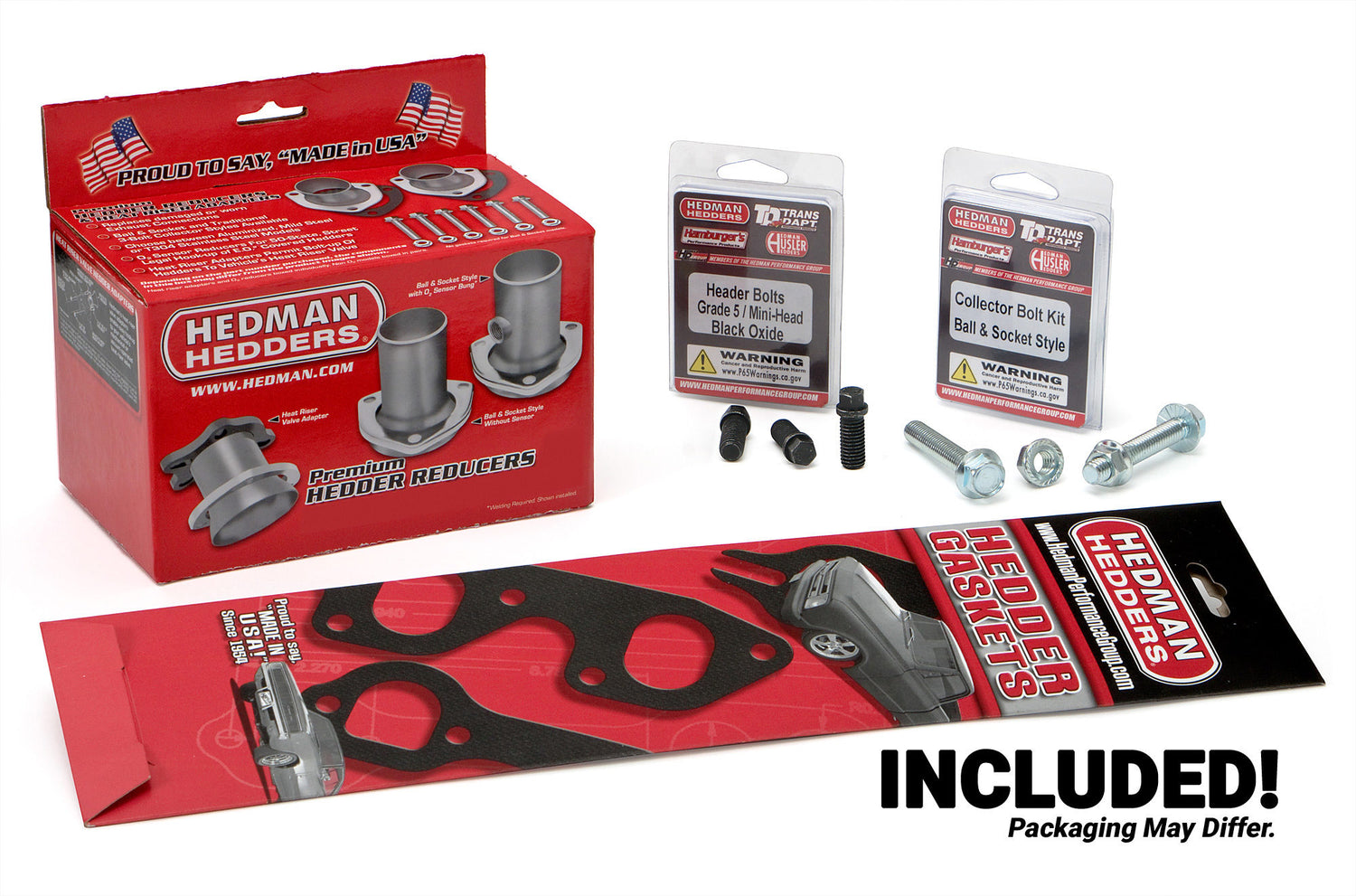

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: T304 Stainless Steel
Header Finish: Raw
Cylinder Head Port Shape: Oval
Cylinder Head: Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
Header Construction: T304 STAINLESS STEEL
Replacement Gasket: 27520
Replacement Head Flange Gasket: 27520
Tube Length: Mid-Length Tubes
Special Engine Notes: Designed for use with the SB Chevy engine located in the factory position.
Tube Style: Mid-Length
Reducer Outlet Size: 2-1/2 in.
Air Conditioning: Yes
Air Conditioning Notes: 70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket.
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Transmission Compatibility: Manual Trans. must Use TailShaft style crossmember or modify factory crossmember
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Exhaust System Dia: 2-1/2 in.
Material: T304 Stainless Steel
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
E.O. #: No
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Finish: Uncoated
Finish Type: Uncoated Stainless Steel
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Port Shape: Oval Port
Header Style: Mid-Length Tube
Notes: 67-87 Chev. 1/2, 3/4 Ton Truck 283-400 2WD
Port Shape: Oval
Materials: 100% 304 Stainless Steel- Uncoated; 16g Tubes; 3/8 in. Head Flanges
Product Details: The short, compact design of these headers allows for maximum ground clearance.
Tube Diameter: 1-5/8 in.
Mounting Hardware Included: Yes
Tube Material Thickness: 16g
Tube Size: 1-5/8 in.
with A.I.R. System: No
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Collector Bolts Included: Yes
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Reducers Included: Yes
Tube Design: Standard
Y-Pipe Included: No
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.625 in.
