Hedman Hedders 58156 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Hedman Hedders | SKU:
FBLG-58156
Sale price
$70599
Regular price
$1,75463
Unit price
/
Unavailable
$1,048.64 off
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

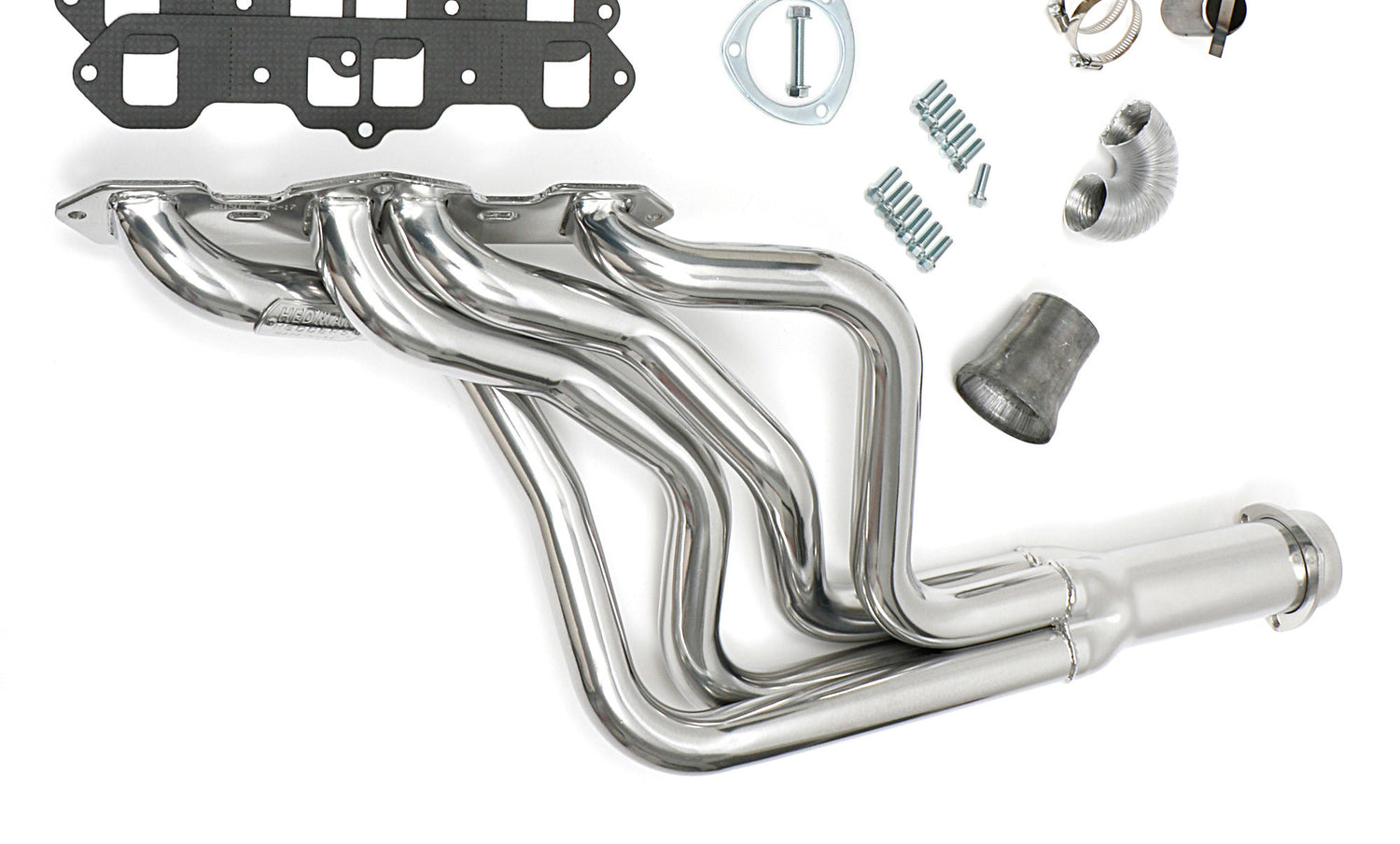

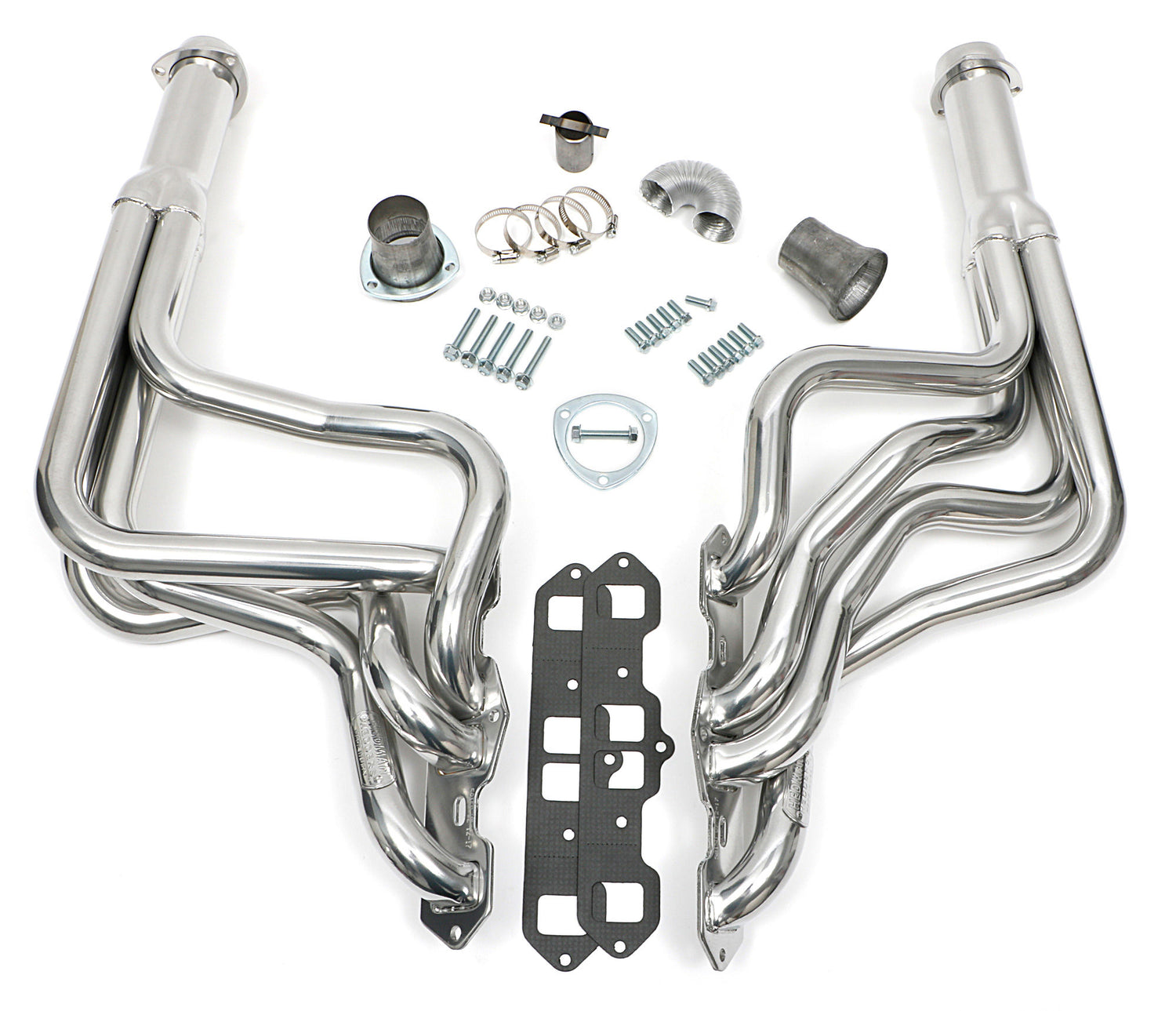

Hedman Hedders 58156 - HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN
Headers - Full - 1.75 in Primary - 3 in Collector - Gaskets / Hardware / Reducers Included - Steel - Silver Ceramic - Oldsmobile V8 - GM A-Body 1968-76 - Pair
Standard-Duty Headers For 1968-76 Oldsmobile Cars with 400-455 Engine; 1-3/4 in. Long Tube Design; 3 in. Ball/Socket Collector- Mild Steel Construction with HTC Polished-Silver Ceramic Coating
- Handcrafted, Mild Steel Construction.
- Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
- Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

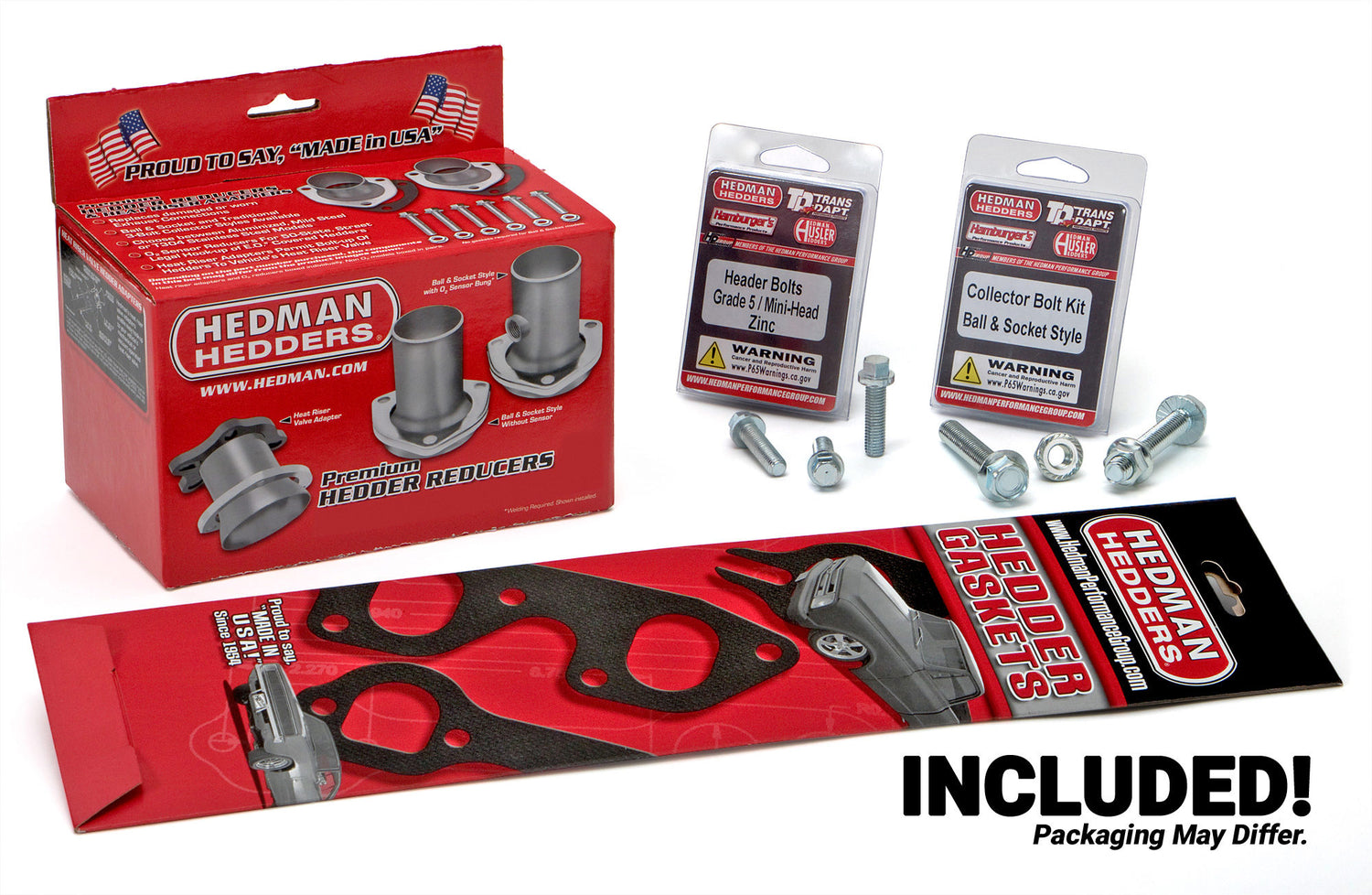

- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
<i>COATED HEADERS DURING ENGINE BREAK-IN PERIOD</i>:
CLICK FOR IMPORTANT INFO REGARDING HEADER COATINGS DURING ENGINE BREAK-IN!
Flange Style: Standard
Flange Thickness: 0.3125 in.
Header Style: Long Tube
Notes: 71-76 Delta 88, 68-76 Cutlass, Vista Cruiser 400-455
Material: Mild Steel
Tube Design: Standard
Tube Length: Long Tubes
Tube Diameter: 1-3/4 in.
Reducers Included: Yes
with EGR: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Y-Pipe Included: No
Variations: 58150, 58158
Quantity: Sold as a pair.
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.75 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: HTC Polished Silver Ceramic-Metallic
Cylinder Head Port Shape: Rectangle
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27800
Replacement Head Flange Gasket: 27800
with A.I.R. System: No
Tube Size: 1-3/4 in.
Tube Style: Long Tubes
Exhaust System Dia: 2-1/2 in.
Air Conditioning: Yes
Automatic Transmission - Column: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 3 in.
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2-1/2 in.
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Tube Material Thickness: 16g
E.O. #: Yes
Emissions Notes: EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website)
Finish: HTC Polished Silver Ceramic-Metallic
