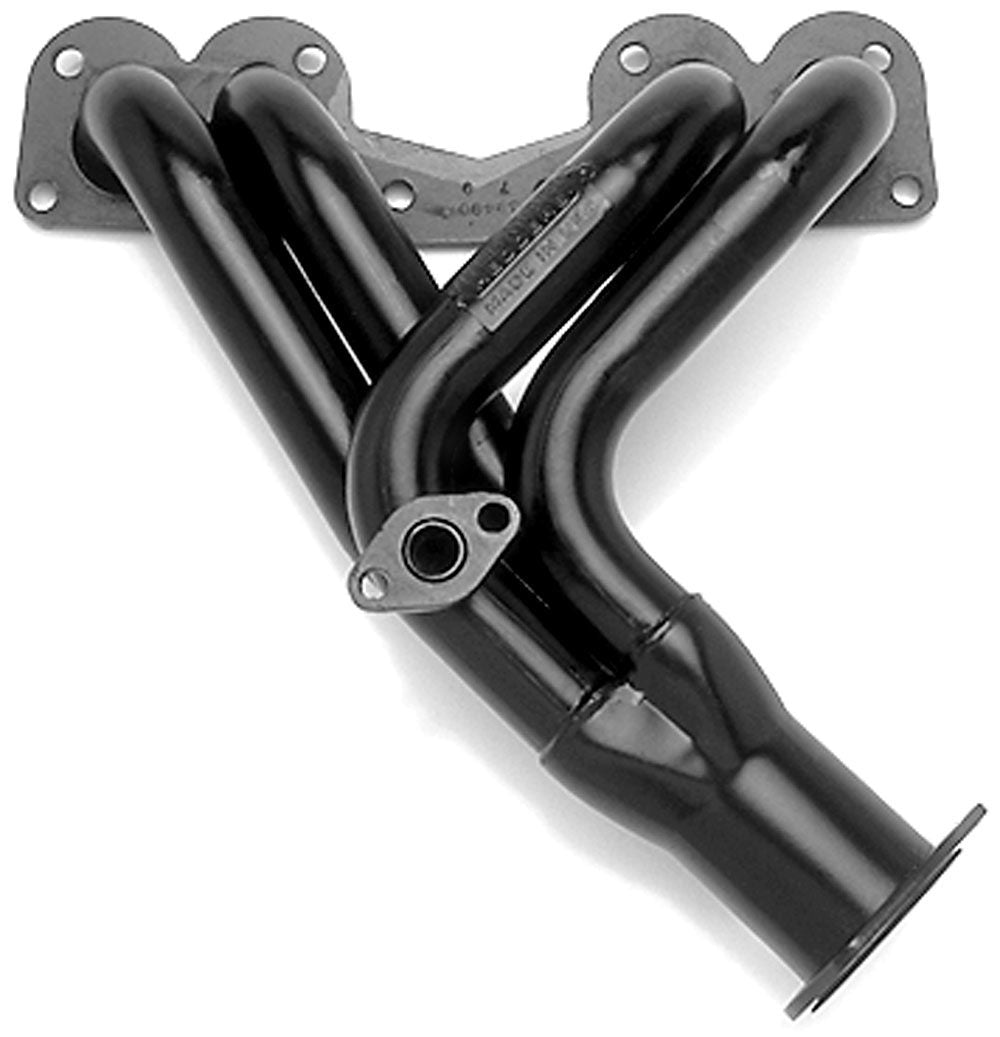

Hedman Hedders 39490 - STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN
Hedman Hedders | SKU:
FBLG-39490
Sale price
$27699
Regular price
$66983
Unit price
/
Unavailable
$392.84 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
Hedman Hedders 39490 - STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; SHORTY DESIGN
Headers - Short - 1.5 in Primary - 2.5 in Collector - Gaskets / Hardware / Reducers Included - Steel - Black Paint - Toyota 4-Cylinder - Toyota Compact Truck 1987 - Pair
Headers; '85-88 Toyota 2WD/4WD Pickup; 22REC (EFI); 1-1/2 in. Short Tube, Round Port; 2-1/2 in. Collector- Uncoated Mild Steel
- Handcrafted, Mild Steel Construction.
- The Mid-Length Tube Header Design Provides Significantly More Low and Mid-range Power than Cast Manifolds, and Provide Better Ground Clearance And Component Compatibility Than Long Tube Headers.
- Classic 3-Bolt Gasket-Style Header Collectors

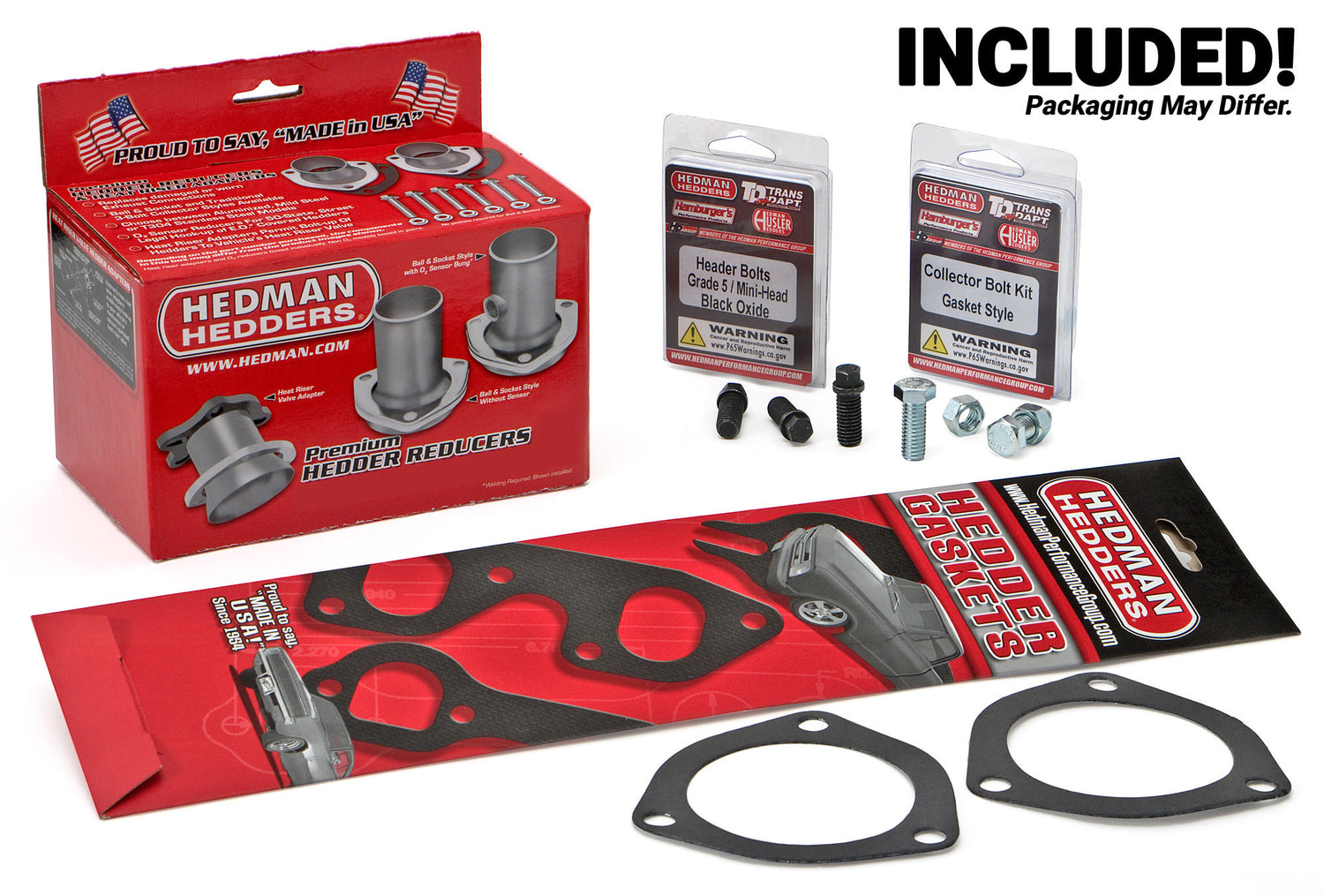

- Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
- Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
- Proud To Say, Made In The USA, Since 1954!
Tube Diameter: 1-1/2 in.
Y-Pipe Included: No
Weld-Up: No
Tuned: No
Bolts/Studs Included: Yes
Catalytic Converter(s) Included: No
Crossover Pipe Included: No
Gasket Or Seal Included: Yes
Header Fasteners Included: Yes
Installation Hardware Included: Yes
Motor Mounts Included: No
Mounting Hardware Included: Yes
Reducers Included: Yes
Quantity: Sold individually.
with A.I.R. System: No
Primary Tube Gauge: 16g
Primary Tube Diameter (in): 1.50 in.
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Header Material: Mild Steel
Header Finish: Uncoated
Cylinder Head Port Shape: Round Port Headers. NOT for Pear-shaped port heads!
Cylinder Head: Stock Profile Heads
Header Construction: MILD STEEL- Standard-Duty
Replacement Gasket: 27610
Replacement Head Flange Gasket: 27610
with EGR: No
Variations: 39496, 39498
Tube Style: Mid-Length
Contents: headers, header gaskets, Reducers (exhaust adapters), header and collector bolts
Air Conditioning: Yes
Automatic Transmission - Floor: Yes
Manual Transmission - Column: No
Manual Transmission - Floor: Yes
Power Steering: Yes
Collector Attachment: 2-1/2 in.
Collector Diameter: 2-1/2 in.
Collector Size: 2-1/2 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Reducer Outlet Size: 2 in.
Exhaust System Dia: 2 in.
E.O. #: No
Tube Size: 1-1/2 in.
Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
Engine: Toyota 22RE (F.I.)
Finish: Uncoated
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Flange Style: Standard
Flange Thickness: 0.375 in.
Header Style: Mid-Length Tube
Port Shape: Round
Material: Mild Steel
Tube Design: Standard
Tube Length: Mid-Length Tubes
Tube Material Thickness: 16g
