Haltech HT-212000 - NEXUS S2 (ECU Only)

Name: Haltech HT-212000 - NEXUS S2 (ECU Only)
Brand: Haltech
SKU: HAL-HT-212000
Price: 1650.0 USD
Availability: InStock

Haltech | SKU: HAL-HT-212000

$1,650⁰⁰ $1,815⁰⁰

$165.00 off

⛔ THIS ITEM HAS A STRICT RETURN POLICY ⛔
Programmers and Tuners have a strict return policy. Once the seal is broken, they can not be returned. This is because they may be locked and unusable. Make sure it will work on your car prior to ordering.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

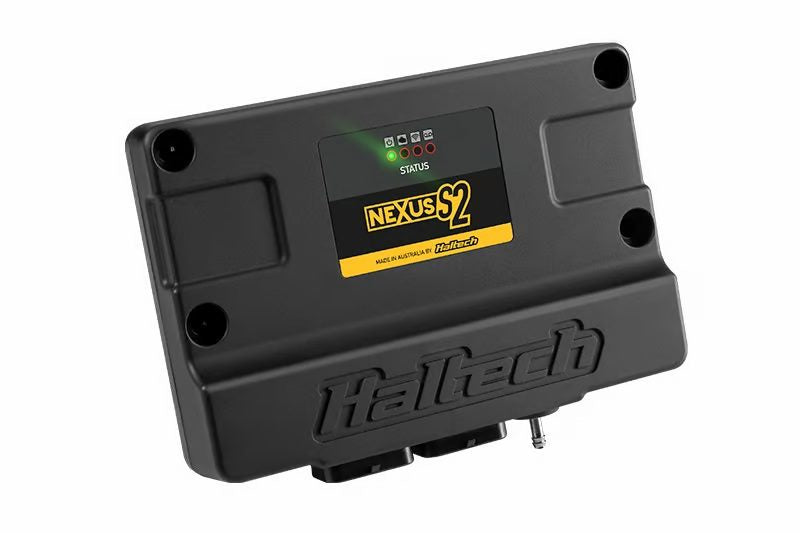

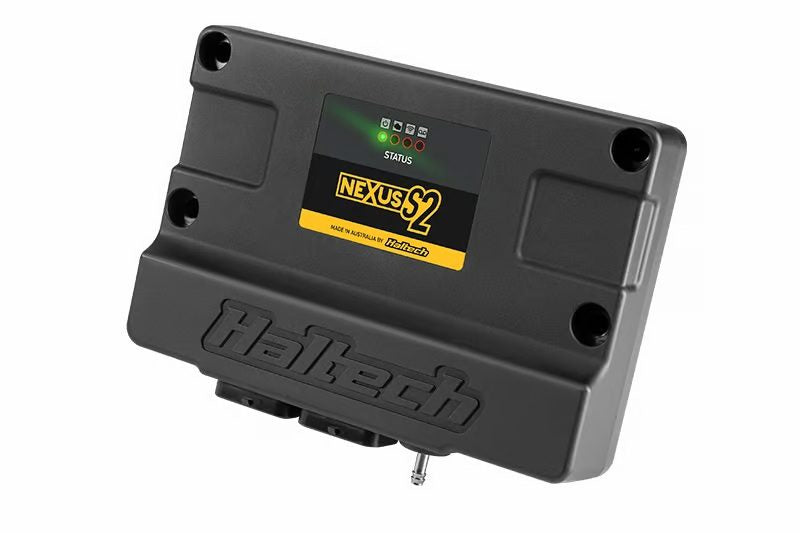

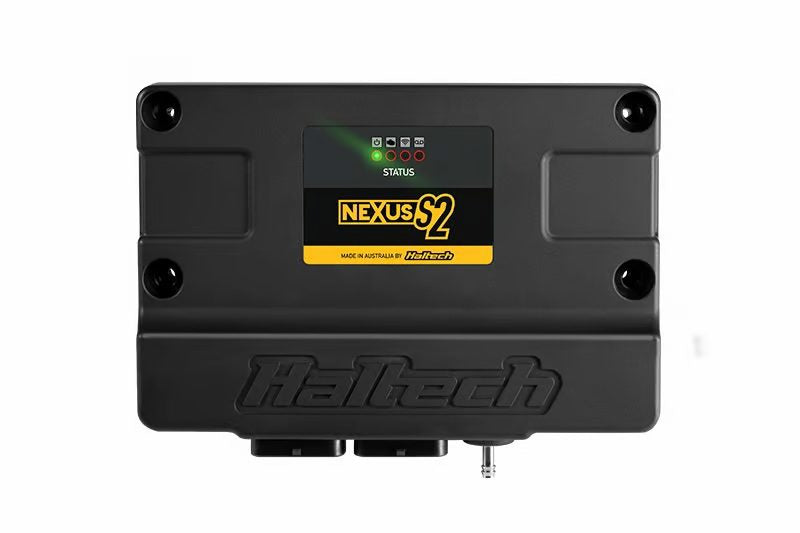

Haltech HT-212000 - NEXUS S2 (ECU Only)

Nexus S2 ECU Only

Display Name: Nexus S2 ECU Only

Knock Control: Dual

Flex Fuel: YES

Race Timer: YES

Shock Travel & Ride Height: YES

Traction Control: YES

Tuning Table Resolution: 32x32x8 4D

Onboard storage: 128MB

Differential Engine Position Inputs: 2 (Trigger and Home)

Synchronized Pulsed Inputs (SPI): 6

On-board Wideband Controller: 1 x NTK/LSU 4.9

Ignition: 8

Engine Control Relay output: 1

Half Bridge Outputs (HBO): 4 8A

25A High Current Outputs (HCO): 0

MAP sensor: Internal (4 BAR)

USB 2.0: USB-C

Wi-Fi: YES

Anti-Lag/Rotational Idle: YES

Closed Loop O2 Control: Dual

Drive-By-Wire Throttle: Dual

Flat Shift Support: Advanced

Intake Air Bleed Control: YES

Launch Control: YES

Nitrous Control Stages: Up to 6

Rolling Anti-Lag: YES

Torque Management (Driveshaft and Engine RPM Targeting): YES

Trans Brake: YES

Variable Cam Control: Up to 4

Analog Voltage Inputs (AVI): 11

Digital Pulsed Inputs (DPI): 0

Knock Sensor Inputs: 2

Injection: 8 (peak and hold)

Ignition Switch Input: 1

Total Digital Pulsed Outputs (DPO): 6

On-Board PDM: NO

CAN Bus Networks: 2

Inertia / G-Sensor: NO

Low Power Up via Cable: YES

Compatible with Haltech Connect App: YES

Boost Control: 4D Closed Loop

CO2 Control: YES

Engine Protection: Multi-Level

Long Term Learning: Up to 4D

Product Type: ECU

Haltech HT-212000 - NEXUS S2 (ECU Only)
