Haltech HT-068000 - uC-10 10in Digital Dash Kit w/Cables & Accessories
Haltech | SKU:
HAL-HT-068000
Sale price
$1,94000
Regular price
$2,13400
Unit price
$194.00 off
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

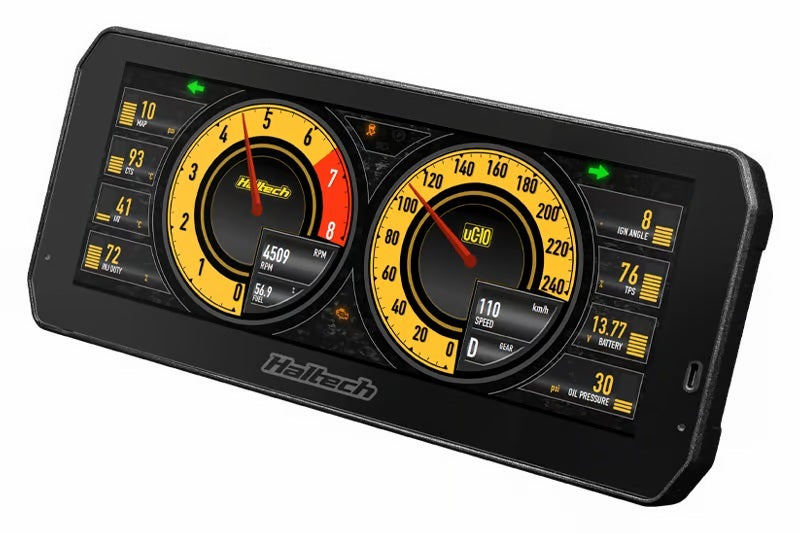

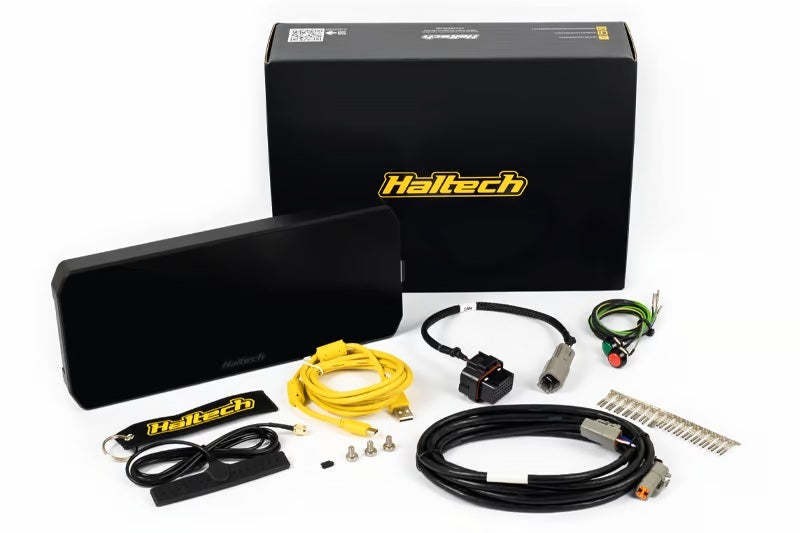

Haltech HT-068000 - uC-10 10in Digital Dash Kit w/Cables & Accessories
Gauge Panel Assembly - UC-10 - Multiple Gauge - Programmable - Black Face - Kit
Haltech uC-10 Digital Dash Kit
Display Name: Haltech uC-10 Digital Dash Kit
Connectors: 1 x M5 USB connector (COMMS)

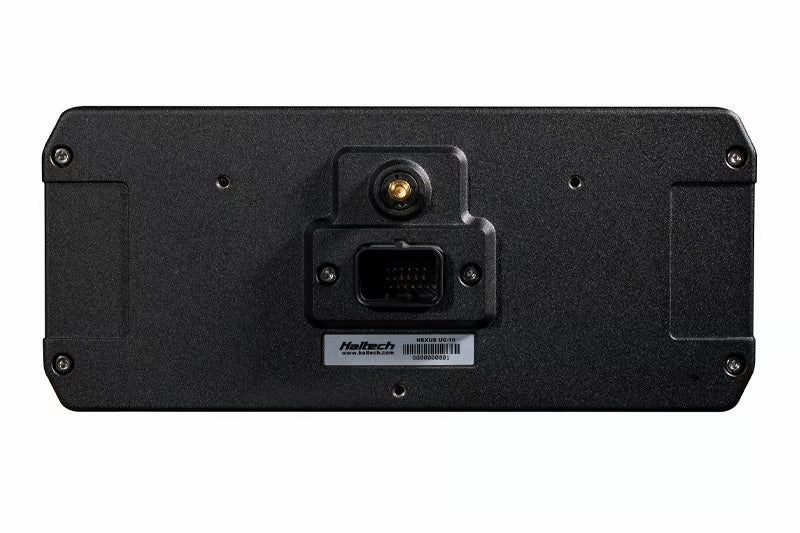

Connectors: 34 Pin AMP Superseal (Type 2 keyway) Female RP-SMA (Wi-Fi Antenna connection)
Connectors: 1 x 34-pin Superseal (AUXILIARY)
Shift Lights: 14 RGB
Inputs and Outputs: 4 x Digital pulsed outputs (DPOs)
Inputs and Outputs: Tachometer input pin (for wired tacho signal)
Inputs and Outputs: 2 x Ambient light sensors (onboard)
Inputs and Outputs: 4 x Synchronized pulsed inputs (SPIs)
Inputs and Outputs: 1 x 5V output, 1 x 12V output, and 1 x signal ground
Inputs and Outputs: Alternator excite pin
Inputs and Outputs: 10 x Analog voltage inputs (AVIs)
Camera Input: Supported formats: NTSC 720 x 480 / PAL 720 x 576
Camera Input: Dedicated power output: 12V / 500mA
Camera Input: Signal type: Composite Video (CVBS)
Camera Input: Image manipulation: Mirror and rotation 0/90/180/270¬8
Communications: USB-A (laptop) to USB-C (dash) connection
Communications: CAN (Haltech, OBD-II, or supported third party ECU)
Communications: Wi-Fi (Future firmware update required)
Universal: Yes
Resolution: 1280x480
Luminance: 600+ lumens (dimmable)
Signal type: Composite Video (CVBS)
Image manipulation: Mirror and rotation 0/90/180/270°
USB: USB-A (laptop) to USB-C (dash) connection
Operating Voltage: 6.5V to 20.0V
Onboard Datalogging: 512MB
IP Rating: IP64 (Dust-tight and protected against water splashes)
Display Size: 10-inch, optically bonded overlay
Viewing Angle: 70° Minimum (vertical and horizontal)
Dimensions: 291.2mm x 126.0mm x 26.0mm (excluding rear connectors)
Supported formats: NTSC 720 x 480 / PAL 720 x 576
Dedicated power output: 12V / 500mA
CAN: Haltech, OBD-II, or supported third party ECU
Wi-Fi: Yes (Future firmware update required)
Ambient Temperature: -10°C (14°F) to +80°C (176°F)
Odometer: 6 digits
Product Type: Dashes
