Fuelab 56502-1 - Universal CARB Adjustable Fuel Pressure Regulator 4-12 psi (2) -10AN Inlets (1) -10AN Return MAX FLOW BYPASS Black
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description

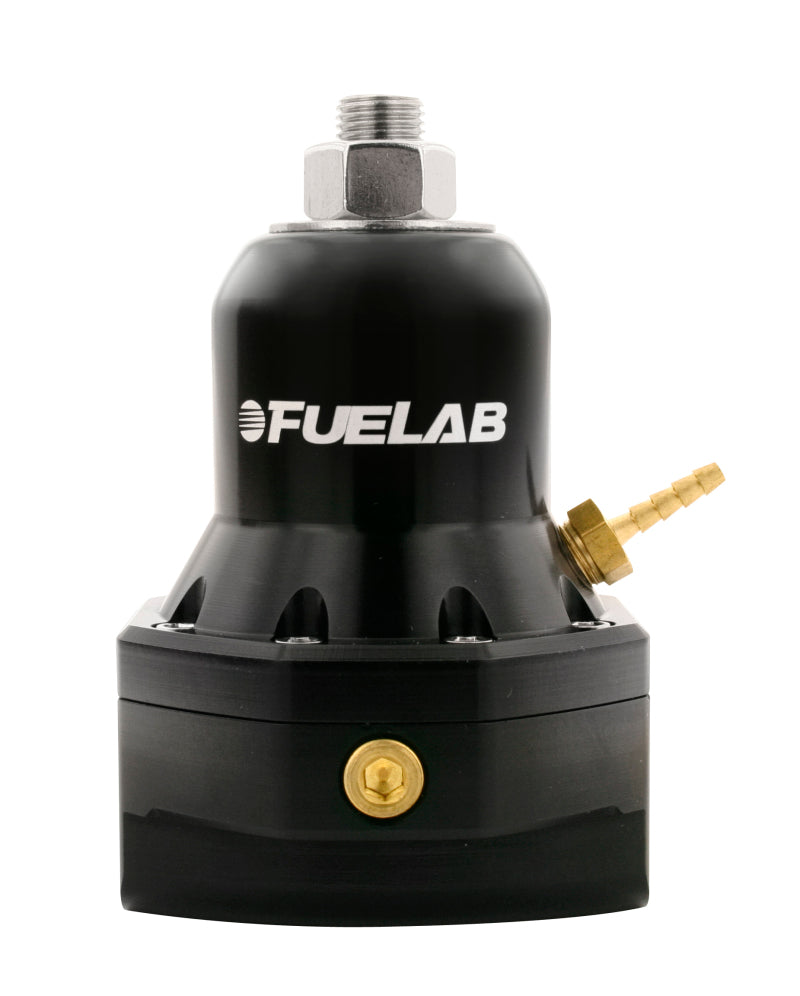

Fuelab 56502-1 - Universal CARB Adjustable Fuel Pressure Regulator 4-12 psi (2) -10AN Inlets (1) -10AN Return MAX FLOW BYPASS Black
10AN Inlets / -10AN Return / XL Seat / CARB (4-12 PSID)
Regulator Features
- Two -10AN inlet ports and one -10AN return port
- 1.75 inch sized diaphragm with 1/2 inch return orifice
- Gasoline, diesel, methanol, and ethanol fuel compatible
- Billet Aluminum with anodize per military MIL-A-8625, Type II
- Fine thread pitch for precise pressure adjustment
- Versatile mounting bracket and stainless steel hardware
- 1/8 inch NPT gauge port with plug for external pressure gauge
- 1/8 inch NPT pressure reference port with barbed fitting
- Backed by a limited lifetime warranty
Available in Black only
