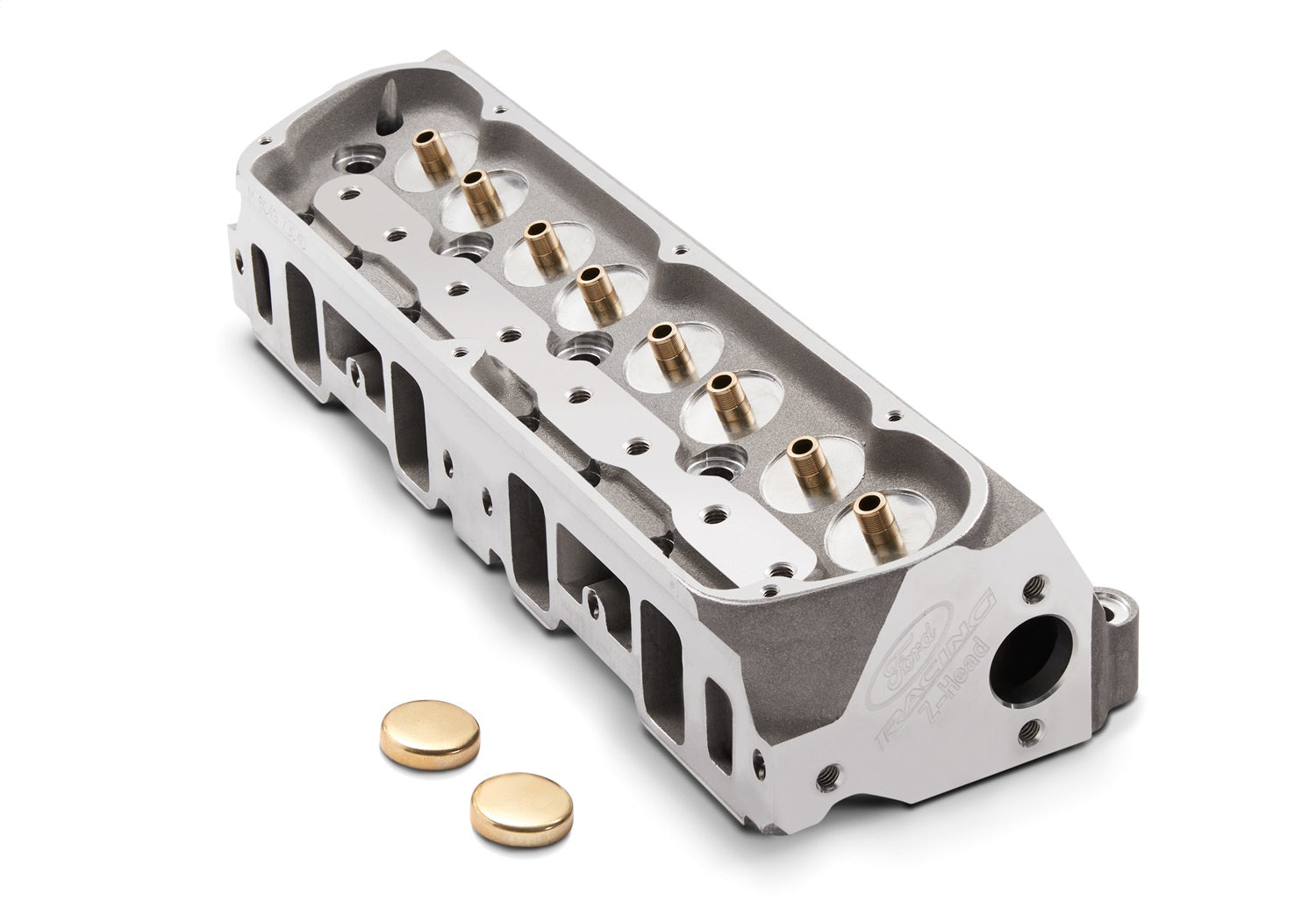

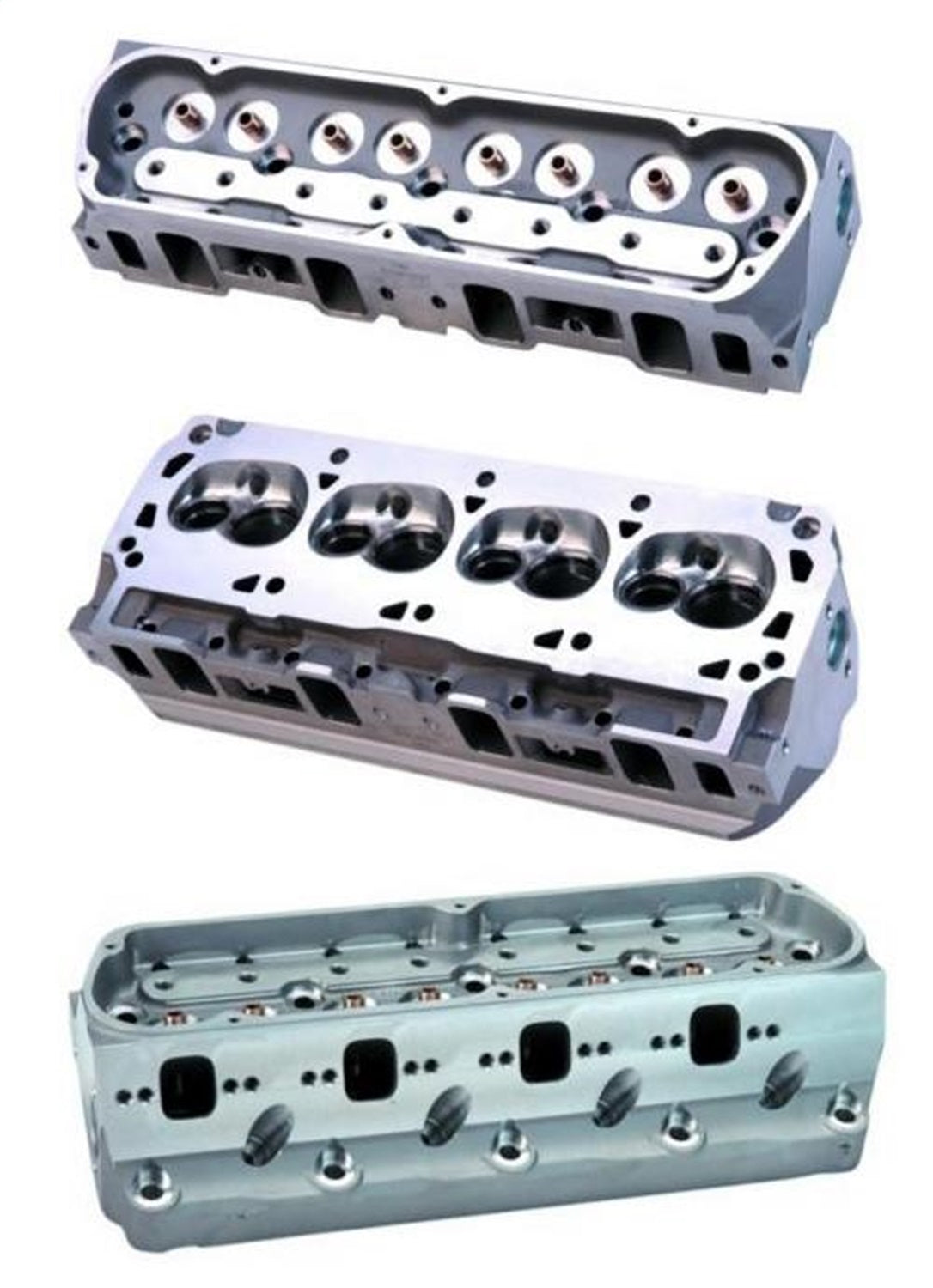

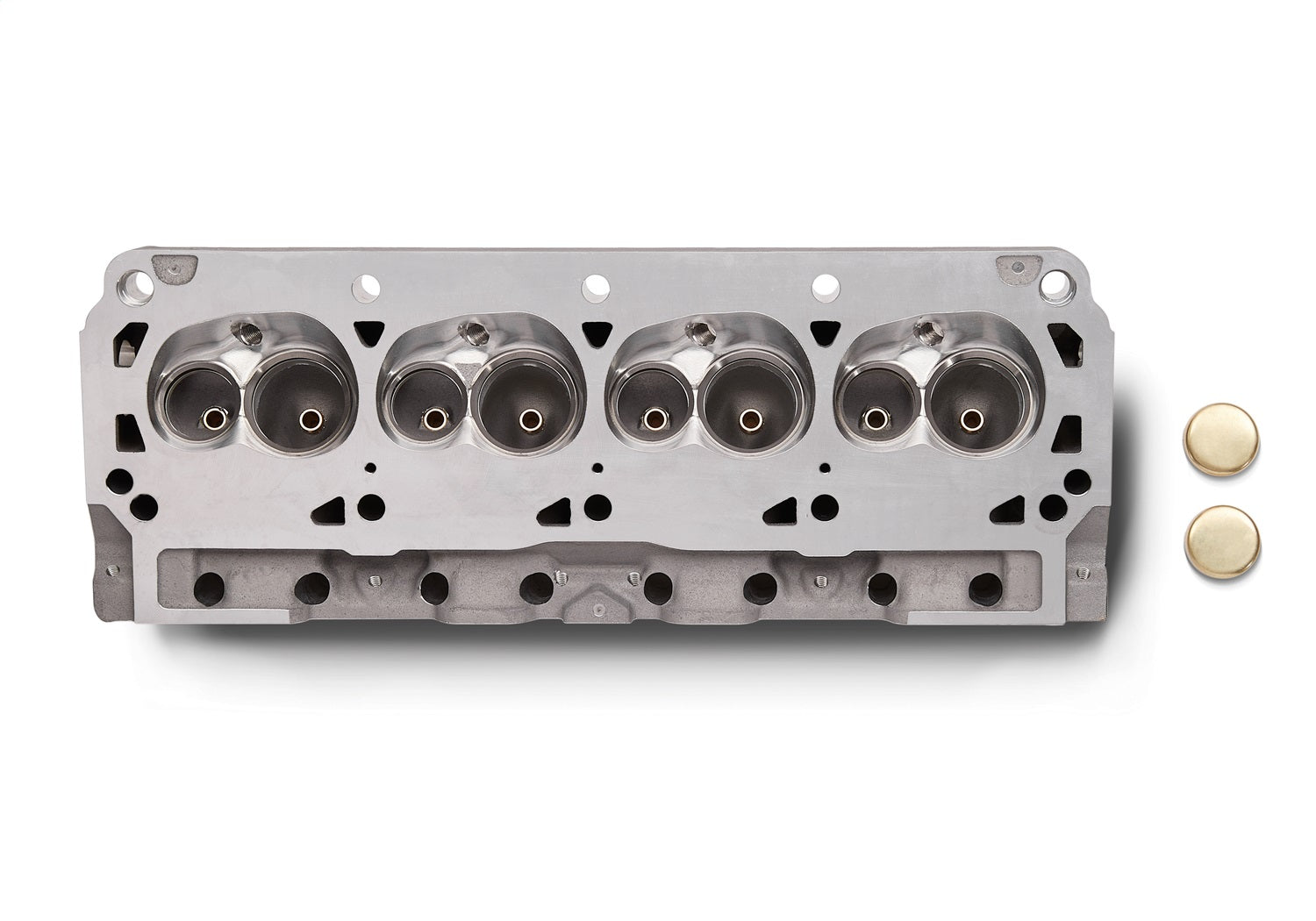

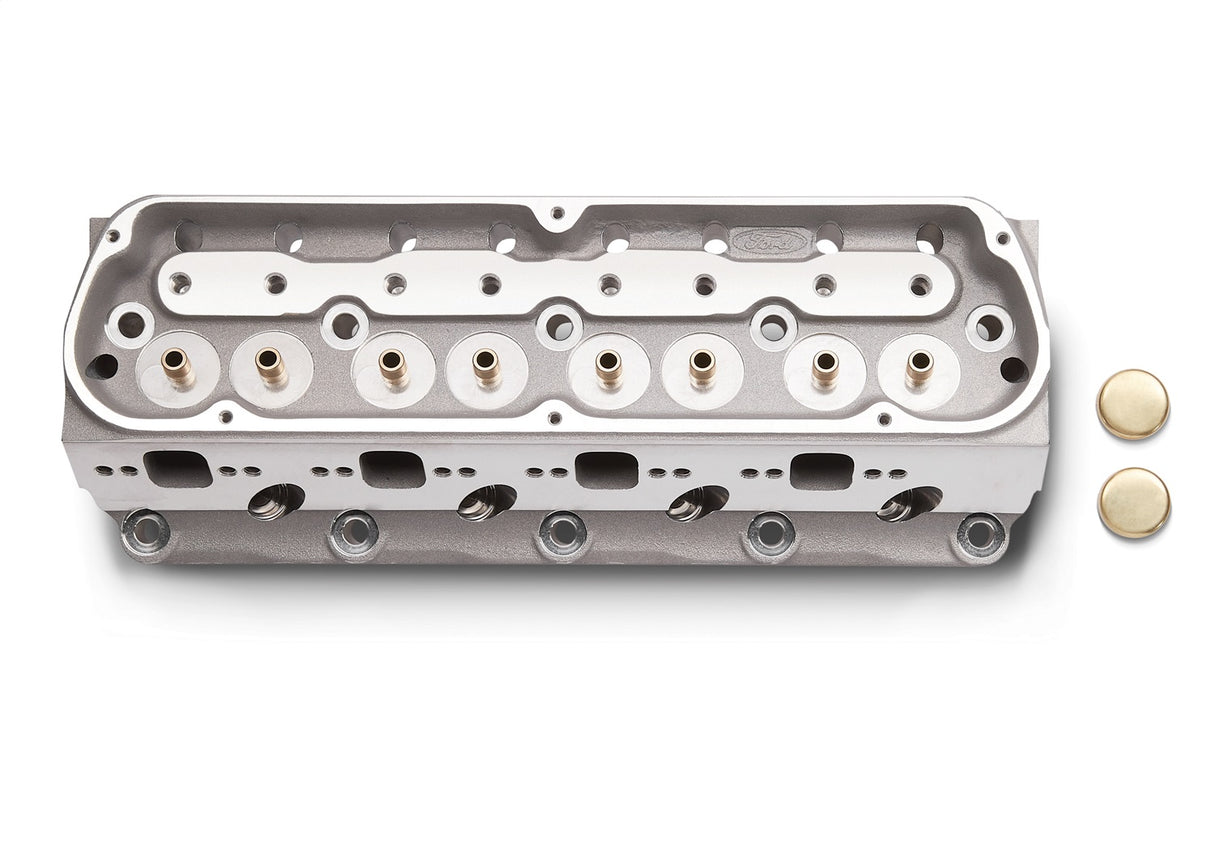

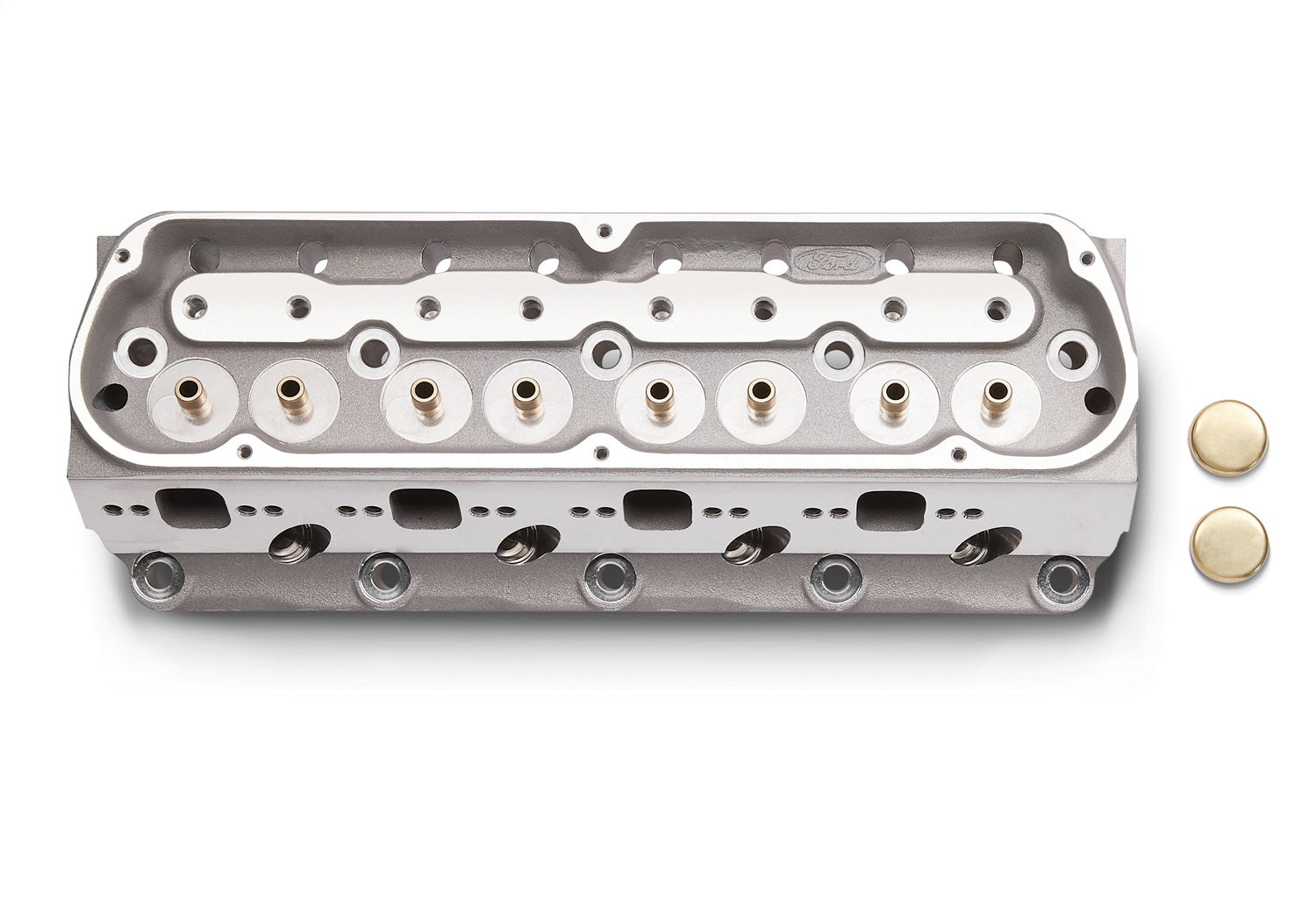

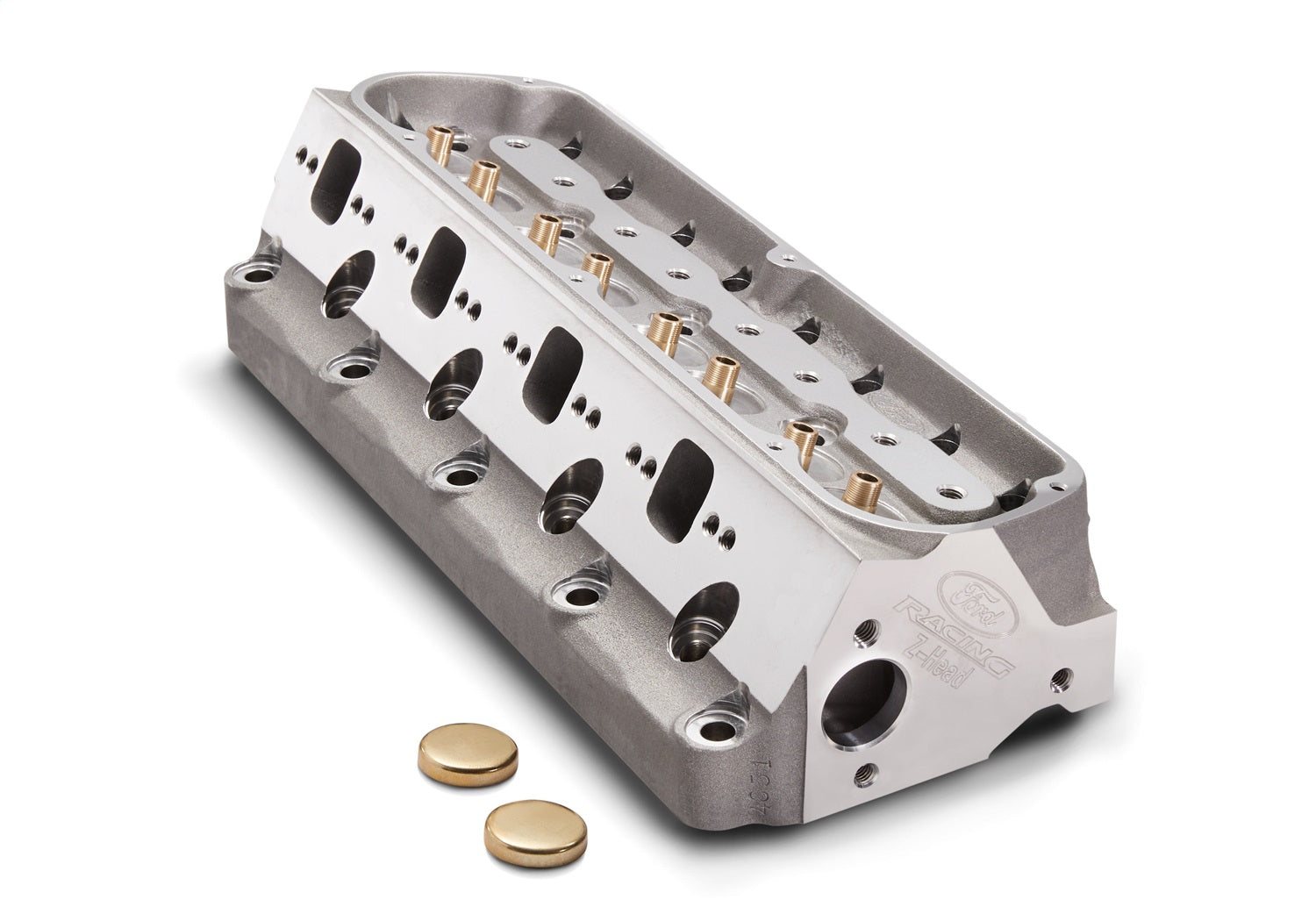

Ford Racing M-6049-Z304D - 302/351W Z-Head Aluminum Head - Bare 63CC
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
Description
Description
Ford Racing M-6049-Z304D - 302/351W Z-Head Aluminum Head - Bare 63CC
302/351W "Z-Head" Aluminum Head-Bare 63CC
Cylinder Head; Aluminum; For Use w/302/351W; Bare; 63cc CNC Combustion Chamber; 1 pc.;
Cast from prime A356 T6 aluminum, these 'Z' heads from Ford Racing were designed using solid modeling technology. They feature high-flow ports and steel alloy intake and exhaust valve seats installed (they do require a competition valve job and bowl blending). The manganese-bronze valve guides are installed with a semi-finished I.D. and the combustion chambers are CNC-machined. Laser-cut guideplates are included, and they accept both tapered seat and gasket-style 14mm spark plugs.
- Designed Using Solid Modeling Technology
- Cast From Prime A356 T6 Aluminum
- Heads are Cast w/High-Flow Ports
- 20 Degree Inline Valves
- Required Competition Valve Job and Bowl Belding
- Steel Alloy Intake/Exhaust Vale Seats Installed
- Manganese-Bronze Valve Guides Installed w/Semi-Finished ID
- 63cc CNCd Combustion Chamber
- 85cc Exhaust Port Volume As Cast
- Raised Exhaust Port Exit
- Custom Headers May Be Required
- Made in the USA
