Flowmaster 817174 - Header-back System 409S - Dual Rear Exit - American Thunder -Moderate/Aggressive

Flowmaster  |  SKU: FLO-817174
Sale price $1,24995 Regular price $1,40695

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

Flowmaster 817174 - Header-back System 409S - Dual Rear Exit - American Thunder -Moderate/Aggressive

Flowmaster American Thunder Crossmember-Back Exhaust System

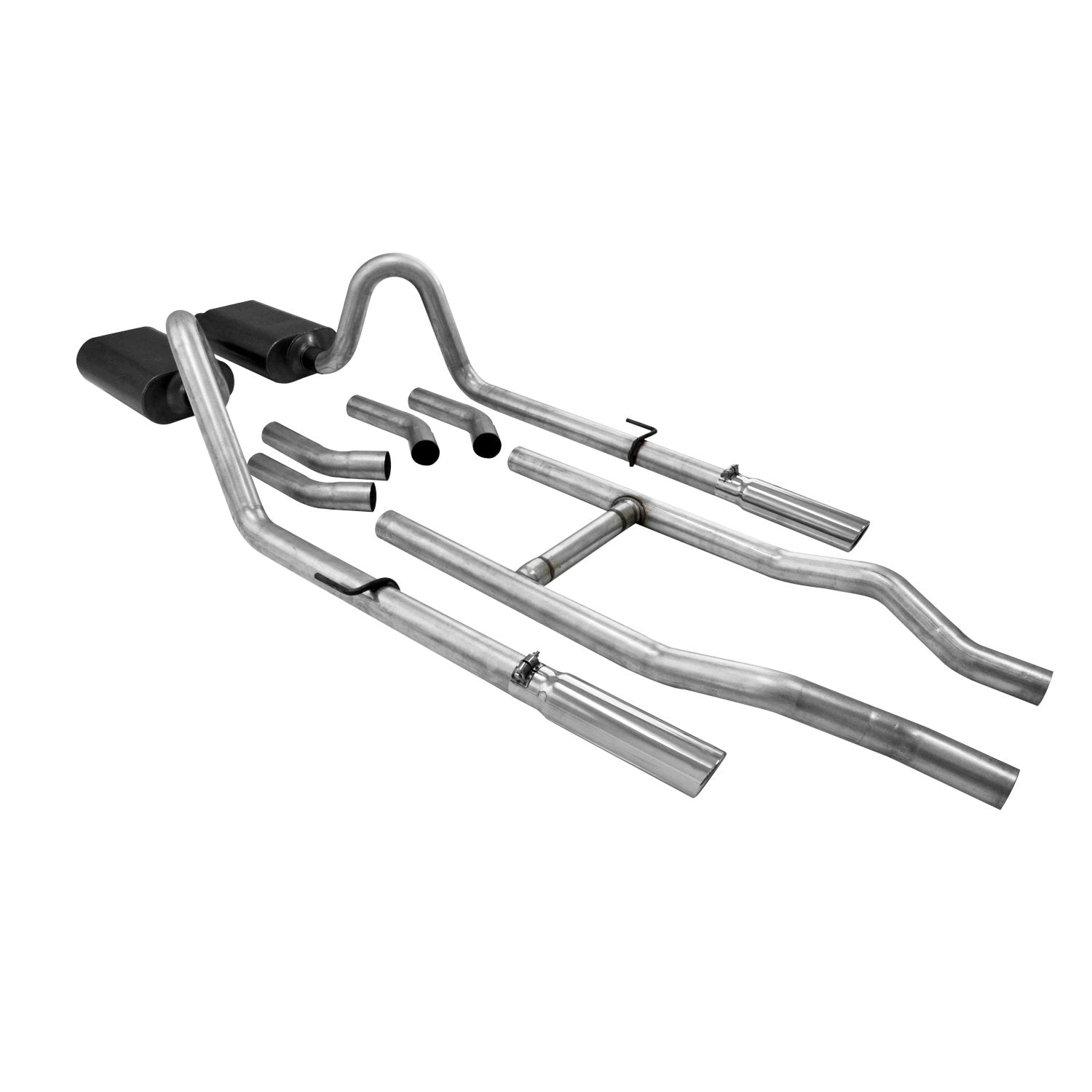

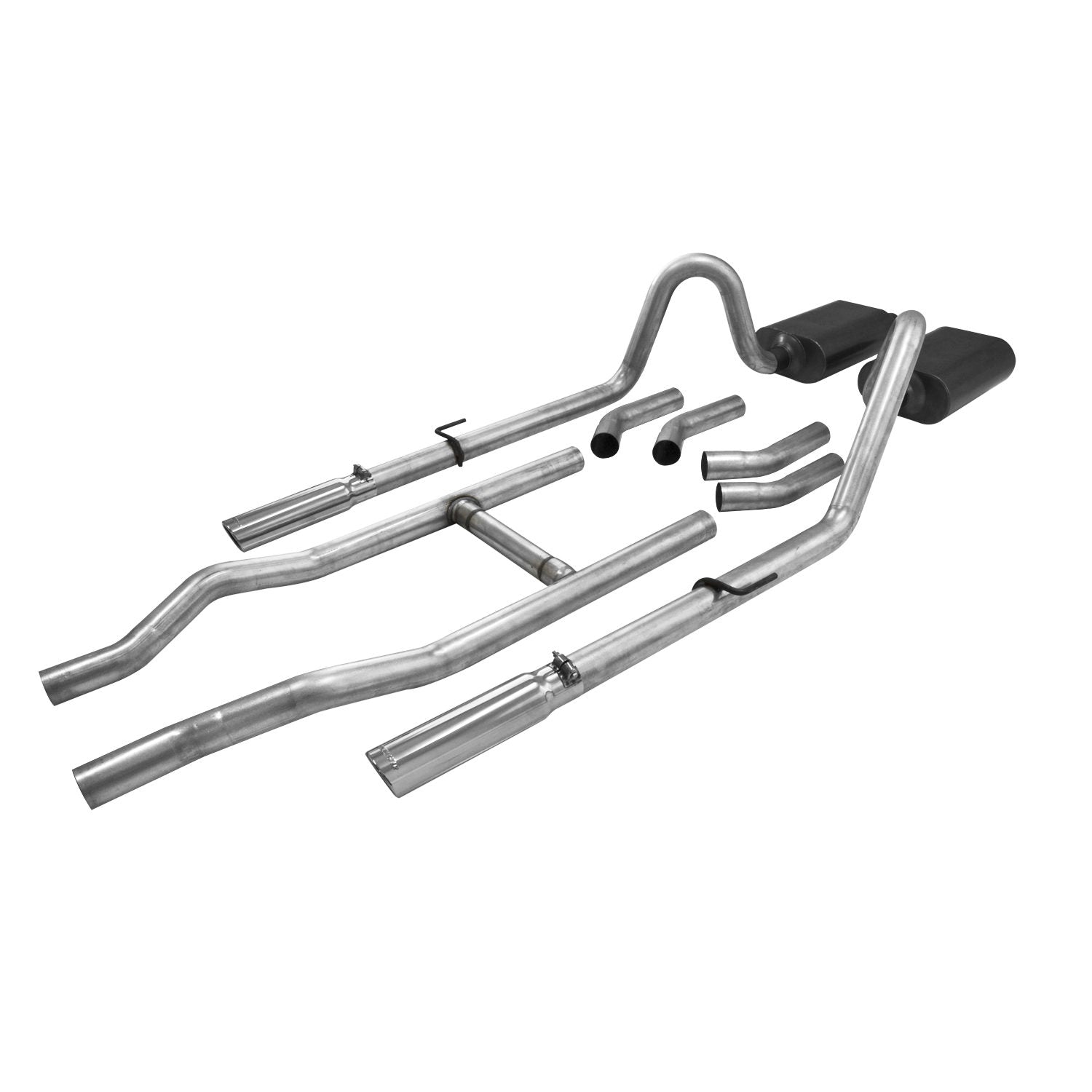

American Thunder Header Back Exhaust System; Dual; Dual Rear Exit; Incl. 2.5 in. Tubing From Trans X-Member Back/H-Pipe/Super 40 Series™ Mufflers/3.0 in. Stainless Tips;

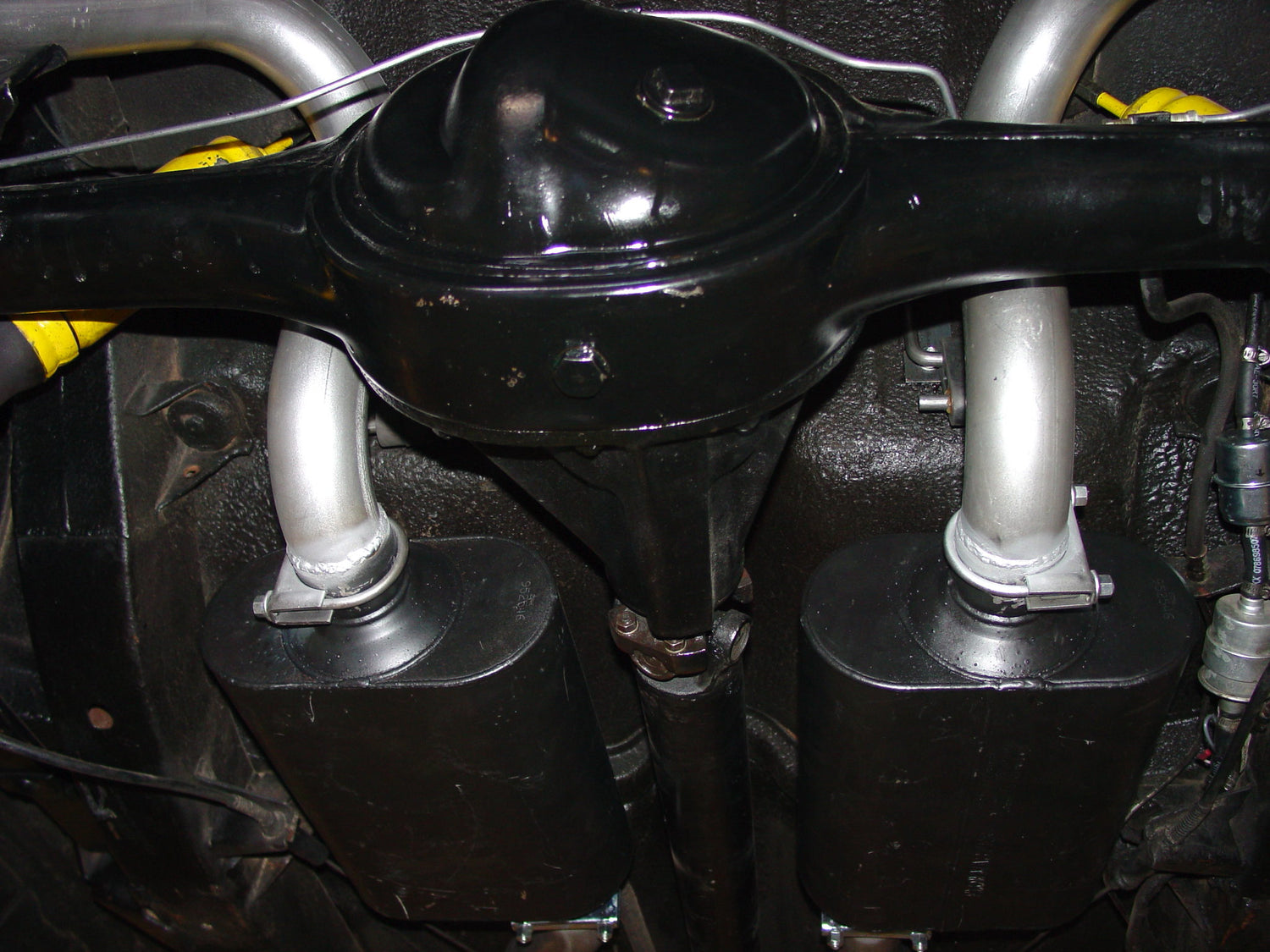

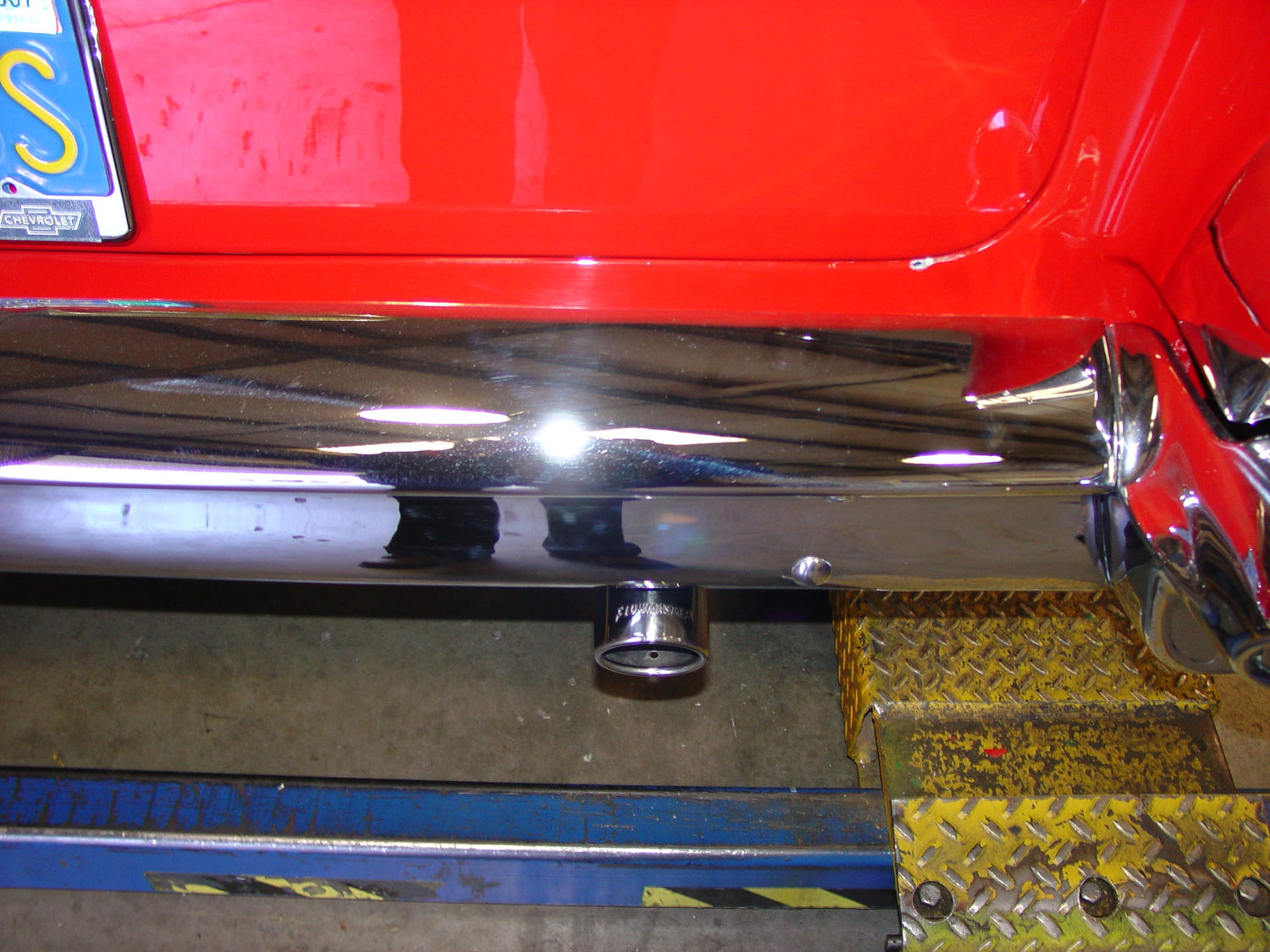

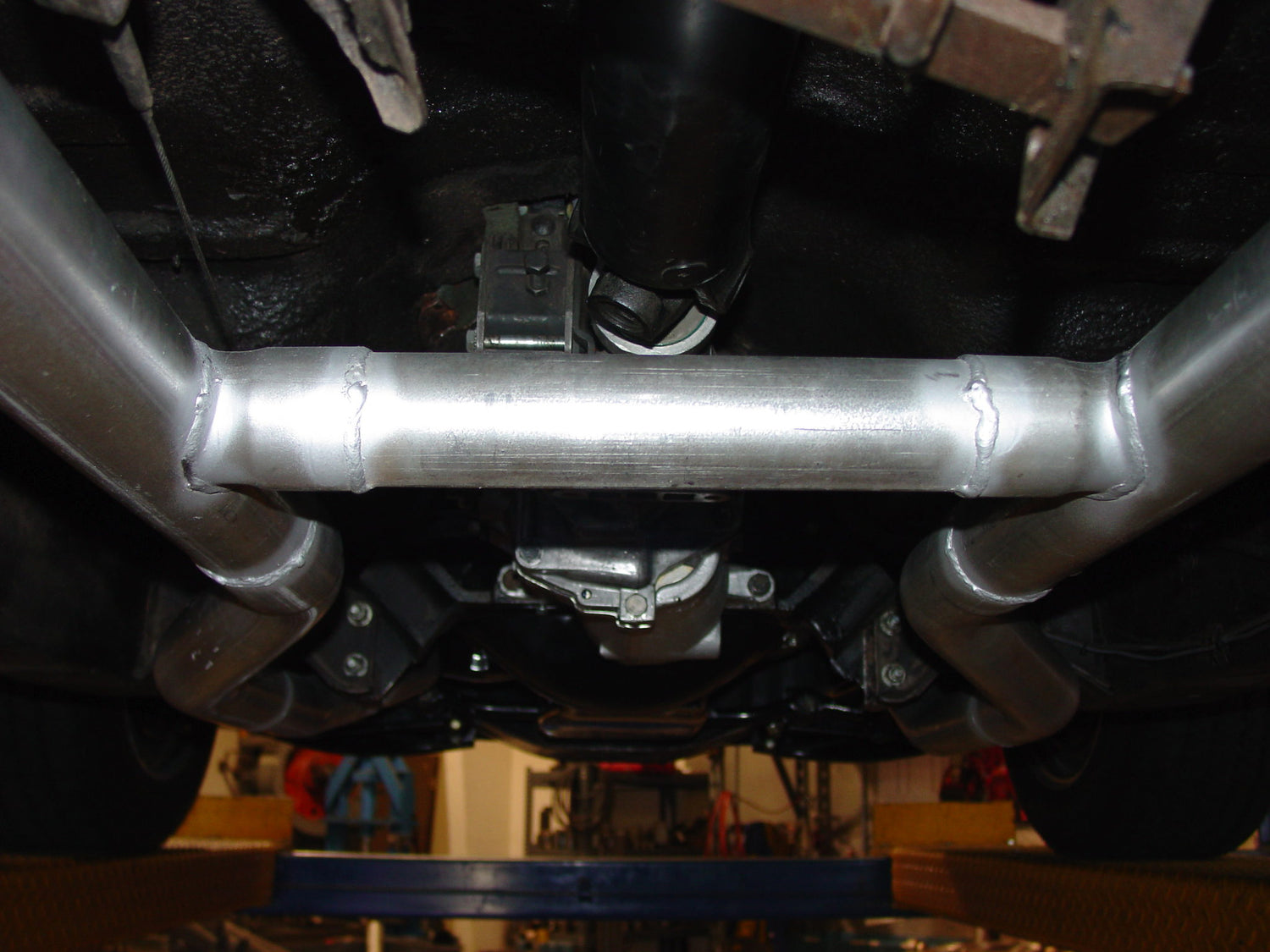

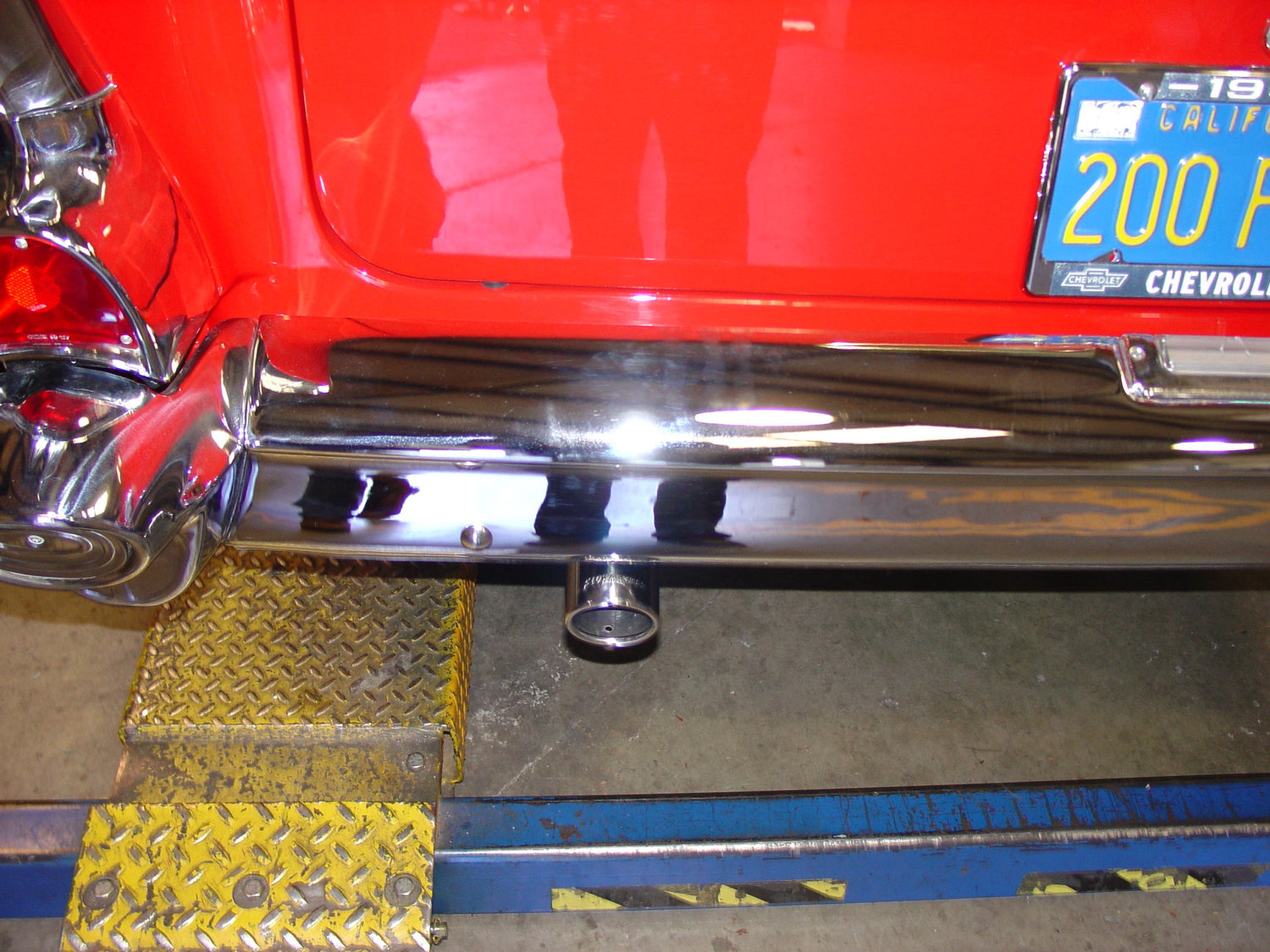

For the person who is looking for a complete crossmember-back dual exhaust system for your 1955-1957 Chevy coupes and sedans. This American Thunder(R) system is manufactured from 2.50-inch mandrel-bent stainless steel for maximum performance and longevity, and includes a built-in H-pipe for a mellow smooth tone eliminating back rap on deceleration. The system includes a pair of Super 40(R) Series performance mufflers for a deep exterior sound, with a moderate interior tone and dual tailpipes tucked up high for clearance and exit straight out the back under the rear bumper. Like all Flowmaster(R) systems, the benefits include improved throttle response, power and mileage. Designed for an easy fit, these systems include all necessary parts and hardware for easy installation. Covered by our Lifetime Limited Warranty. Notes: Does Not fit wagons or convertibles.

  • Mandrel Bent 16 Gauge 409 Stainless Tubing
  • Limited Lifetime Warranty
  • Moderate to Aggressive Exterior Exhaust Tone

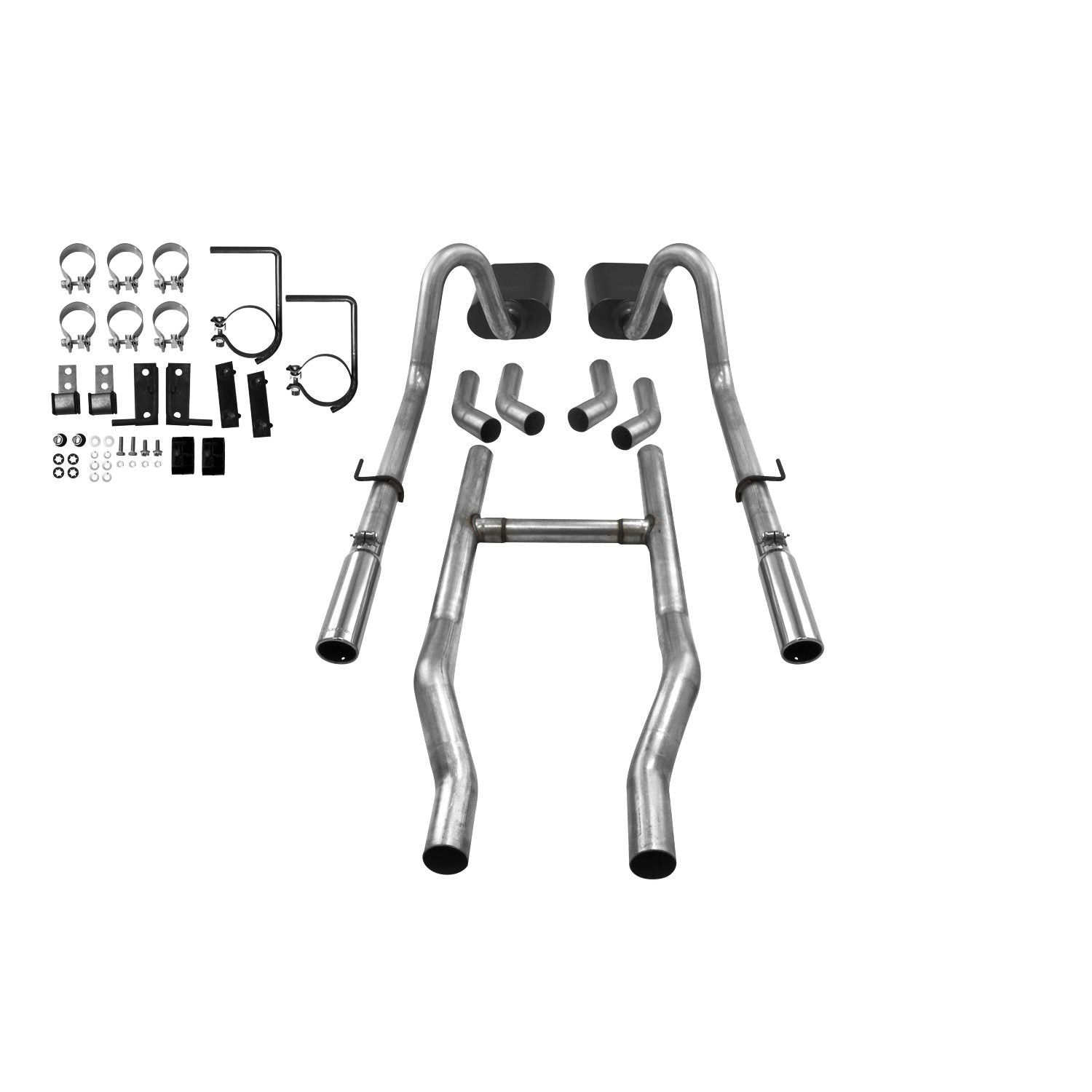

  • Incl. Hangers and Hardware For Easy Installation
  • Header Back System
  • Dual Out Rear Exit
  • Dyno Tuned for Maximum Performance
  • Premium Flowmaster Quality
Brand: Flowmaster
CARB (California) Compliant: Yes
Catalytic Converter Included: No
Catalytic Converter Quantity: 0
Category: Exhaust
Clamping Type: Flat Band
Clamps Included: Yes
Drive: 2WD
Emission Code: 5
Exhaust Series: American Thunder
Exhaust Tip Color: Silver
Exhaust Tip Connection: Clamp-On
Exhaust Tip Cut: Angled
Exhaust Tip Diameter: 3.00
Exhaust Tip Edge: Rolled Edge Angle Cut
Exhaust Tip Finish: Polished
Exhaust Tip Intercooled: No
Exhaust Tip Length: 12.00
Exhaust Tip Material: 304 Stainless Steel
Exhaust Tip Quantity: 2
Exhaust Tip Resonated: No
Exhaust Tip Shape: Round
Exhaust Tip Wall: Single Wall
Exit Style: Dual Out Rear
Finish: Natural
Gasket Or Seal Included: No
Grade Type: Performance
Hangers Included: Yes
Heat Shield Included: No
Inlet Diameter: 2.50
Inlet Type: Weld-On
Main Piping Diameter: 2.50
Mounting Bracket Included: Yes
Muffler (Left) Body Height: 5.00
Muffler (Left) Body Length: 13.50
Muffler (Left) Body Width: 10.00
Muffler (Left) Type: Chambered
Muffler (Right) Body Height: 5.00
Muffler (Right) Body Length: 13.50
Muffler (Right) Body Width: 10.00
Muffler (Right) Type: Chambered
Muffler Body Height: 5.00
Muffler Body Length: 13.50
Muffler Body Material: 409 Stainless Steel
Muffler Body Shape: Oval
Muffler Body Width: 10.00
Muffler Finish: Black High-Temperature Paint Finish
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Muffler Included: Yes
Muffler Inlet Connection: Slip-Fit
Muffler Inlet Inside Diameter: 2.50
Muffler Inlet Outside Diameter: 2.63
Muffler Outlet Connection: Slip-Fit
Muffler Outlet Quantity: 1
Muffler Part Number: Kit Only
Muffler Quantity: 2
Muffler Series: Super 40 Series
Muffler Type: Chambered
part type: Exhaust System
Pipe Color: Silver
Pipe Material: 409 Stainless Steel
Product Type: Exhaust System
Sound Level: Aggressive / Moderate
Spring Bolt Kit Included: No
Sub Category: Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter: 2.50
Tail Pipe Quantity: 2
Tail Pipe Quantity: Dual
Tail Pipe Tapered Outlet: No
Type: Crossmember-back
Valve Included: No
Valve Type: Not Applicable
Warning: California Proposition 65
