Flaming River FR1515MPR16 - Rack and Pinion
AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.
Couldn't load pickup availability
Description
Description

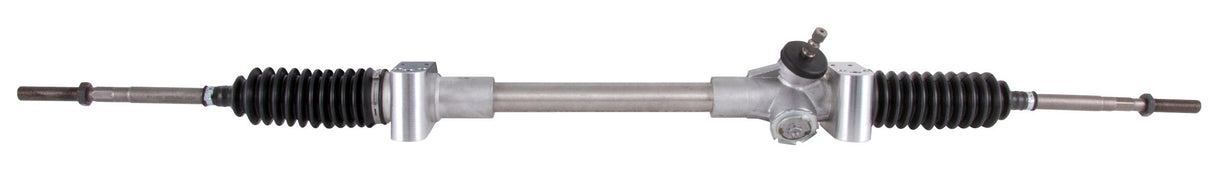

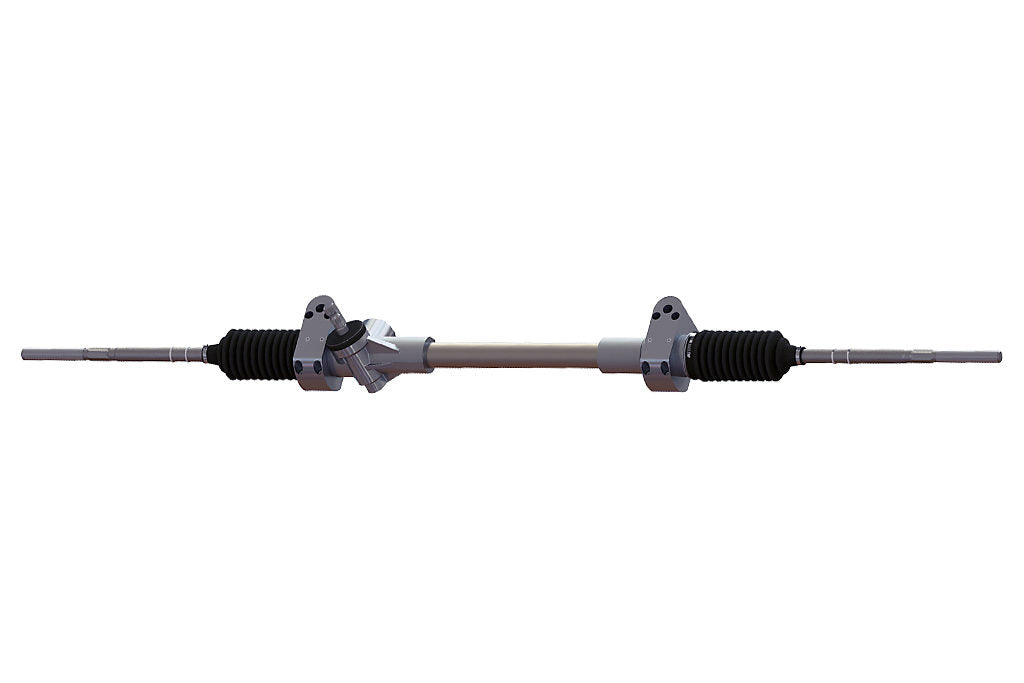

Flaming River FR1515MPR16 - Rack and Pinion
2015-2021 CHALLENGER MANUAL RACK AND PINION
This all-new manual rack and pinion design is a direct-fit unit for the 2015-2021 Challenger, also fits 2015 & 2021 Challenger Drag Pak models This rack is significantly lighter than the factory power steering system by eliminating hoses, pulleys and pumps and offers improved handling characteristics. A shorter pinion shaft allows for more clearance when working with large tube headers and engine swaps in custom applications. Made in USA. Product Specs: Bolts into same mounting location as OEM Power Rack Overall length: 51.25" Pivot points: 26.01” Mounts center-to-center: 18.21” (.500" diameter mounting holes) 9/16"-26 spline pinion shaft Inner tie rod end thread: M16 X 1.5 Inner tie rod end length: 14.00” Requires FR1709DD for installation (some installs may require a longer steering shaft)
- OE mounting location
- Overall length: 51.25"
- Pivot points: 26.01”
- Mounts center-to-center: 18.21” (.500" diameter mounting holes)
- 9/16"-26 spline pinion shaft
- Inner tie rod end thread: M16 X 1.5
- Inner tie rod end length: 14.00”
