FAST 730-0050 - Coil PS50 Performance Canister - Black

FAST  |  SKU: FAST-730-0050
$7499 $8249
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

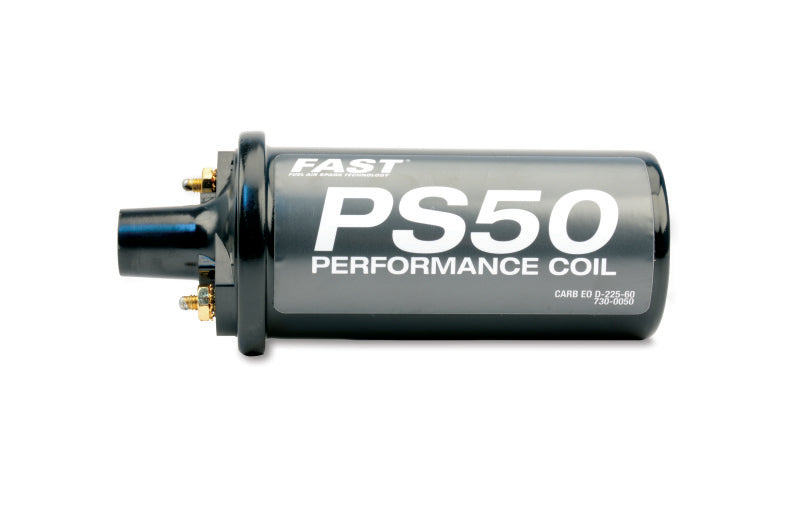

FAST 730-0050 - Coil PS50 Performance Canister - Black

Ignition Coil - PS50 - Canister - Oil Filled - 0.400 ohm - Female Socket - Black - Each

Black Color

The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST 6I Ignition, XR700 or 3000 Breakerless Conversion Ssystem or the E6 CD Ignition Controls. These coils feature lower resistance windings to ensure the most voltage possible is brought into the coil with an optimized turns ratio for the best output. This combination is ideal for engines that endure higher RPM and performance such as circle track, road racing and off-road racing. The coils are filled with oil for optimum cooling are housed in a sturdy steel canister that can handle the abuse of racing. They?re topped off with an alkyd molded top and brass, screw-type terminals.

Primary Inductance: 5.3 mH
Peak Current: 160 mA
Oil Filled: Yes
Mounting Bracket Included: No
Coil Color: Black
Mount Type: Bracket
Meets or Exceeds OEM Specs: Yes
Maximum Voltage: 47,000 V
Leakage Inductance: .5 mH
Height: 5.75
Diameter: 2.125
Coil Wire Terminal Quantity: 1
Coil Wire Included: No
Coil Wire Attachment: Female/Socket
Coil Style: Canister
Coil Shape: Round
Coil Internal Construction: Oil-Filled
Ballast Resistor Included: No
C.A.R.B. Exempt?: Yes
C.A.R.B. EO Number: D-225-60
Mounting Position: Upright
Weight: 1.75 lbs
Turns Ratio: 54:1
Terminal Quantity: 2
Spark Duration: 385 uS
Secondary Resistance: 3.8K ohms
Secondary Inductance: 15 H
Quantity: Sold Individually
Primary Resistance: .40 ohms
