FAST 308250 - Coil E92 E-Core
FAST | SKU:
FAST-308250
Sale price
$11899
Regular price
$13089
Unit price
/
Unavailable
$11.90 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

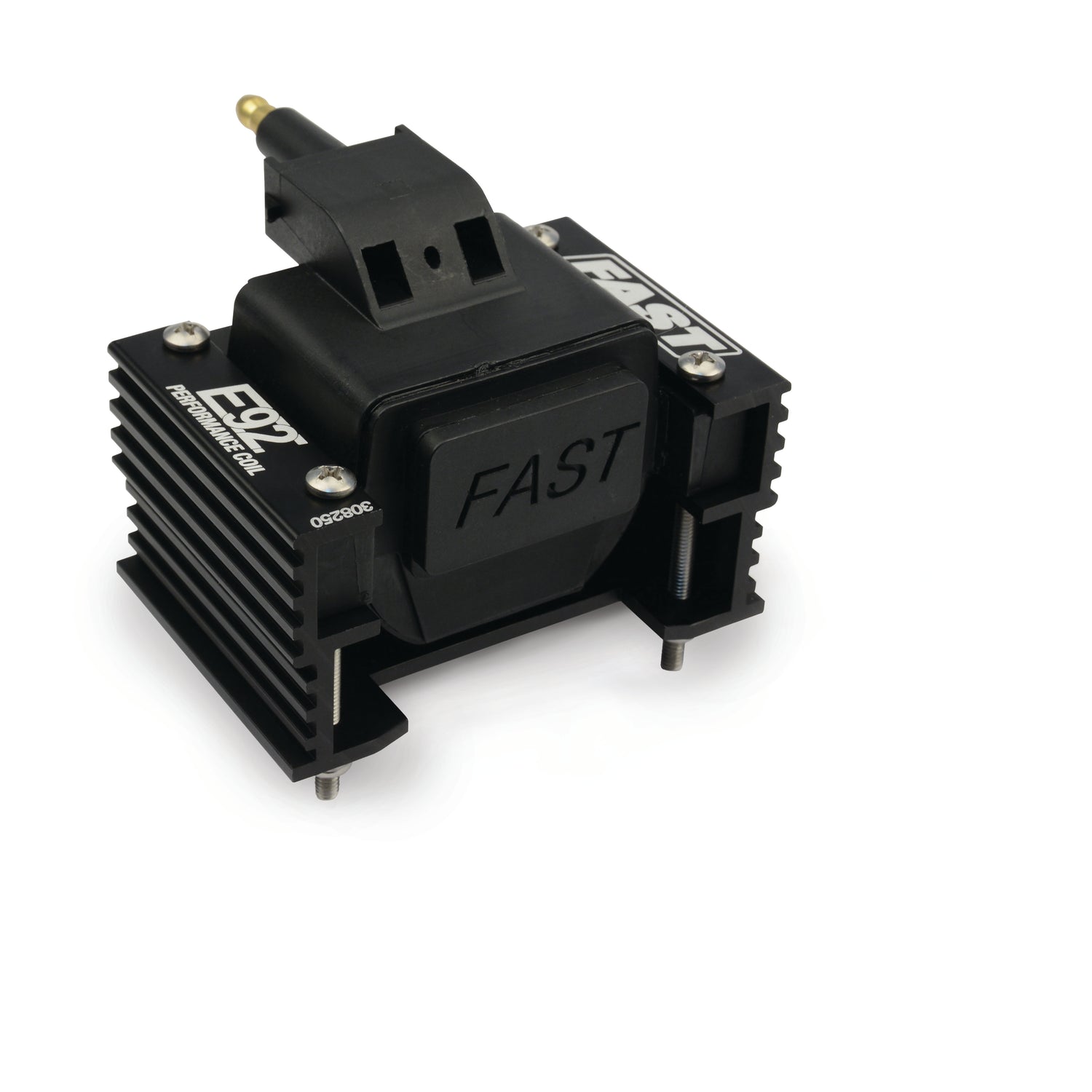

FAST 308250 - Coil E92 E-Core
Ignition Coil - E92 - E-Core - 0.230 ohm - Male HEI - Black / Red - Each
The E92 features the more efficient E-Core Construction
The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.
Ballast Resistor Included: No
Mounting Position: Any
Weight: 1.25 lbs
Turns Ratio: 60:1
Terminal Quantity: 2
Spark Duration: 245 uS
Secondary Resistance: 920 ohms
Secondary Inductance: 5.5 H
Quantity: Sold Individually
Primary Resistance: .23 ohms
Primary Inductance: 1.7 mH
Peak Current: 510 mA
Oil Filled: No
Mounting Bracket Included: Yes
Mount Type: Integral
Meets or Exceeds OEM Specs: Yes
Maximum Voltage: 48,500 V
Length: 3.75
Leakage Inductance: .14 mH
Height: 3
Coil Wire Terminal Quantity: 1
Coil Wire Included: No
Coil Wire Attachment: Male/HEI
Coil Style: E-Core
Coil Shape: Square
Coil Internal Construction: Epoxy
Coil Color: Black
Width: 2.5
C.A.R.B. Exempt?: Yes
C.A.R.B. EO Number: D-255-60
