FAST 307224 - Ignition Controller Kit E7 CD Digital Dual Rev Limiter w/ E93 Coil

FAST  |  SKU: FAST-307224
$88495 $97344

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.

Description

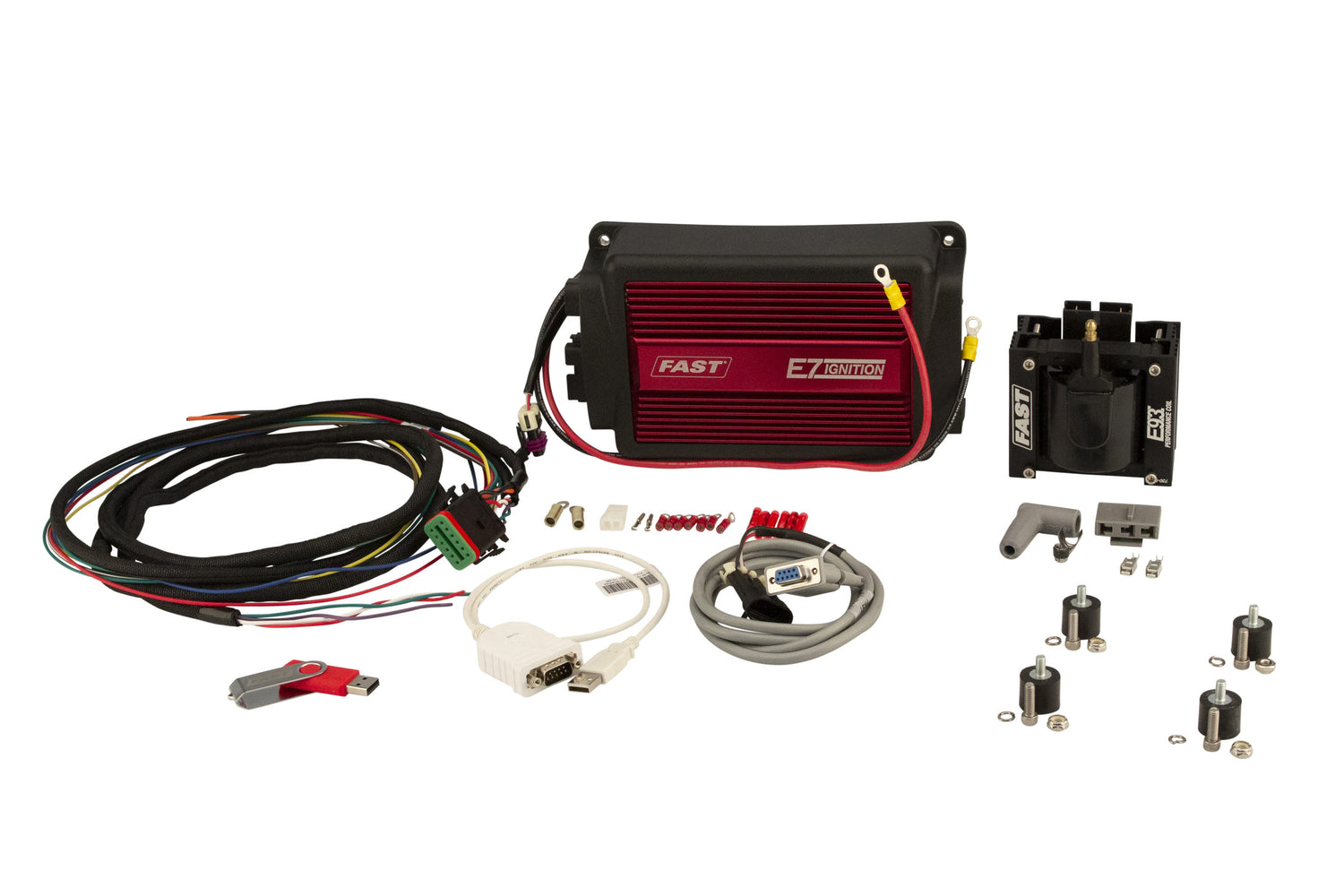

FAST 307224 - Ignition Controller Kit E7 CD Digital Dual Rev Limiter w/ E93 Coil

E7 CD Ignition + E93 Racing Coil Ignition Kit

Including both the E7 CD box and an E93 ignition coil, this kit is capable of handling high compression, boosted and nitrous engines, eliminating the guesswork in selecting the right CD box and coil for your race car.

  • High energy sparks to handle extreme compression, boost or nitrous
  • Built-in 20 degree start retard eases cranking and start up
  • Accurate and smooth sequential rev limiters for overrev and starting line RPM
  • Multi-strike spark series below 3,000 RPM for clean low RPM operation
  • Completely encased in soft urethane for protection against moisture and vibration
  • Advanced digital technology produces timing accuracy within ± .5 degrees.
  • The E93 coil was engineered to handle race engines: urethane encapsulation ensures protection against extreme vibration and abuse.
C.A.R.B. Exempt?: No
C.A.R.B. EO Number: N/A
Ignition Box Width: 6.3
Ignition Box Height: 2.2
Operating Voltage: 10-20
Current Draw: 1 Amp per 1,000 RPM
Operating Range: 12,000+
Limiter Range: 100-12,000
Limiter RPM Increment: 100
Limiter Accuracy: 30
Timing Accuracy: 0.5
Multi-Strike Duration (Crankshaft Rotation): 20
Primary Voltage Output: 450
Primary Energy Output: 160
Peak Spark Gap Current: 510
Software Included?: Yes
IPU Compatible?: Yes
Hall-Effect Compatible?: Only compatible with aftermarket crank trigger pickup
Limiter Type: Sequential
Ignition Box Length: 8.3
Coil Height: 3.25
Coil Width: 3.5
Rev Limiter Included: Yes
Coil Wire Included: No
Grade Type: Performance
Instruction Manual Included: Yes
Maximum RPM: 12000
Minimum Operating Voltage: 10
Mounting Hardware Included: Yes
Timing Retard Stages: 1
Coil Length: 4.25
Trigger Type: Points & Mag
Maximum Voltage: 50000
Primary Resistance: 0.2
Secondary Resistance: 0.82
Primary Inductance: 1.9
Leakage Inductance: 6.8
Turns Ratio: 0.14
Mounting Tray Included?: No
