FAST 307030 - Fuel Pressure Regulator 30-70

FAST 307030 - Fuel Pressure Regulator 30-70

Fuel Pressure Regulator - 30 to 70 psi - In-Line - 6 AN Female O-Ring Inlet - 6 AN Female O-Ring Outlet - 6 AN Female O-Ring Return - 1/8 in NPT Port - Black Anodized - Each

30-70 psi Adjustable Fuel Pressure Regulator, -6 SAE O-Ring Ports (1 Return, 2 Feeds)

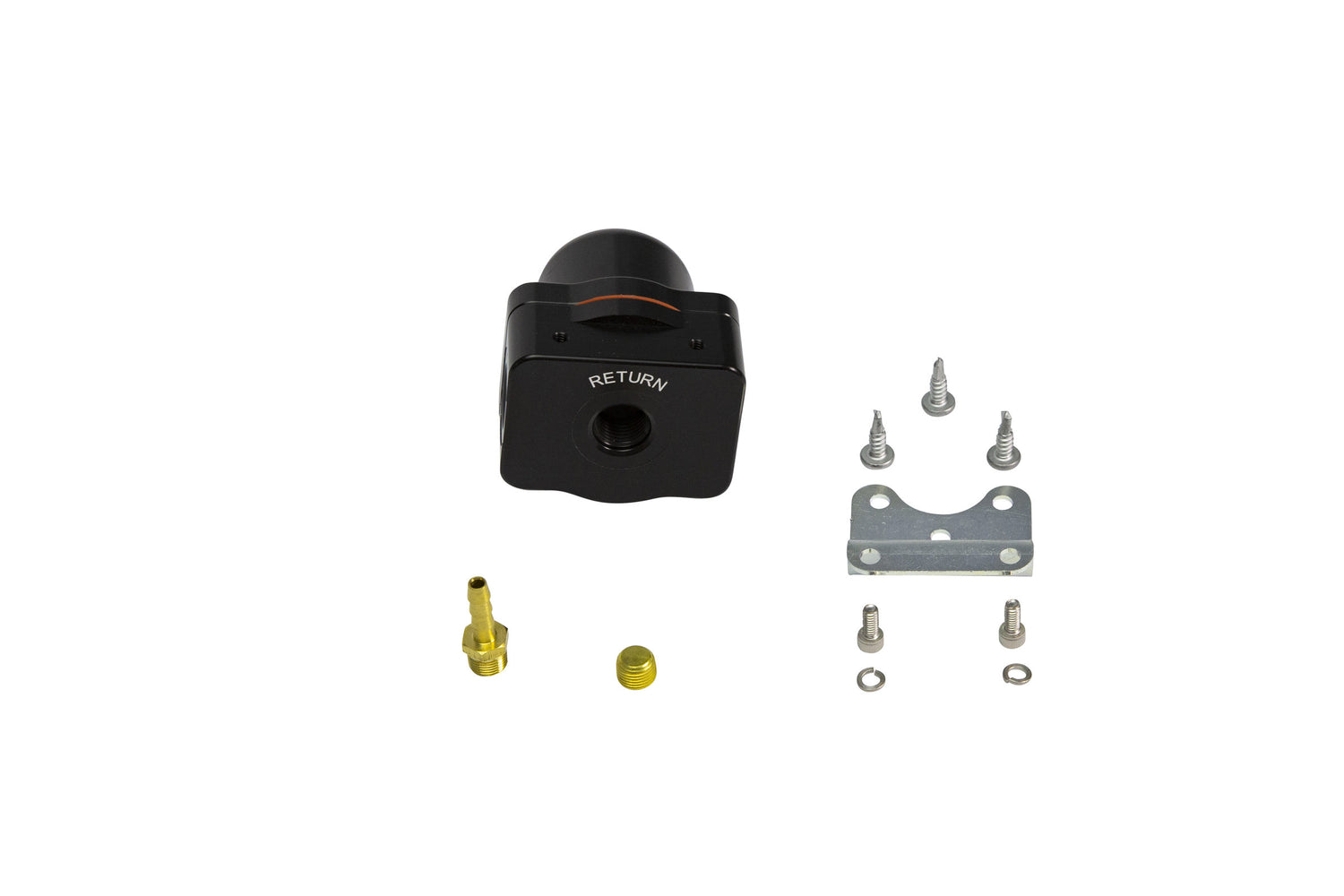

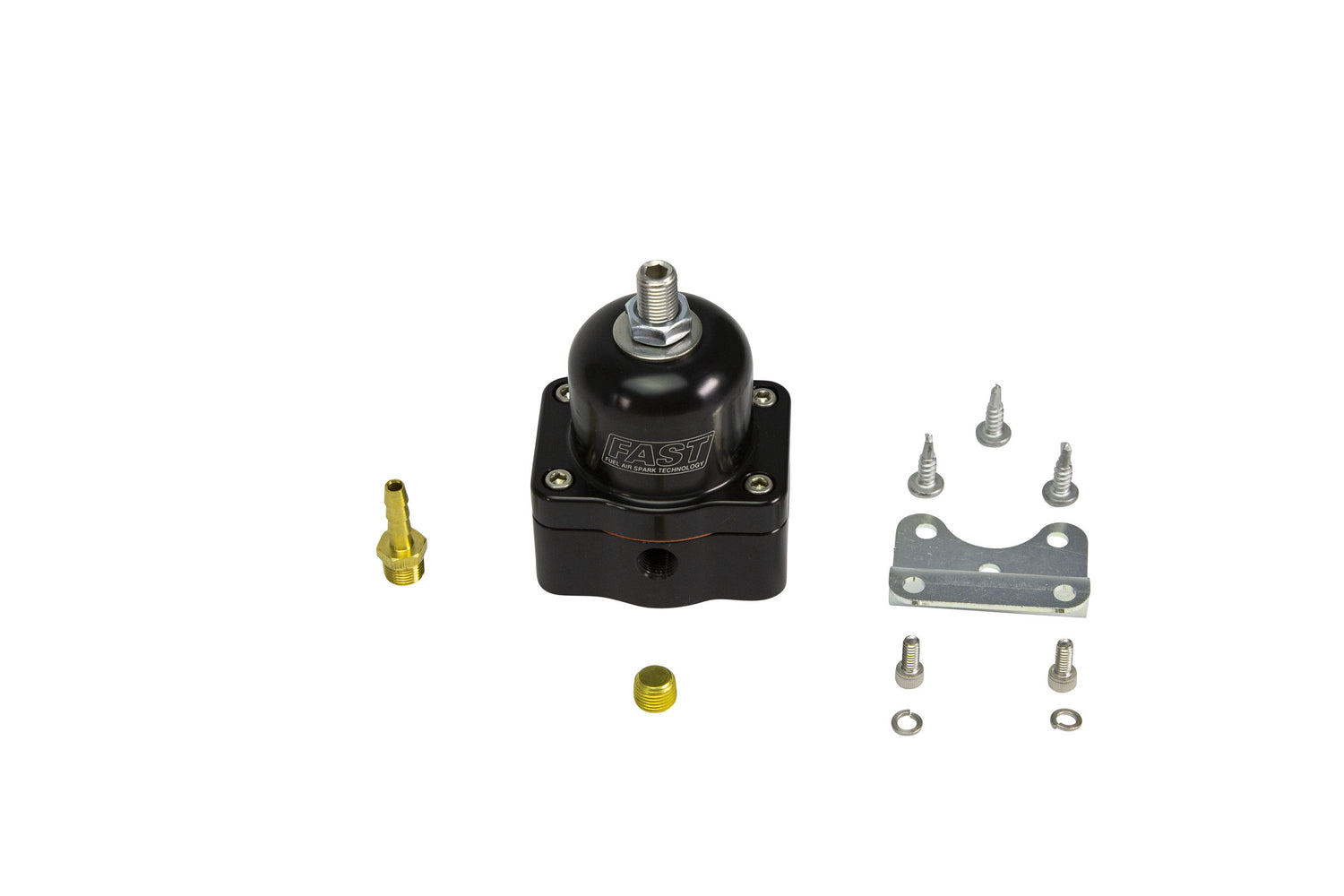

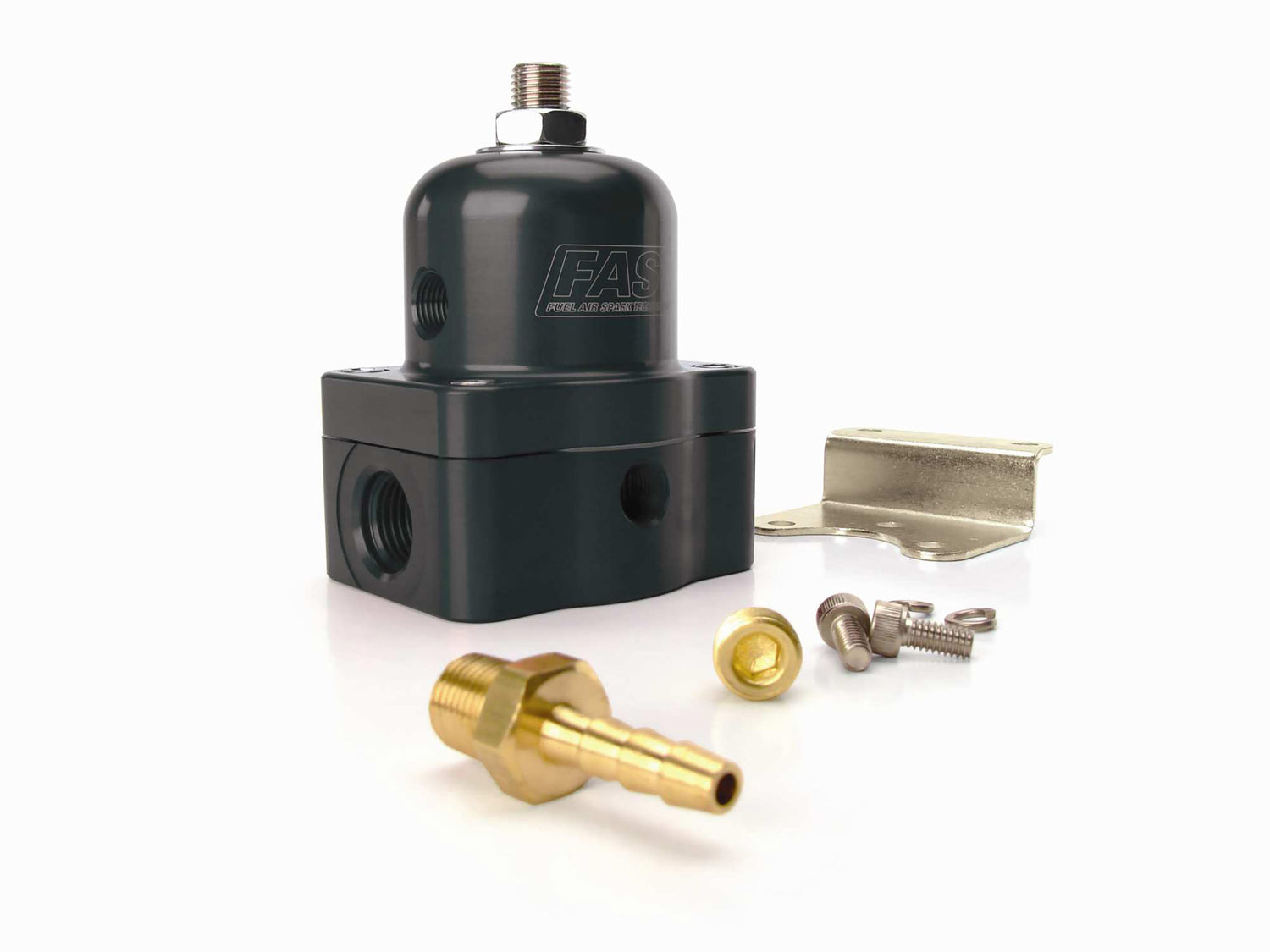

The FAST Adjustable Fuel Pressure Regulator is a premium CNC billet regulator designed to exact specifications by our engineers. The unit features twin -6 SAE feed side ports and one -6 SAE return port on the bottom. The fully adjustable unit is vacuum referenced and utilizes a hex adjustment stud with jam nut. The unit has a 1/8 NPT gauge port, as well. The regulator is a kit, including the unit, mounting bracket, 1/8 NPT plug and 1/8 NPT to 3/16" barb. The regulator can be used with a single feed (plug second feed) or with dual feeds. Requires the purchase of port fittings separately (all three ports are -6 SAE o-ring type).
