FAST 30393-1 - 08-16 Ford Modular 3V 4.6L/5.4L/6.8L XR Series Ignition Coil - Single

FAST  |  SKU: FAST-30393-1
$7299 $8029

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

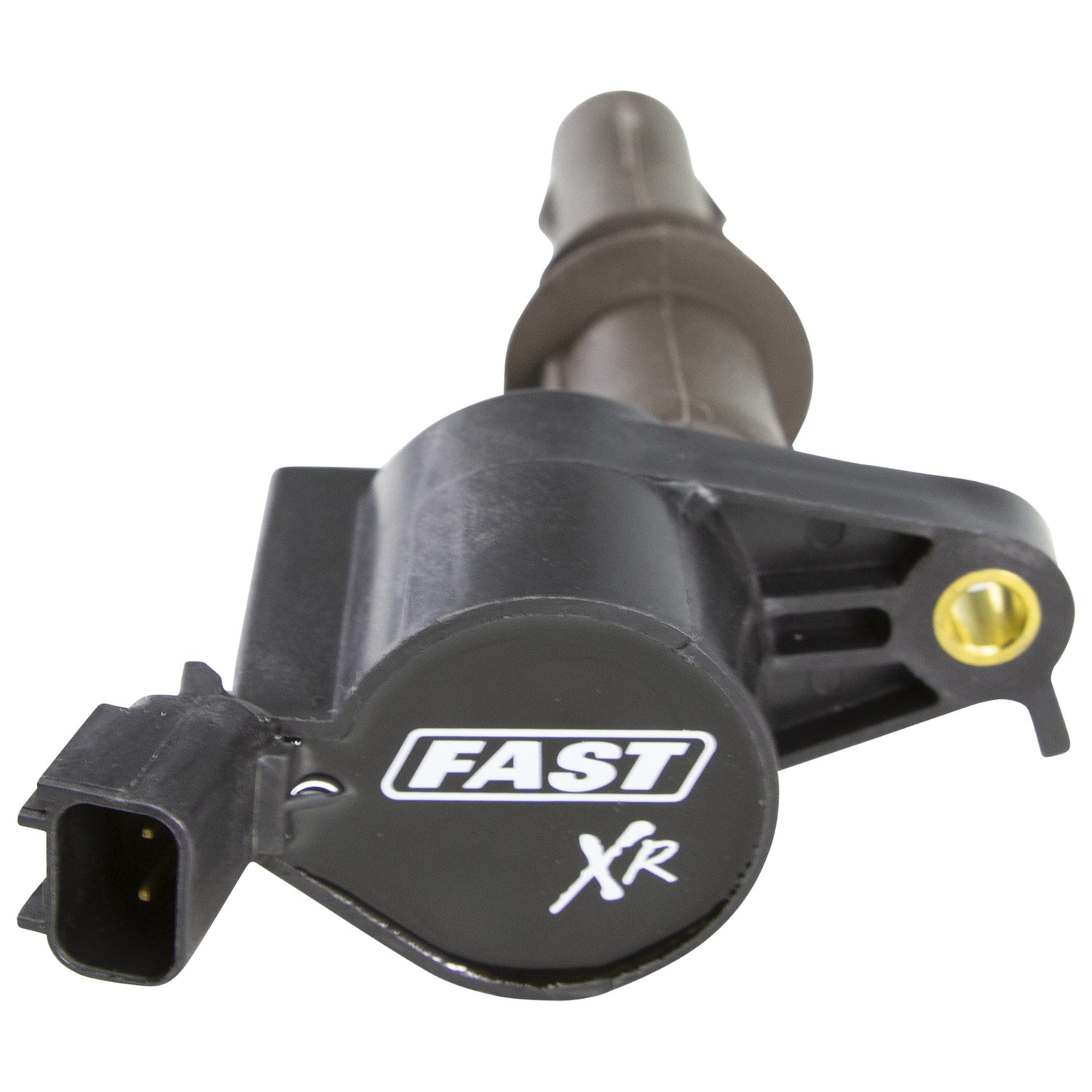

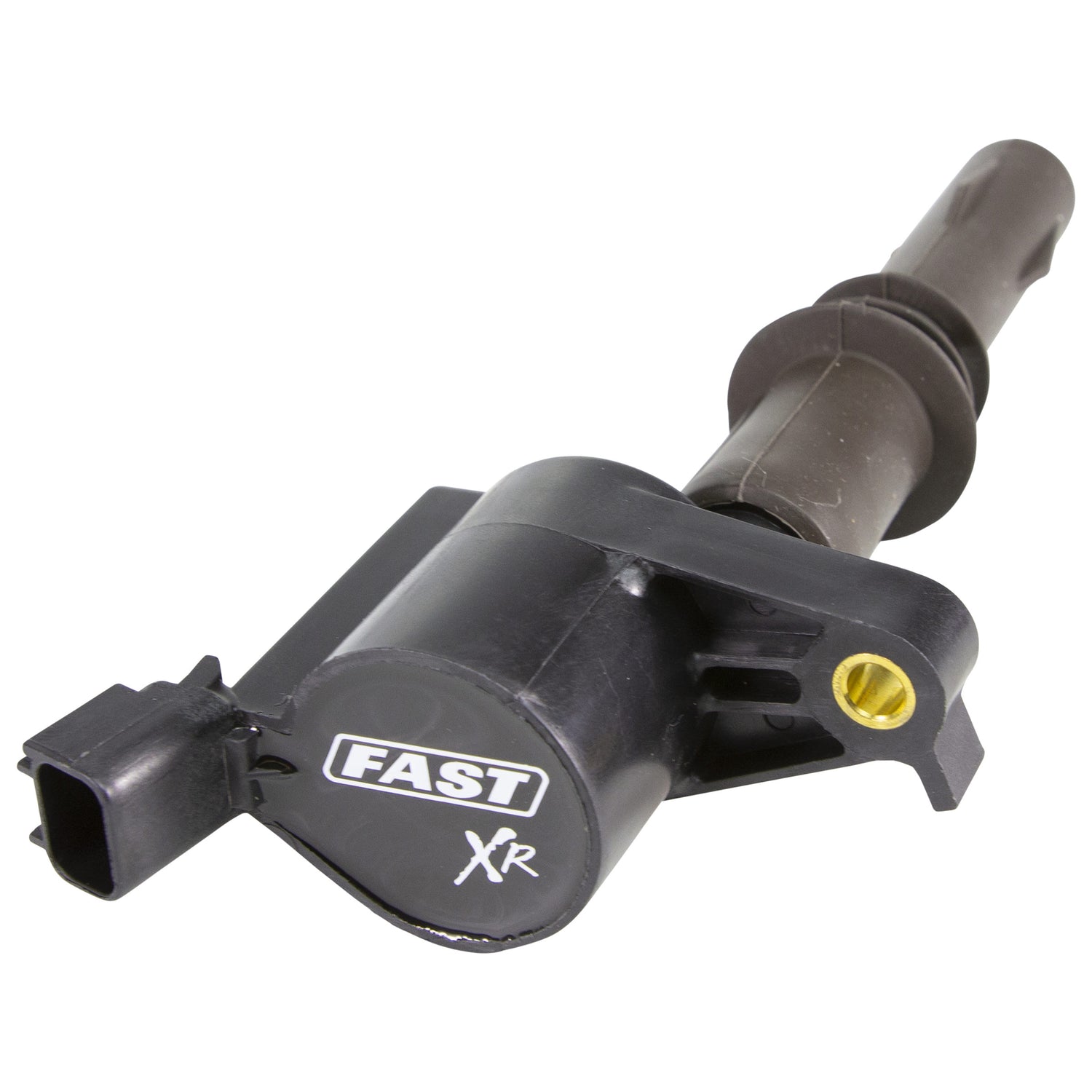

FAST 30393-1 - 08-16 Ford Modular 3V 4.6L/5.4L/6.8L XR Series Ignition Coil - Single

XR Ignition Coil for 2008-2016 Ford 4.6/5.4 3V Modular and 6.8L V10

The FAST XR Series Ignition Coils provide 15% more spark energy over OEM coils, resulting in increased performance and power. These coils are direct replacements in factory Ford 2008-2016 Modular 3V 4.6L/5.4L/6.8L engines and fit/connect like OEM coils for an easy install. Constructed from premium, ultra-pure copper alloy windings, resulting in firing performance approaching 40,000 peak volts, these are ideal for any street or racing application where reliable, powerful ignition output is needed. They do not affect emissions and are legal in all 50 states.

  • XR Series of Coils provide 15% more spark energyIncreased PerformanceIdeal for street & racing application where powerful ignition output is needed
Ballast Resistor Included: No
Maximum Voltage: 40000
Engine Fitment/ Year, Make and Model Range: 2009-2016 Ford 4.6L/5.4L/6.8L with 3-Valve heads
C.A.R.B. EO Number: N/A
C.A.R.B. Exempt?: No
Coil Color: Black
Coil Internal Construction: Potted
Coil Shape: OEM
Coil Style: OEM
Coil Wire Attachment: OEM
Coil Wire Included: No
Meets or Exceeds OEM Specs: Yes
Mounting Bracket Included: No
Mount Type: OEM
Mounting Position: OEM
Oil Filled: No
Primary Inductance: 0.5mH
Primary Resistance: 0.35
Quantity: 1
Secondary Resistance: 5.5K
Turns Ratio: 83:1
Includes Hardware?: No
