Fabtech K2355DL - 17-20 Ford F150 Raptor 0/3in Tubular Uniball UCA w/ 3.0 DL Shocks Bypass

Fabtech K2355DL - 17-20 Ford F150 Raptor 0/3in Tubular Uniball UCA w/ 3.0 DL Shocks Bypass

0" TUBULAR UCA W/ 3.0 C/O & 3.0 RR BYPASS 17-20 FORD RAPTOR 4WD

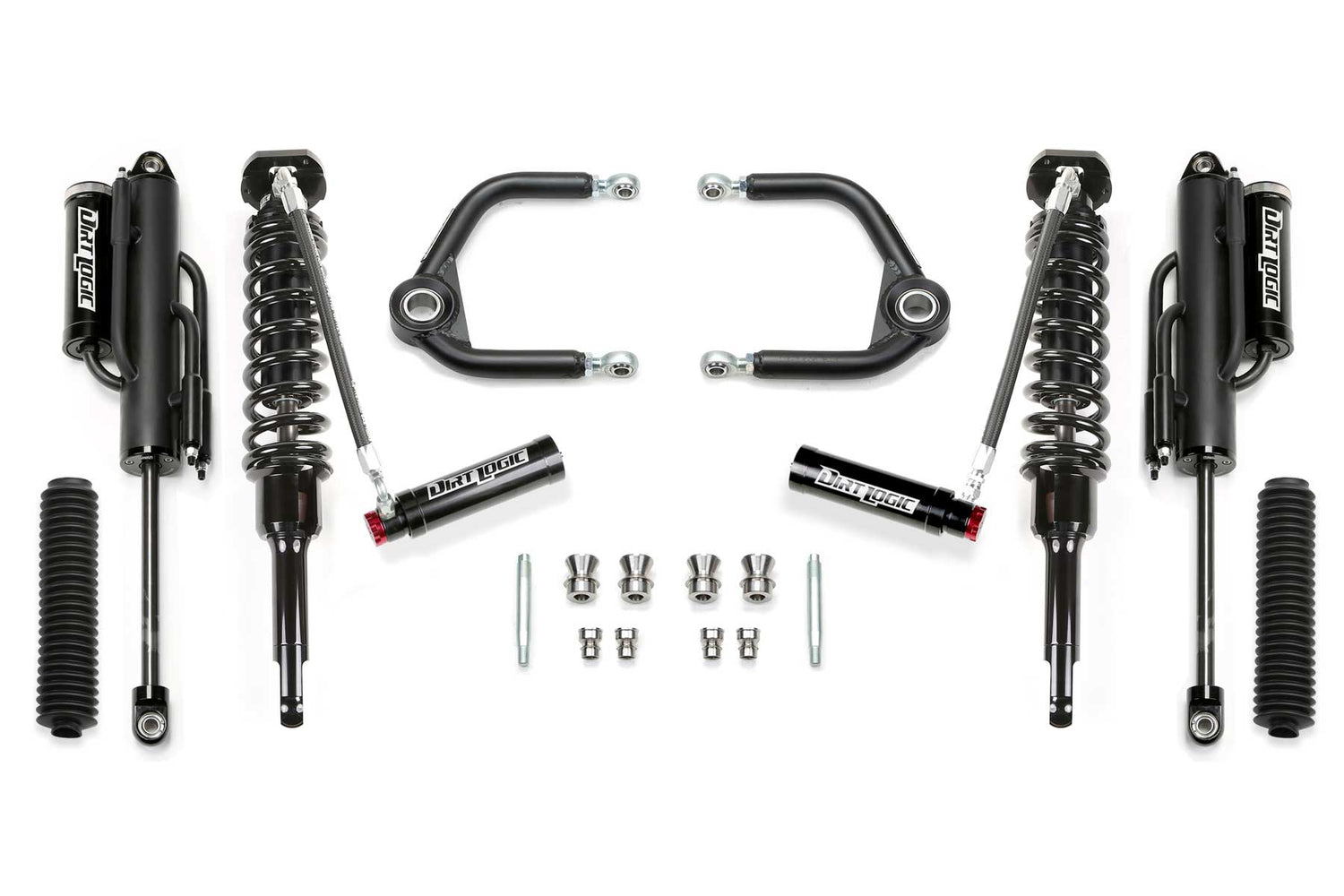

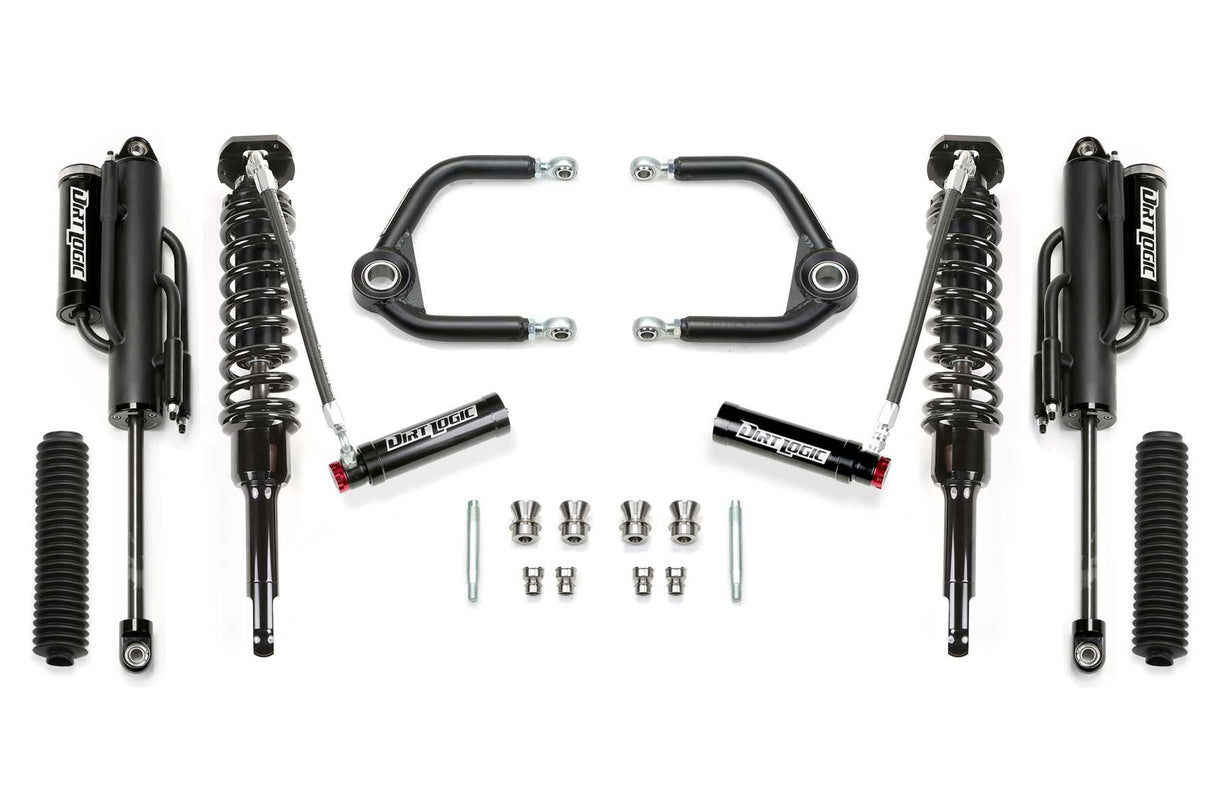

Uniball Control Arm Lift System; 0-2 in. Lift; Incl. Upper Control Arm; Front Dirt Logic 3.0 Resi Coilovers And Rear Dirt Logic 3.0 Bypass Shocks;

This system is ideal for the Raptor enthusiast that has outgrown the capabilities of the stock shocks and wants increased damping with suspension reliability for aggressive offroad use. Fabtech’s Uniball Upper Control Arms provide increased strength to the front suspension by replacing the stock ball joint upper arms that can become worn and eventually fail under aggressive offroad use. These heavy duty upper arms are designed for longevity in rugged offroad conditions. The top quality construction of these arms include .120in wall 1.50in OD 4130 Chromoly tubing and American made 1in FK Stainless PTFE lined Uniballs. The 17-4 Stainless Steel heat treated Uniball pins fit into the factory ball joint tapers without modification to the spindle for easy return to stock feature. The Dirt Logic 3.0 Coilovers are a perfect match to the billet arms. They will provide 11in of wheel travel with the ability to adjust the compression damping by the twist of a knob on the remote reservoir. The rear suspension receives Dirt Logic 3.0 Bypass shocks that will allow 12in of wheel travel with the stock leaf springs. The triple tube bypass adjusters provide infinite adjustability in both rebound and compression. It is the ultimate in shock control for the rear of your Raptor. This system is built to the standard of Fabtech's legendary race components for unsurpassed strength and longevity. It is the single biggest suspension upgrade you can make to your Raptor that you feel both on and offroad. These race quality Coilovers directly replace the stock Raptor Coilovers with improved offroad damping for aggressive driving in the most punishing conditions. They provide an additional 10% of wheel travel for a total of 11in. when used with uniball upper control arms. The Dirt Logic 3.0 shocks are constructed with a steel body and finished in a tactical black Cerakote coating for extreme durability. This coating provides 120 hour salt spray compared to zinc plated shocks o

• Upper Control Arm Kit
• Custom Engineered For High Quality Ride
• Regulates Wheel Motion In Relation To Body
