Fabtech K1194DL - 6" PERF SYS W/DL 2.5 RESI & 2.25 2022 GM K1500 P/U 4CYL

Fabtech K1194DL - 6" PERF SYS W/DL 2.5 RESI & 2.25 2022 GM K1500 P/U 4CYL

6" PERF SYS W/DL 2.5 RESI & 2.25 2022 GM K1500 P/U 4CYL

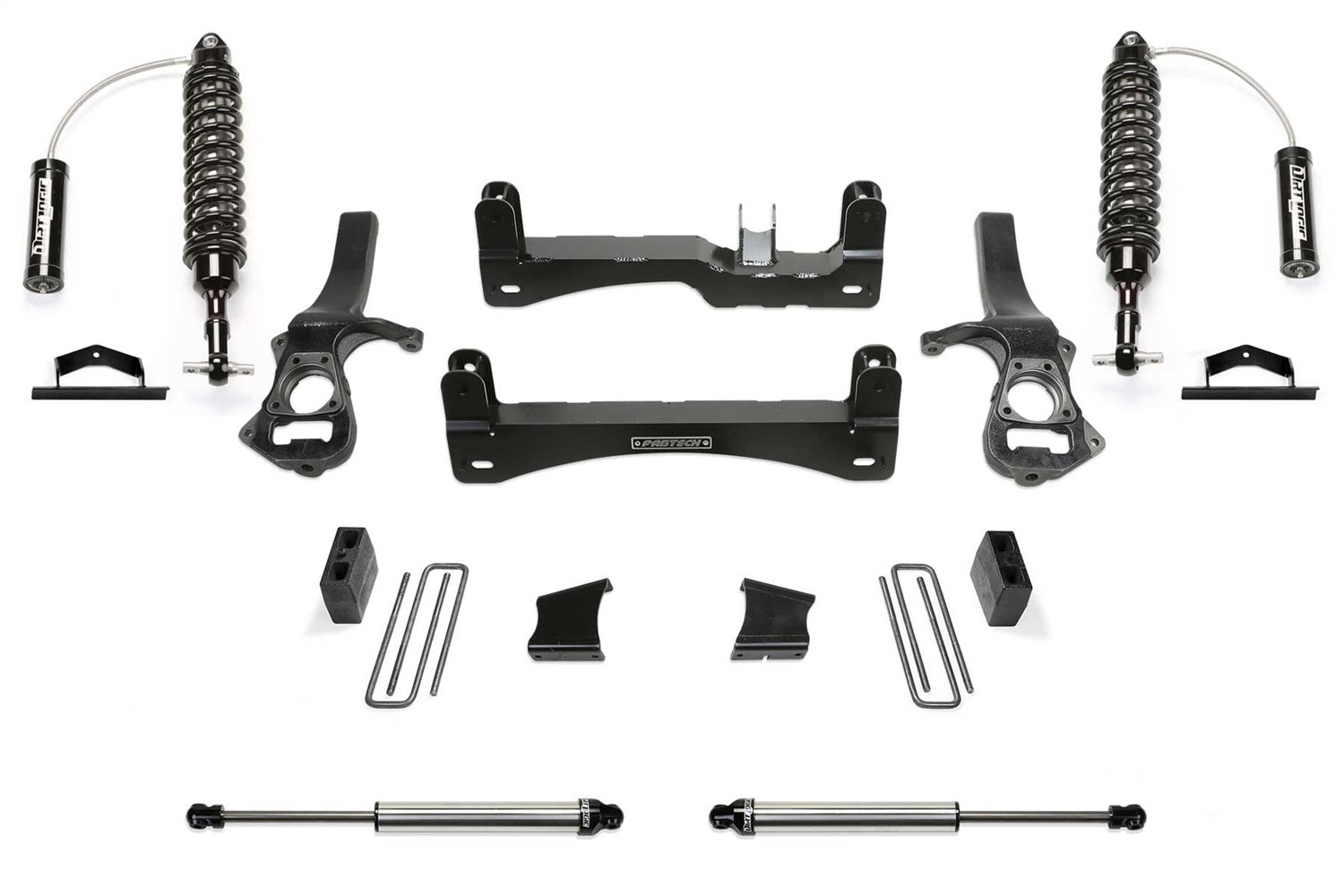

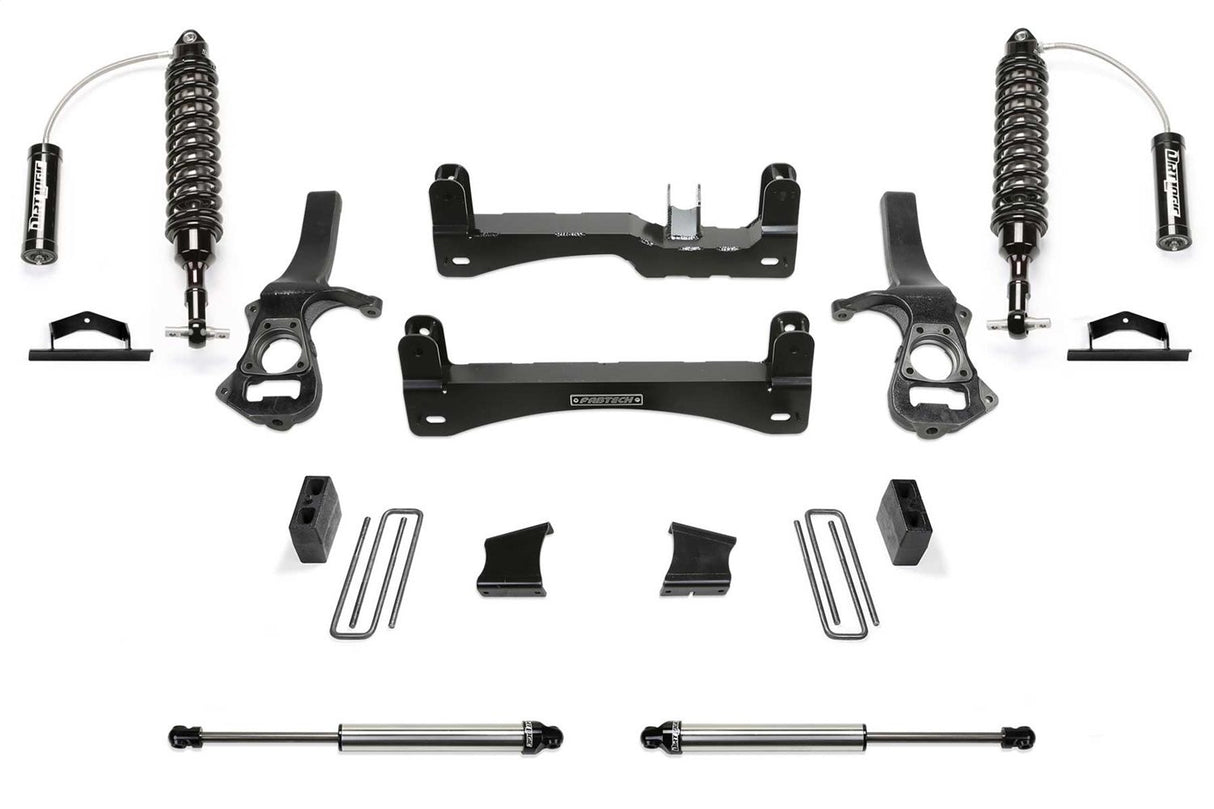

Performance Lift System w/Shocks; 6 in. Lift; Front Dirt Logic 2.5 Resi Coilovers And Rear Dirt Logic 2.25 Shocks; Incl. PN[FTS21250/FTS21251/FTS21301/FTS811462];

Fabtech?s world renowned IFS suspension design for the Chevy/GMC 1500 provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech?s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers provide 6" of lift with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished with a 5" Block and U-bolt system. Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.

• Everything You Will Need To Lift Your Vehicle
• No Driveshaft Change Required For Auto Trac
• Increased Caster For More Control
• Retains Factory Steering Centerlink
• Retains Factory Upper Control Arms
• Quick No Weld Installation
• Allows Use Of Stock Tires And Wheels
