Edelbrock 9909 - Reconditioned Carb 1409

Edelbrock  |  SKU: EDEL-9909
Regular price $000


AVAILABILITY: This Item Is No Longer Orderable. Contact Us For More Details.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

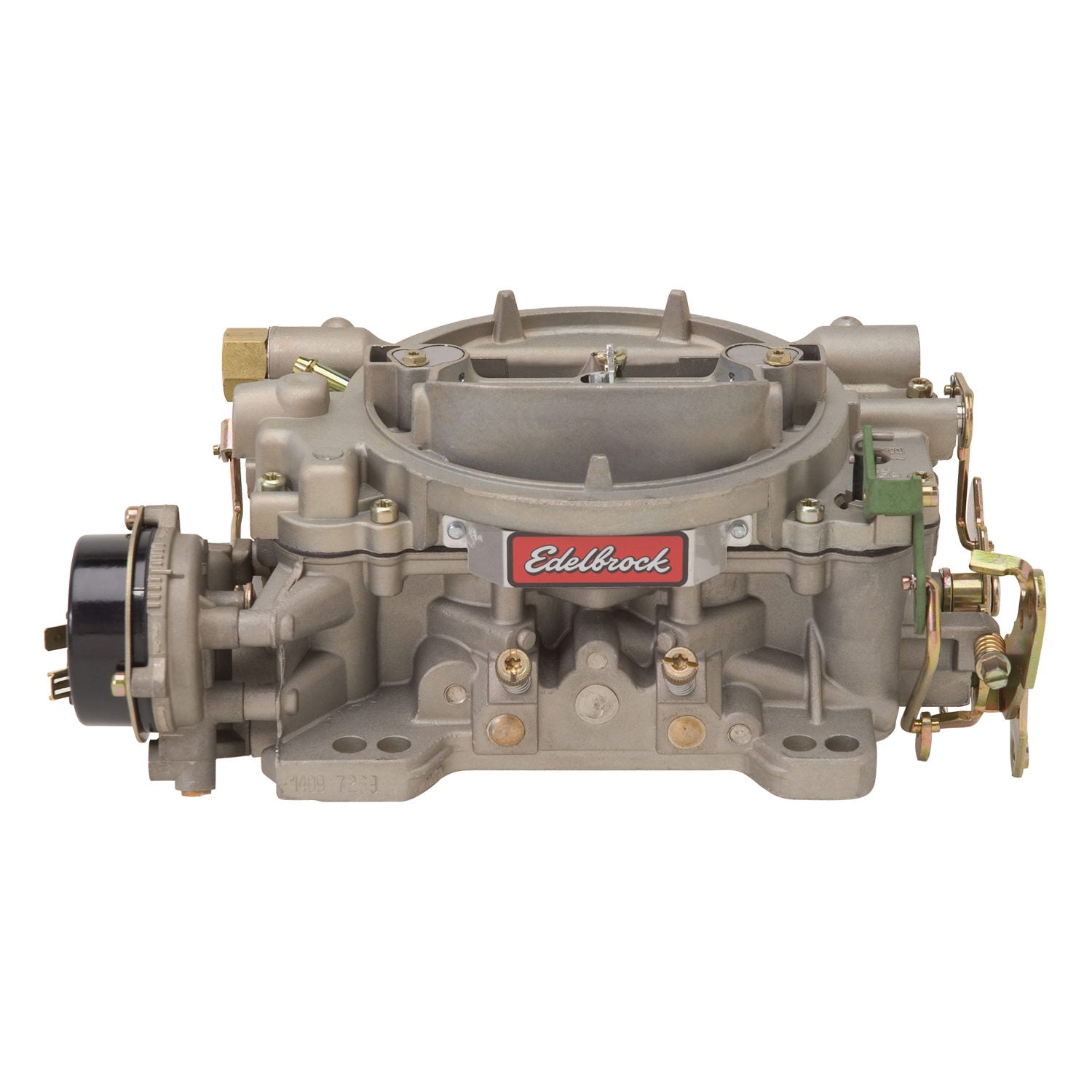

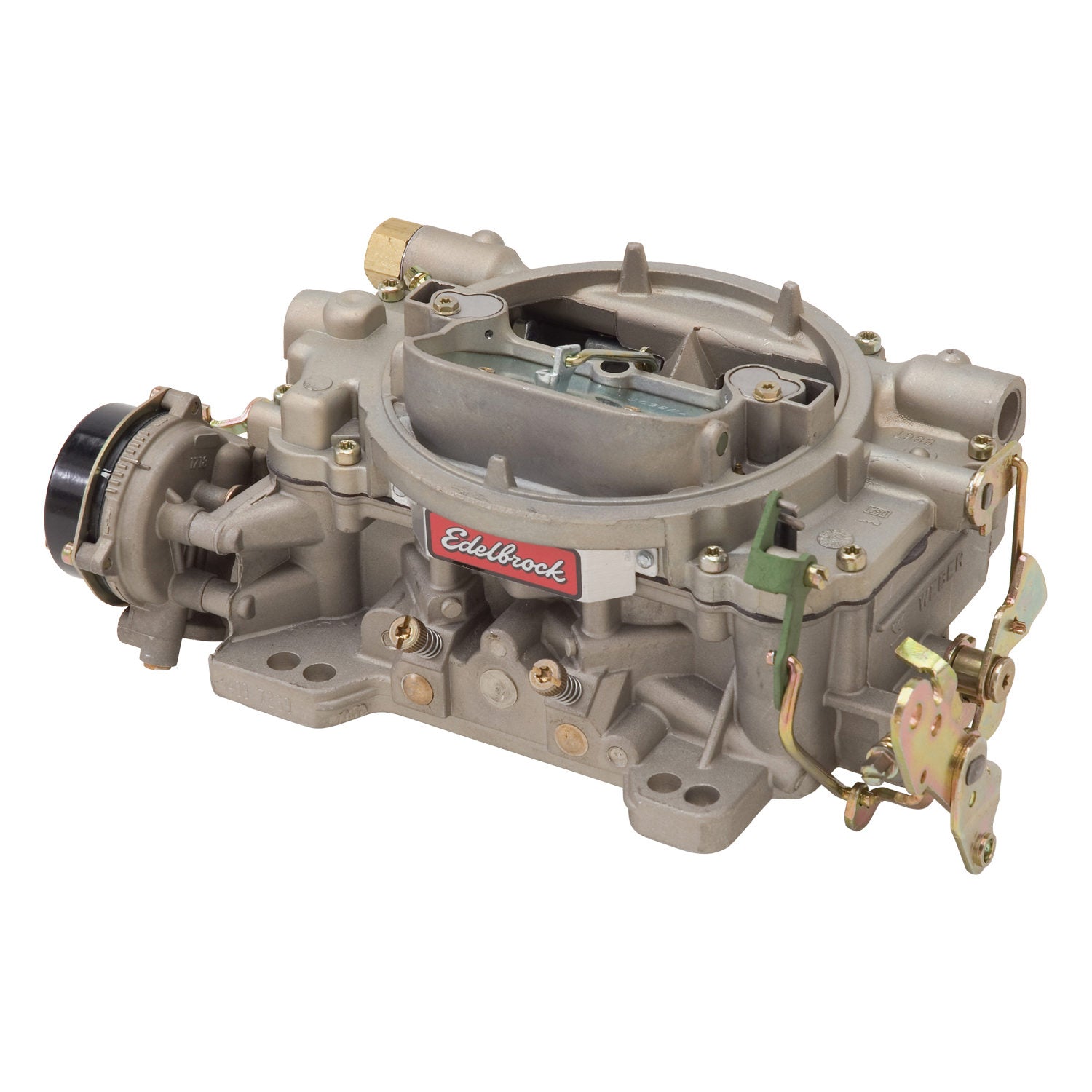

Edelbrock 9909 - Reconditioned Carb 1409

Reman Marine Carb #1409 600 CFM With Electric Choke, Zinc Finish (Non-EGR)

Edelbrock Remanufactured Marine Series 600 cfm, Square-Flange, Electric Choke Carburetor (non-EGR)

The Edelbrock 9909 Remanufactured Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 9909 Remanufactured Marine Series 600 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation.

  • Complies w/U.S. Coast Guard Safety Standards
  • GM/AMC-Style Throttle Linkage
Flange Shape: Square Bore
Air Cleaner Flange Diameter: 5.125
Mounting Hole Diameter: 0.355
Street Legal: No
Body Color: Zinc-Dichromate
Metering Rod Length: 3.15
Mounting Hardware Included: No
Marine Approved: Yes
Body Height: 3.25
Center Hung Floats: No
Spacer Included: No
Float Drop: 1.0
Metering Rod Power Tip Diameter: 0.047
Gasket Or Seal Included: Yes
Inlet Fitting Thread Diameter: 0.625
Barrel Quantity: 4
Choke Type: Electric
Float Material: Brass
Float Level: 0.437
Linkage Attached: No
Primary Jet Diameter: 0.098
Secondary Jet Diameter: 0.101
Grade Type: Performance
Adjustable Float Level: No
Main Venturi Diameter: 1.190
EGR Port: No
RGL: WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Maximum Flow Rating: 600
Body Material: Aluminum
Base Width: 5.937
Small Venturi Diameter: 1.560
Mounting Hole Quantity: 8
Base Length: 6.25
