Edelbrock 8190 - Fuel Pressure Regulator 4-1/2 to 9 PSI Satin Finish
Edelbrock | SKU:
EDEL-8190
Sale price
$14995
Regular price
$16494
Unit price
/
Unavailable
$14.99 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

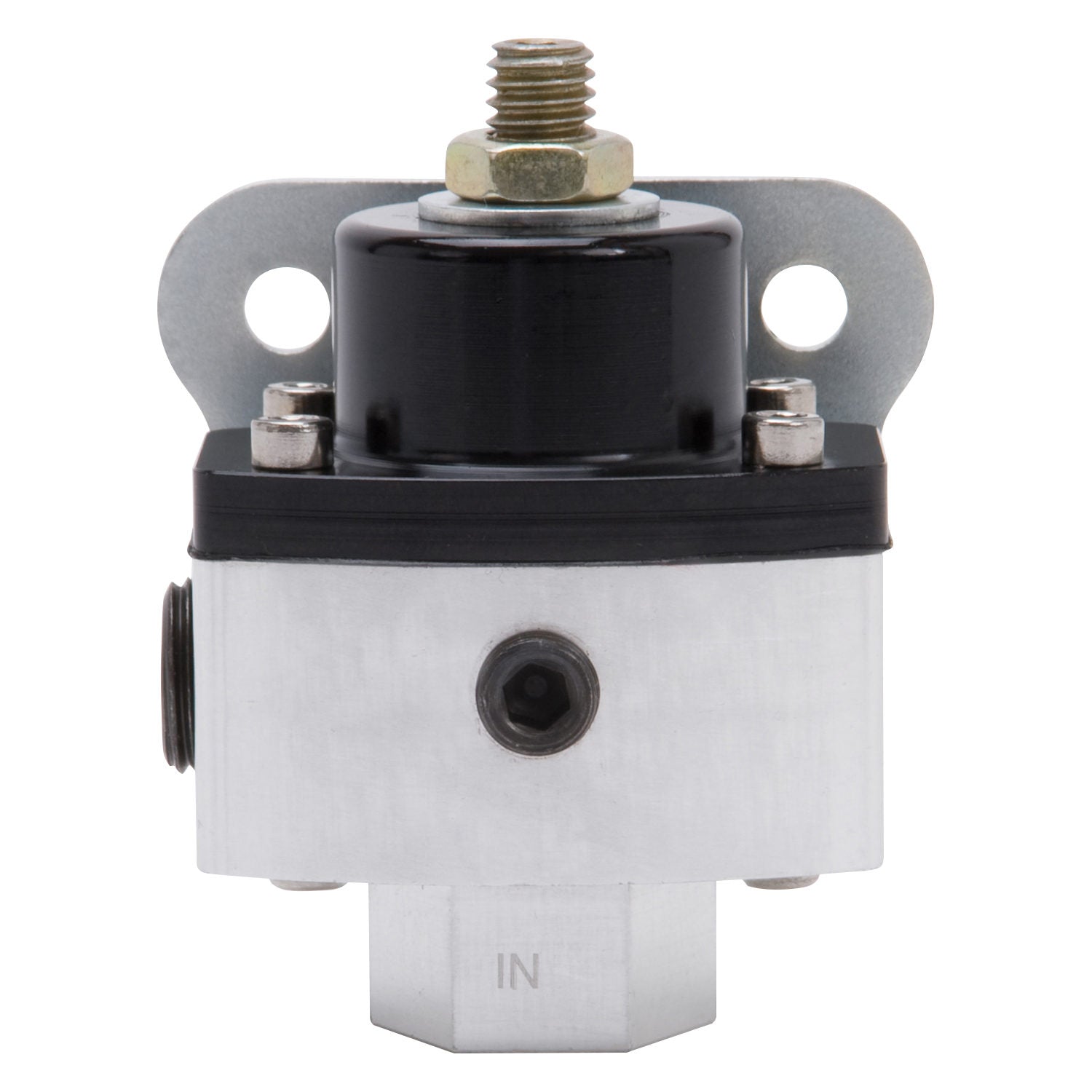

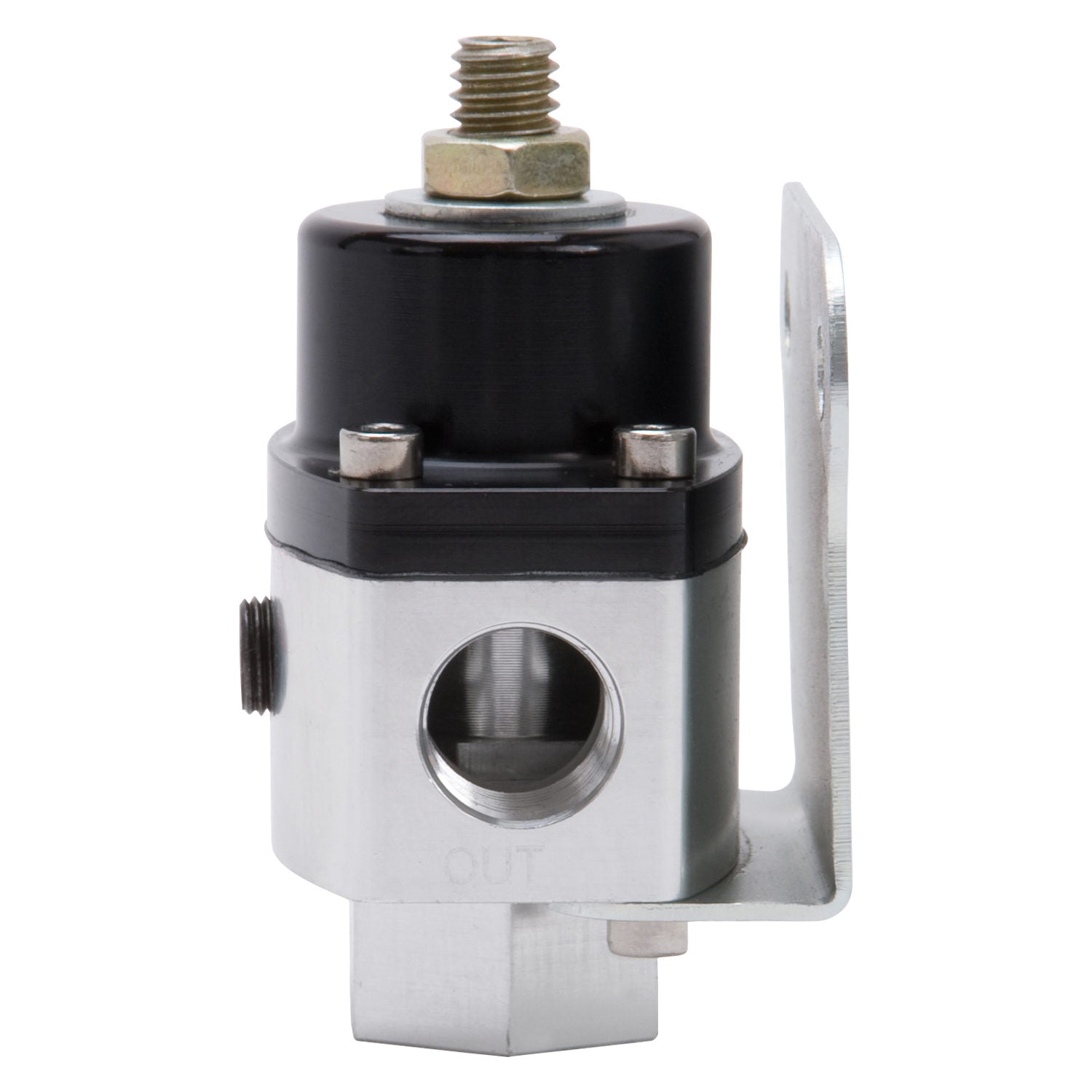

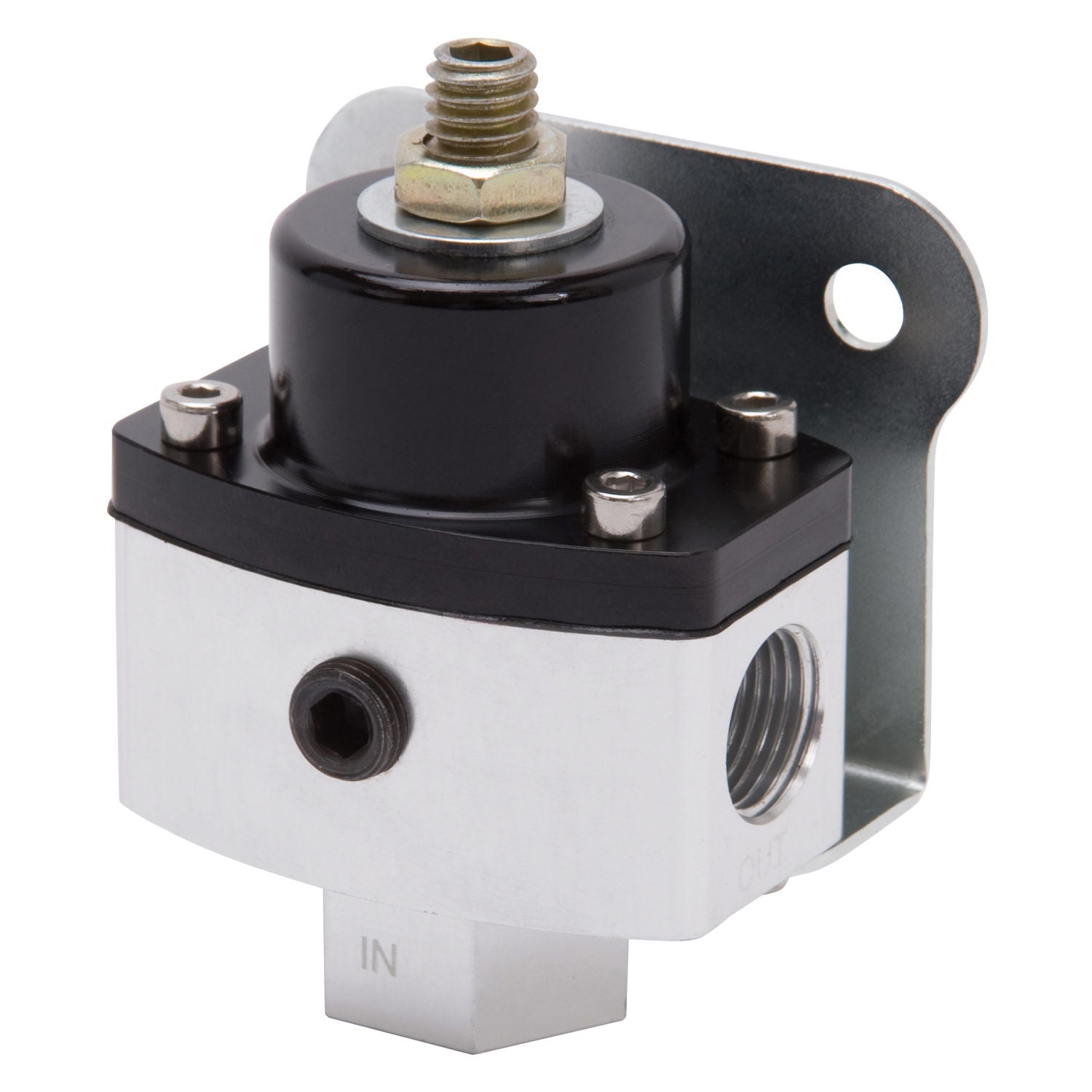

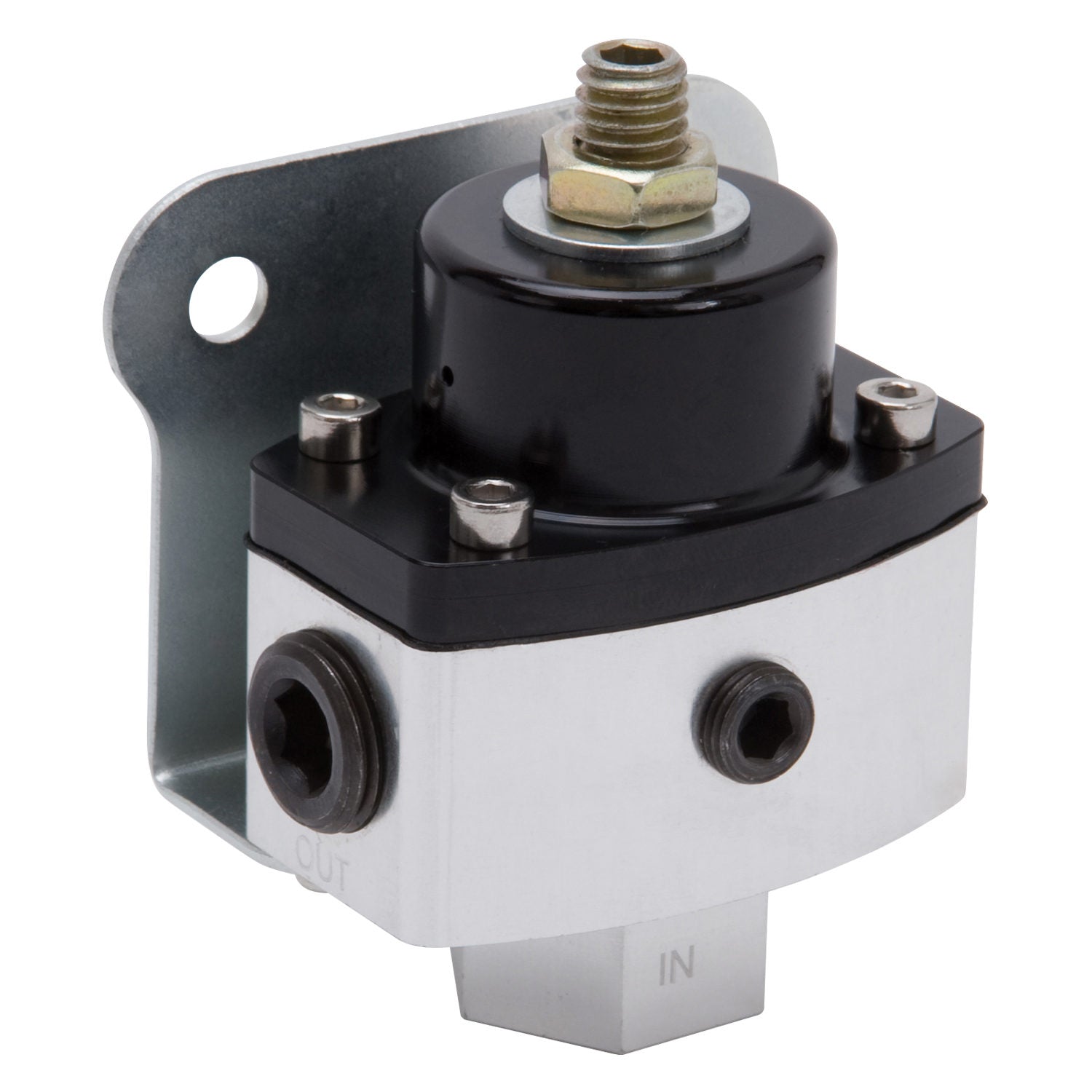

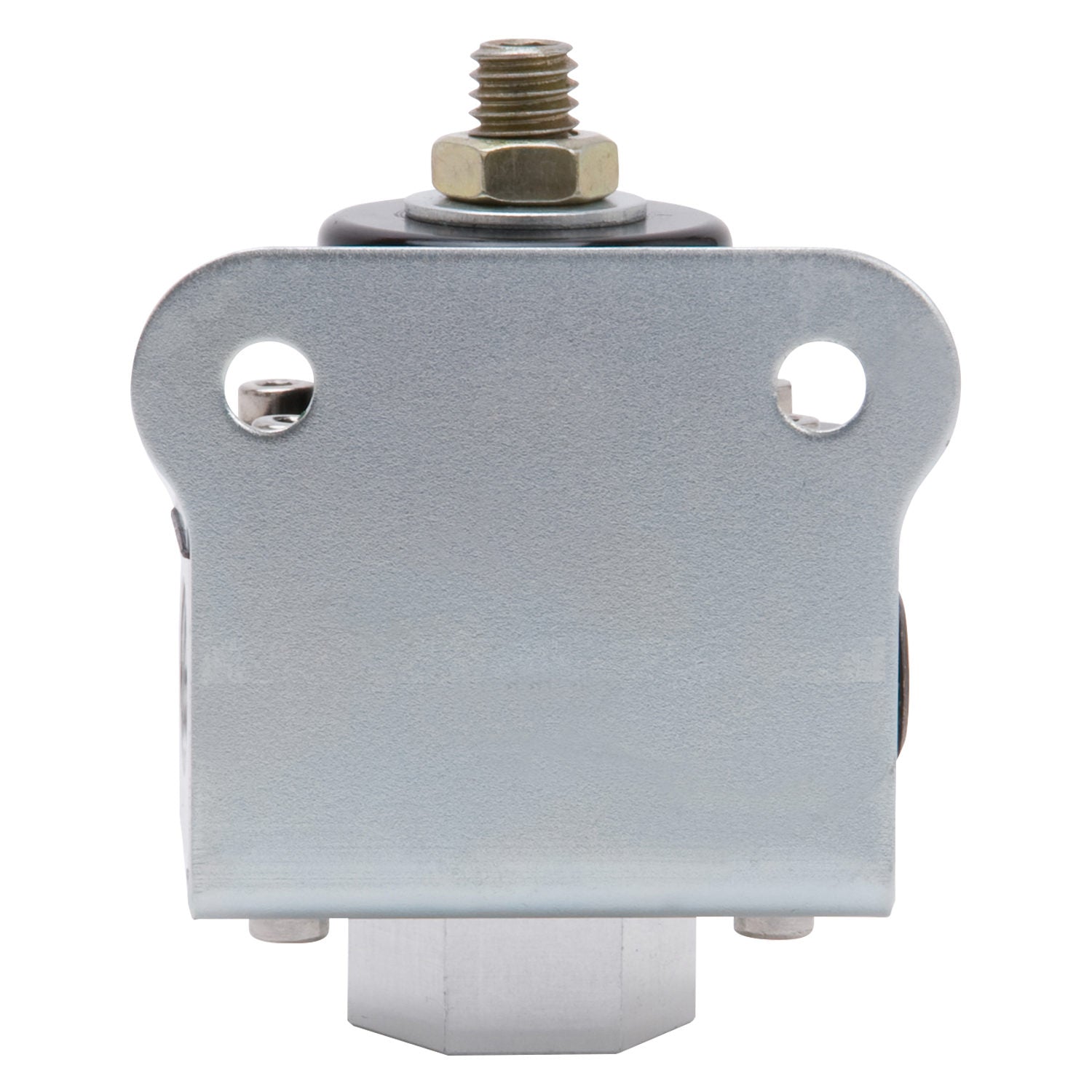

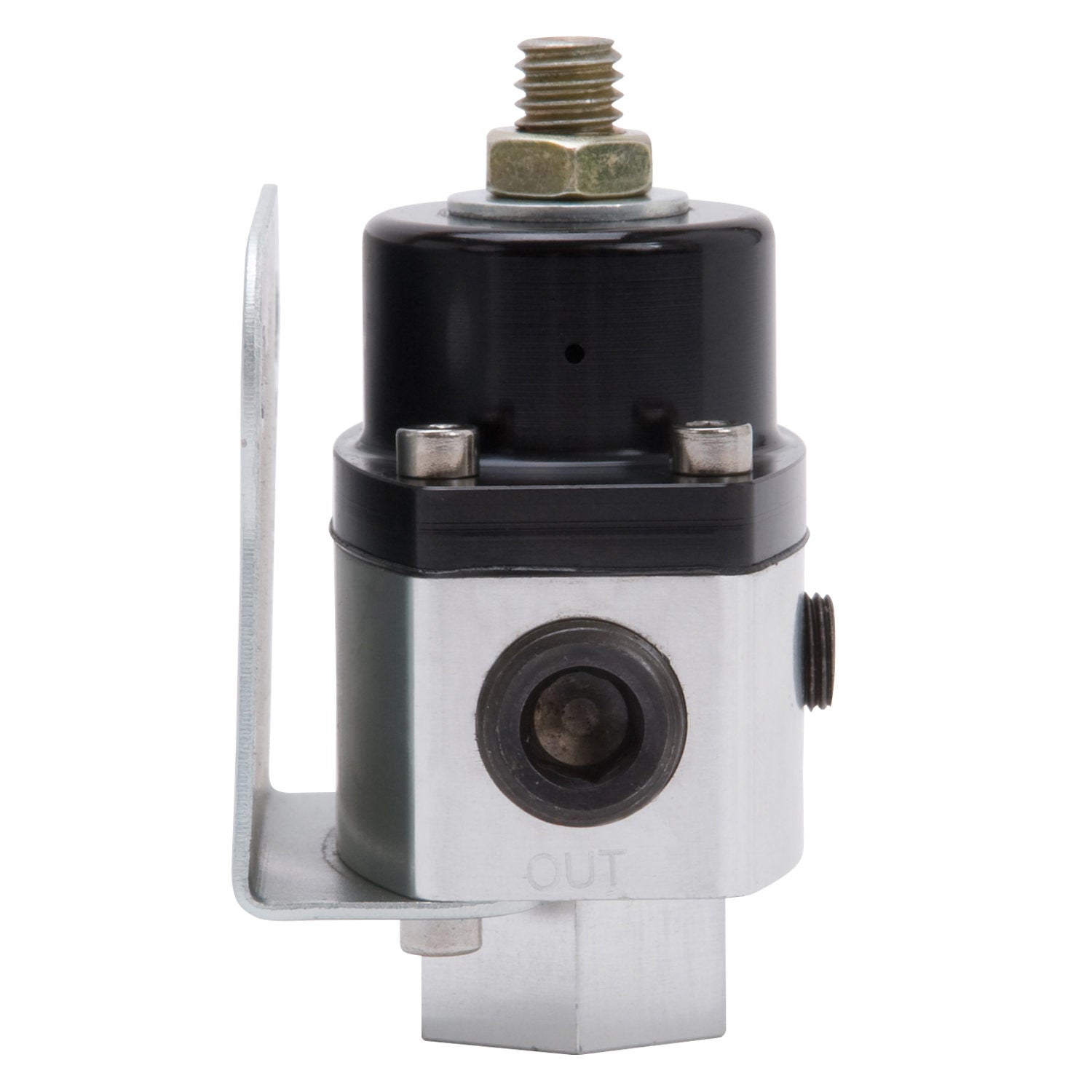

Edelbrock 8190 - Fuel Pressure Regulator 4-1/2 to 9 PSI Satin Finish
Fuel Pressure Regulator - 4-1/2 to 10 psi - In-Line - 3/8 in NPT Inlet - Dual 3/8 in NPT Outlets - Aluminum - Black / Clear Anodized - Gas - Each
Edelbrock Adjustable Billet Carbureted Fuel Pressure Regulator
The Edelbrock Fuel Pressure Regulator #8190 is for carburetor applications that require consistent pressure from 4-1/2 to 9 psi. It features two 3/8" NPT outlets, one 3/8" NPT inlet, 1/8" NPT gauge port and is adjustable from 5 to 12 psi. This regulator is manufactured from billet aluminum and features a Nylon-reinforced Nitrile diaphragm for excellent heat and leak resistance.
- Adjustable Fuel Pressure
- Use w/Holley Standard-Flange Duel-Feed
- Use With 4500-Series Carbs
Port Quantity: 4
Outlet Port Diameter: 0.375
RGL: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Inlet Type: Threaded
Mounting Type: Bracket
Inlet Port Diameter: 0.375
Outlet Type: Threaded
