Edelbrock 79949 - Cylinder Head E-Cnc 212 GM Gen IIi Ls Complete

Edelbrock  |  SKU: EDEL-79949
Sale price $1,80599 Regular price $1,98659

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

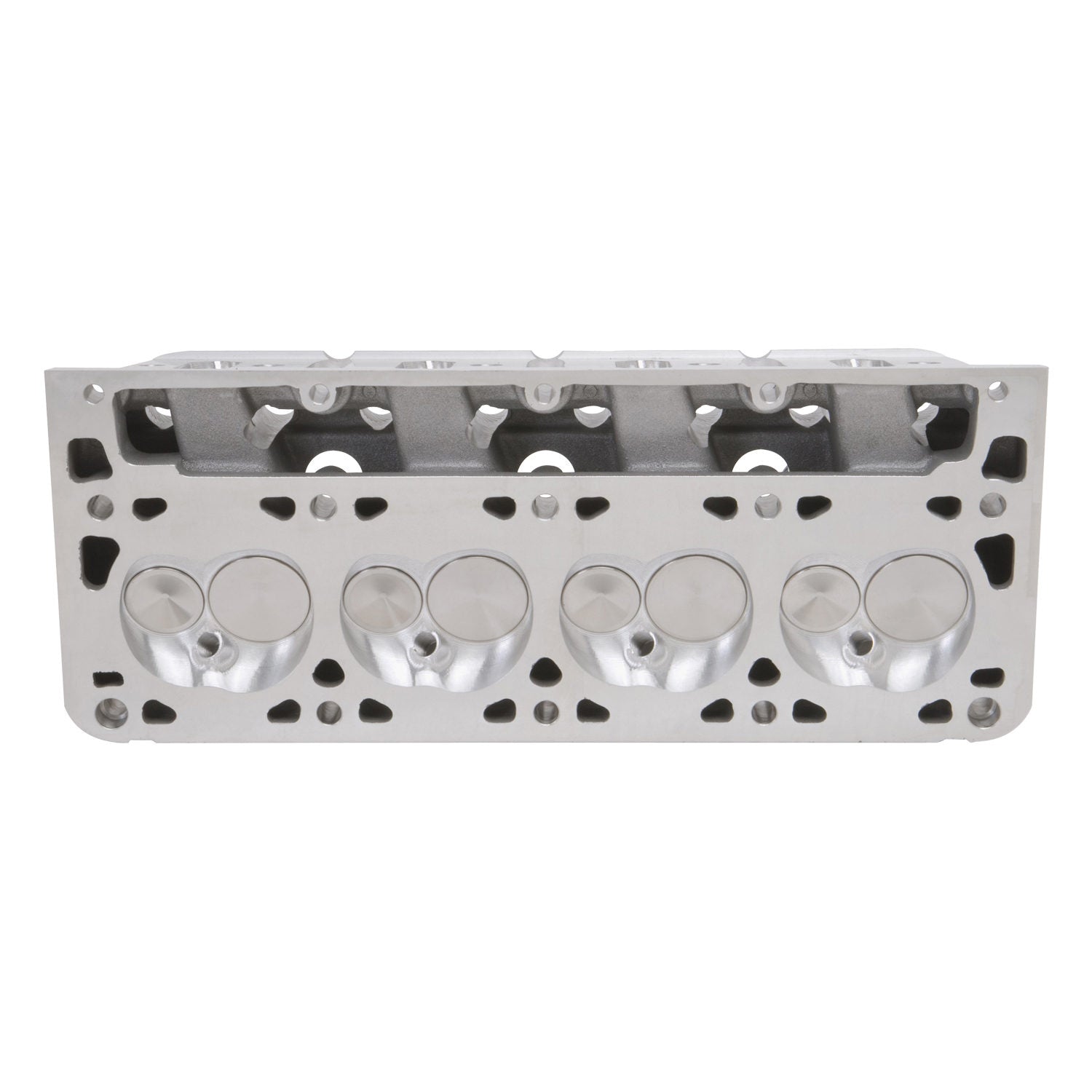

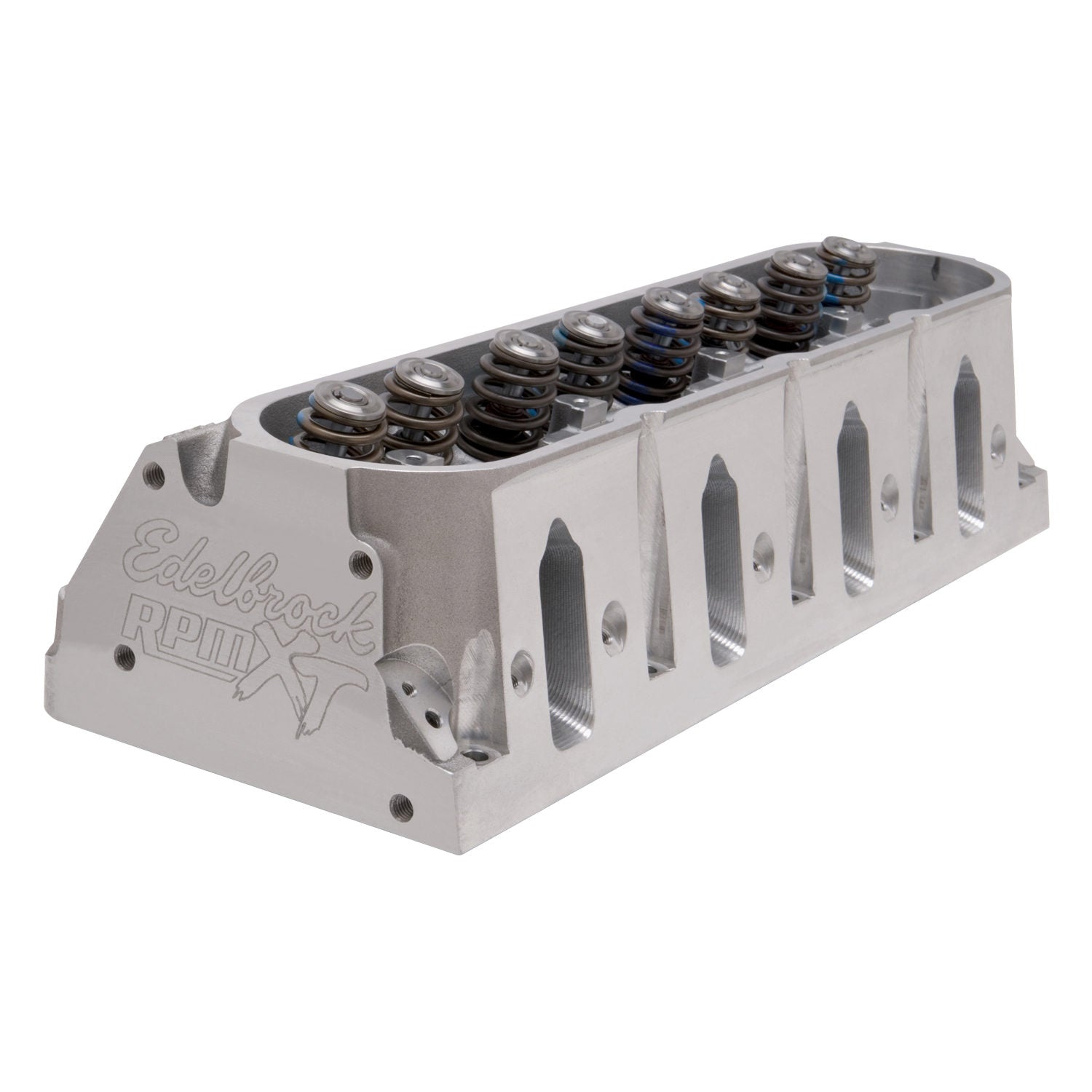

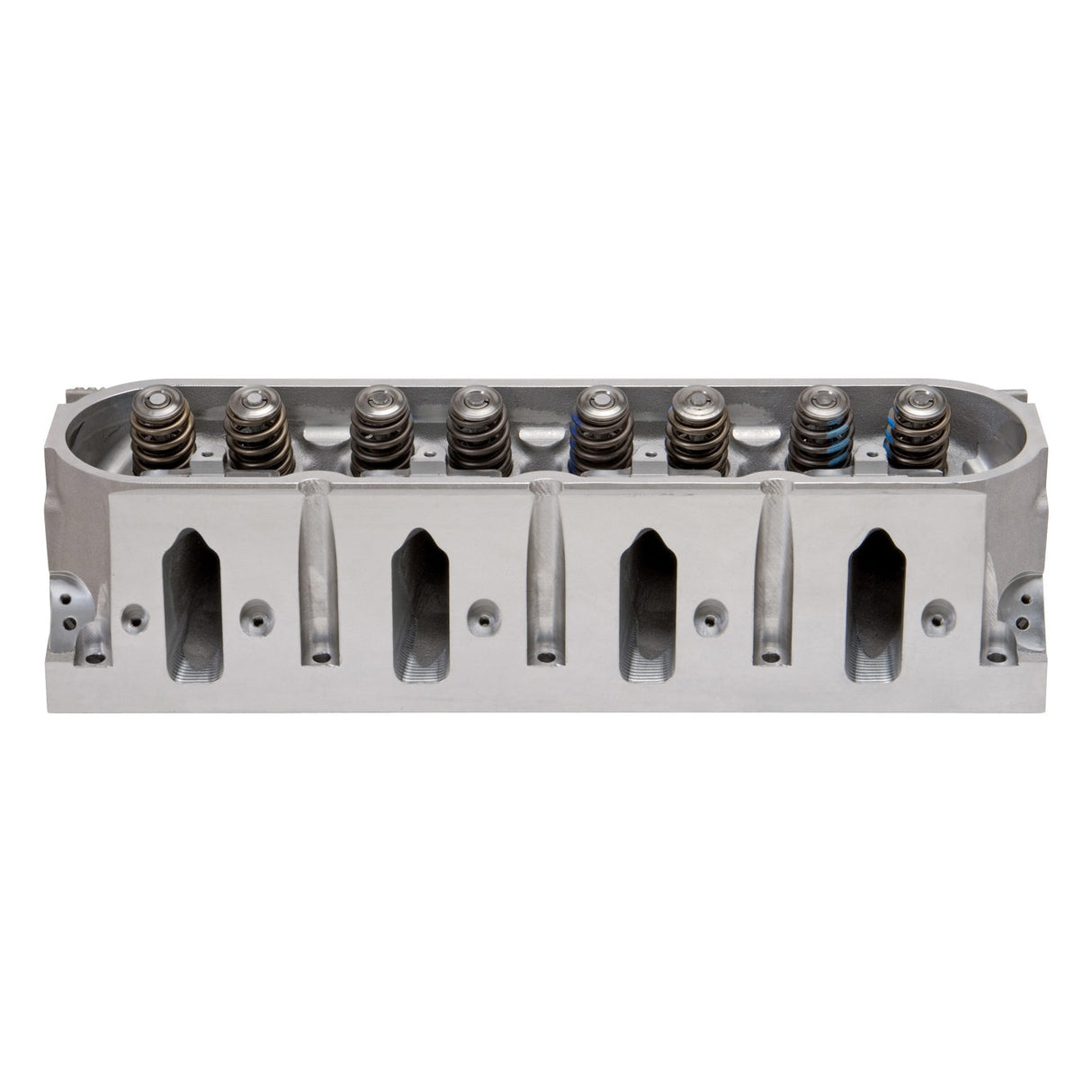

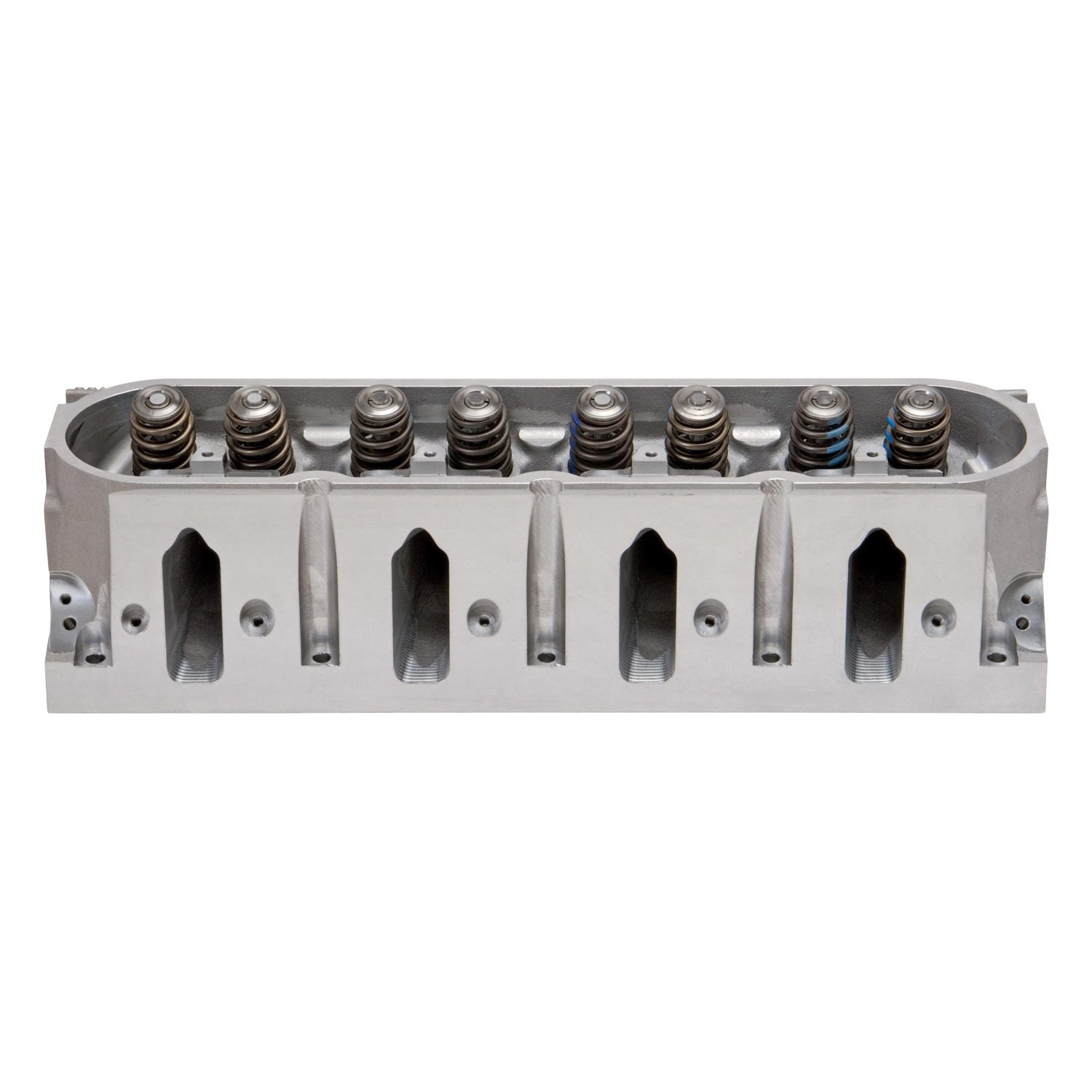

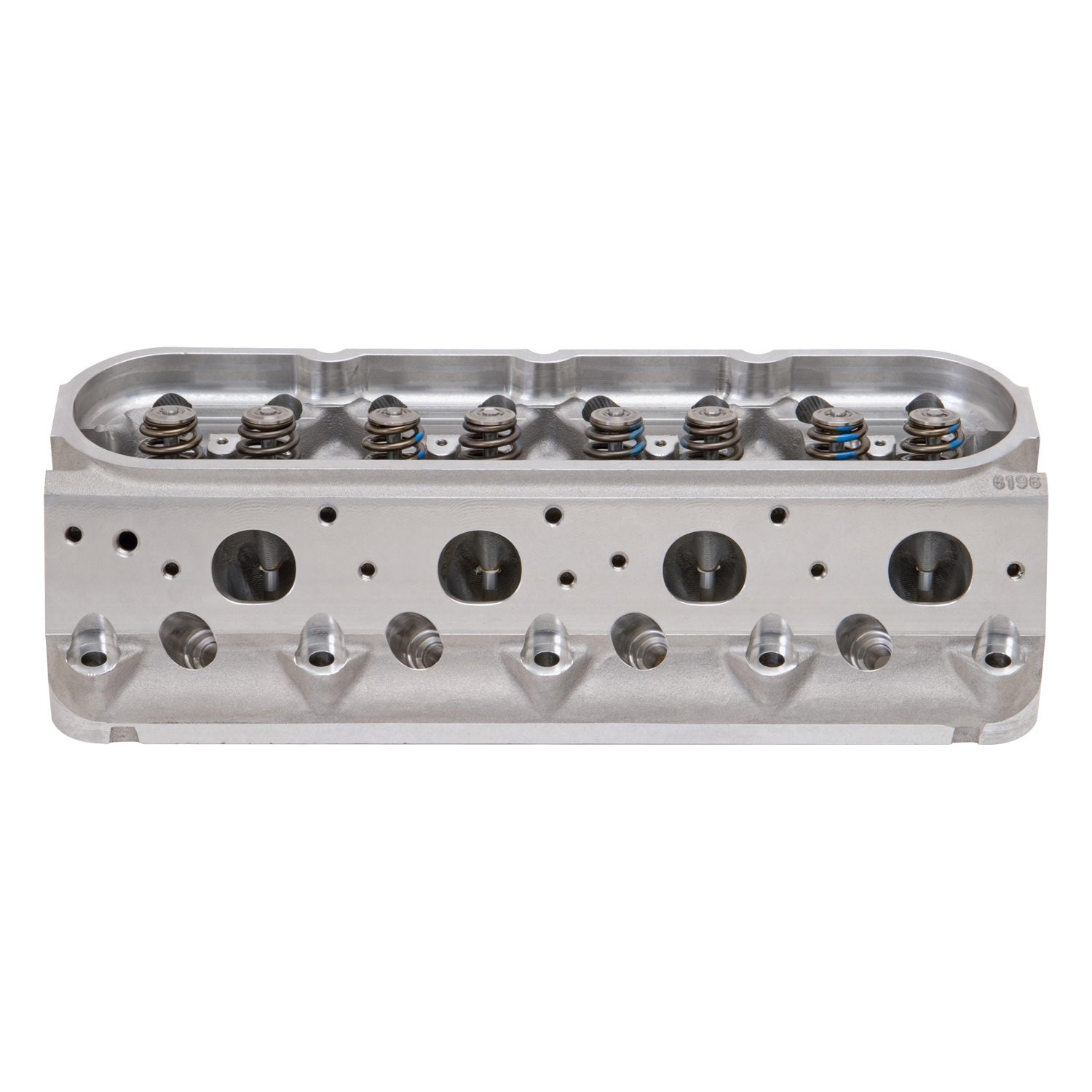

Edelbrock 79949 - Cylinder Head E-Cnc 212 GM Gen IIi Ls Complete

E-CNC Gen III LS Chevy Cylinder Head Hydraulic Roller Camshaft

Edelbrock part #79949 E-CNC Small Block Chevy GEN 3 & 4 LS cylinder heads were designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L.

The Edelbrock 79949 E-CNC Small Block Chevy GEN 3 & 4 LS cylinder head are designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L. The E-CNC Cylinder Head feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow. Dyno tests proved this head is capable of 457 hp & 438 ft-lbs. of torque. High-quality conical beehive springs are secured with steel retainers and valve locks for performance up to .600" valve lift. Match with any one of Edelbrock's LS series intake manifolds and camshafts for a dyno-proven performance combination. Rocker bolt kit #8597 includes 8 rocker bolts that are shorter than stock to prevent the bolts from protruding into the intake ports. E-CNC 215 head is 50-state street legal.

  • CNC Ported To Achieve Optimal Air Flow
  • For Maximum Horsepower And Torque
  • For High Performance Street/Light Duty Racing
Valve Lock Material: Chromoly Steel
Valve Cover Gasket Included: No
Rocker Arms Included: No
Rocker Arm Studs/Bolts Included: No
Material: Aluminum
Mounting Hardware Included: No
Intake Runner Volume: 215
Head Casting Number: 31-6196
Guide Plates Included: No
Grade Type: Performance
Deck Height: 9.24
Cylinder Head Gasket Included: No
Combustion Chamber Volume: 65
Assembled: Yes
Valves Included: Yes
Valve Lock Material: Steel
Series: E-CNC
Quantity: Sold Individually
Valve Stem Diameter: 0.314961
Retainer Included: Yes
Valve Angle: 15
Exhaust Port Location: Standard
Valve Spring Diameter: 1.30
CNC Ported: Yes
Exhaust Runner Volume: 76
Horsepower: 400-500
Construction Type: Complete
Guide Material: Manganese Bronze
RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Family: E-CNC
Push Rod Diameter: (Suggested) 0.3125
EGR Port: No
Exhaust Valve Diameter: 1.57
Seat Angle: Exhaust 45 deg/Intake 45
Seat Material: Ductile Iron
Deck Thickness: 0.625
Intake Valve Diameter: 2.02
9040: D-215-70
Camshaft Type: Hydraulic Roller
Valve Spring Maximum Lift: 0.680
Valve Springs Included: Yes
Valve Spring Retainers Included: Yes
Valve Seals Included: Yes
Valve Locks Included: Yes
